Coats | SKU: CHD6330-220V3

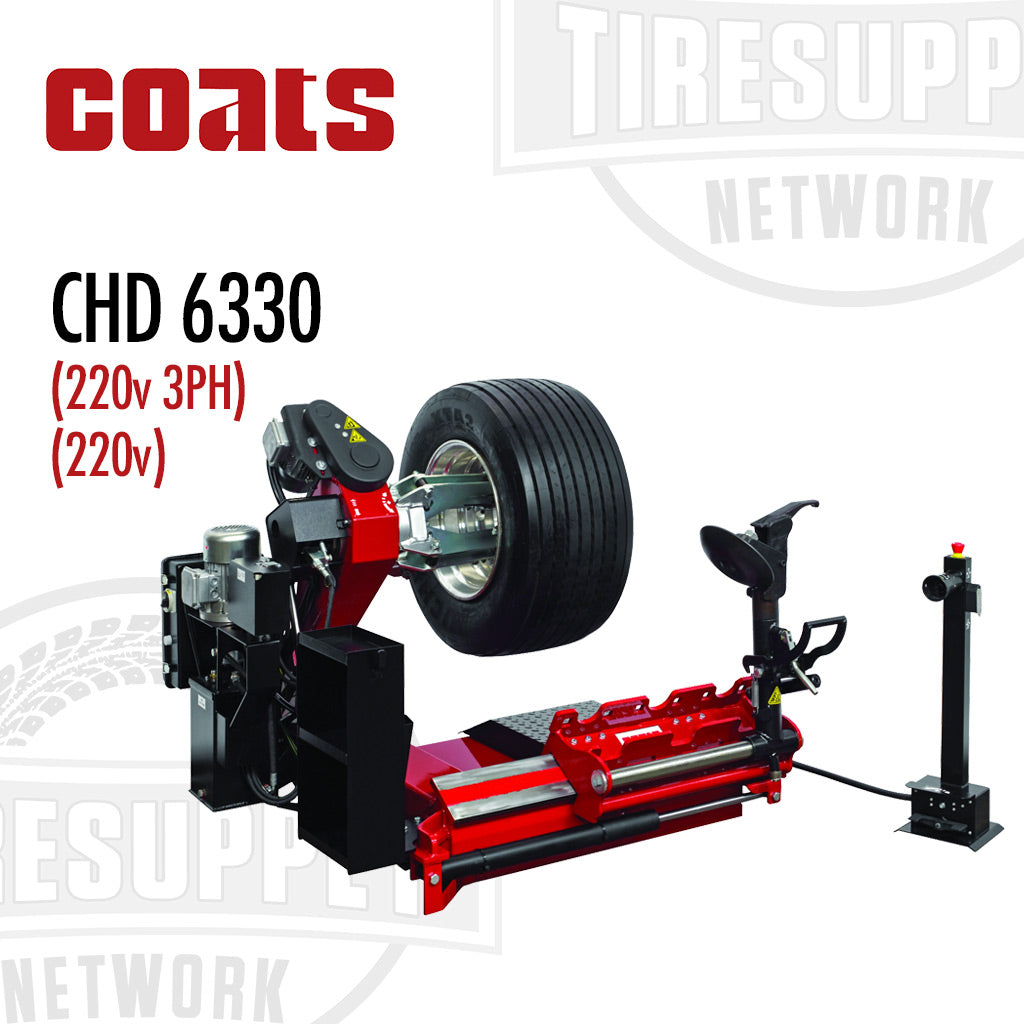

Coats CHD 6330 | Heavy Duty Tire Changer - Electric

$22,500.00 $25,000.27

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $312.50 for 72 months Finance Now!

Choose Motor

220v / 3ph 220v

Product variants

This item

Coats CHD 6330 | Heavy Duty Tire Changer - Electric

$22,500.00

Qty

Coats CHD 6330 | Heavy Duty Tire Changer - Electric 220v 3PH (CHD6330-220V3), 220v (CHD6330-220V)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

🏁TSN TIP :

The CHD 6330 is the most compact model in the CHD family and is an excellent choice for commercial truck dealerships, fleet maintenance facilities, and shops servicing smaller off-road equipment. Compared with the larger CHD 9041 and CHD 9551, the CHD 6330 prioritizes maneuverability and simplicity while still handling a wide range of heavy-duty applications. If your shop primarily services truck tires, trailers, skid steers, and smaller agricultural equipment, the CHD 6330 is usually the most practical and economical solution.

It’s the most compact of the jaw-style clamping machines available today. This easy-to-learn model is designed for shops with moderate to high volume with a wide range of applications.

Four-jaw chuck allows fast and easy clamping of virtually all rim styles, including de-mountable, reverse disc, standard disc, and off-road style wheels
Floating jaws match wheel contours for excellent grip and safety
Solid, single-piece frame for added capacity and reliability
Portable wired control unit lets you work from the best angle at all times
Handles rims from 13” to 27” and tires up to 63” in diameter and 30.5” wide

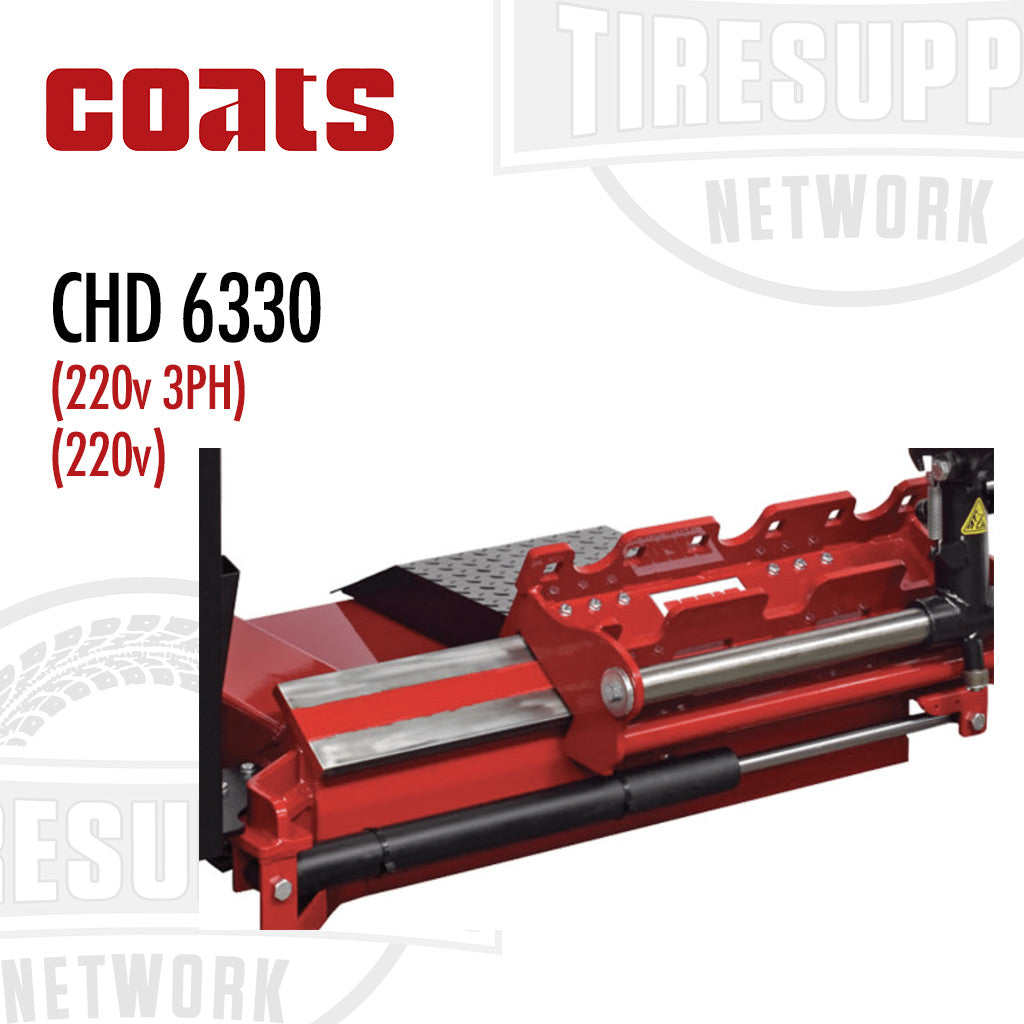

Single Piece Frame: Solid, single piece frame construction was chosen for added capacity and dependability. This easy-to-learn model is designed for shops with moderate to high volume with a wide range of applications.

Four Jaw Chuck: The four-jaw chuck allows for fast and easy clamping of virtually all rim styles, including de-mountable, reverse disc, standard disc, and off-road style wheels.

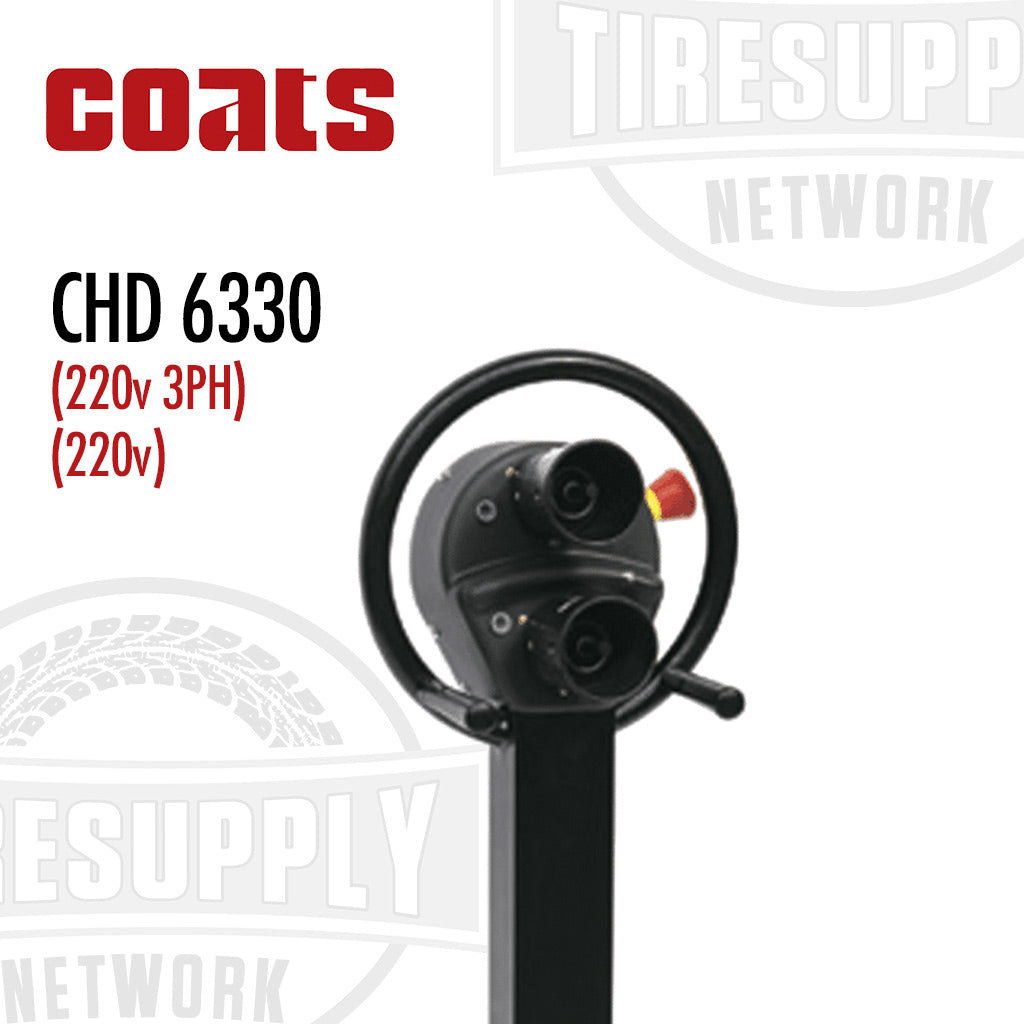

Portable Wired Control Station: A portable control station allows you to always work from the best angle.

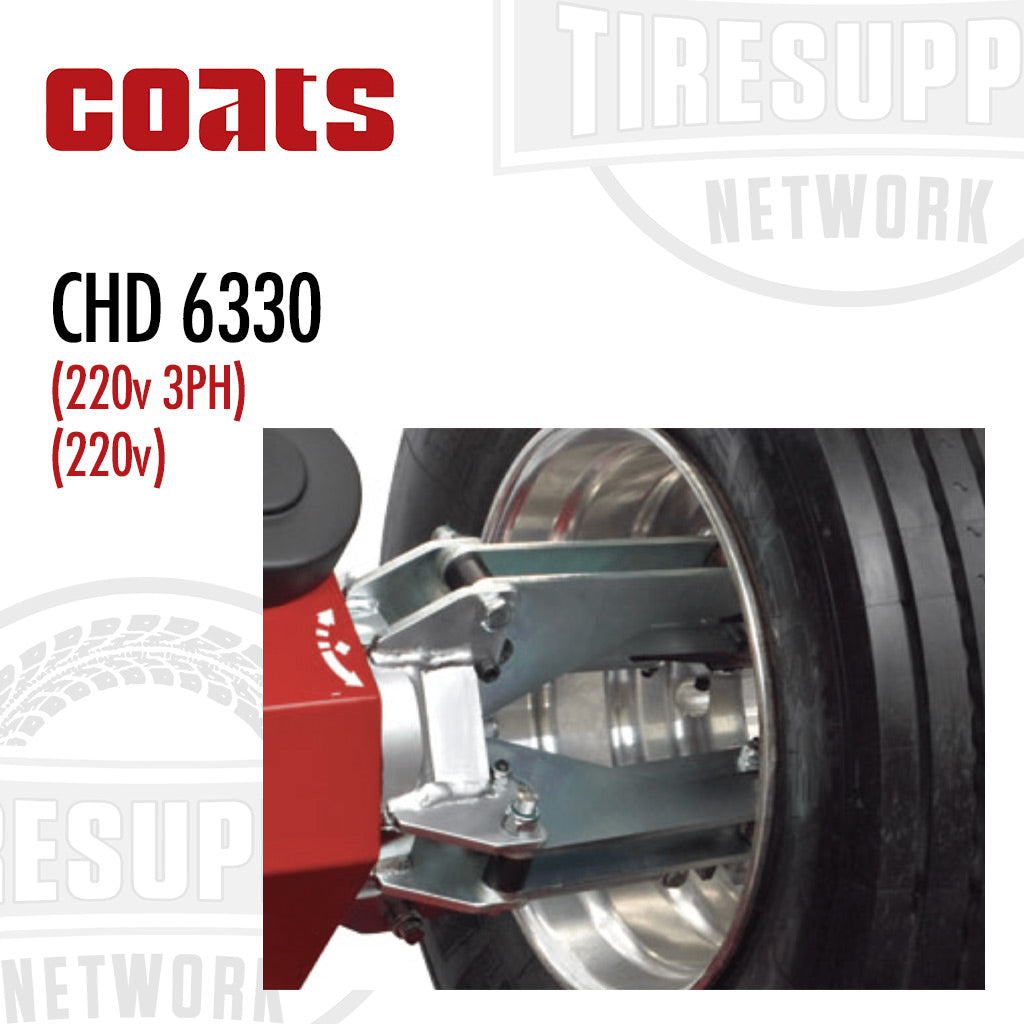

A Perfect Match: The floating jaws match wheel contours for excellent grip and safety.

Specifications:

Description	220v 3PH: 8006330 220v 1PH: 80063301PH
Max Tire Diameter	63" (1200mm)
Max Tire Width	30.5" (780mm)
Rim Diameter Range	13-27"
Electric Specifications	208-230VAC, 3ph, 60Hz, 15Amp
Hydraulic Motor Power	2.0HP (1.5kW)
Chuck Rotation Motor Power	1.5-2 HP (1.1-1.5 kW)
Max Chuck Torque	4816 ft/lbs (3552 Nm)
Clamping Power	7,407 lbs (3360 kg)
Chuck Rotation Speed	8-16 rpm
Max Wheel Weight	3300 lbs (1500 kg)
Acoustic Pressure	<70dBA
Single Piece Frame w/ Solid Floor-Plate	Yes
Tool Arm Positioning	Manual
Tool Head Positioning	Manual
Footprint (WxDxH)	69″w x 68.5″h x 50″d
Weight	1245 lbs (565 kg)
Warranty	1 Year Parts, 90 Days Labor

Standard & Optional Accessories:

Description	Part #1	4730	6330	9041	9043	9551
Small Double Tool	9209552	O	S	N/A	N/A	N/A
Large Double Tool		N/A	N/A	S	S	S **
Allow Tubeless Roller	9299274	N/A	N/A	O	O	O
Plastic Tubeless Roller	9209546	S	O	N/A	N/A	N/A
Bead Lifting Guide Bar (for agricultural tires)	9299269	N/A	O	O	O	O
Large Tire Bar	6601002	0 *	S	S	S	S
Small Tire Bar	3001061	0 *	S	S	S	S
Single G-Clamp (for steel wheels)	2001059	S	S	S	S	S
Single G-Clamp (for alloy wheels)	9299271	0	O	O	O	O
Pair of G-Clamps (for bead loosening on tube tires with rim ring)	9299273	N/A	N/A	O	O	O
Set of 4 clamping protectors (for allow wheels)	9299272	N/A	O	O	O	O
Set of 4 clamping extensions 47"- 56"	929970	N/A	N/A	O	O	O
Radio Remote Control Set	9299234	N/A	N/A	N/A	N/A	O
Set of Clamping Cones and Hub Nut		S	N/A	N/A	N/A	N/A
* (Included w/ 9209552)
** (Remote Operated)
