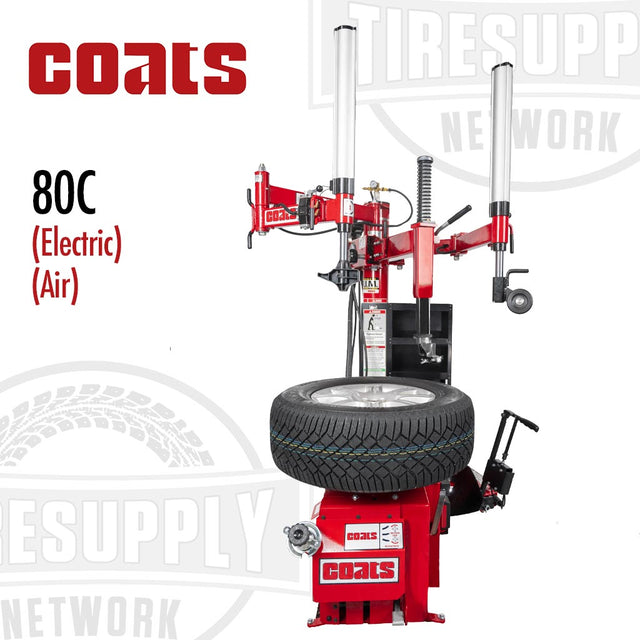

Coats | 80C Center Clamp Tire Changer with Robo-Arm Helper Device | Electric (80080CEH220) or Air Motor (80080CAH3)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The Coats 80C Center Clamp Tire Changer is the newest member of the Coats tire changer family, and builds on its legacy of durability, reliability, and upgradability. The 80C is an extension of the Coats swing-arm tire changer you have always known and trusted with new features such as a robust center lock mechanism with only two moving parts, a rugged 220V, 2 horsepower motor and completely redesigned convenience features.
These operator-focused features all come together to give you the best tire changer platform in the business. Operate your shop with confidence, and the speed you expect from a swing arm tire changer, but with the added peace of mind of a center clamp.
Center Locking Clamp Design: Easy to use center locking mechanism is fast, robust and helps prevent metal to metal contact with customer wheels.
RoboRoller® Powered Assist Arm: Air powered, articulating roller arm provides direct pressure on the bead to prevent it from rolling back over the mounting tool.
Upgraded Chassis Design: Wheel and tire service is a hard business. Get a tire changer that can take the abuse. 80C features a brand new chassis designed especially for high-volume, high-duty cycle tire shops that need to go the extra mile.
220V, 2 Horsepower Electric Motor: Rugged 220V, 2 horsepower motor for the tough work that you need to get done.
Auxiliary Bead Sealer (ABS): Concentrates air flow wherever it is needed on the assembly to seal beads more efficiently and eliminates excessive maintenance.
Hand-Actuated Bead Loosener: The bead loosener offers point-of-use controls to the technician, providing direct line of site, reducing the risk of wheel damage.
Included Accessories:
- Coats 85606545 Auxiliary Bead Sealer (ABS)
- (2) Coats 8183606 Bead Loosener Shoe Socks
- Coats 85009048 Paste Lube Bracket & Brush
- (2) Coats 83019057 Protection Cone for Center Lock
- Coats 8184432 Plastic Grey High-Spoke Duckhead® Mount/Demount Tool
- (2) Coats 8182961 Duckhead® Mount/Demount Tool Inserts
- (10) Coats 85000783 Lift Tool Socks
- Coats 83031335 Anti-Rotation Extension Pin
- Coats 83032475 Light Truck Cone Kit - 5.86" Center Bore
- (2) Coats 89231517 Rubber Protection Pad
- Coats 85610105 Premium Storage Cabinet
- Coats 85612559 Reverse Mount Adapter
Specifications:
| Coats Part Number | Electric Model: 80080CEH220, Air Model: 80080CAH3 |
| Wheel Handled |
Alloy and Steel for Car and Light Truck |
| Rim Diameter |
12″ - 30″ External |
| Maximum Tire Diameter |
50″ |
| Maximum Rim Width |
15″ |
| Bead Loosening System |
Hand Controlled, Up to 14″ Wide |
| Wheel Clamping System |
Center Clamp with Manual Lock |
| Mount/Demount Mechanism |
Swings Away for Better Access and Durability |
| Helper Devices |
Robo-Arm (18″ of Automated Vertical Stroke), RoboRoller |
| Bead Seating Air Volume |
5.4 Gallons in Tower |
| Inflation Gauge |
0 - 60 psi |
| Air Supply Gauge |
0 - 300 psi |
| Air Drive System |
1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only) |
| Electric Drive System | 2 HP Electric Motor, 220 V, 60 Hz, 14 Amp (Electric Model Only) |
| Footprint (WxDxH) | 74″ x 65″ x 88″ |
| Weight | 700 lbs |
| Warranty | 3 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
