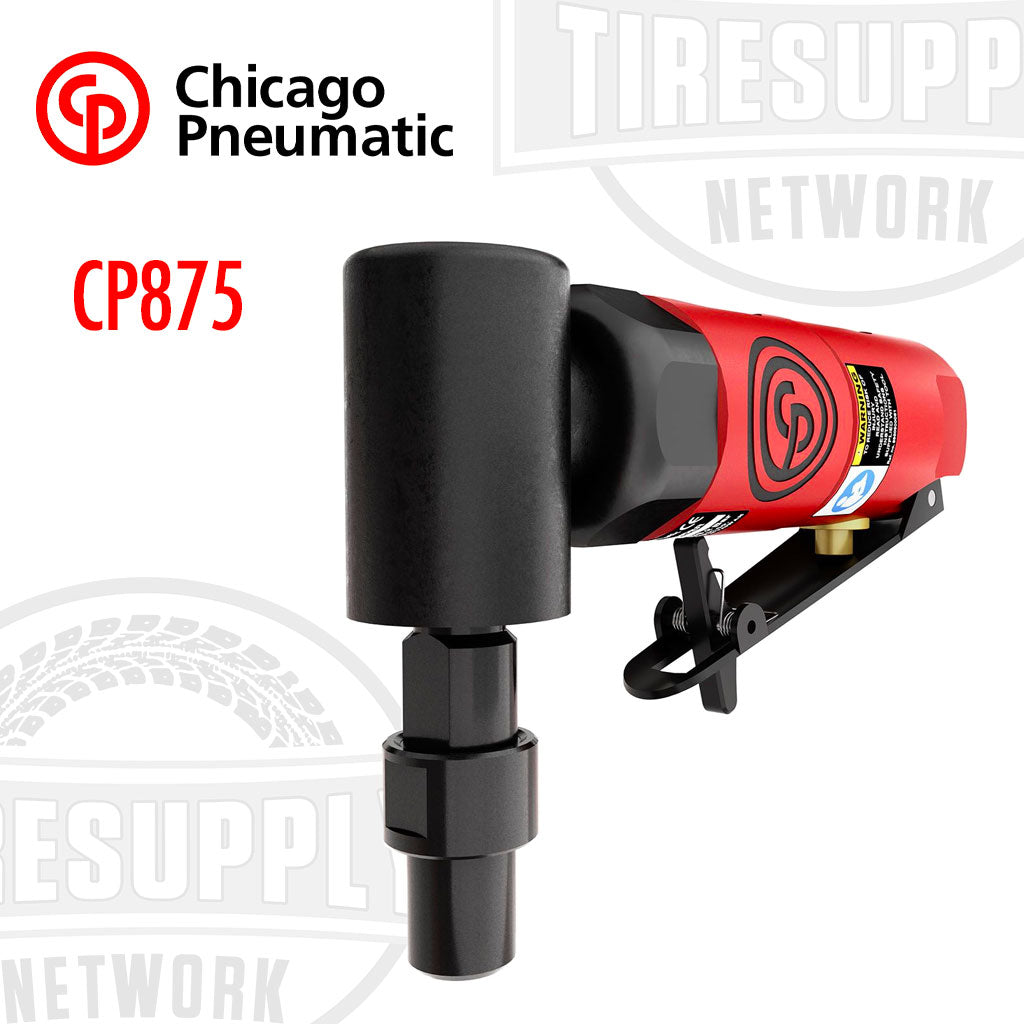

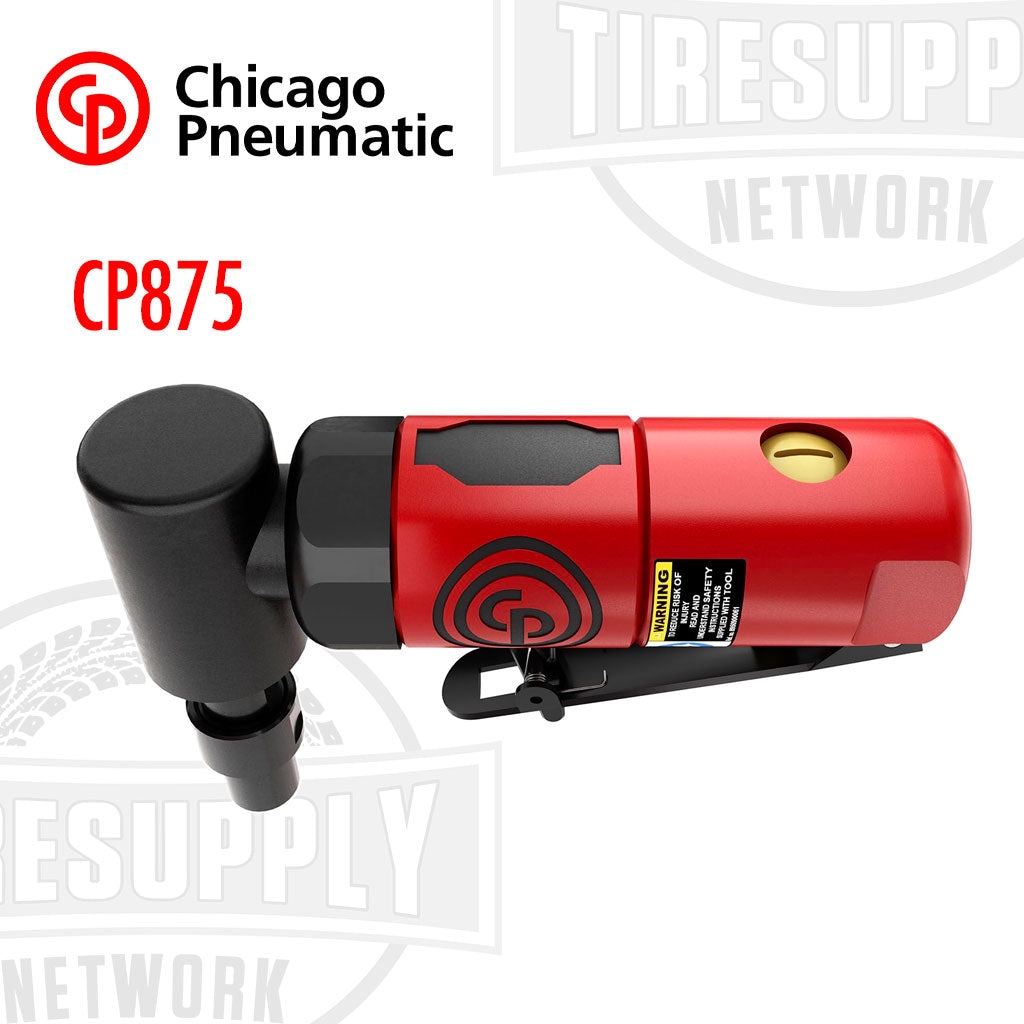

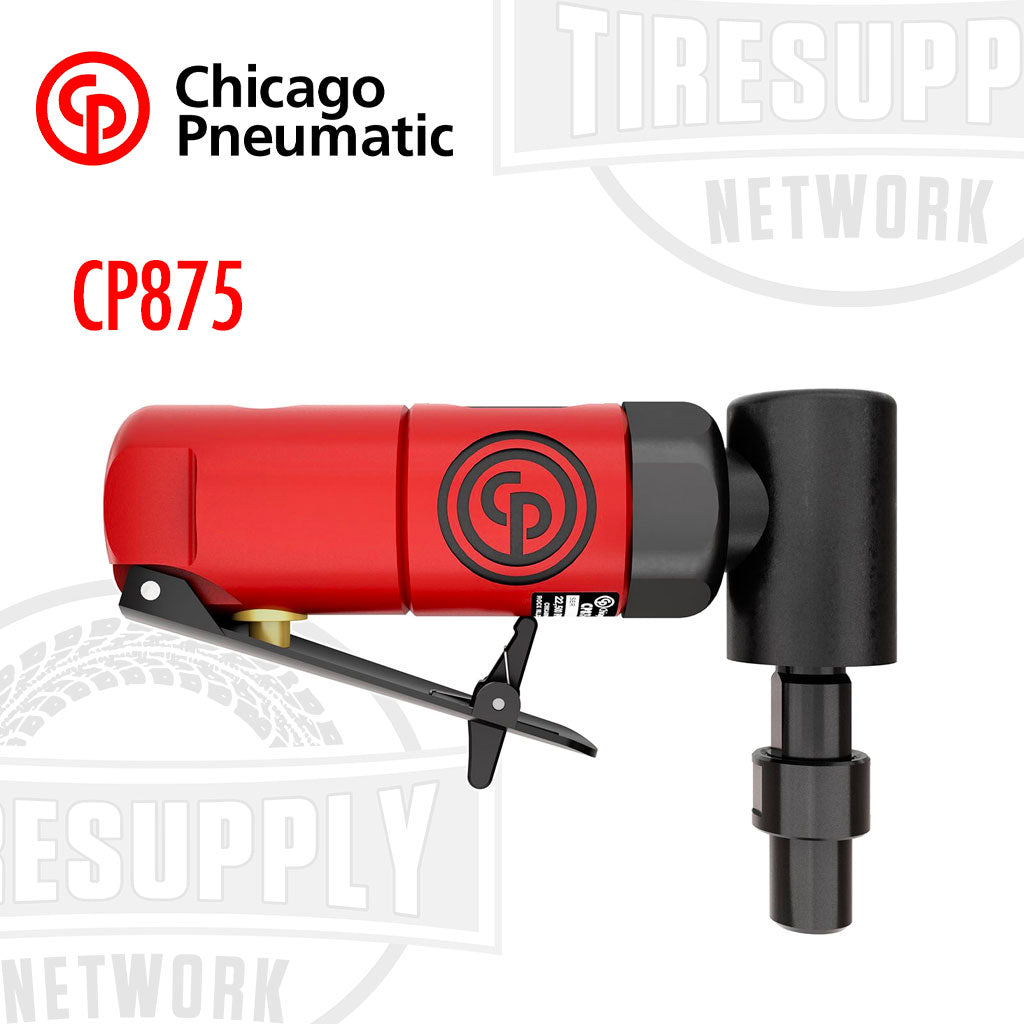

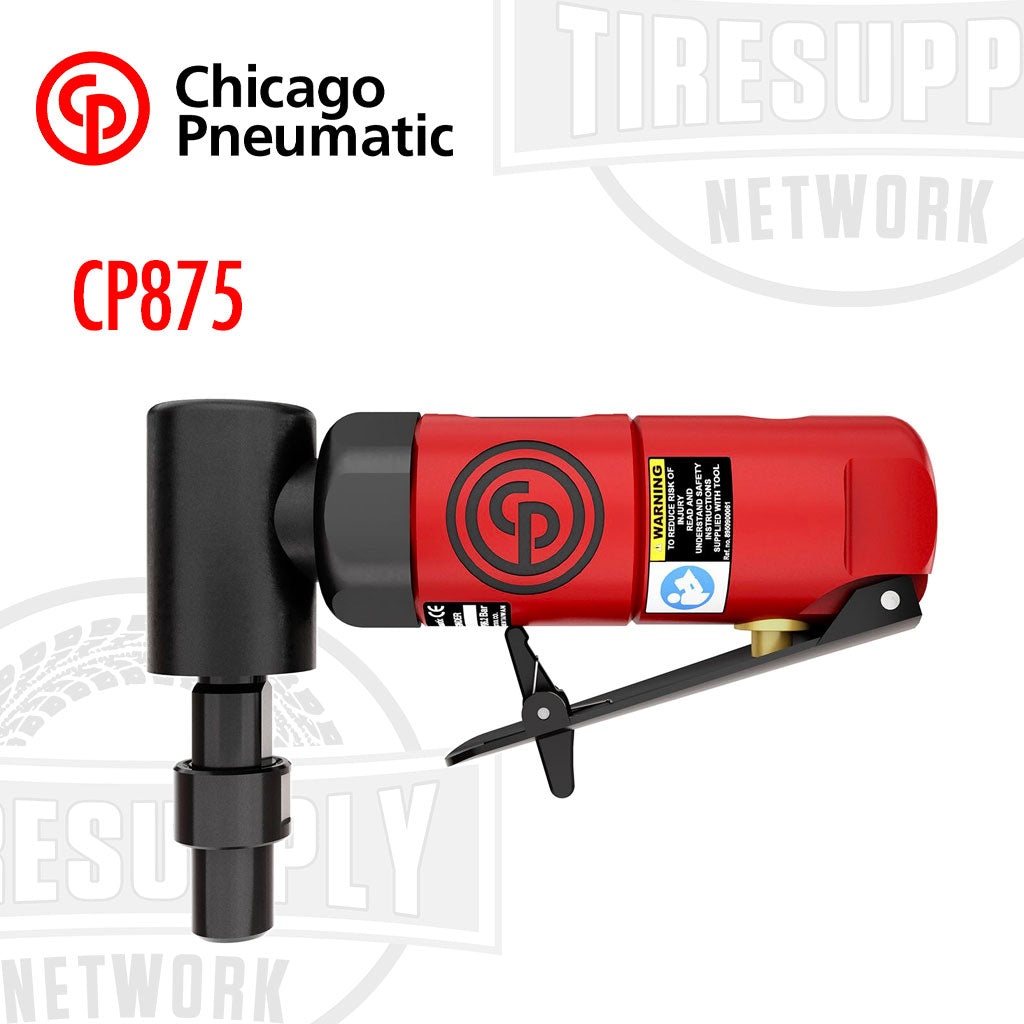

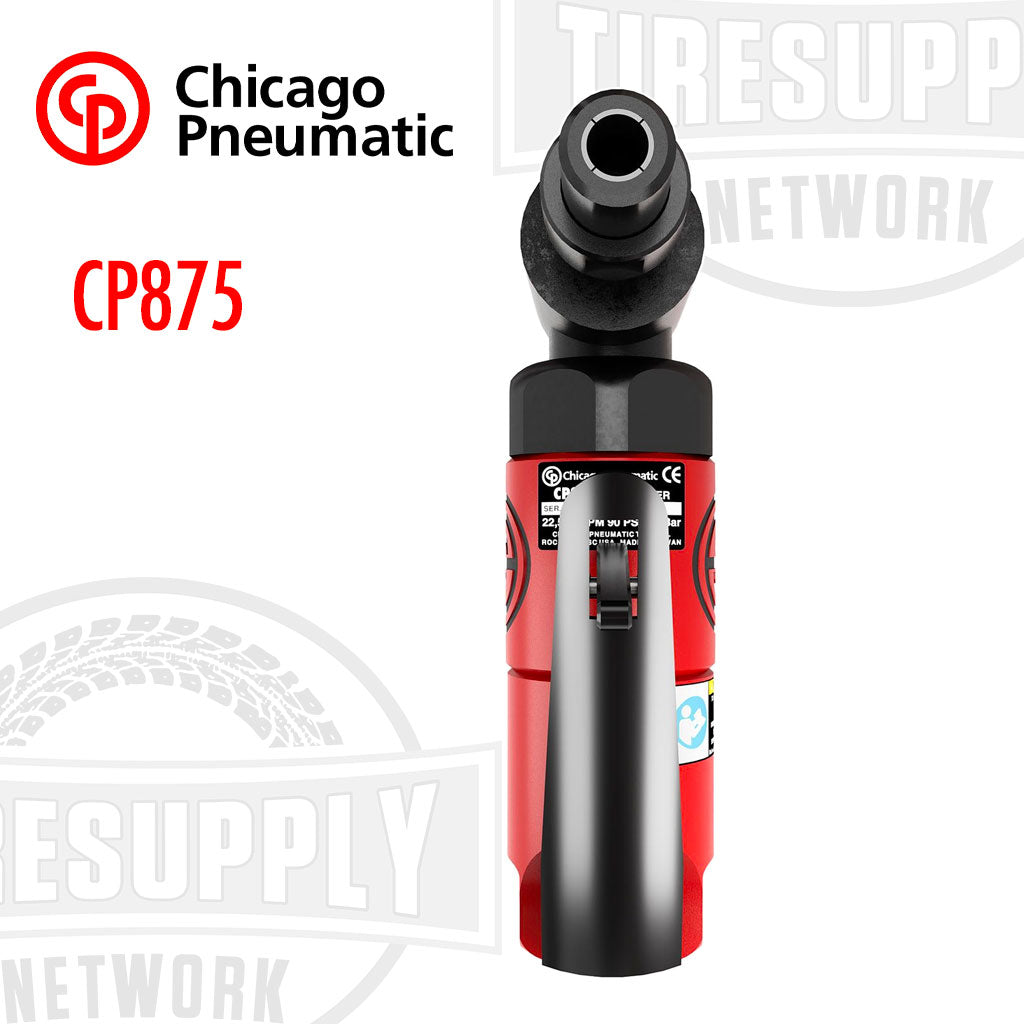

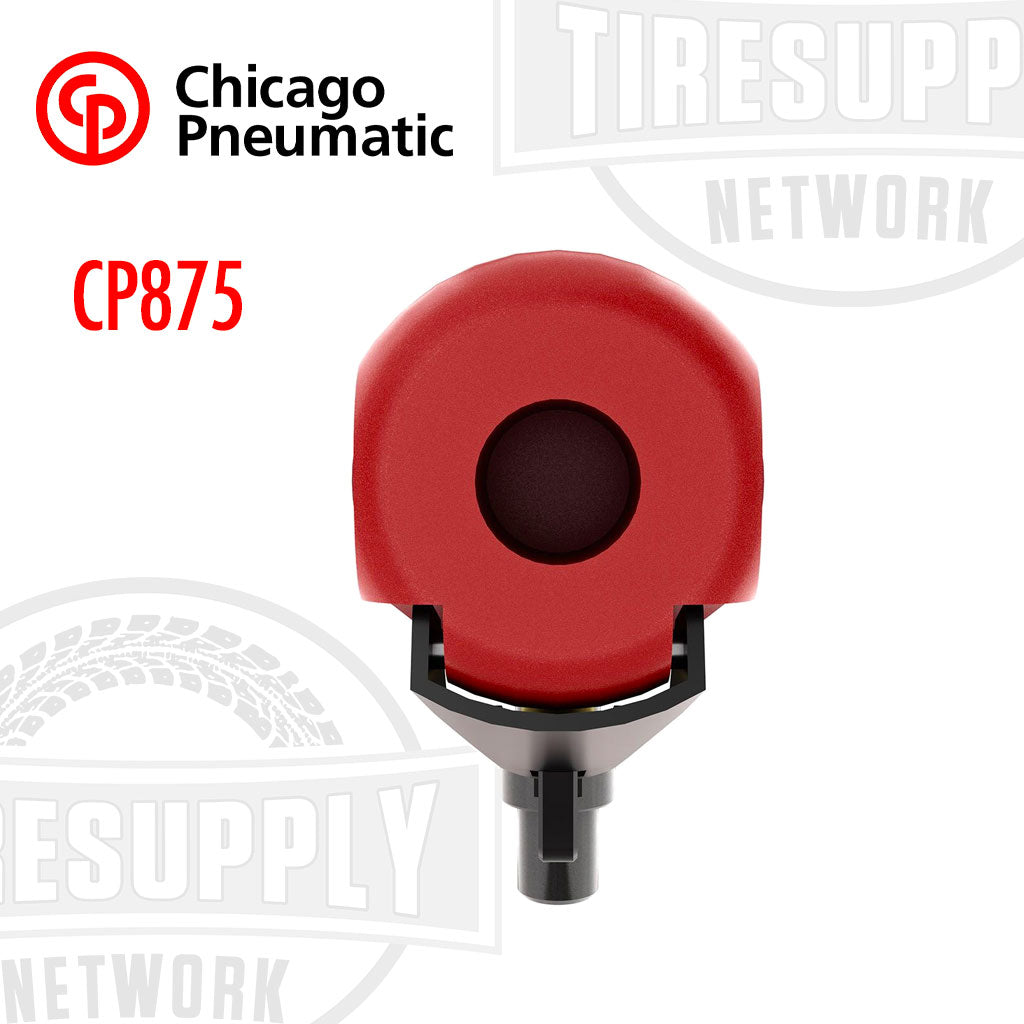

Chicago Pneumatic | Die Grinder (CP875)

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Chicago Pneumatic | Die Grinder (CP875)

Enjoy the benefits of this extremely compact die grinder CP875, designed for operators working in general maintenance and especially in tight spaces.

The CP875 series is designed for general maintenance in limited spaces. It has an integrated pneumatic regulator with a power of 0.3 hp (220 W). It is a very compact and lightweight tool, ensuring extreme maneuverability in high-speed grinding applications.


  • 90° angle head allows flexibility in tight areas
  • Compact and lightweight tool designed for easy maneuverability
  • Built-in air regulator
  • Includes 1/4" and 6 mm collets

Specifications: CP875

 Design & Functions Imperial Metric
Min hose diam (5m hose length) 10 mm 10 mm
Min hose diam (16ft hose length) .38 in .38 in
Vibration - -
Angle Type 90 90
Max Power .3 hp 220 w
Weight .99 lb .45 kg
Rotative Inlet No No
Length (L) 4.88 in 124 mm
Air Inlet Thread Type NPT NPT
Starting System Safety Lever Safety Lever
Spindle Lock No No
Air consumption at free speed 22 cfm 10 l/s
Air inlet thread size 1/4 in 1/4 in
Free Speed 22,500 rpm 22,500 rpm
Max dynamic air working pressure 91 psi 6.3 bar
Exhaust Rear Rear
Collet max capacity 1/4 in 6.4 mm
Governor type NA NA
Main material type Aluminum Composite Over Sleeve Aluminum Composite Over Sleeve

Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm -
