Champion | HGR7-3H Gas-Driven 13HP Air Compressor with Honda Engine (CAERSB)

Champion | HGR7-3H Gas-Driven 13HP Air Compressor with Honda Engine (CAERSB)

PLEASE NOTE: Call for shipping details in California.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

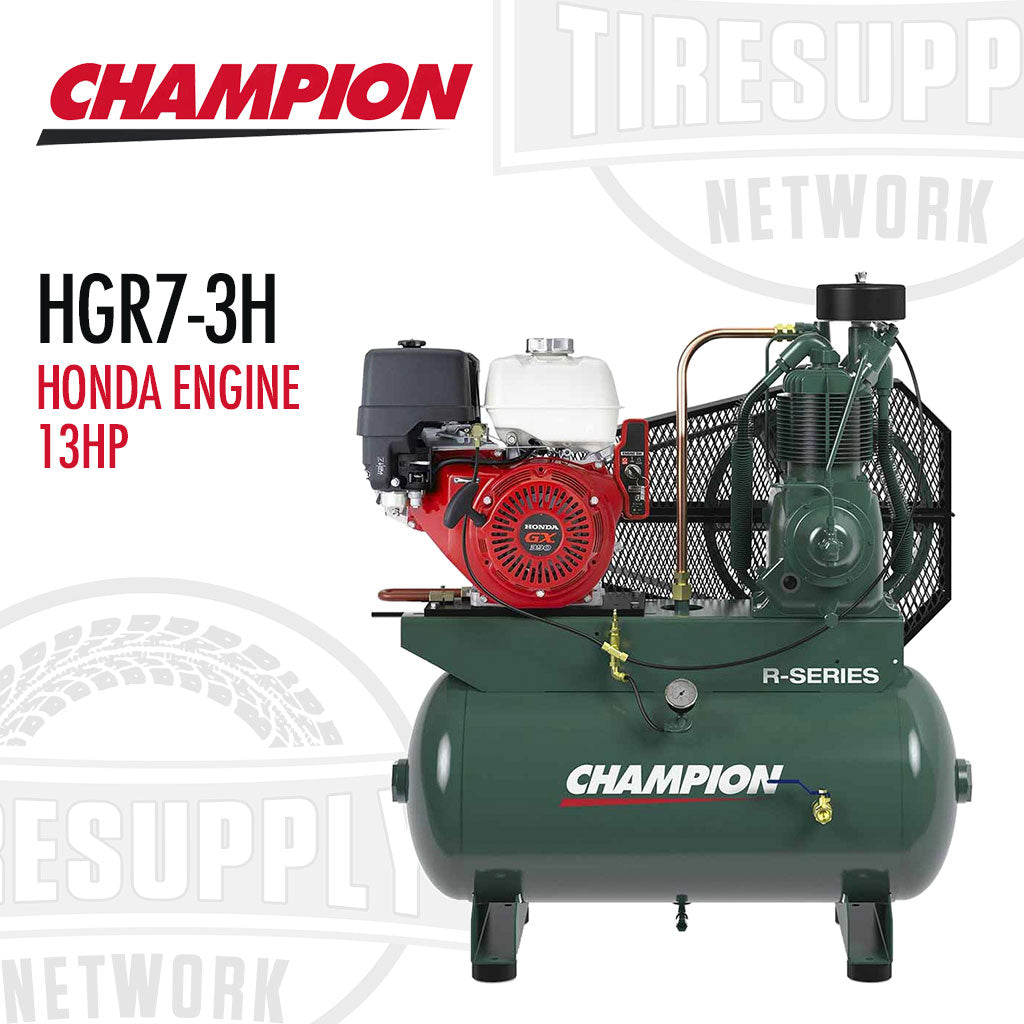

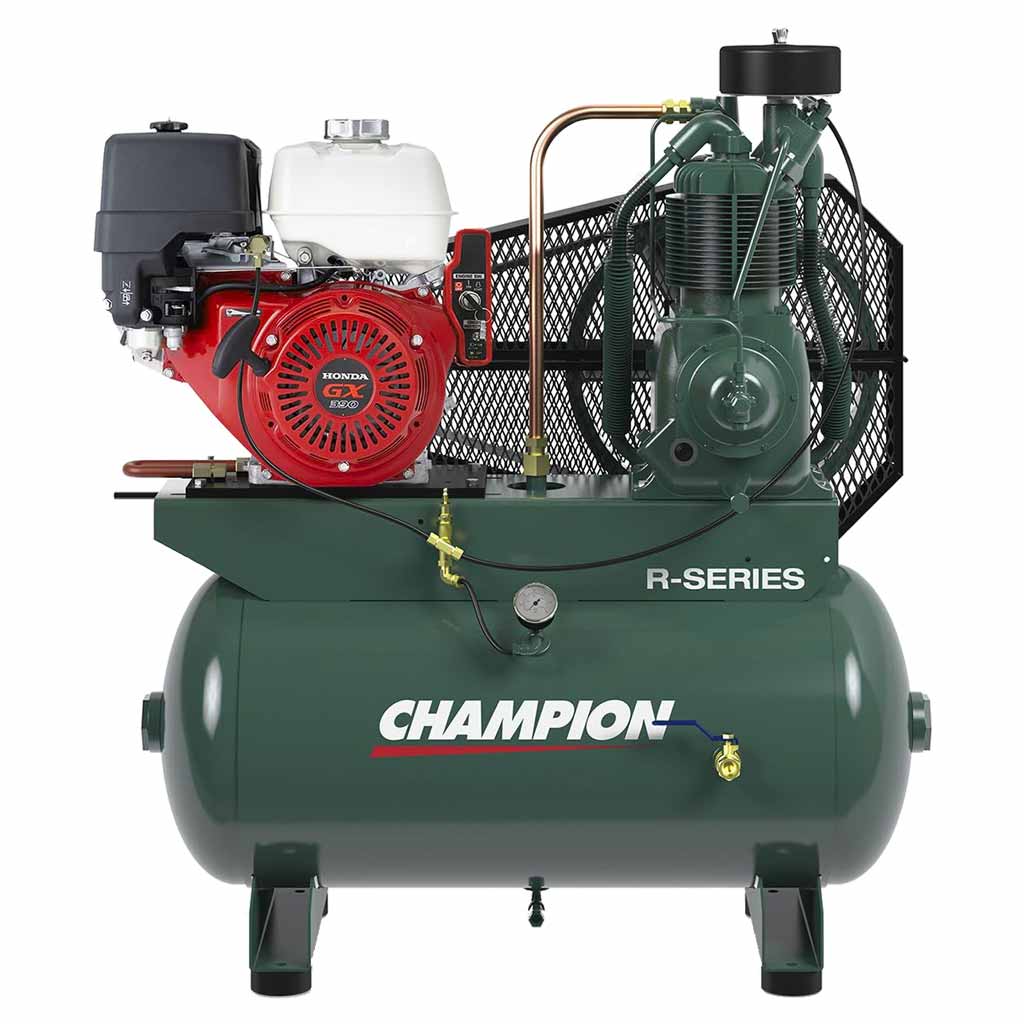

Champion HGR7-3H Honda 13HP gas compressor with 30 gallon tank, electric start, tank drain, and vibration isolators.

Features:

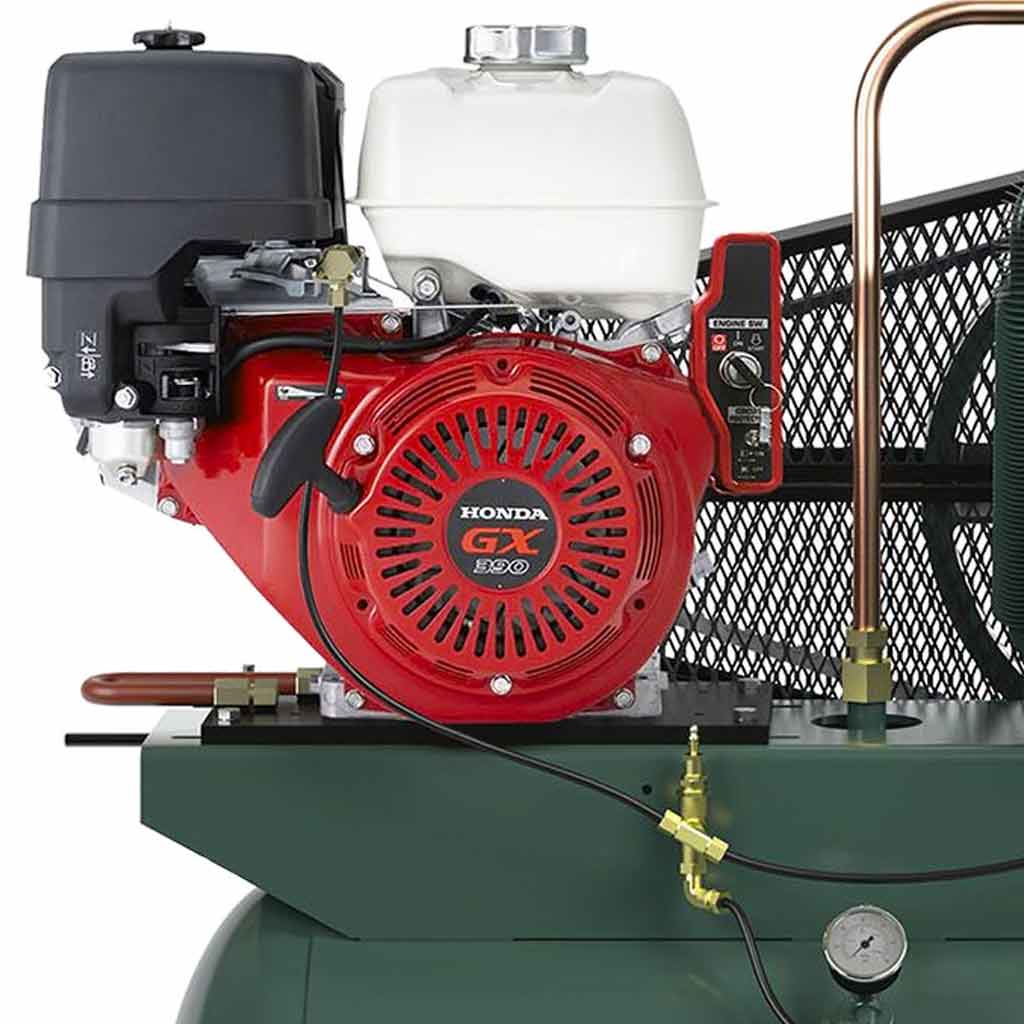

• Electric Key start mounted and wired to save on electrical wiring cost
• Engine slow down attached to help slow engine and save fuel
• Tank drain mounted and piped - removes water from tank manually
• Factory oil fill with ChampLub oil to increase pump life
• Vibration isolators on 30 gallon units
• Intake filter/silencer
• Pneumatic throttle control
• Enclosed belt guard

Compressor Features:

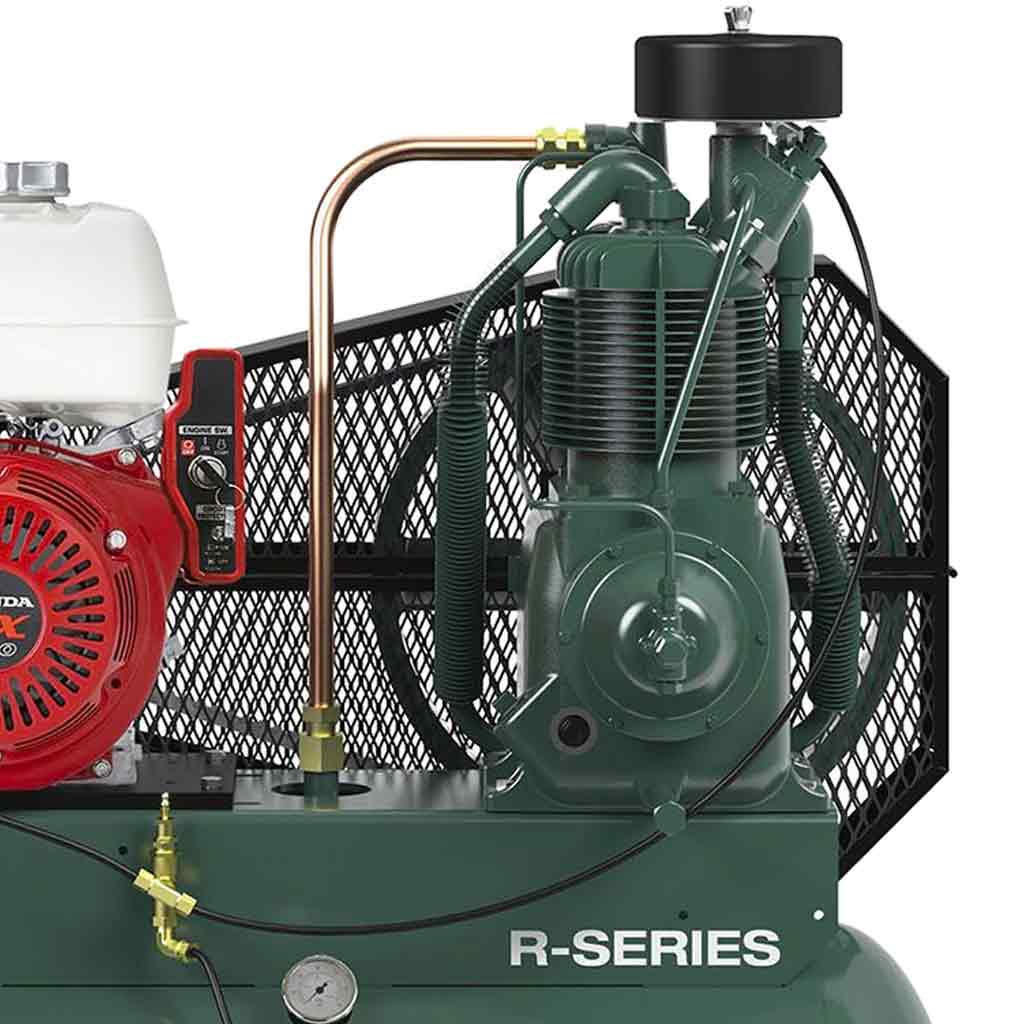

• Multi-finned cylinders - Cooler operating temperatures result in longer life and consistent performance over time.
• Integral cylinder/head - Gasketless design eliminates the possibility of blown head gaskets for trouble-free operation.
• Balanced pistons - Aluminum alloy first-stage piston is weight-matched to the cast iron secondstage piston, ensuring proper balance.
• Piston rings - Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.
• Lightweight connecting rods - High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision-bored crankpin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.
• Pressure relief valves - Located in interstage and discharge.
• Intercoolers - Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.
• Optimized cooling fan/flywheel - Precision balanced flywheel has fan blades for optimum compressor cooling and life.
• Reliable, high-flow valves - Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.
• Oversized main bearings - Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.
• Balanced crankshaft - Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.
• Large capacity crankcase - Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.
• Loadless starting - Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.

Specifications:

• Pump model: R15B
• Tank capacity: 30 gallons
• Engine HP: 13
• Dimensions: 41.6" x 20.5" x 45.5"
• Machine weight: 485 lbs
• Power supply/voltage: Honda gas engine

Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
