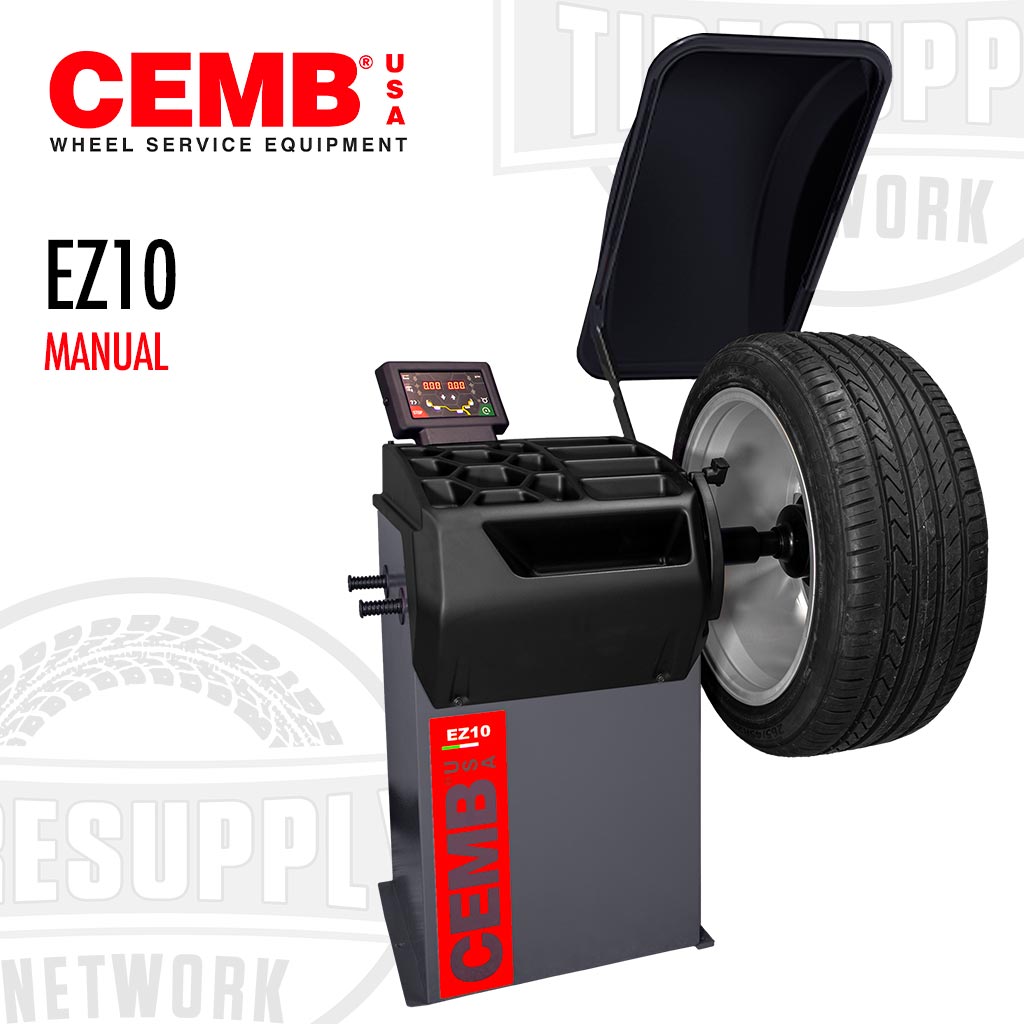

CEMB | Space Saving 3D Data Entry Wheel Balancer - Manual Clamping (EZ10)
The EZ10 blends existing technical features – such as Auto Adaptive mode and Virtual Sonar – with the addition of an electromagnetic brake, which eases operations for counterweight application, making this space-saving wheel balancer unbeatable.
Key Features:
- AutoAdaptive Mode
- Automatic Approach
- Virtual Sonar
- Automatic Gauge
- Touch Panel
- Manual Locking
- Electric Brake
Standard Features:
- Fast 5-second cycle time. Quick clamping wing nut supplied standard.
- Automatic gauge to measure the distance and diameter of rims of up to 28” with an innovative clip to hold the adhesive weight.
- AutoAdaptive Mode – The new tolerance calculation system.
- Space Saving balancer with a 12” full resolution touch screen. It’s intuitive, durable and easy to use.
- With our innovative Virtual Sonar software we can automatically calculate the rim width without an external sonar or other measuring device.
- Electromagnetic brake for locking the wheel in the exact weight position.
- Automatic Approach system allows for faster floor to floor time.
- Made in Italy. Final assembly in USA.
- Power Supply: 110V, 1ph
Technical Specs:
| Power Supply | 110V, 1ph |
| Wheel Clamping Type | Manual |
| Max. Rim Diameter | 30" (765 mm) |
| Max. Rim Width: | 20" (510 mm) |
| Max. Tire Diameter: | 36" (914 mm) |
| Max. Wheel Weight: | 165 lbs. (75 kg) |
| Shipping Weight: | 270 lbs. (122 kg) |
| Dimensions: (W) x (H) x (D) | 39.6" x 48" x 38" |
| Warranty: | 2 Years Parts / 1 Year Labor |
