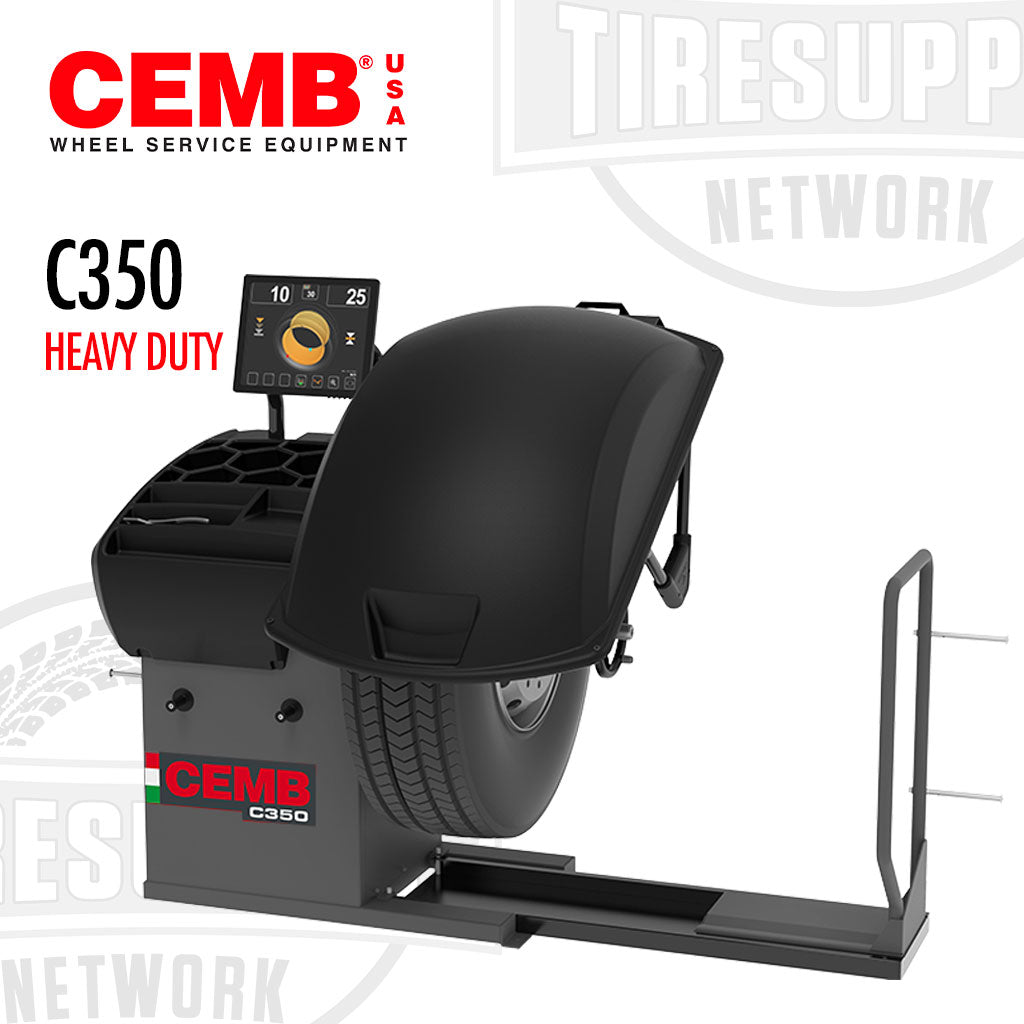

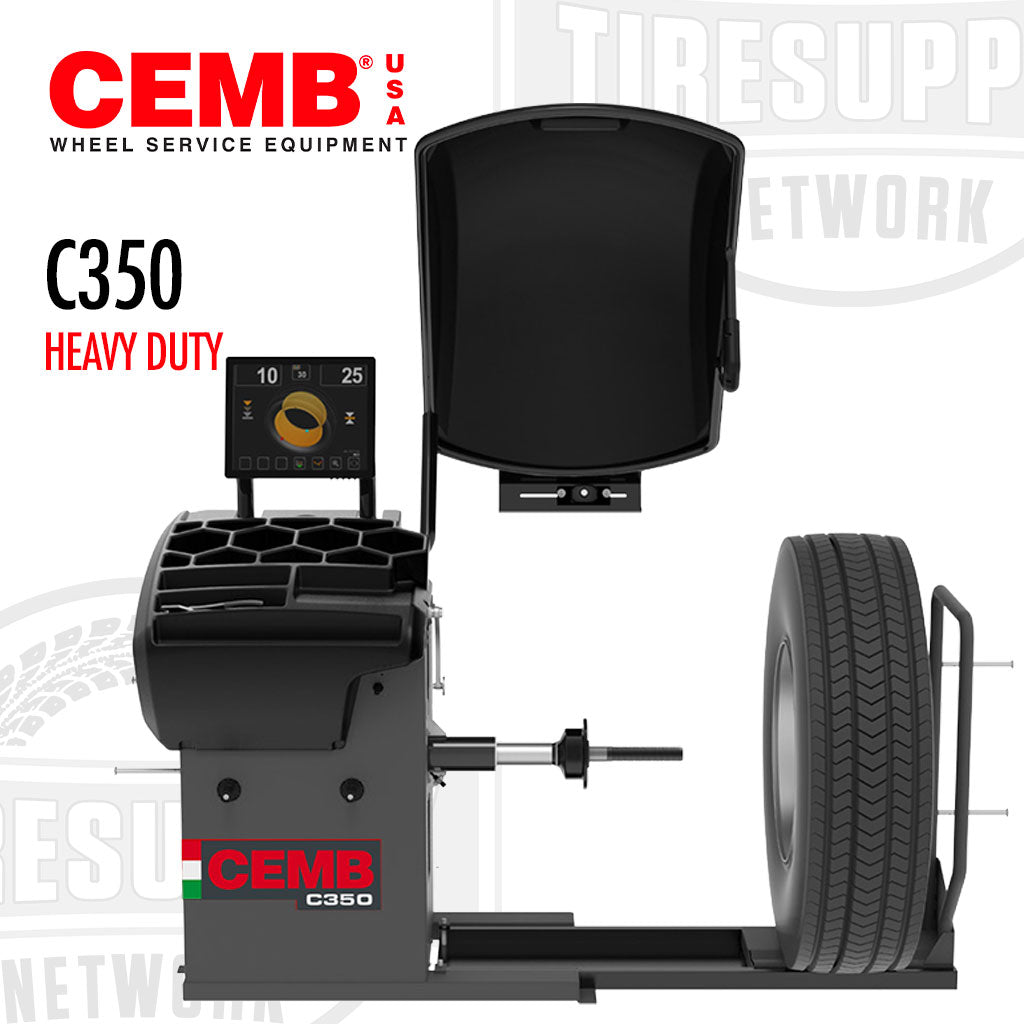

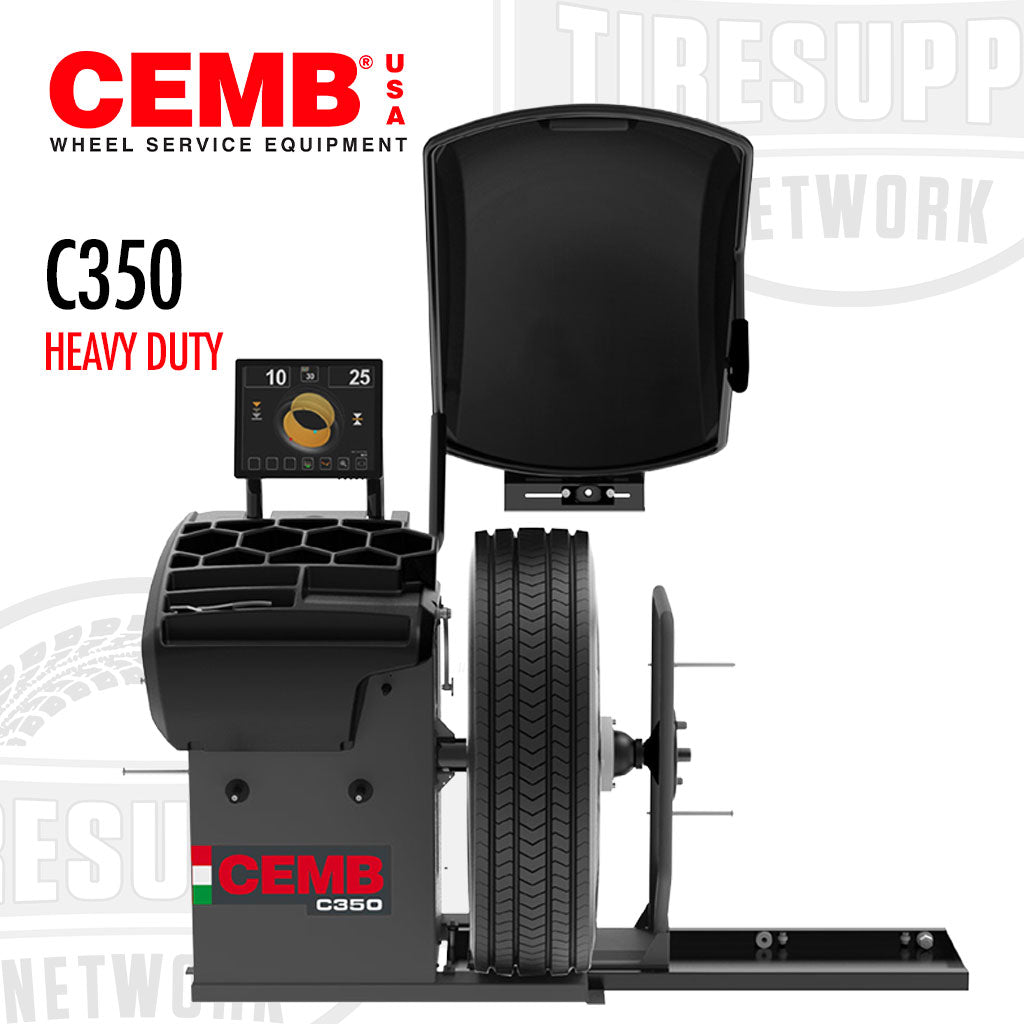

CEMB | Heavy Duty Digital Truck and Bus Wheel Balancer (C350)
Its innovative spindle shaft ensures safer and better centering even with large wheels. With Sonar technology, it measures radial and lateral run-out accurately. The sleek design and sturdy weight holder make the C350 the ultimate solution in its category.
Key Features:
-
Lifting Spindle: The spindle effortlessly rises and lowers, allowing the operator to load the wheel with ease and ensuring precise centering with minimal effort.
- LA Sonar: LA sonar device designed for contactless automatic wheel width measurement.
- EMS Sonar: EMS sonar device for measuring the radial run-out of the tyre during the normal balancing cycle.
- Laser Line: Laser line to facilitate the correct positioning of the adhesive counterweights in the 6 o’clock position, increasing the balancing accuracy.
- Hubmatch: Detects the unbalance as well as the highest point of the wheel.
- Functional Weight Tray: The sturdy rotational weight tray has been designed to make the most the available space.
- Electromagnetic Brake: The electromagnetic brake for the lock of the wheel in the exact weight position facilitates the balancing procedure.
- Automatic Gauge: Extended gauge for diameter and distance measurement of rims up to 32”.
- Made in Italy. Final assembly in USA.
Technical Specs:
Power Supply | 230V, 1ph, 50-60 hz |
Max. Rim Diameter | 32" (812 mm) |
Max. Rim Width | 20" (510 mm) |
Max. Tire Diameter | 54" (1372 mm) |
Max Air Pressure | 145 psi |
Max. Wheel Weight | 550 lbs (200 kg) |
Shipping Weight | 650 lbs (295 kg) |
Dimensions (W x H x D) | 90.6" x 87" x 53.6" |
Warranty | 2 Years Parts / 1 Year Labor |
Standard Equipment:
- Rim Width Gauge
- Weight Hammer
- IV/V - GG G40 Cones Kit
- Quick Lock Nut
Compliance and Restrictions
