BendPak 5216274 | TSR-2S Tire Storage Rack - Capacity 1,250 lb

Constructed of welded steel alloy tubing with a tough powder coat finish, this rack provides a rugged, safe, and convenient method to store and transport wheels and tires while maximizing your workspace. Designed to accommodate a wide variety of tire sizes, the upper tire storage tier may be adjusted to 5 height positions spaced 2.75 inches (70mm) apart. The storage rack includes a sign holder mounted at the top of the tire rack and includes three general sale and service signs.

The TSR-2S Tire Storage Rack from Ranger is the ultimate solution for storage and transportation. This rugged, welded steel alloy rack has been designed for durability and boasts a tough powder coat finish that ensures long-lasting performance in even the most demanding environments. With easy-roll casters, it travels effortlessly across shop floors, and it’s strong enough to support up to a whopping 1,250-lbs., making it perfect for busy shops that handle a wide variety of tire sizes. The robust design ensures your workspace stays organized and safe, allowing you to focus on what matters most – getting the job done.

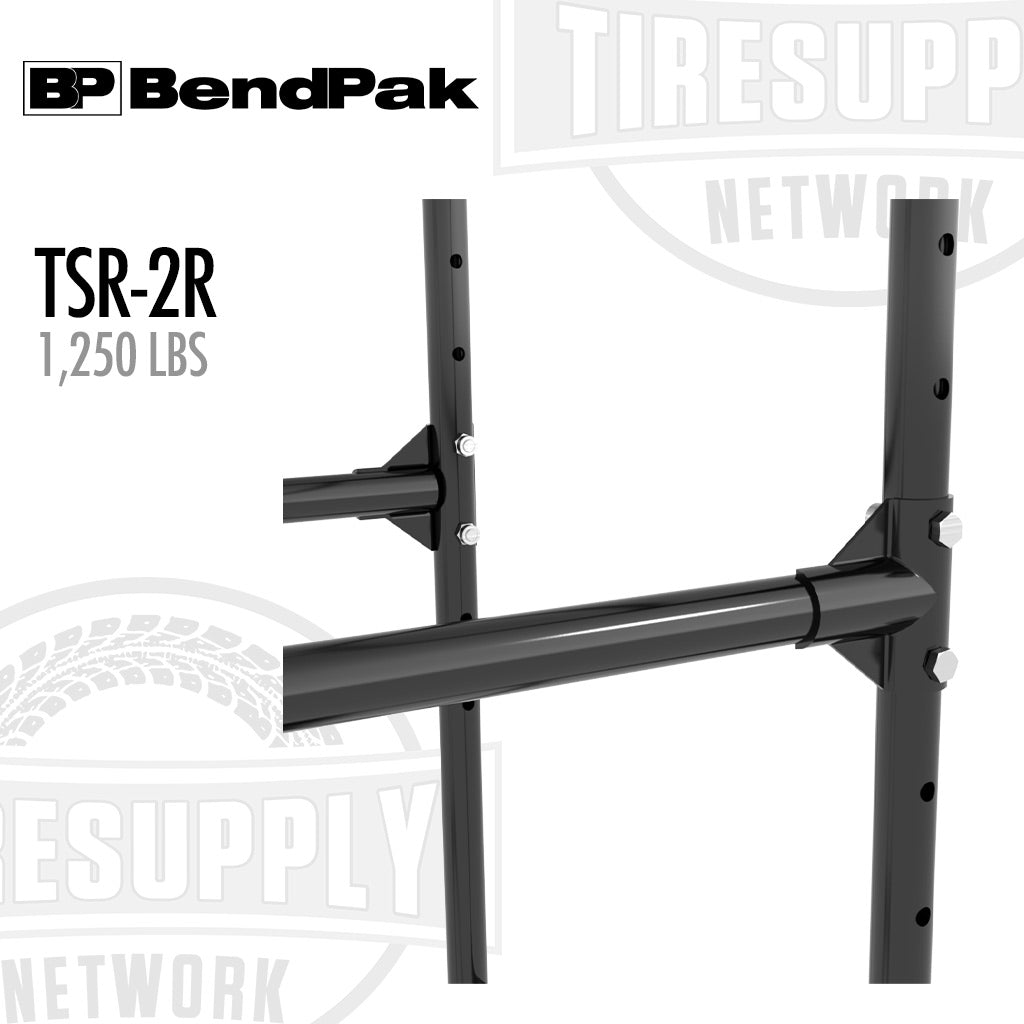

Flexibility is at the heart of this tire storage rack. The upper tire storage tier is adjustable to five height positions, spaced 2.75 inches apart, accommodating a wide variety of tire sizes. This means you can customize the rack to fit your specific needs, whether you’re storing compact car tires or larger truck tires. The dimensions of the rack make it a versatile addition to any shop, maximizing your workspace without having to compromise on storage capacity.

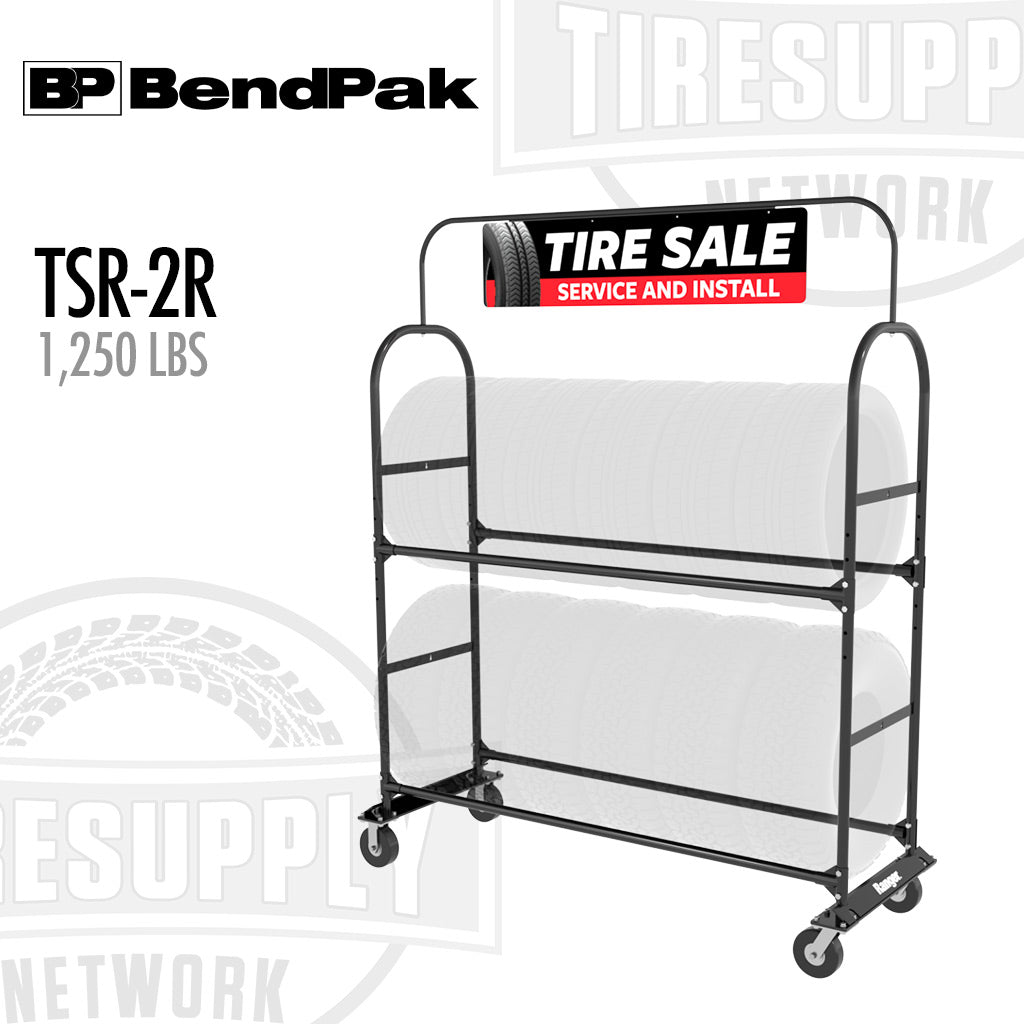

The Ranger TSR-2S Tire Storage Rack also features a sign holder mounted at the top, complete with three general sale and service signs. This handy addition not only enhances the organizational capabilities of the rack but also serves as a professional touch for your shop. Constructed from high-quality steel which is both sturdy and reliable. Bring this top-of-the-line tire storage solution into your shop and experience firsthand the convenience and efficiency it brings to your workflow.

Features:

• Simple, effective tire storage
• Safe, rugged design

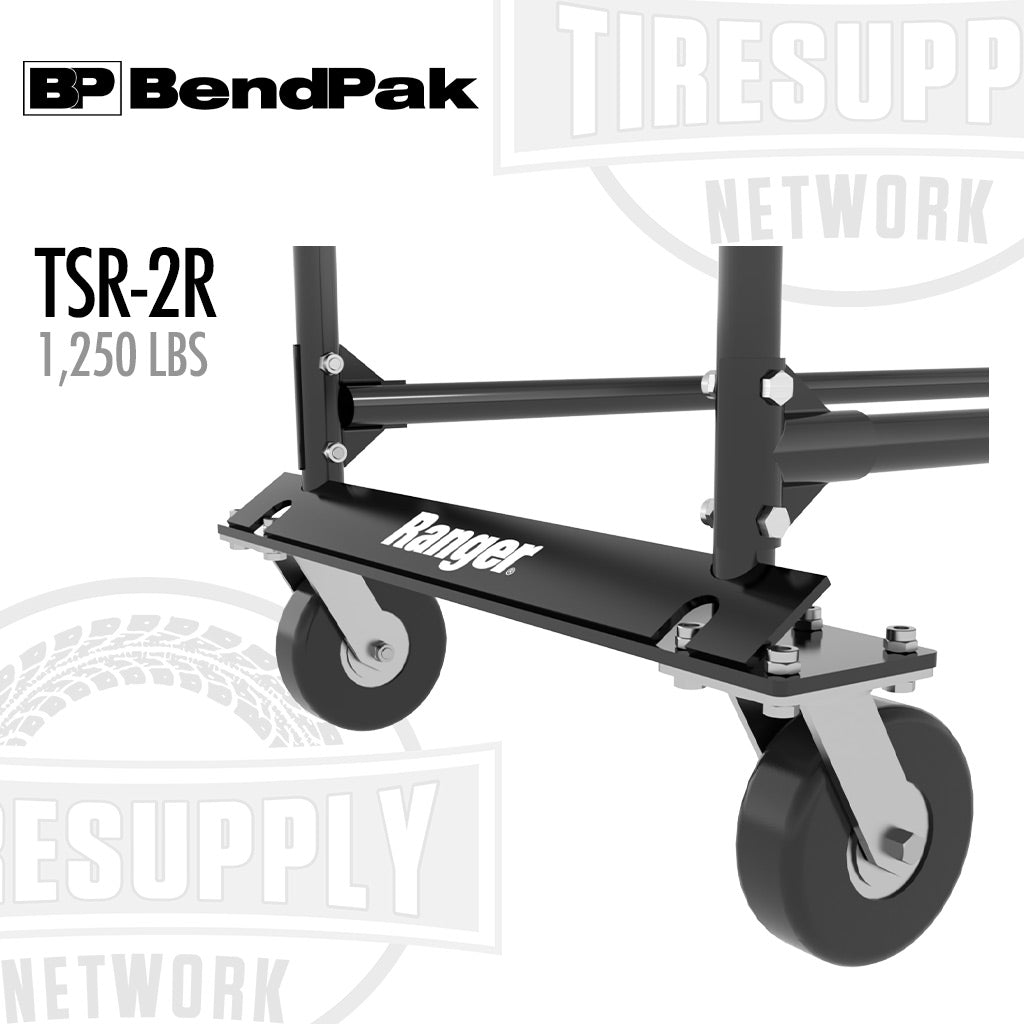

• Easy-roll casters
• Handles up to 1,250-lbs.
• Keeps the shop organized
• Safely stores multiple tires of varying sizes

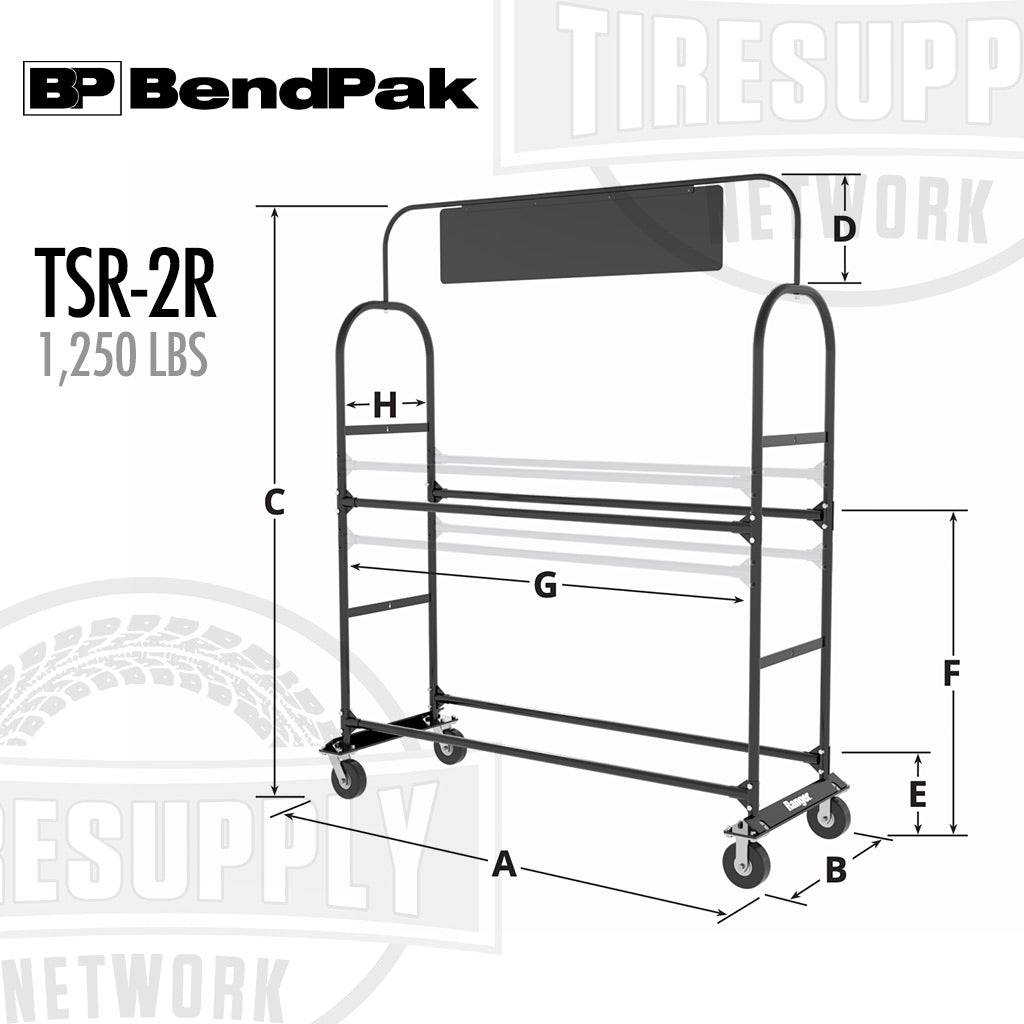

Specifications:

A	Overall Length	77 in. / 1,960 mm
B	Overall Width	27.5 in. / 698 mm
C	Overall Height	88.5 in. / 2,250 mm
D	Sign Frame Assembly Height	14.25 in. / 363 mm
E	Bottom Storage Tier Height	11.25 in. / 288 mm
F	Top Storage Tier Height (5 Height Positions spaced 2.75 in. (70mm apart)	39.25 in / 998 mm Minimum 50.25 in. / 1,278 mm Maximum
G	Inside Length	68.5 in. / 1,739 mm
H	Inside Width	19 in. / 482 mm

Maximum Load Capacity	1,250 lbs. / 567 kg
Material	Steel Q345B
Net Weight	145.5 lbs. / 66 kg
