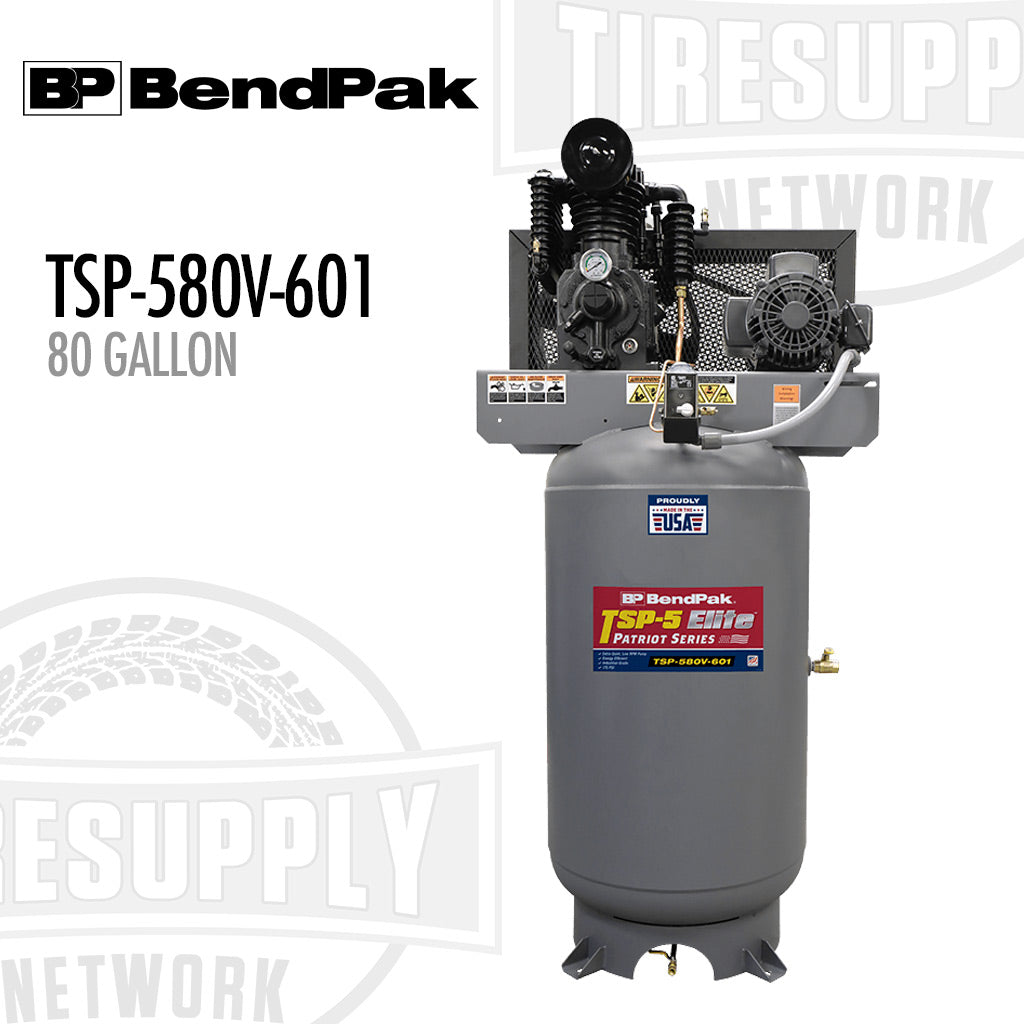

BendPak TSP-580V-601 | Patriot Series 80-Gallon Vertical Tank Air Compressor, 2-Stage, 5 hp

BendPak TSP-580V-601 Patriot Series 80-Gallon Vertical Tank Air Compressor, 2-Stage, 5 hp (5179111)

The TSP-5 Patriot air compressor is designed to save energy. Built for high productivity and lower operating costs, it produces more compressed air using an extremely efficient and low-energy-consuming 5 HP motor.

Features

• Assembled in USA
• UL, ASME certified
• Extra-quiet, low-RPM pump

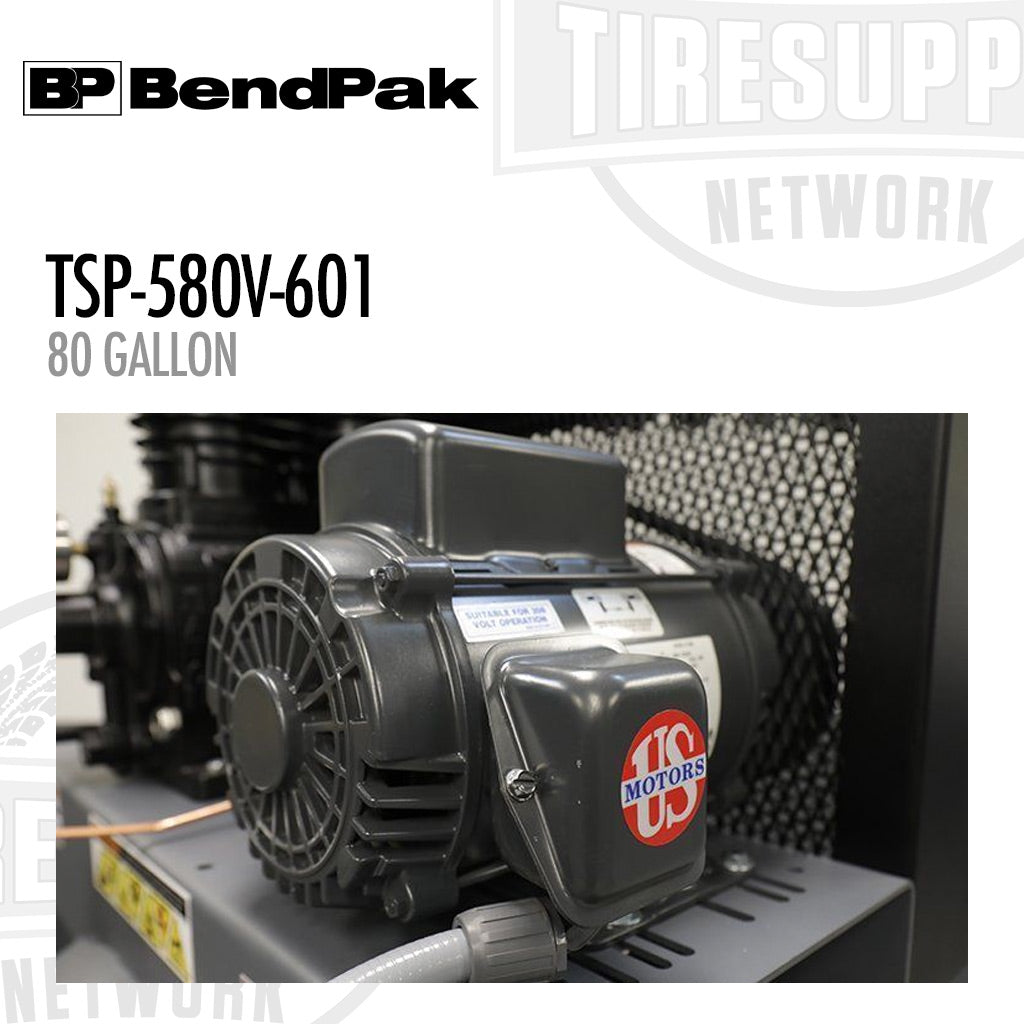

• 5 HP energy‐efficient motor
• Pressure switch ensures efficient operation at all times with no wasted energy
• Cast‐iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed‐in sleeves
• Cast‐iron Elite pump features simple splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling
• Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
• Fully‐enclosed belt guard

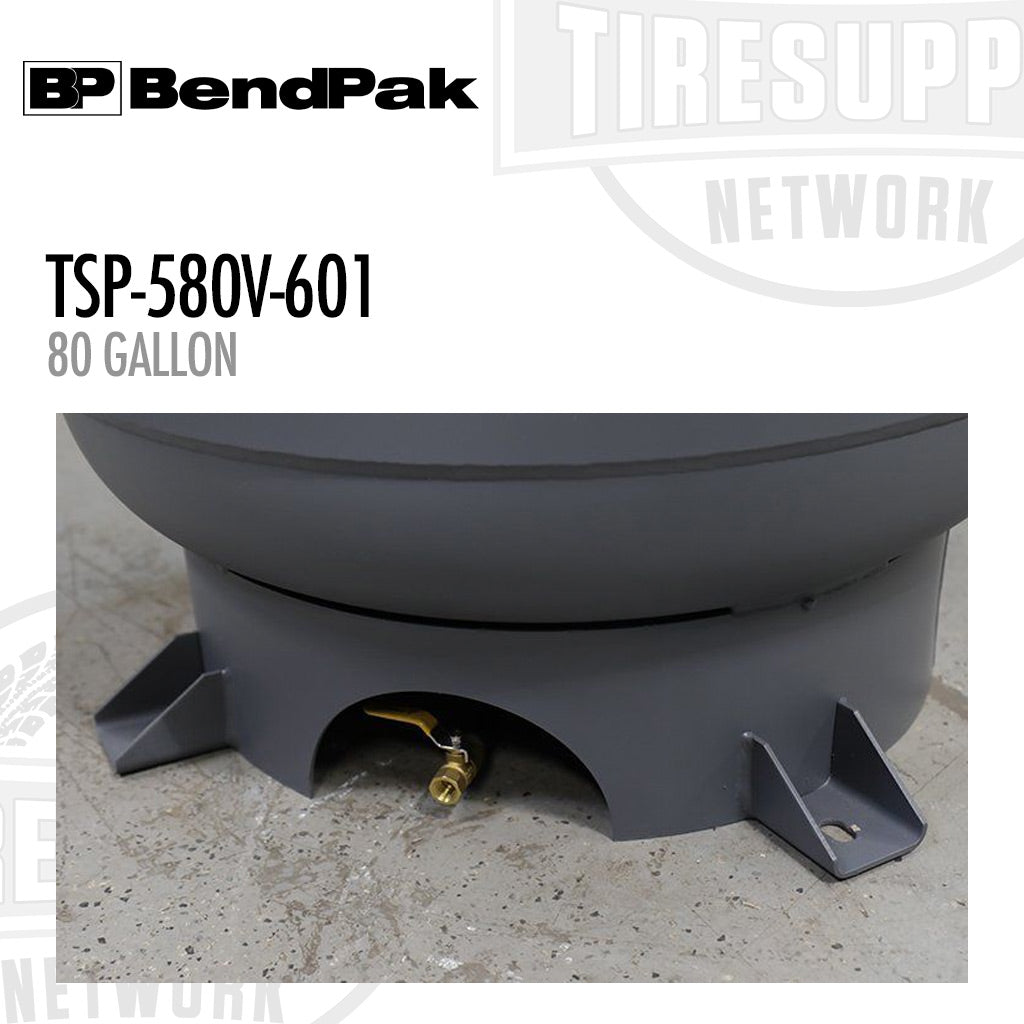

• ASME-rated tank
• Large surface area and cooling fins on cylinders and forced‐air after-cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
• Precision honed cylinders increase efficiency and oil control
• Oversized ductile iron crankshaft provides extra strength and longer wear
• Tapered roller main bearings provide full contact and support of the crankshaft and needle‐type piston pin bearings properly distribute bearing loads
• Precision balanced flywheel has forced‐air fan blades for optimum compressor cooling and life
• Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble‐free operation
• ASME-rated safety valve protects the compressor from overpressure and safeguards the operator
• Balanced flywheel and counterbalanced crankshaft provides vibration‐free operation
• Readily accessible disc‐valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
• Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance
• High‐density, die‐cast aluminum alloy rods minimize reciprocating weight
• Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap

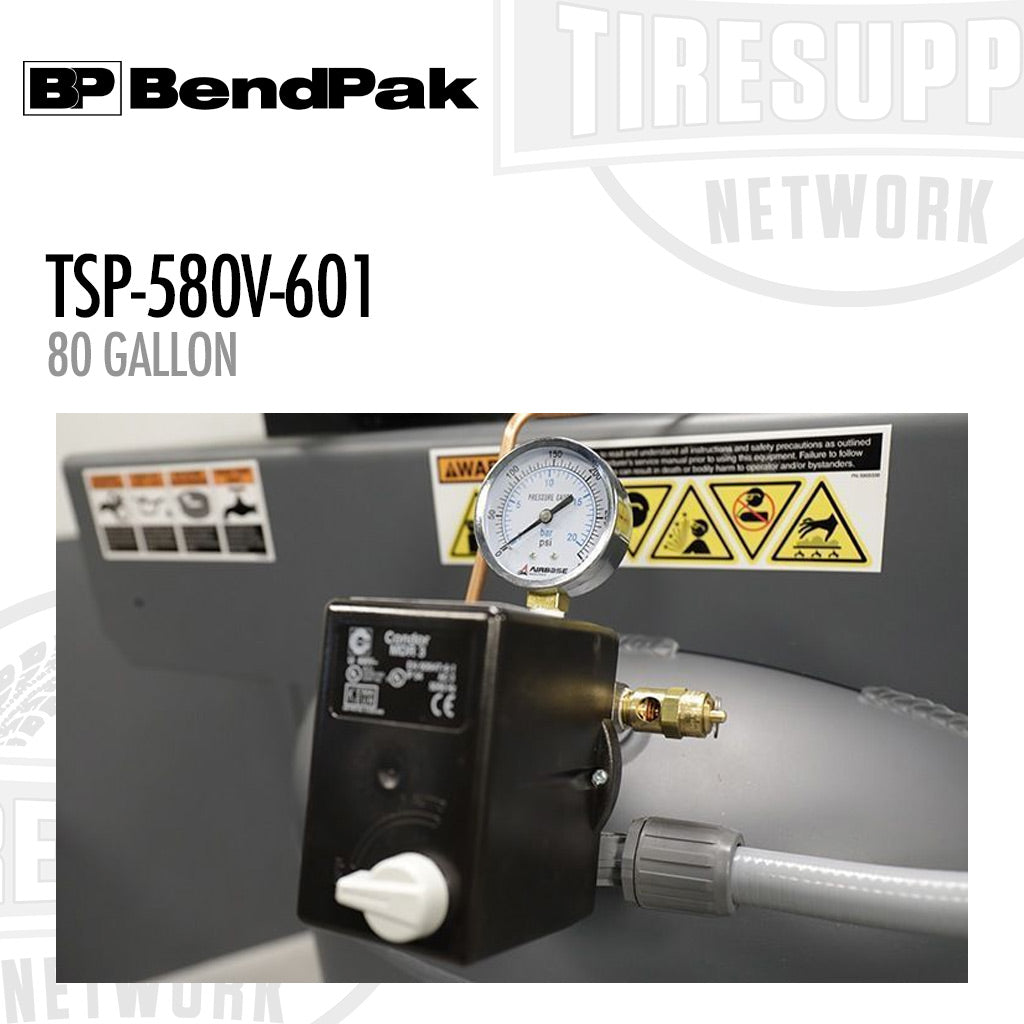

• Automatic pressure switch provides auto start and stop
• Integrated pressure unloader valves are built into the intake valve assembly on the compressor head, reducing internal pump heat from initial start‐up compression
• Pressure gauge with service valve
• Oversize replaceable air filter

The TSP-5 Patriot Series Air Compressor

The TSP-5 is right up there among BendPak’s most popular air compressor. This expertly crafted, slow-running compressor pumps deliver proven longevity in the most demanding conditions. Since they run at a lower RPM than other units out there, they’re quieter, they run cooler, and they’ll end up costing significantly less to operate. The TSP-5 will give you the quality and performance that you’re going to need for heavy-use applications like automotive and body repair to manufacturing and industrial service.

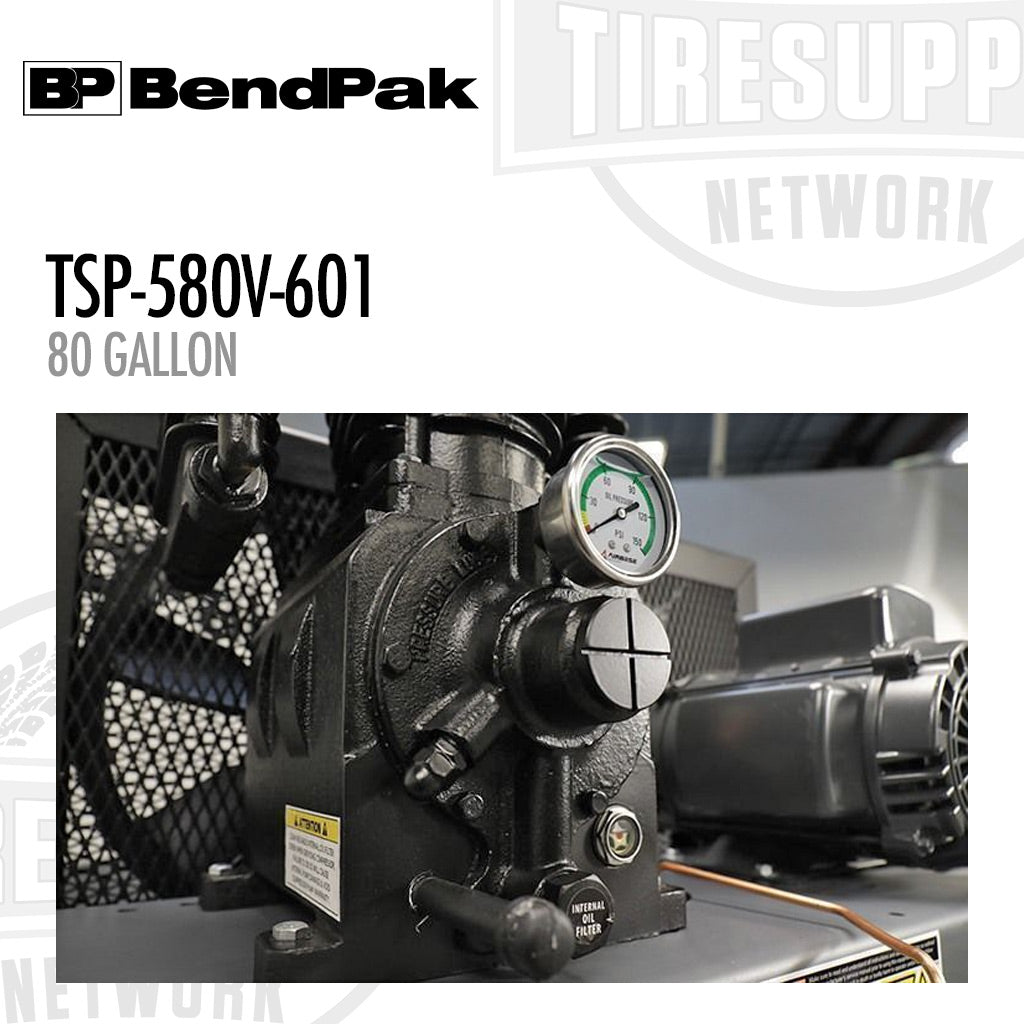

Hydraulic Pump

The Pump on the TSP-580V-601 is two stage, splash lubricated. Two stage means it compresses the air first in one cylinder and then compresses it more in a second cylinder. Splash lubricated means the unit uses oil for lubrication.

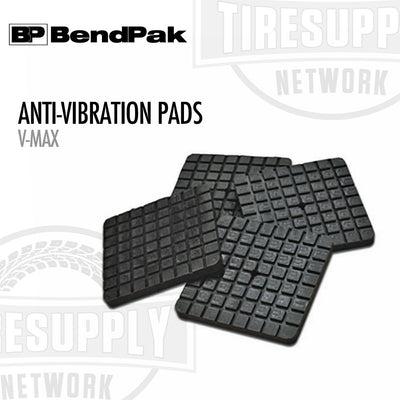

Anti-Vibration Pads

The TSP-5 comes standard with a set of four rugged, half-inch thick pads. When utilized, these pads ensure that you’ll experience virtually zero machine vibration during operation. The high-quality elastomer compound resists aging, compression set, water, and oil.

Cooling Fan

This Patriot air compressor operates at a low temperature and optimizes its efficiency for maximum air output. The pump runs at a lower speed, resulting in reduced noise in your shop or garage. Once you finally decide which air compressor best fits your needs, you’ll need to think about overall lifetime maintenance costs. This is the “True Cost” of owning anything. You don’t want to fall behind on electric bills, and a higher horsepower means a higher bill. That’s why the TSP-5 Elite is such a money-saver. It runs at a cool temperature and features an efficient 5 HP motor which won’t cut deeply into your bottom line. Get more and save more with BendPak’s TSP-5 Elite.

Specifications (General)

Specifications (Motor)

Specifications (Pump)

Specifications (Tank)

Compliance and Restrictions:
