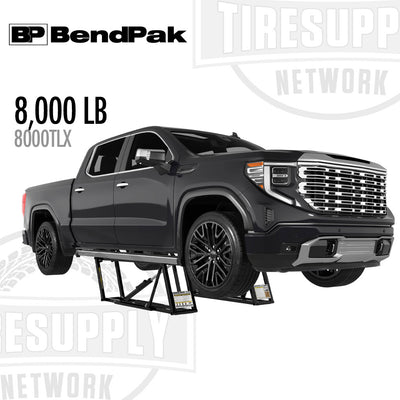

BendPak | Portable Lift 8,000-lb Capacity - QuickJack - SUV & Truck - Extended Length - 24.25″ Rise - 76″ Frame (8000TLX)

BendPak | Portable Lift 8,000-lb Capacity - QuickJack - SUV & Truck -  Extended Length - 24.25″ Rise - 76″ Frame (8000TLX)

The 8000TLX is QuickJack's most powerful extended-length portable truck lift, built to handle up to 8,000 lbs. Its 76-inch frame and 66-inch lift point reach make it ideal for long-wheelbase trucks, SUVs, and large sedans. Despite its size, it still fits under most sports cars with ease.

Features

• 8,000-lb. lifting capacity with 24.5" maximum lift height
• Extended 76" frame length for long-wheelbase vehicles
• Automatic safety locks engage at mid-rise and full-rise positions
• Upgraded hydraulic system ensures synchronized lifting and lowering
• One-handed pendant control for easy, button-operated lifting
• 3.5" lowered height for low-profile storage and undercar access
• Structural reinforcements for greater stability under heavy loads
• Compatible with QuickJack’s full range of accessories

The QuickJack 8000TLX is the highest-capacity, extended-length portable lift in our lineup—engineered specifically for heavy-duty trucks, SUVs, and long-wheelbase vehicles. With an 8,000-lb. capacity and a 66-inch lift point reach, it handles the jobs that standard car lifts can’t touch. Built tough, yet fully collapsible, this portable truck lift gives you full access beneath your vehicle without the footprint of a permanent setup.

Despite its size, the 8000TLX still reaches max rise in about 30 seconds, and its low 3.5-inch collapsed height means it fits under most sedans and sports cars too. Add the optional Truck & SUV Adapter Kit for even more undercarriage access on higher-clearance vehicles.

Upgrades include a pressure-compensated flow divider for synchronized lifting, reinforced frame geometry, and a factory preassembled hydraulic system. All these improvements ensure faster setup, smoother operation, and maximum durability in the shop or at home.

The 76-inch frames are designed for serious reach but remain compact enough to roll and stow easily using QuickJack's built-in urethane wheels. Take it anywhere—garage, driveway, shop, or even off-site—as long as you’ve got a flat surface to work on.

Extended-Length Design and Lift Point Specs

The 8000TLX was engineered to accommodate long-wheelbase vehicles with lift points that exceed standard lengths. Its frame and lift point spread are 6 inches longer than TL models, so be sure to measure before purchasing for shorter vehicles.

• TL minimum lift point spread: 37"
• TLX minimum lift point spread: 43"
• TL maximum lift point spread: 60"
• TLX maximum lift point spread: 66"
• TL overall frame length: 70"
• TLX overall frame length: 76"

What's different about the NEW TLX Models?

The 8000TLX delivers a full 1,000-lb. boost in capacity over the 7000TLX and includes the latest QuickJack upgrades: reinforced structural components, an upgraded hydraulic system, and a safer, more stable lift cycle. Best of all, it still folds to just 3.5 inches for easy storage and portability.

Factory Preassembled Hydraulics

Each 8000TLX ships with its hydraulic system preassembled at the factory, saving time during setup and ensuring flawless performance right out of the box. You’ll be lifting faster with fewer steps and no guesswork.

Automatic Safety Locks

The 8000TLX includes dual-position automatic safety locks that engage securely as the frames lift. Locks automatically slide into place at both mid-rise and full-rise positions, and a simple flip of the lock bar releases them for smooth, controlled descent.

Extended-Length Power & Clearance

Built for long-wheelbase vehicles, the 8000TLX features a 76-inch frame and 66-inch max lift point spread. With an 8,000-lb. capacity and 24.5-inch lift height, it’s the ideal portable lift for large SUVs, trucks, and specialty sedans with extended chassis requirements.

Upgraded Hydraulic System

Our reengineered hydraulic power unit includes a pressure-compensated flow divider and independent shut-off solenoids to ensure both frames rise and lower in perfect sync—critical for heavier vehicles and added safety during operation.

Stronger Frame, Greater Stability

The 8000TLX is built with thicker cross members, improved weld geometry, and enhanced pivot joints that resist flex under heavy load. These structural upgrades give you greater confidence, especially when lifting heavier or longer vehicles.

One-Handed Pendant Operation

The simple pendant control lets you operate the lift with one hand, keeping your other hand free for guiding the frames or handling basic tasks. QuickJack lifts with the push of a button—no bending, cranking, or manual intervention.

Compact Footprint, Extended Utility

Despite its reach and capacity, the 8000TLX still lowers to a 3.5-inch profile and rolls easily on built-in urethane wheels. It’s the perfect mobile solution for shops or home garages where versatility and space matter.

Accessories to Increase Versatility

The 8000TLX works with a wide range of QuickJack accessories, including truck and SUV adapters, pinch-weld blocks, and frame extensions. Configure your lift setup to meet your exact needs.

Specifications

Compliance and Restrictions:
