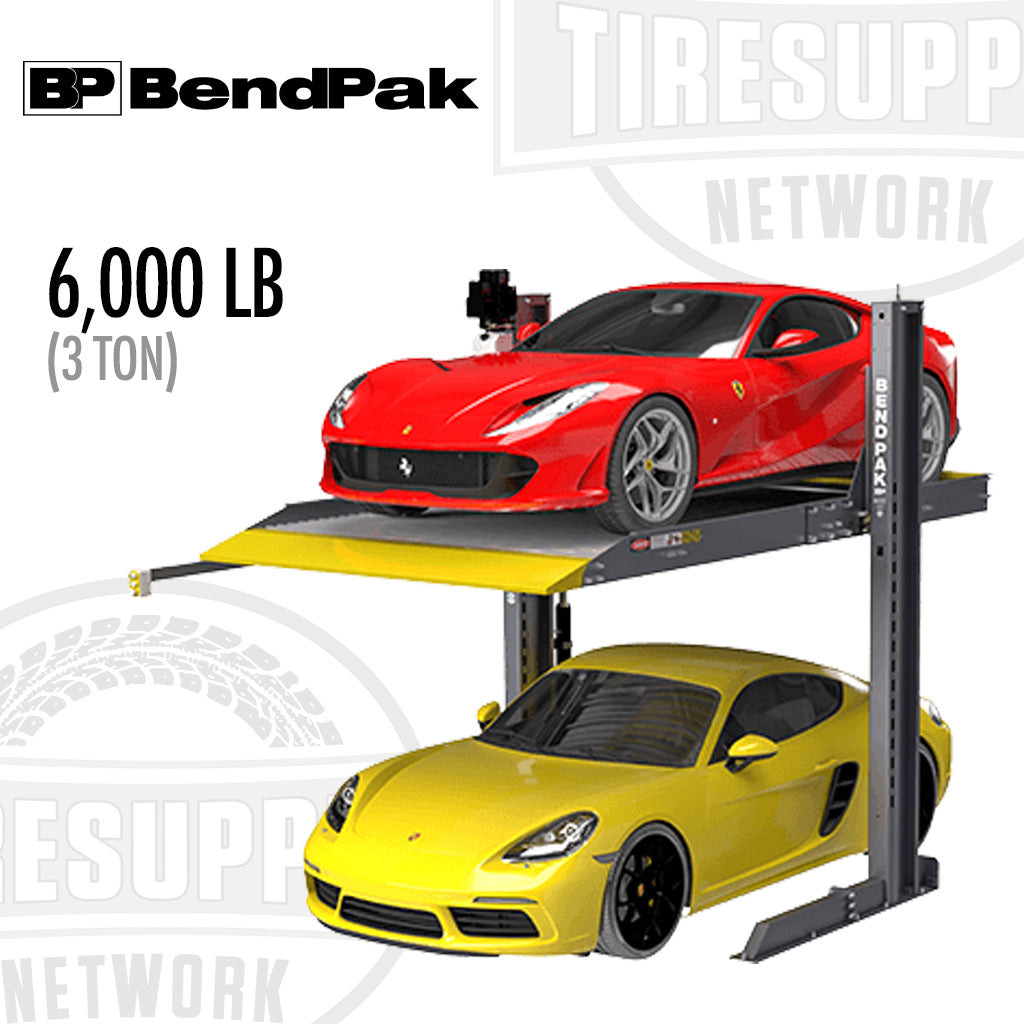

BendPak | 2-Post Lift 6,000 lb Capacity / Two Post Parking Lift / Shared Columns PL-6000DC (5175427)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase. Customer must have a Forklift for delivery and Installation is NOT included with purchase.
PL-6000DC
- Ganged column design allows multiple installations in minimum space
- Commercial grade design and construction
- Galvanized and corrugated anti-slip platform
- Freestanding design when ganged two or wide
- Overhead power unit provides smooth quiet hydraulic operation
- Designed for installation on typical parking surfaces
- Platform can be stopped at different heights to fit various vehicles and ceiling heights
- Full width channel-locked center panels protect lower vehicle
- Wide deck platform accommodates pickups, vans and cars.
- Single direct-drive hydraulic cylinder
- Automatic safety lock combined with anti-fall device hold platform securely
- Maintenance free composite carriage bearings
- Electric key switch for security and safety
- Automatic shut-off when operator releases key switch
- Features a rugged and reliable Manual Safety Lock Release
- Hydraulic overloading protection
- Mechanical safety locks are spaced every 4 inches
- Automatic locking system during power outage
- Emergency stop button
- Upper limit switch
- Pressure relief valve and pressure compensated flow control valve to ensure safe operation and level lifting
- Industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass
-
24VAC Operator controls
| SPECS | |
| Overall Height |
131” (3,327.4mm) Note: does not include the 2.5 in. / 57 mm Max. for Balance Chain Adj. |
| Overall Length | 167.25" (4,250 mm) |
| Overall Width | 100.25" (2,547 mm) |
| Lifting Height | 82.5" (2,100 mm) |
| Usable Platform Width | 82.5" (2,100 mm) |
| Platform Length | 157" (3,9909 mm) |
| Electrical Required | 110 or 220 VAC 50/60HZ - Single or Three Phase (specify when ordering) |
| Control Power | 24 VAC |
| Lock Release | Manual Release |
| Power Pack | 2.2kw hydraulic power pump |
| Lifting / Lowering Time | 50/45 Seconds |
INFORMATIONAL LINKS:
- Study in Lift Designs > CLICK HERE
- Electrical & Utility > CLICK HERE
- Concrete Specs > CLICK HERE
- Specifications> CLICK HERE
- Warranty > CLICK HERE
- Balancing Safety > CLICK HERE
- How to Level > CLICK HERE
- Best Car Lift Guide > CLICK HERE
- Things to Know > CLICK HERE
DETAILS
The PL-6000DC dual-column parking lift is designed to accommodate a wide array of vehicles including SUVs, sedans, and sports cars. It offers the perfect combination for both long-term and short-term parking. Typically long-term parking is the upper level and short-term parking below. The PL-6000DC was specifically designed to accommodate the needs of real estate developers, architects, engineers, automotive dealers, and commercial parking operators. The PL-6000DC can be installed inside a typical 8-foot parking space and accommodate most cars and light trucks. They operate in both indoor and outdoor locations.
ADVANTAGES
Low Operating Cost
Platform driven by gravity when lowered. No electric motor consumption is required.
Fast and Easy Installation
Installation is fast and easy. A detailed installation manual is provided with floorplan and foundation drawings. Online videos are available to help customers through the installation process.
Ganged/Shared Columns
The posts can be shared which allows multiple installations in minimum space and reduces cost.
Professional Packing & Delivery
Professional packaging and our experienced logistic team ensures customers will get the product damage free. Compact package size means simple unloading and handling.
Dependable Hydraulic Operation
The PL-6000DC features a single direct-drive hydraulic cylinder eliminating the need for screw mechanisms and offers better reliability, smoother operation, and lower maintenance costs.
Automatic Safety Device
Powerful load-holding devices automatically engage and lock the lift structure as the parking lift raises, preventing sudden free fall in the unlikely event of a suspension component failure. Typically, after the lift is raised to the required working height, operators are instructed to lower the lift until it is resting safely on the locks to minimize wear on suspension components.
Need replacement parts? Call or email us and we can special order them for you!
Compliance and Restrictions
