BendPak | 2-Post Lift 16,000 lb Capacity / Adaptable Clearfloor / High-Rise / 16AP (5175608)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase. Customer must have a Forklift for delivery and Installation is NOT included with purchase.
- Durable powder coat finish
- Expandable top beam accommodates wide or narrow drive-thru
- configurations
- Double-telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Electric / hydraulic HVLP power system
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Automatic arm restraints withstand over 2000-pounds of side force
- Oversized cable sheave diameter reduces cable fatigue
- ALI Certified

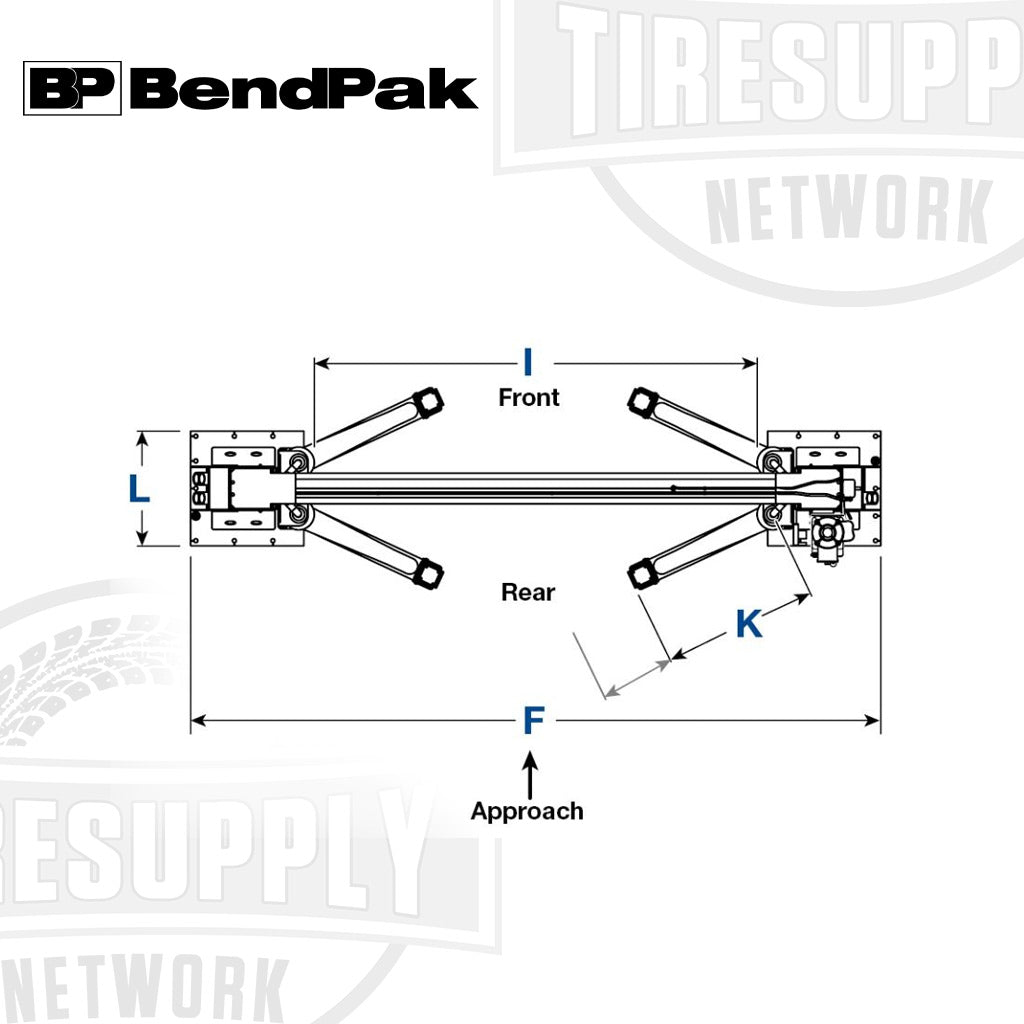

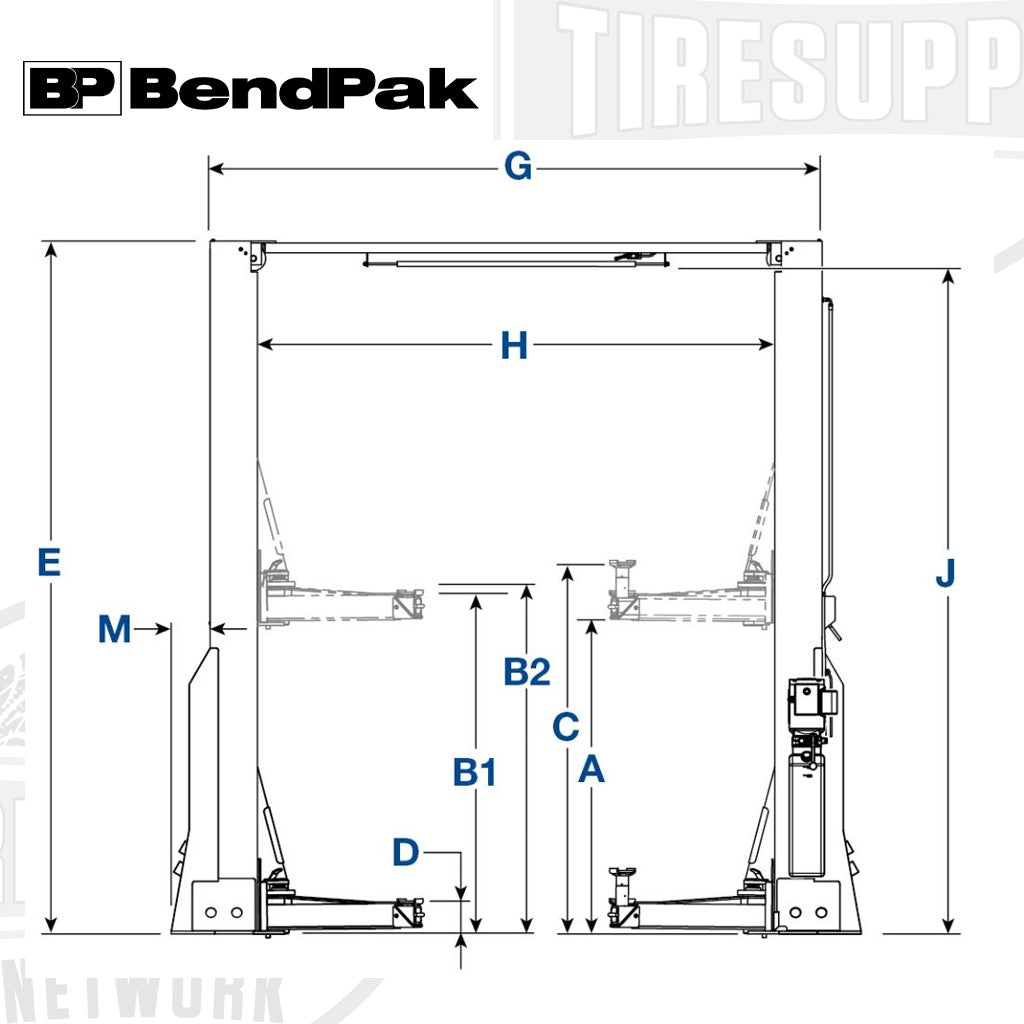

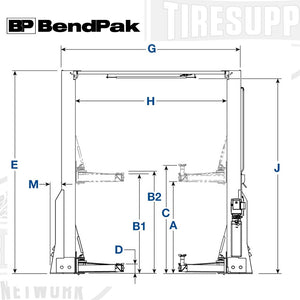

| SPECS | |
| Lifting Capacity | 16,000 lbs (7,257 kg) |
| Max. Rise | 75.75" (1,922 mm) |
| Lifting Height w/Pad down 1 | 78.50" (1,992.3 mm) |
| Max. Lifting Height w/Pad up 1 | 82.5" (2,095 mm) |
| Min. Height w/Pad | 4" (101.2 mm) |
| Overall Height | 169" (4,294 mm) |
| Overall Width | 156" (3,959 mm) |
| Width, Outside Posts | 143" (3,238 mm) |
| Width, Inside Posts | 120" (3,047 mm) |
| Width, Drive-Thru | 103" (2,616 mm) |
| Floor to Top Switch | 163" (4,128 mm) |
| Front Arm Reach | 36.5" - 65" (927 - 1,651 mm) |
| Rear Arm Reach | 36.5" - 65" (927 - 1,651 mm) |
| Max. load per Lift Arm | 4,000 lbs (1,814 kg) |
| Pad Adapters Total Height | 7.50" (188 mm) |
| Time to Full Rise | 45 seconds |
| Motor 2 | 220 VAC, 60 Hz, 1 Phase |
| Sound | < 70 dB |
INFORMATIONAL LINKS:
- Study in Lift Designs > CLICK HERE
- Electrical & Utility > CLICK HERE
- Concrete Specs > CLICK HERE
- Specifications> CLICK HERE
- Warranty > CLICK HERE
- Balancing Safety > CLICK HERE
- How to Level > CLICK HERE
- Best Car Lift Guide > CLICK HERE
- Things to Know > CLICK HERE
DESCRIPTION
Designed to meet the demands of modern automotive shops, the 16AP combines cutting-edge engineering with unparalleled safety and efficiency, ensuring optimal performance for heavy vehicle service.
Redefining Safety and Stability Through ASARS (Automatic Swing Arm Restraint System)
Thanks to BendPak’s patented Automatic Swing Arm Restraint System, you can finally say goodbye to unplanned movement. Engineered to withstand extreme forces, this system delivers over 2000 pounds of load holding force, ensuring secure arm positioning during vehicle service. With a full 360-degree grip and a quick-release lever for effortless operation, ASARS provides unmatched stability and control.
Next-Level Safety Lock System
Experience peace of mind with BendPak’s automatic safety lock system. Designed for seamless operation, this innovative system engages automatically during lift rising operations, with a single-point release for effortless descent. Streamline your workflow and prioritize your safety (and the safety of your vehicle) with BendPak’s industry-leading safety features.
Rugged Enough to Stand up to Anything
Every Super-Duty AP Series lift delivers the no-compromise construction, durability, and other advantages that only the industry’s number one lift manufacturer can provide. Including the highest consumer confidence and safety rating, longest warranty, lowest cost of ownership and superior ergonomics that make your operators more productive and your operation more profitable. Bottom line, BendPak lifts are designed better, built better, and supported better than any other vehicle service lift in the world – which explains why BendPak makes and sells more lifts than anyone.
Need replacement parts? Call or email us and we can special order them for you!
Compliance and Restrictions
