BendPak | 2-Post Lift 10,000 lb Capacity - Clear Floor - GrandPrix GP-10C (5175824)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase. Customer must have a Forklift for delivery and Installation is NOT included with purchase.

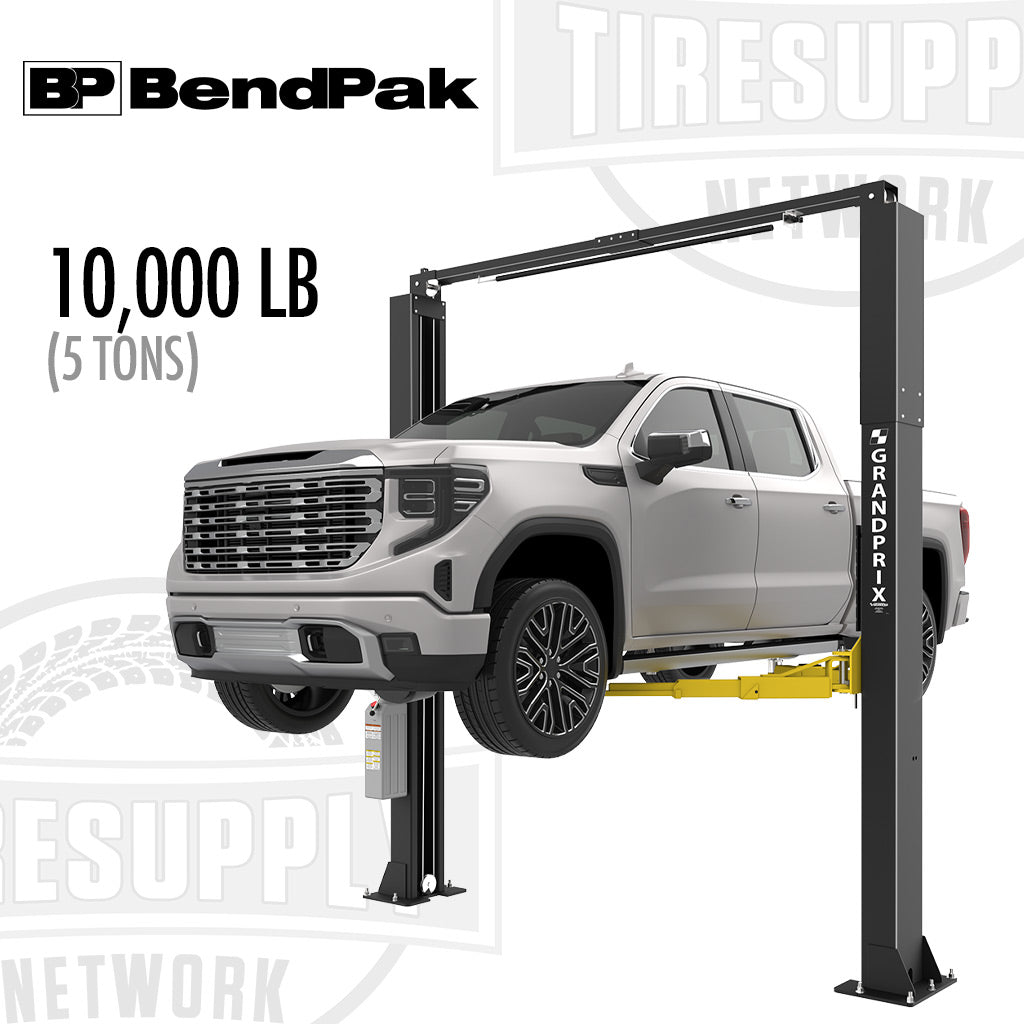

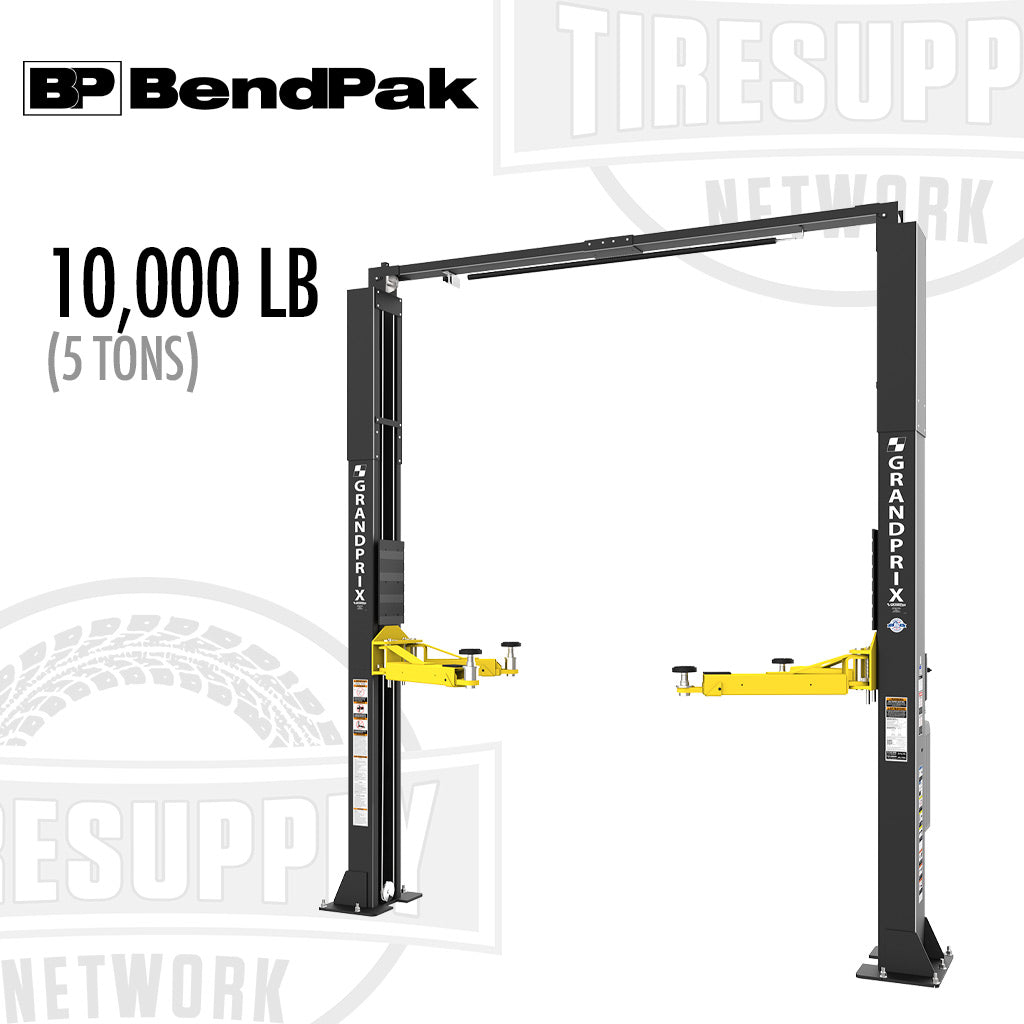

The GrandPrix GP-10C is a 10,000-lb. capacity two-post lift built for serious performance. Designed for both pro shops and home garages, it blends symmetric and asymmetric lifting for ultimate versatility. The clearfloor design gives you full access underneath, while triple-telescoping arms and a stackable adapter set make vehicle positioning fast and frustration-free. With heavy-duty steel construction, a reliable electric-hydraulic power system, and oversized base plates for stability, the GP-10C delivers professional-grade strength and flexibility that lasts.
GrandPrix GP-10C
- 10,000-lb. lifting capacity
- Rugged box-beam overhead construction for added stability
- Padded overhead safety shutoff bar
- Symmetric and asymmetric arm design for enhanced versatility

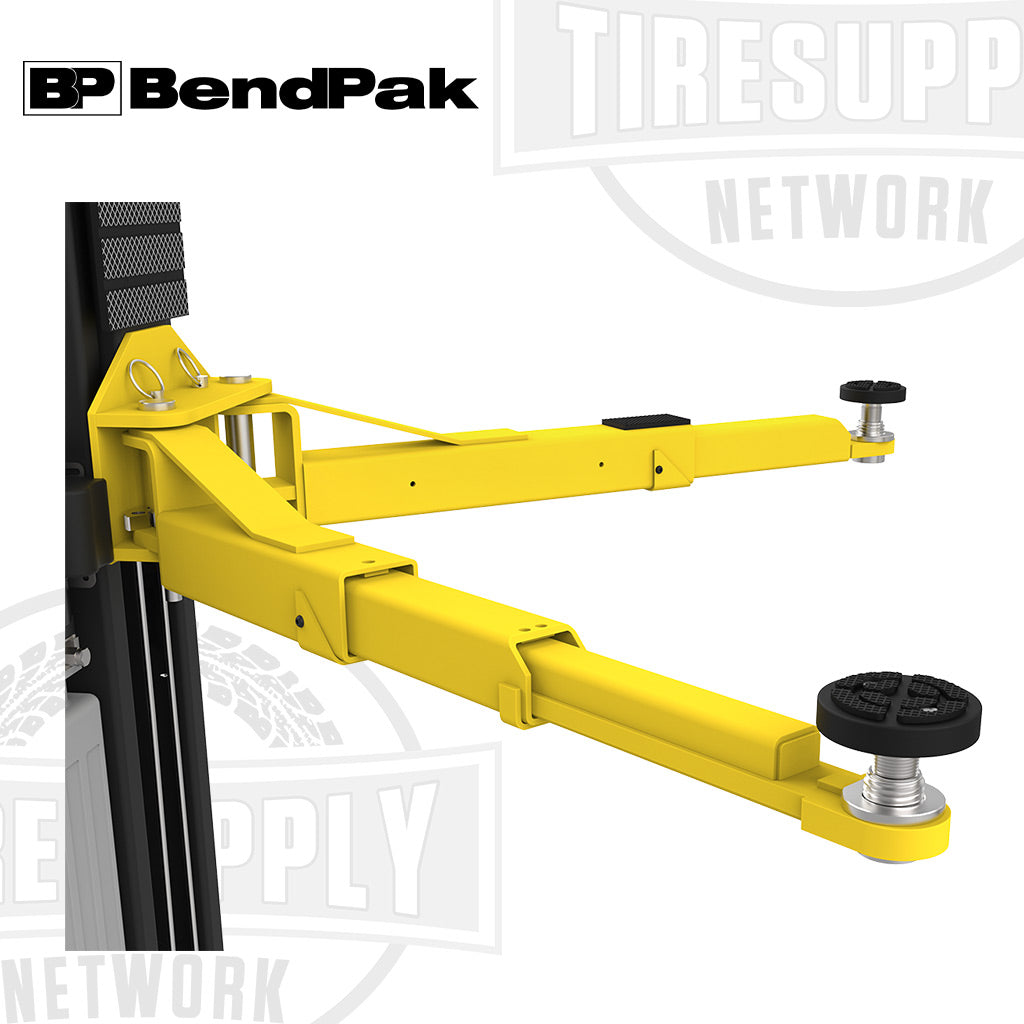

- Triple-telescoping front arms & dual-stage extended rear arms

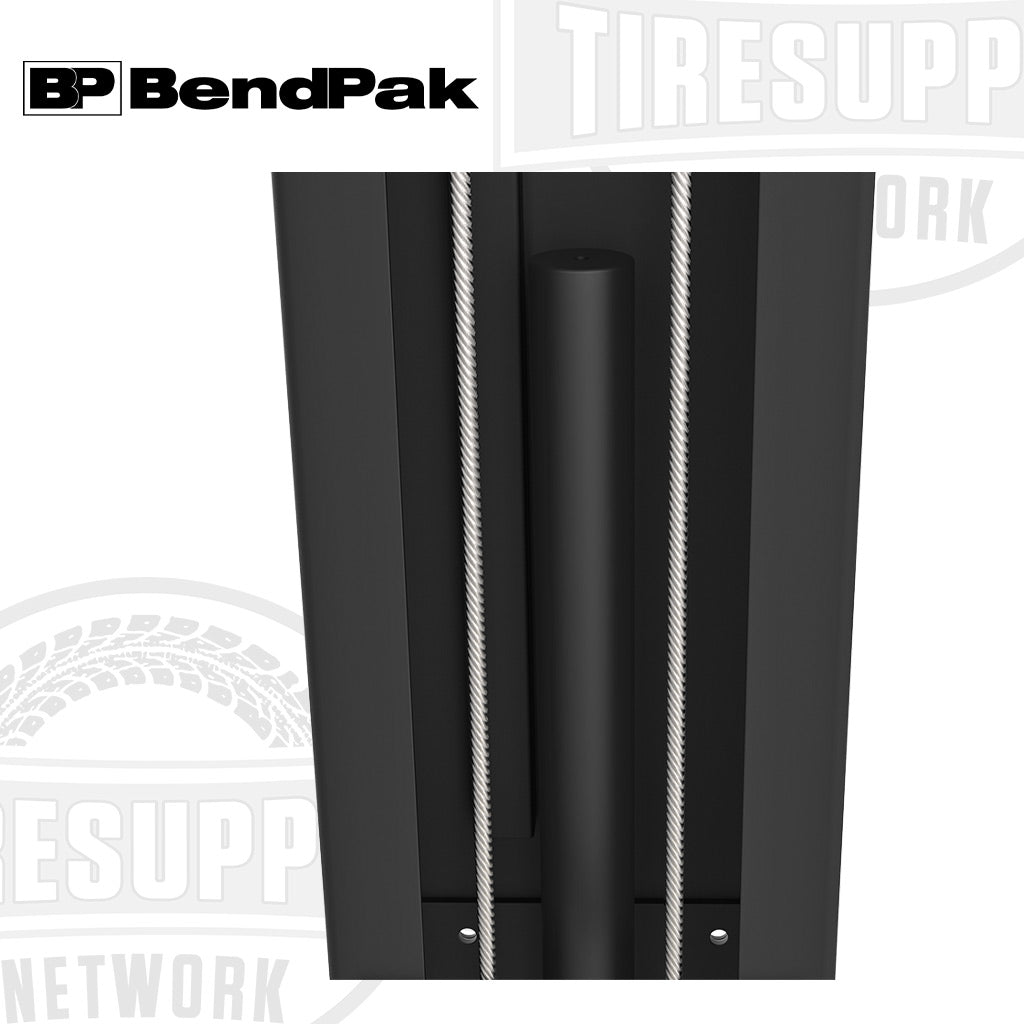

- Dual direct-drive low-pressure hydraulic cylinders
- Heavy-duty 6” x 6” tubular steel carriage for maximum strength
- Electric-hydraulic power system for effortless operation

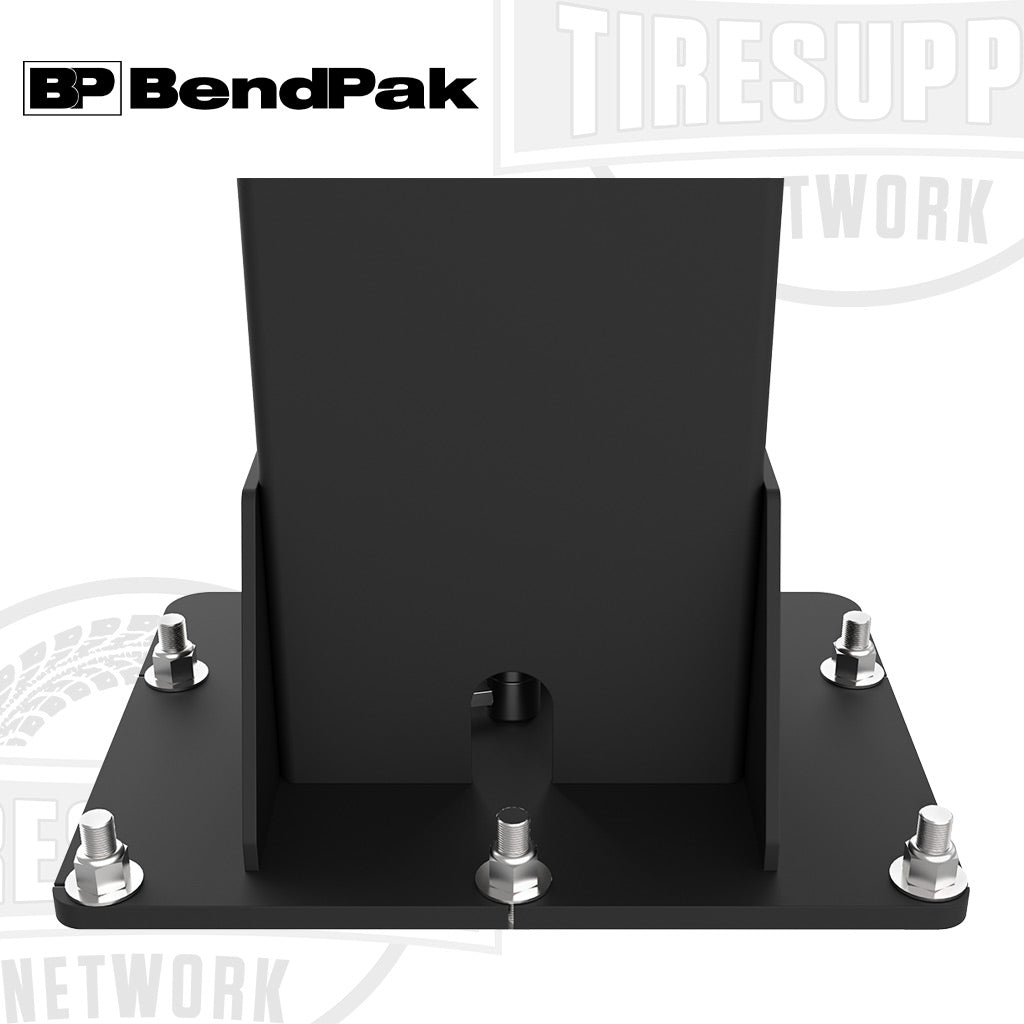

- Oversized 20.5" x 15.5" base plate for increased stability

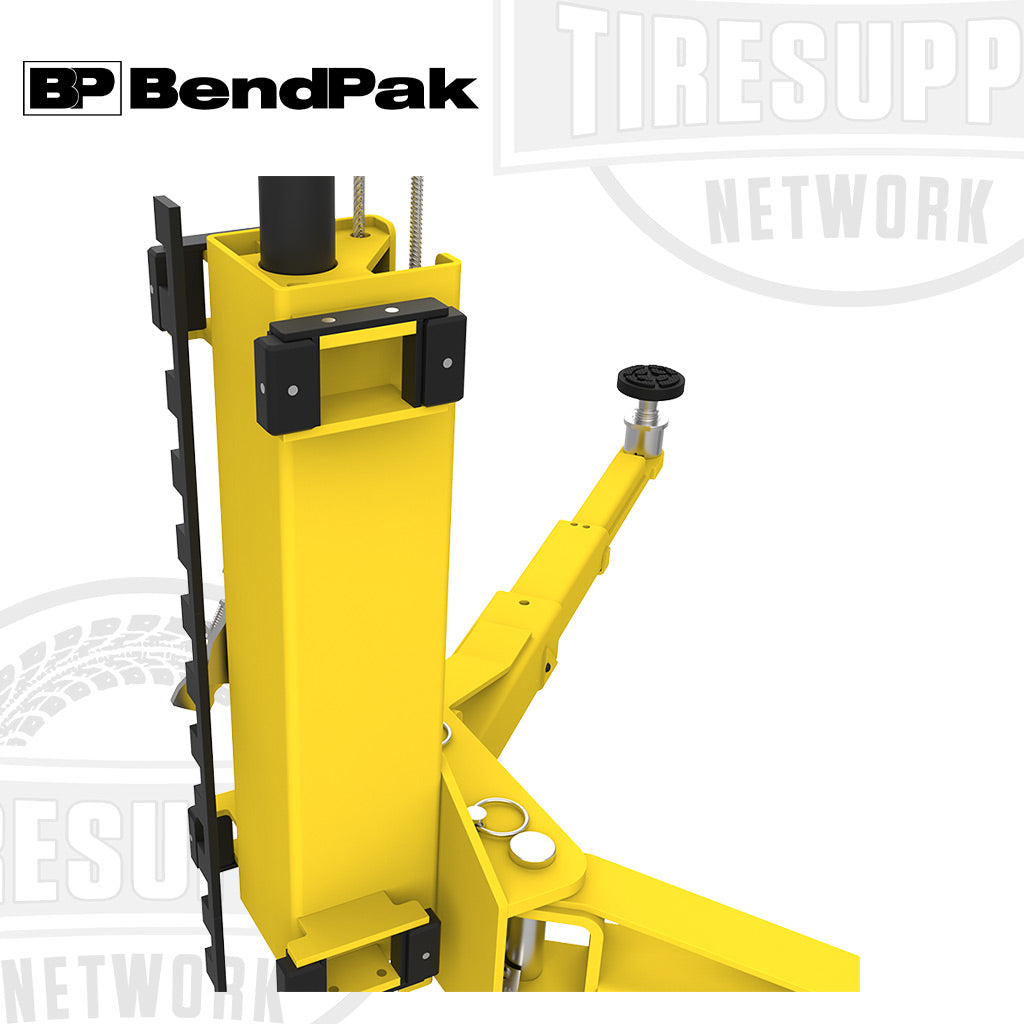

- Self-lubricating UHMW polyethylene guide blocks for long-lasting durability
- Safety locks in each column spaced every 3 inches

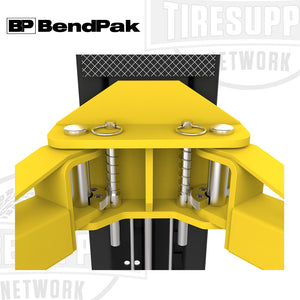

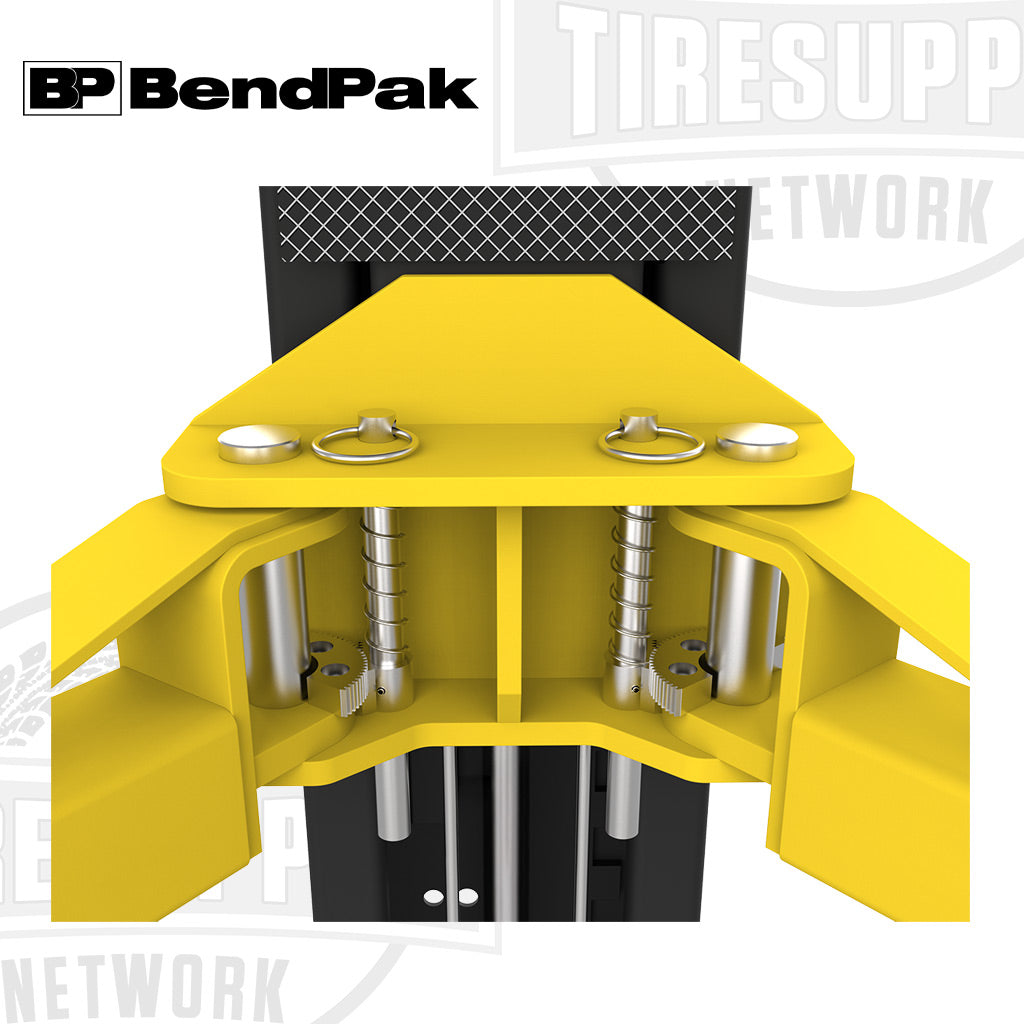

- Automatic arm restraints for enhanced safety
- Heavy-duty 3/8" aircraft-quality equalizer cables
- Oversized cable sheaves to reduce cable fatigue

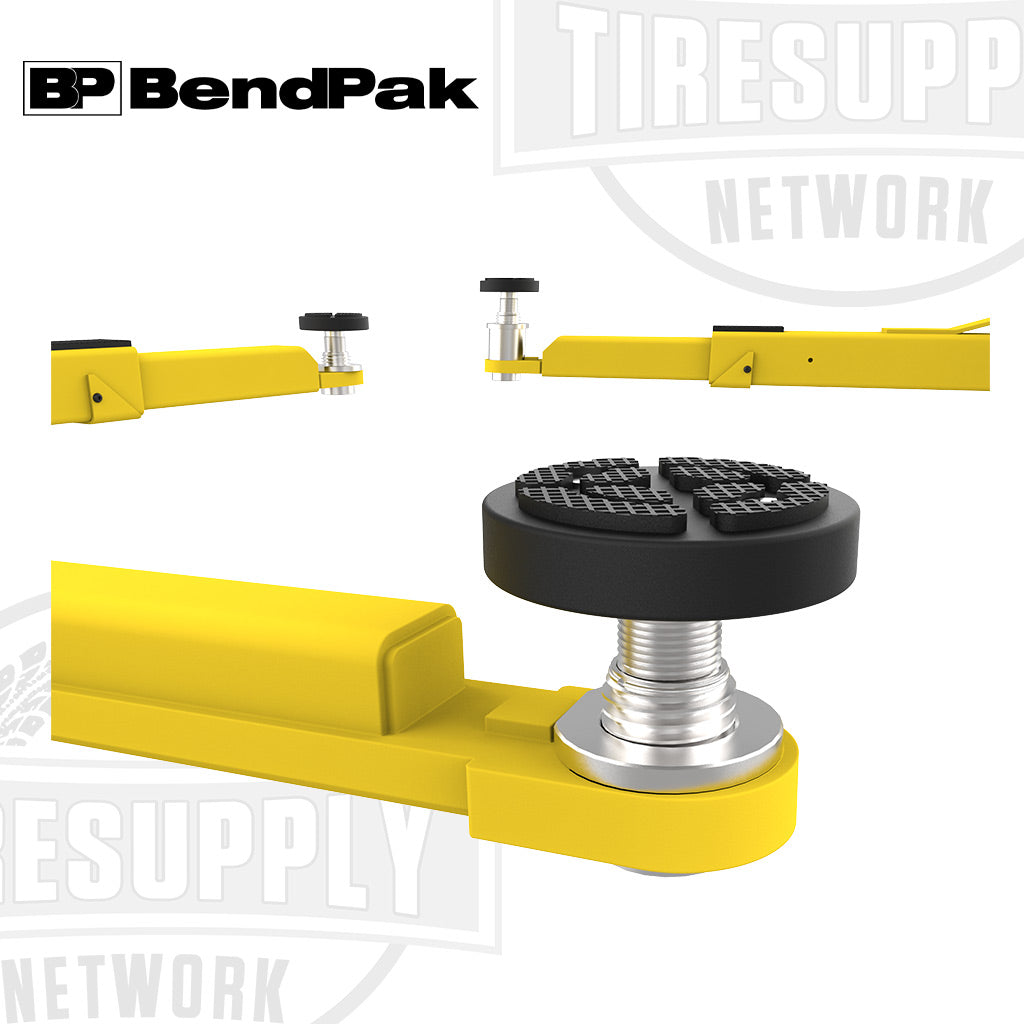

- Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability

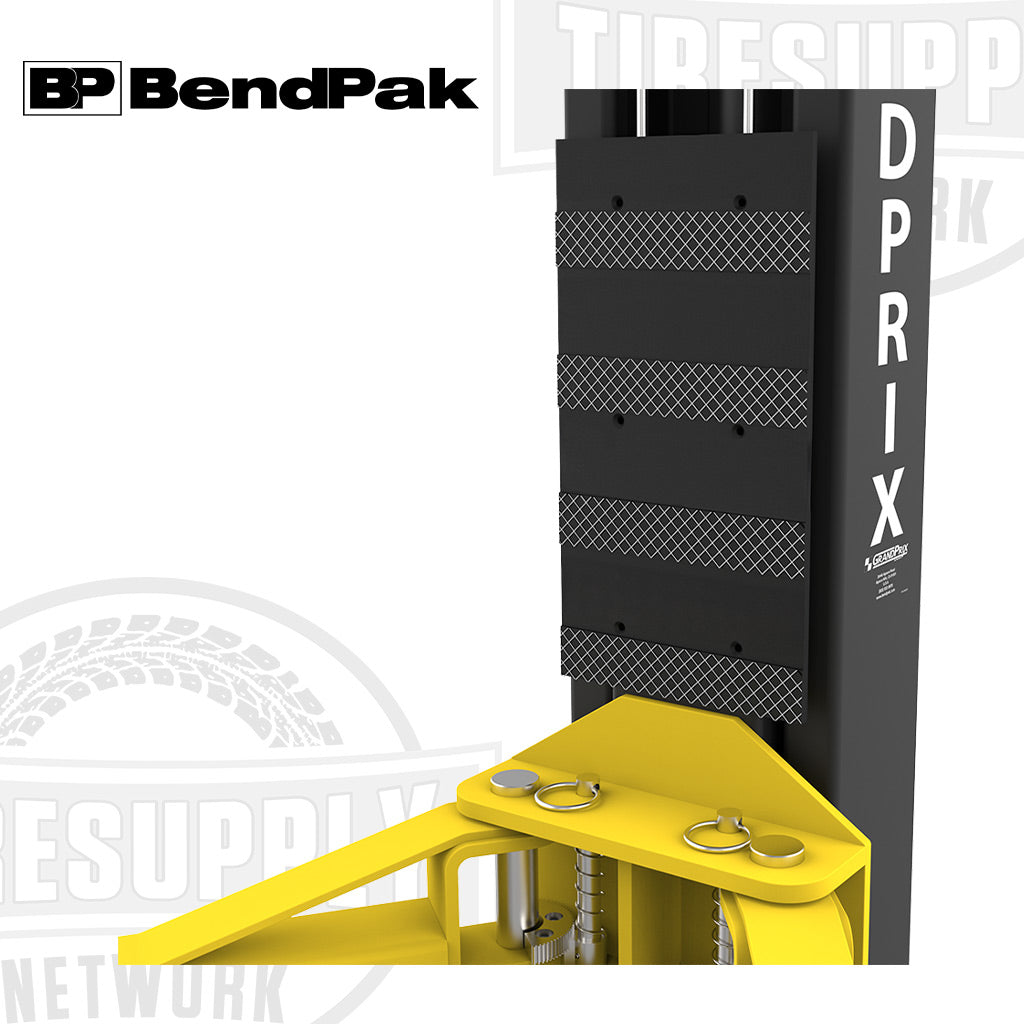

- Full size rubber carriage guard reduces door dings

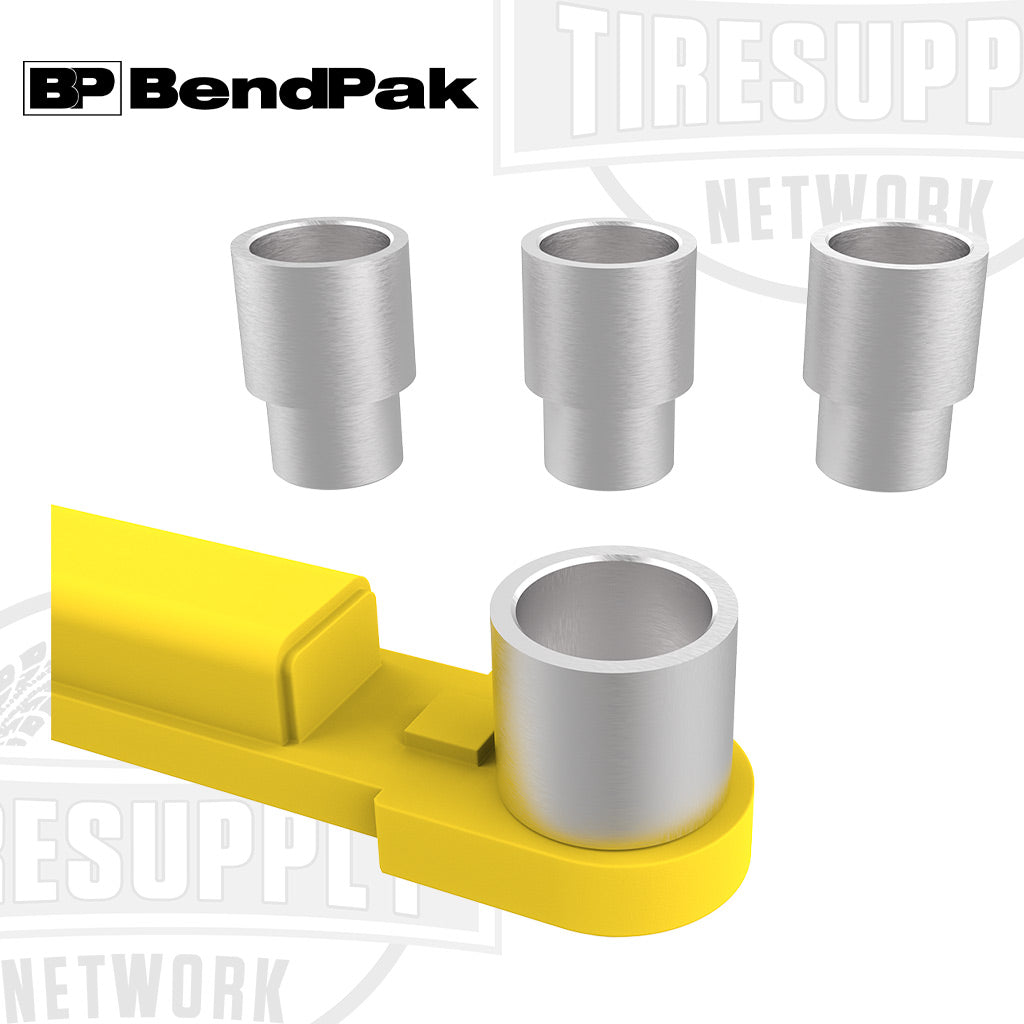

- 4-piece 63mm stackable adapter set included
- 10-piece concrete wedge anchors included
- 36-month limited warranty
| Style | Clear Floor |
| Lifting Capacity | 10,000 lbs (4,536 kg) |
| Front Axle (max) | 5,000 (2,268 kg) |
| Rear Axle (max) | 5,000 (2,268 kg) |
| Height Overall | 148" (3,759 mm) |
| Width Overall (At Baseplate) | 137.5" (3,492 mm) |
| Width Outside of Columns | 128.5" (3,264 mm) |
| Floor to Overhead Switch Bar | 142.5" (3,619 mm) |
| Width Inside Columns | 114.5" (2,908 mm) |
| Front Arm Reach (min) | 22.5" (571 mm) |
| Front Arm Reach (max) | 43.25" (1,099 mm) |
| Rear Arm Reach (min) | 33.5" (845 mm) |
| Rear Arm Reach (max) | 53.25" (1,353 mm) |
| Pad Height (min) | 3.9" (100 mm) |
| Rise | 70" (1,778 mm) |
| Max Lift Height (pad +63mm adapt) | 76.5" - 78.5" (1,943 - 1,994) |
| Drive Thru Clearance | 103" (2,618 mm) |
| Screw Pad Adjustment | 2" (51 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Time to Full Rise | 65 sec |
| Max Load Per Arm | 2,500 lbs (1,134 kgs) |
| Shipping Weight | 1,545 lbs (703 kg) |
INFORMATIONAL LINKS:
- Study in Lift Designs > CLICK HERE
- Electrical & Utility > CLICK HERE
- Concrete Specs > CLICK HERE
- Specifications> CLICK HERE
- Warranty > CLICK HERE
- Balancing Safety > CLICK HERE
- How to Level > CLICK HERE
- Best Car Lift Guide > CLICK HERE
- Things to Know > CLICK HERE
DETAILS
THE ULTIMATE BLEND OF PERFORMANCE, SAFETY, AND VERSATILITY
Engineered for professional shops and home garages alike, the GrandPrix GP-10C delivers the perfect combination of power, reliability, and efficiency. With a 10,000-lb. lifting capacity, this two-post lift is designed to handle everything from compact cars to full-size trucks. Its symmetric and asymmetric lifting capabilities provide flexible arm positioning, allowing you to work with ease on a variety of vehicle makes and models.
The clearfloor design eliminates the obstructive floor beam found in traditional two-post lifts, providing unrestricted movement beneath the vehicle. This makes it easier to maneuver tool carts, transmission jacks, oil drains, and other shop equipment without interference. Whether you’re working on low-profile sports cars or lifted trucks, the open floor space ensures better clearance and a more efficient, clutter-free workspace.
PRECISION LIFTING WITH UNMATCHED FLEXIBILITY
Positioning a vehicle correctly on a two-post lift can be frustrating, but the GP-10C eliminates the guesswork with advanced lifting features. Triple-telescoping front arms and dual-stage extended rear arms offer exceptional reach, accommodating a wide range of vehicles. The included double-telescoping screw pads and 4-piece stackable adapter set ensure secure, stable contact with every lift, no matter the frame design.
BUILT FOR SAFETY AND STABILITY
The GP-10C is equipped with automatic safety locks that engage every three inches, ensuring rock-solid security throughout the lift range. The trouble-free locks release effortlessly via single-pull lanyards on each carriage, providing maximum safety without unnecessary complexity.
Rugged box-beam overhead structure reinforces the lifting frame, reducing stress on the columns and enhancing stability. For added protection, a padded overhead shutoff bar, paired with an industrial-grade limit switch, acts as a safeguard—stopping the lift if a vehicle is raised too high. For added security, automatic arm restraints secure the arms in place when the lift is raised, preventing unintended movement during service.
HEAVY-DUTY STRENGTH YOU CAN RELY ON
Built to withstand daily use in demanding shop environments, the GP-10C is constructed with high-strength steel and reinforced components. A 6" x 6" tubular steel carriage provides superior load-bearing capability, while the electric-hydraulic power system ensures quiet, efficient operation. For added stability, oversized 20.5" x 15.5" base plates help distribute weight more effectively, making it a lift you can depend on for years to come.
LOW MAINTENANCE, HIGH PERFORMANCE
Unlike many full-column clearfloor lifts that use complex chain-over systems, the GP-10C features a direct-drive design with tubular steel carriages paired with dual full-stroke hydraulic cylinders. This proven setup delivers smooth, consistent lifting with significantly fewer moving parts. By minimizing wear and reducing maintenance needs, it ensures long-term reliability and superior performance.
To further extend the life of critical components, the lift features self-lubricating UHMW polyethylene guide blocks, eliminating the need for messy greasing. Oversized cable sheaves reduce cable fatigue, while aircraft-quality 3/8-inch equalizer cables evenly distribute weight, ensuring a balanced lift every time.
36-MONTH WARRANTY FOR PEACE OF MIND
When you invest in the GrandPrix GP-10C, you’re backed by BendPak’s industry-leading 36-month warranty, covering structural components and craftsmanship. With BendPak’s renowned customer support and a nationwide network of service providers, expert assistance is always within reach.
Need replacement parts? Call or email us and we can special order them for you!
