Autel  |  SKU: MSULTRAADAS

Autel | MaxiSYS MSUltra ADAS Advanced Diagnostic Tablet + ADAS (MSULTRAADAS)

$5,255.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $72.98 for 72 months Finance Now!

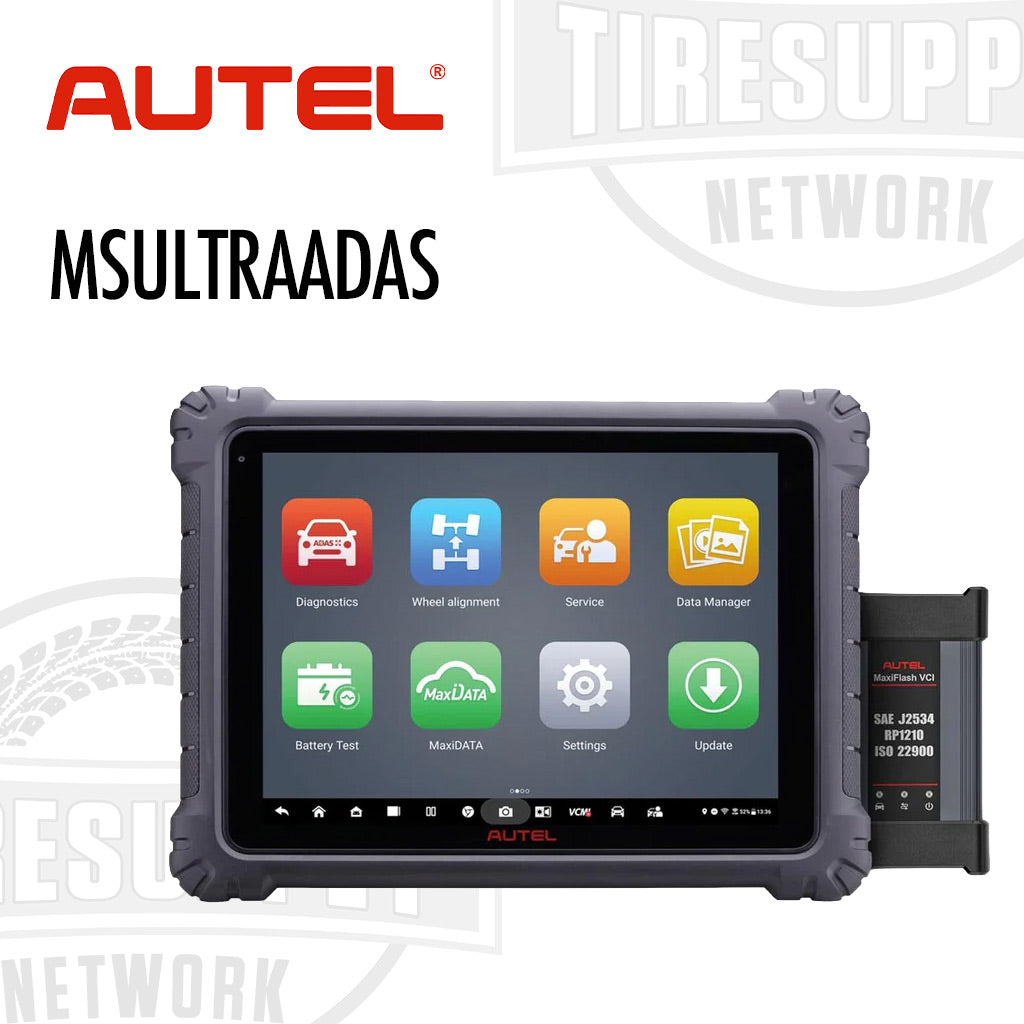

Autel | MaxiSYS MSUltra ADAS Advanced Diagnostic Tablet + ADAS (MSULTRAADAS)

This 12.7-inch wireless touchscreen tablet comes replete with all the functionality expected in an advanced diagnostic and service tablet including the ability read and erase codes, view Freeze Frame and view and graph Live Data, perform Active Tests and perform coding and adaptions, plus it includes ADAS calibration and Wheel Alignment software. Compatible with the IA900WA frame system. The tablet is equipped with a Bluetooth-enabled VCI and J2534 passthru programming device, includes one-year free software and is covered by a one year limited warranty.

Features:
  • 12.7-inch touchscreen Android-based advanced diagnostics tablet
  • Includes ADAS calibration and wheel alignment software update
  • Compatible with IA900WA frame system
  • Advanced diagnostic functionality compatible with U.S., Asian and European vehicles, 1996 ad newer
  • Read and Erase codes, view Freeze Frame and view and graph Live Data
  • Perform Active Test and adaptations and coding
  • Includes MaxiFlash VCI and J2534 passthru programming device
  • Covered by one year limited warranty
  • Includes one year of free software updates
Specifications:
Operating System Android 7.0
Processor Octa-core processor (4 x 2.3 GHz; 4 x 1.7 GHz)
Memory 4GB RAM & 256GB On-board Memory
Display 12.7 inch with 2732 x 2048 resolution & capacitive touchscreen
Connectivity

  • WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)

  • BT v.2.1 + EDR

  • GPS

  • USB 2.0 (Two USB HOST Type A, one USB mini device)

  • HDMI 2.0

  • SD Card (Support up to 256GB)
Camera

  • Rear: 16 Megapixel, Autofocus with Flashlight

  • Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

  • Microphone

  • Dual Speakers

  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 18000mAh 3.8 V lithium-polymer battery
  • Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temperature -10 to 60°C (14 to 140°F)
Dimensions (WxHxD) 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Compliance and Restrictions:

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
