Autel ITS600 Pro Handheld TPMS Service & Diagnostic Tablet (700150)

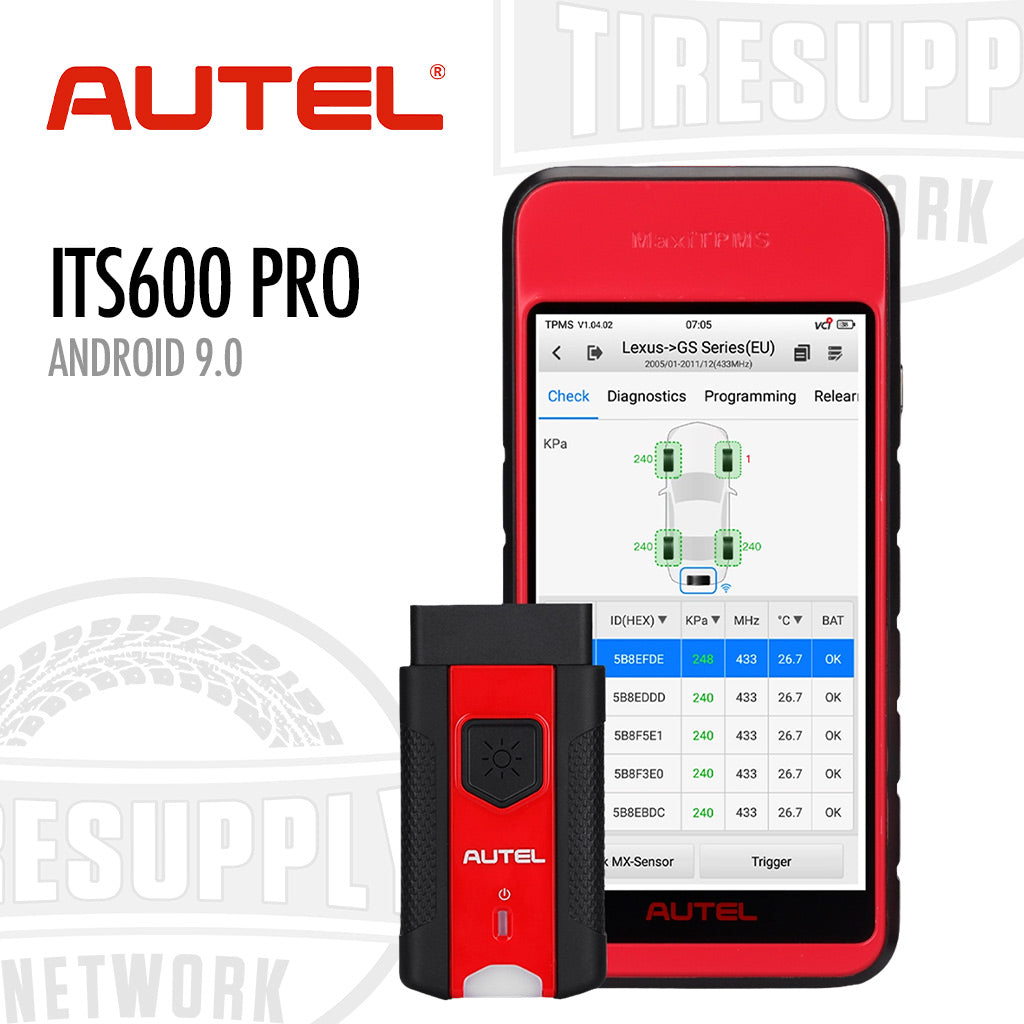

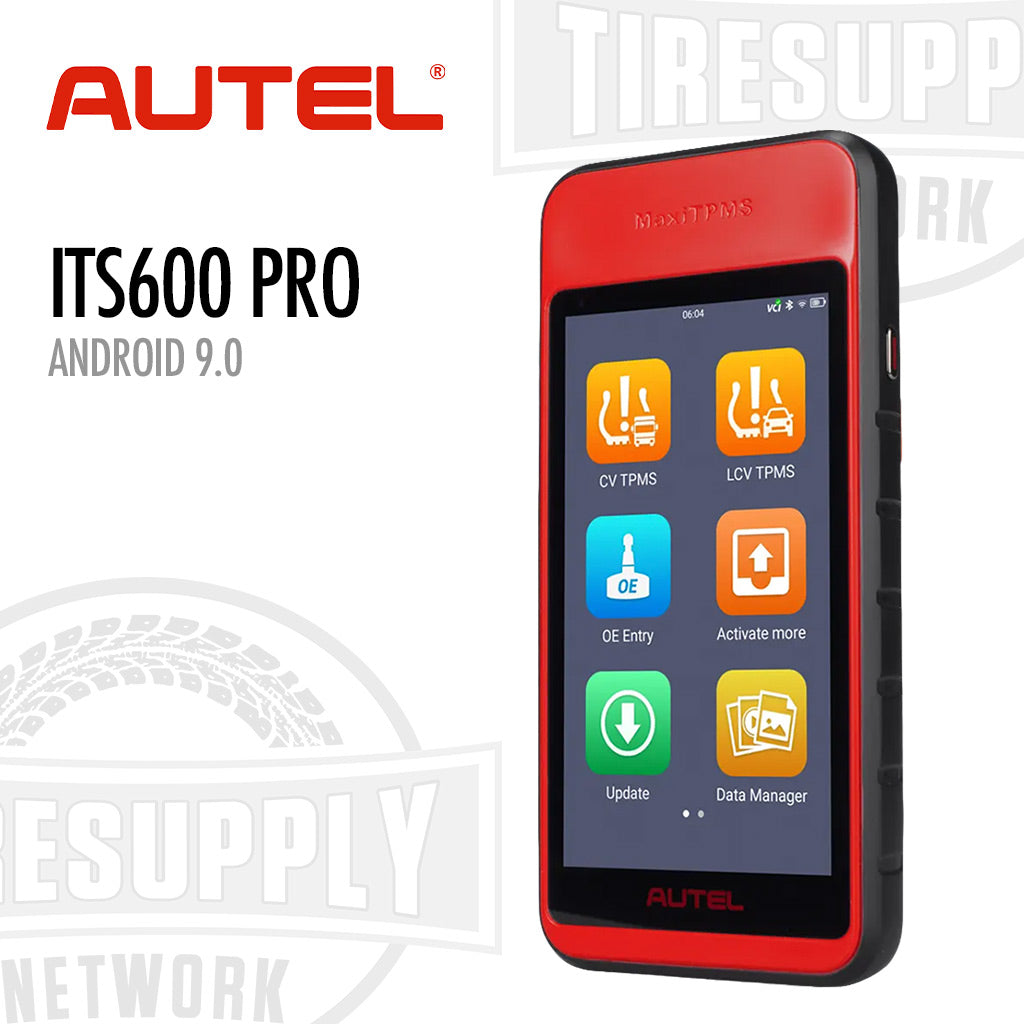

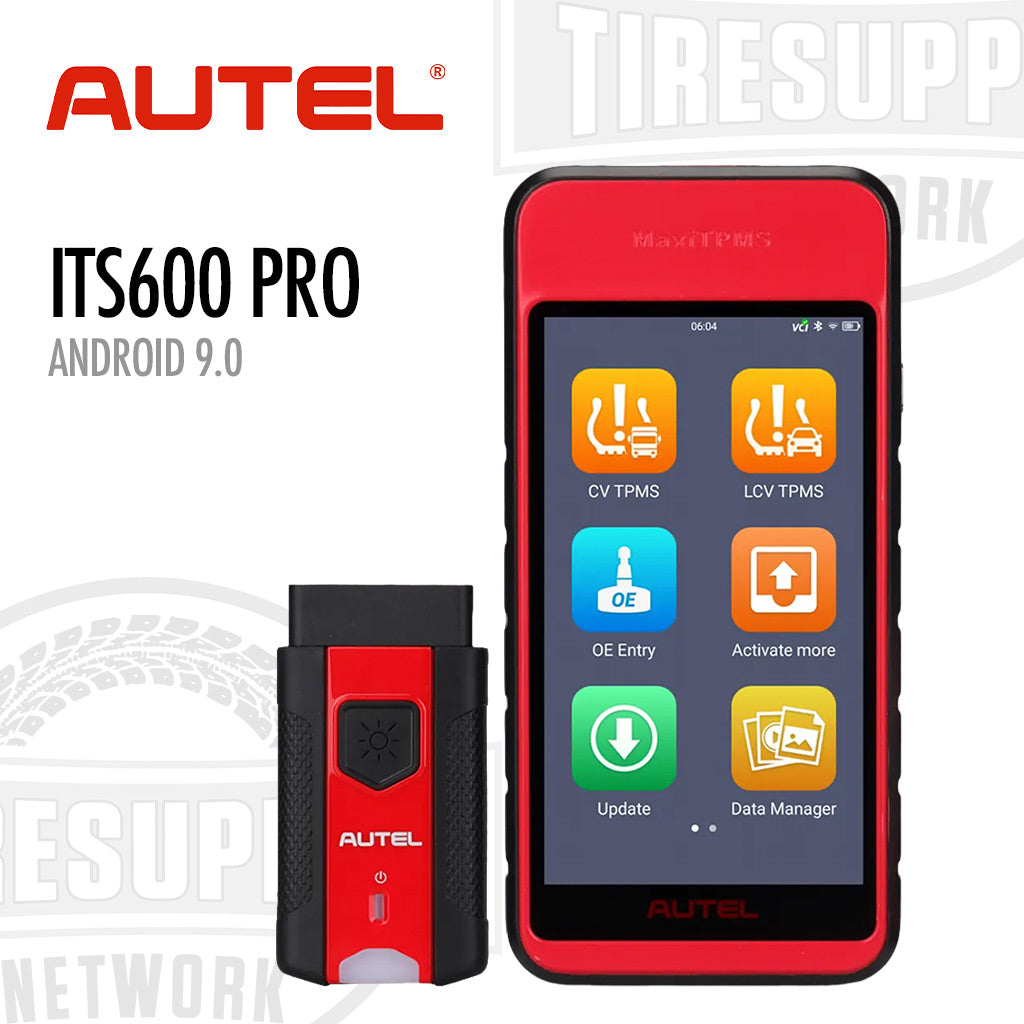

The MaxiTPMS ITS600 Pro is a wireless, touchscreen Android-based tablet offering complete TPMS diagnostics and service functions and featuring All Systems Diagnostics and an extensive menu of the most performed service tasks.

The ITS600Pro can activate, read and relearn all known sensors and can program the 1-sensor to replace 99% of the vehicles on the road today.

Choose from one of four 1-Sensor programming methods: Copy by Activation, Copy by OBD, Auto Create, and Copy by Manual Input – now with voice assistance. The tablet features a 5.5-inch color display and a Bluetooth-enabled vehicle communication interface (VCI).

The tablet performs all systems diagnostics to read/erase codes and view all freeze frame and live data. The ITS600Pro is compatible with the TBE200 Tire Tread & Brake Disc Wear analysis tool (sold separately). The tablet includes one year warranty coverage and one year of free diagnostic & service software updates.

Features:

5.5-inch, Wireless Touchscreen Android Tablet
Complete TPMS Service Tool
Activates, Reads and Reads All Known Sensors
Four 1-Sensor Programming Methods: Copy by Activation, Copy by OBD, Auto Create, and Copy by Manual Input – now with voice assistance
Programs 1-Sensor to replace 99% Sensors
All Systems Diagnostics: Read/Erase Codes & View Freeze Frame and Live Data
Extensive Service Menu incl 20 common service tasks
Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
Rapid VIN Acquisition Via Optical VINscan Function
One Year Warranty Coverage of Diagnostics Software Updates

Specifications:

Recommended Use	Indoor
Operating System	Android™ 9.0
Processor	Quad-core processor (1.5 GHz)
Memory	2GB RAM DDR4 & 64GB ROM
Display	5.5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity	Wi-Fi USB 2.0, Type C Bluetooth®
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Light sensor for brightness auto adjust
Audio Input/Output	Input: N/A Output: Beep
Power and Battery	3.8 V/5000 mAh lithium-polymer battery Charges via 5 V AC/DC power supply
Battery Charging Input	5 V/2 A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temperature	-10 to 45°C(14 to 113°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	183.0 mm (7.2") x 89.0 mm (3.5") x 22.0 mm (0.87")
Net Weight	368g (0.8 lb.)

Protocols

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
