Autel | CV ADAS All Systems Calibration Package (CVAAS*)

Features

• Commercial Vehicle All Systems Calibration Package Includes Standard Frame, Targets, and Components to perform calibrations on Light Duty, Class 1-3 Vehicles:
  • LDW - Lane Departure Warning
  • BSD - Blind Spot Detection
  • RCW - Rear Collision Warning
  • ACC - Adaptive Cruise Control
  • AVM - Around View Monitoring
• Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
• Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
• Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle


Hardware Features

• Precise millimeter-level accuracy: crossbar's minor adjustment knob and laser positioning
• Precise laser on sliding plate to locate radar and front camera
• Flexible power adjustable lift
• Flexible portable and easy for storage patter cloth and pattern board
• Integrated modular frame assembled with accessory tools for calibration
• Integrated easy to move pattern board holder, pattern cloth, and pattern board

Software Features

• Smart calibration procedure
• Smart compatible use with leveling lift adjustment
• Accurate regular updates of lates OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
• Complete wide vehicle coverage
• Complete (7) calibration functions fixed and mobile calibrations

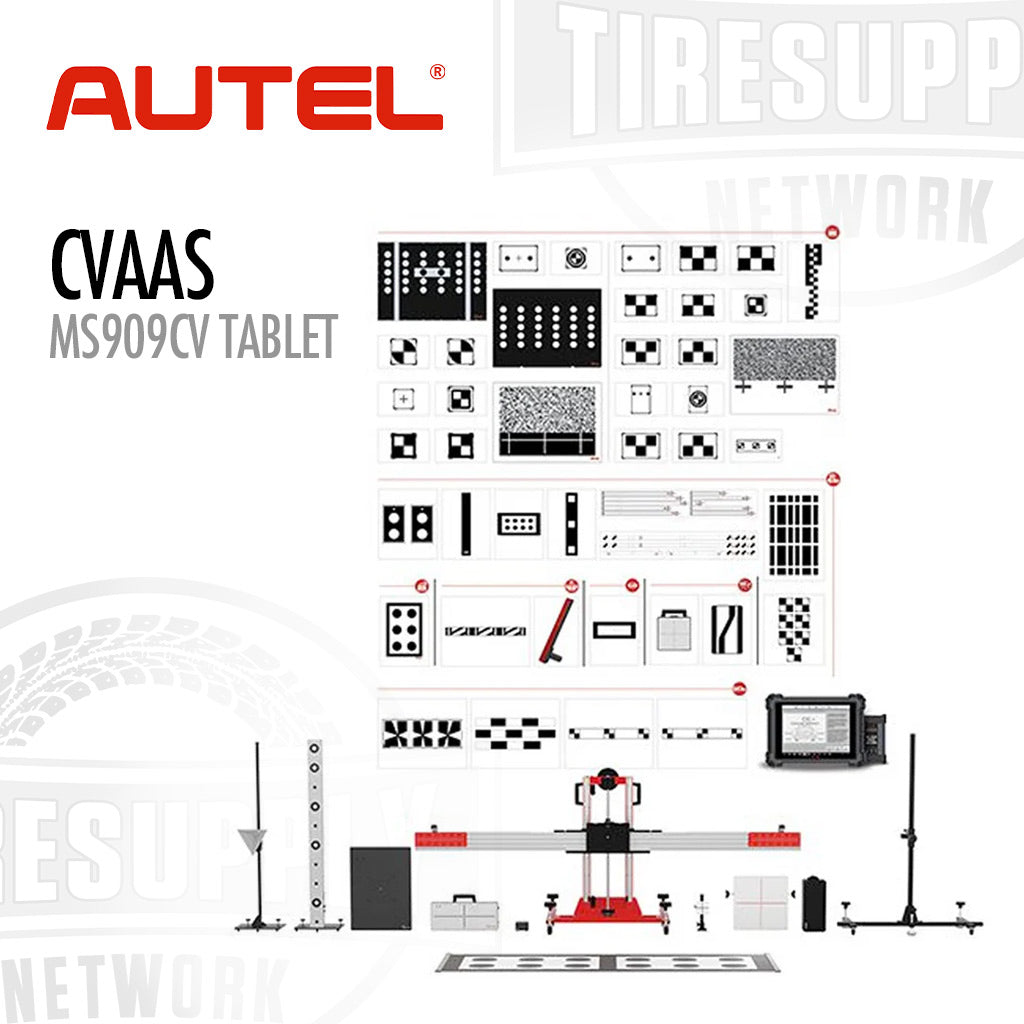

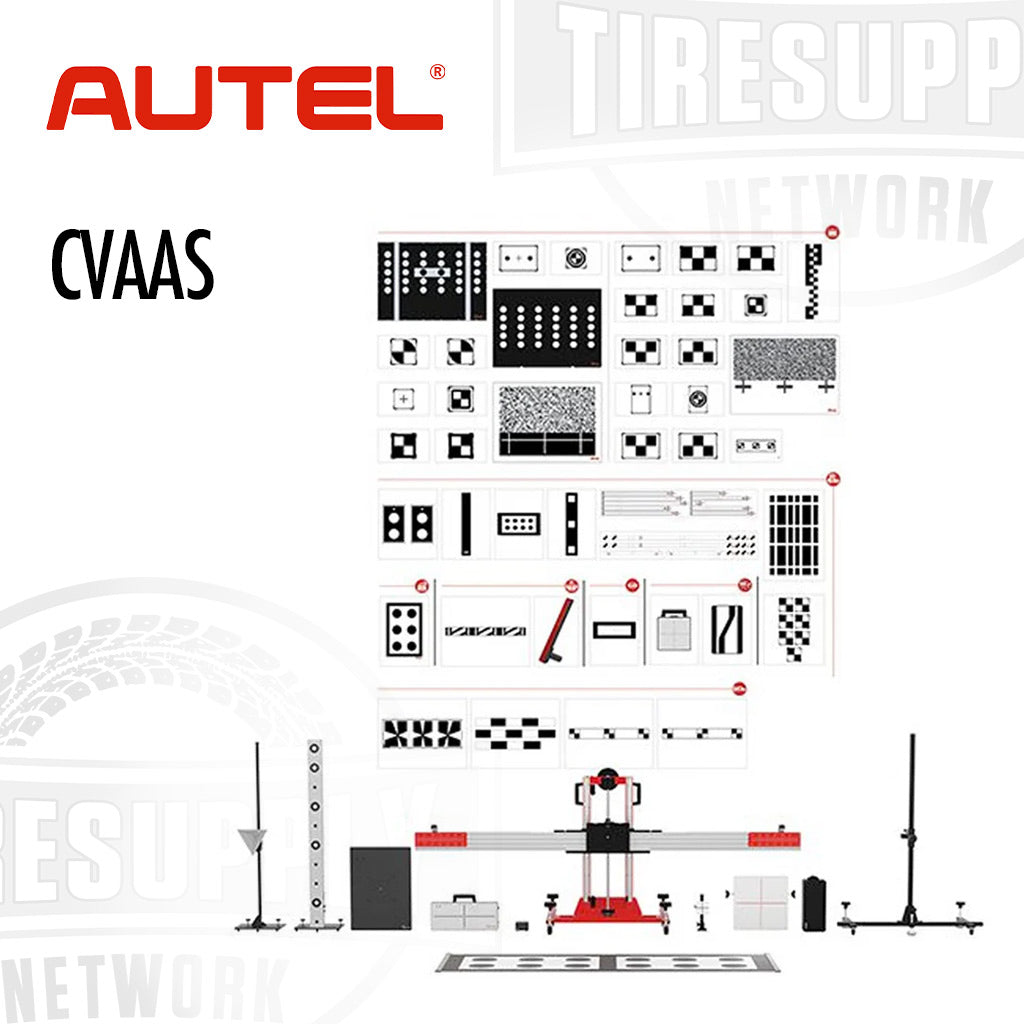

Package Includes

• Autel Standard Calibration Frame
• Pattern Board, Wheel Clamps, Vehicle Positioning Wheel Clamp Lasers, ACC Reflector, and Mini Reflectors
• Digital ADAS kit with (3) Digital Tape Measures, (2) Wheel Dials, and Supporting Hardware
• Radar Calibration Components including standard and Hitachi Radar Plates, Calibration Box, and Corner Reflector
• (2) Two Nissan RCW Camera Calibration Mats
• Cadillac AVM Camera Calibration Mat
• Requires MaxiSYS Tablet (not included)
• LDW Patterns/Targets for Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
• Target Board Holder

Specifications

• Shipping Dimensions: 60" H x 105" L x 42" W
• Shipping Weight: 660 lbs.

Frame & Pattern Board Specifications

• Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
• Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
• Calibration Frame Weight GW: 152kg (335.1 lb.)
• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Crossbar Length: 2510mm (98.82")
• Measurement Range of Crossbar's Height Min: 350mm (13.78")
• Measurement Range of Crossbar's Height Max: 950mm (37.40")
• Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
• Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS
