Autel  |  SKU: ADASCALD

Autel | All Systems ADAS Calibration Package (ADASCALD)

$22,458.00 $24,953.33

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $311.91 for 72 months Finance Now!

Autel | All Systems ADAS Calibration Package (ADASCALD)

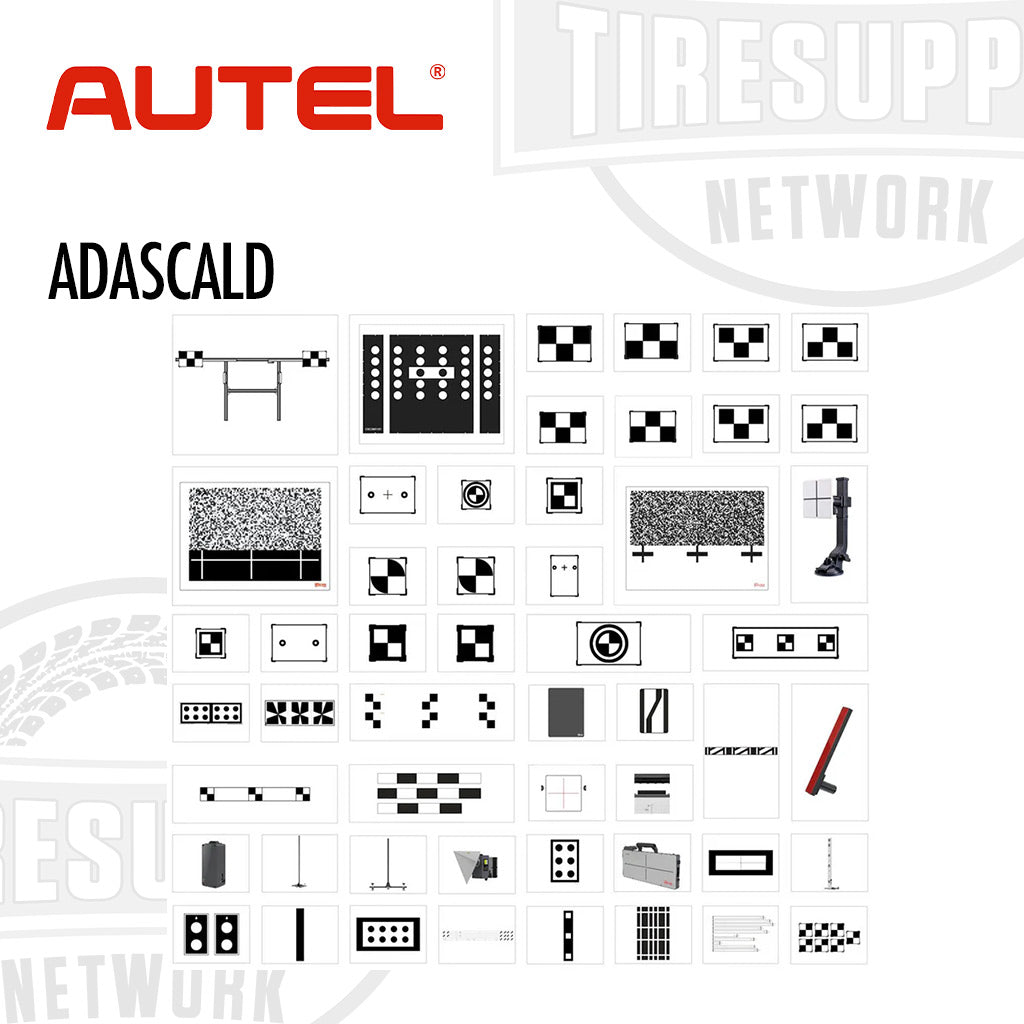

The ADASCALD package, compatible with the Autel Standard calibration frame system, contains targets, patterns and calibration components needed to execute ADAS camera, radar, night vision, LiDAR components for all ADAS-equipped vehicle makes and models. The package contains targets and patterns included in the LDW1, LDW2, and LDW3 packages. Radar calibration devices include Doppler Radar simulator, Continental and Hitachi calibrators. Includes Lexus Night Vision pattern and the Night Vision calibration stand for Mercedes vehicles. Includes the LiDAR reflector for Toyota and calibration board for VW and Audi vehicles. Covered by one year warranty.

Features:
  • All makes and models ADAS calibration expansion package
  • Includes calibration components for camera, radar, night vision, LiDAR systems
  • Compatible with Autel Standard Calibration frame (not included)
  • Includes LDW1, LDW2, LDW3 target packages
  • Includes AVM targets for Cadillac, Honda, VW, Nissan, Hyundai and Kia, Toyota and Mitsubishi
  • Includes Radar calibration equipment inc. Doppler simulator and Continental calibrator.
  • Includes Honda Lanewatch target
  • Includes Night Vision calibration equipment for Lexus and Mercedes
  • Includes Rear Collision warning calibration targets for Nissan, Mercedes, and VW
  • Includes LiDAR calibration devices for VW and Audi and Toyota
Specifications:
Operating System Android 7.0 / Android 10.0
Processor

Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity

Dual Wi-Fi(802.11 a/b/g/n/ac 2x2 MIMO)

BT V5.0 + BR/EDR

GPS

USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

HDMI 2.0

SD Card (Support up to 256GB)
Camera

Rear: 16 Megapixel, Autofocus with Flashlight

Front: 16 Megapixel
Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

Microphone

Dual Speakers

3-Band 3.5 mm stereo/standard headset jac
Power and Battery

15000mAH 3.8V lithium-polymer battery

Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight 1.66kg (3.66 lb.)
Protocols CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Compliance and Restrictions:
