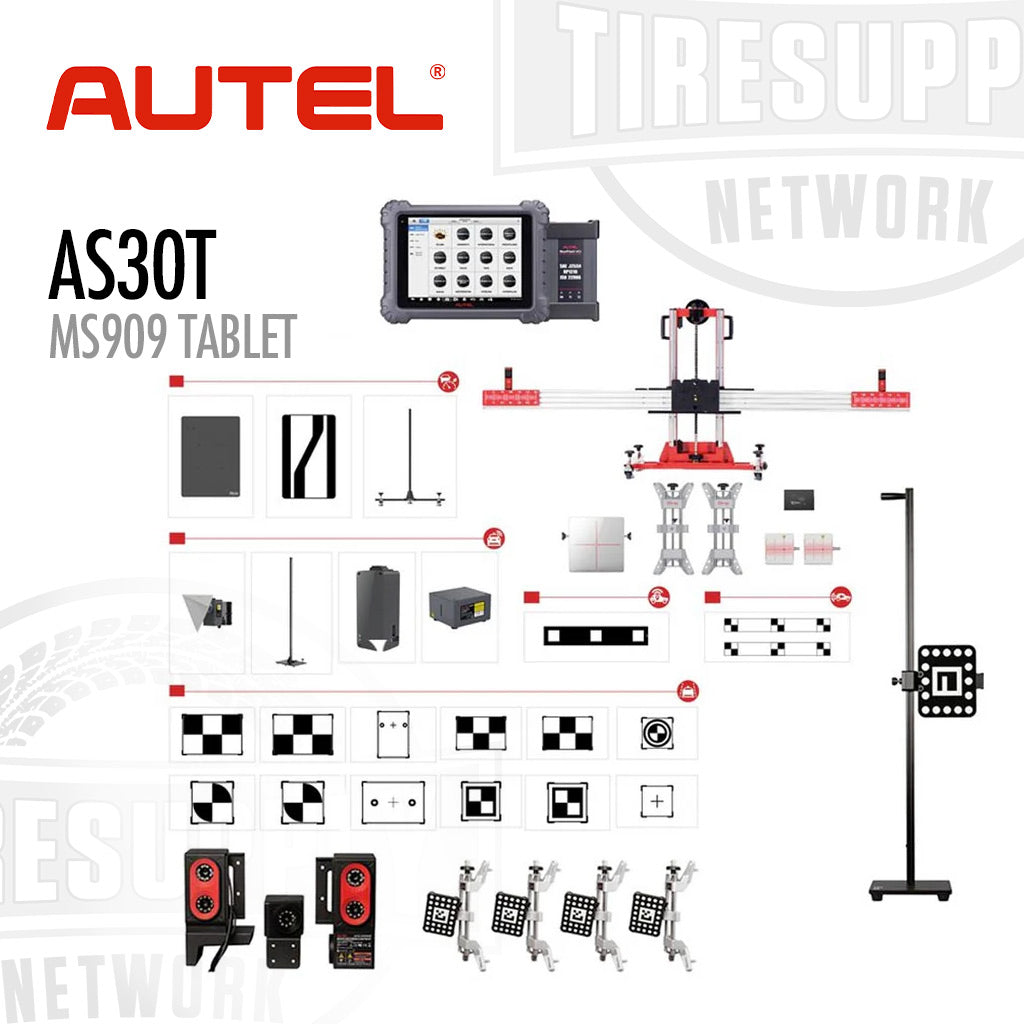

The Autel ADAS AS30 All Systems 3.0 Tablet Calibration Package includes the Standard Frame, IA800 positioning system, targets, patterns and components for LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch and AVM system calibrations. Includes MaxiSYS MS909 Diagnostic Tablet with ADAS software upgrade. This system includes the IA800 optical positioning package that enables rapid vehicle to target positioning and precheck of vehicle alignment. The IA800 package includes six cameras, wheel clamps and positioning targets and distance positioning stand. Includes LDW Patterns/Targets for Alpha Romeo, Honda, VW, Mercedes, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota and Lexus vehicles; AVM patterns systems for Hyundai, Kia, Nissan, Mitsubishi, Toyota, VW, Honda and GM vehicles; RCW patterns/package for Mercedes, Nissan and VW vehicles; Night Vision Calibrator for VW, Mercedes and GM vehicles; Lidar Calibrator for VW, Audi, Lexus and Toyota vehicles. Includes 2- and 5-line lasers, plumb bob, laser-assisted mirror, L-shaped bracket and laser reflector. Includes One-Year Warranty.

Features

• Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
• Precise - Fine-tuning Hand Knob and Camera Positioning for Millimeter Ruler
• Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

Hardware Features

• Precise millimeter-level accuracy: crossbar's minor adjustment knob and camera positioning
• Precise cameras to locate radar and front camera
• Flexible power adjustable lift
• Flexible portable and easy for storage pattern cloth and pattern board
• Integrated modular frame assembled with accessory tools for calibration
• Integrated easy to move pattern board holder, pattern cloth, and pattern board

Software Features

• Smart calibration procedure
• Smart compatible use with leveling lift adjustment
• Accurate regular updates of latest OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
• Complete wide vehicle coverage
• Complete (7) calibration functions fixed and mobile calibrations

MaxiSys 909 Tablet Features

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Package Includes

• MaxiSys MS909 Tablet
• Lane Departure Warning Calibration System
• Standard ADAS Calibration Frame with Target Board Holder
• Includes IA800 Optical Positioning System for Rapid Vehicle to Target Positioning
• Includes LDW Targets and Patterns for Honda, Genesis, VW, Mercedes, Hyundai, Kia
• Includes LDW Targets and Patterns for Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota, Lexus
• IA800 Includes Six Cameras, Wheel Clamps and Positioning Targets, Distance Positioning Stand
• Includes 2- and 5-Line Lasers, Plumb Bob, Laser-Assisted Mirror, L-Shaped Bracket and Laser Reflector
• Includes ADAS Calibration Software Upgrade

Specifications

• Shipping Dimensions: 64" H x 105" L x 42" W
• Shipping Weight: 1,040 lbs.

Frame & Pattern Board Specifications

• Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
• Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
• Calibration Frame Weight GW: 152kg (335.1 lb.)
• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Crossbar Length: 2510mm (98.82")
• Measurement Range of Crossbar's Height Min: 350mm (13.78")
• Measurement Range of Crossbar's Height Max: 950mm (37.40")
• Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
• Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS
