Autel | ADAS All Systems 2.0 T Calibration Package (AS20T)

Autel | ADAS All Systems 2.0 T Calibration Package (AS20T)

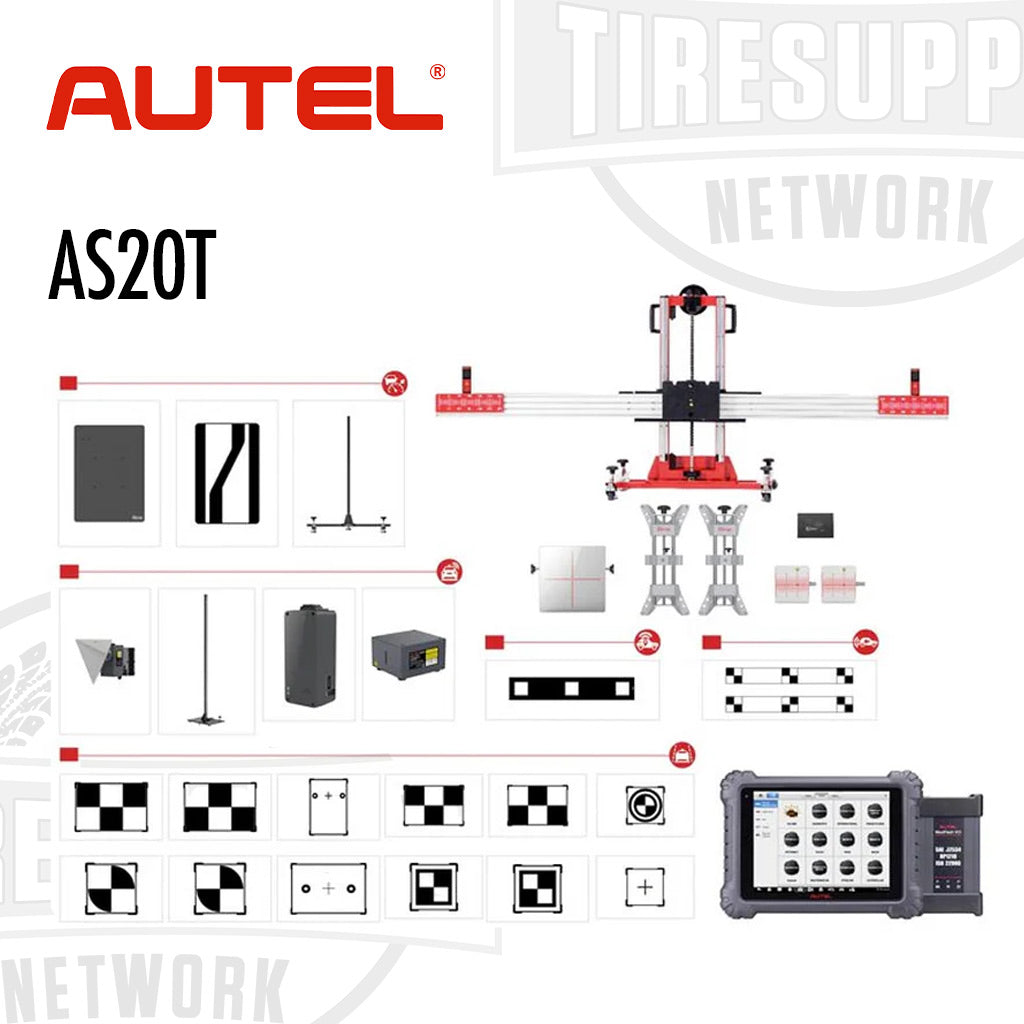

Autel ADAS AS20T All Systems 2.0 Package includes Standard Calibration Frame, the MaxiSys MS909 Tablet, ADAS Software Upgrade for calibration of LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch and AVM system calibrations on Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus vehicles. Includes LDW Patterns/Targets for Alpha Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus; Includes Night Vision Calibrator Package for VW, Mercedes, GM; Includes Lidar Calibration for VW/Audi, Lexus, Toyota; Includes AVM patterns/systems for Hyundai/ Kia, Nissan, Mitsubishi, Toyota, VW, Honda, GM; Includes RCW patterns/package for VW, Nissan, Mercedes; Includes Expansion Pack for RCW, AVM, LIDAR, and NV system Calibrations; Includes Honda Lanewatch Target; Includes Pattern Board, Wheel Clamps and Laser Crossbar; Includes DIGITALADAS add-on for faster frame placement with one person; Includes LDW Target Case; Includes Target Board Holder and Includes a One-Year Limited Warranty.

Features

• All Systems Calibration Package Includes Standard Frame, Targets, Patterns, and Components for:
• LDW - Lane Departure Warning
• ACC - Adaptive Cruise Control
• LIDAR - Light Detection And Ranging
• RADAR - Radio Detection And Ranging
• NV - Night Vision
• RCW - Rear Collision Warning
• LW - Lane Watch
• AVM - Around View Monitoring
• Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
• Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
• Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

Hardware Features

• Precise millimeter-level accuracy: crossbar's minor adjustment knob and laser positioning
• Precise laser on sliding plate to locate radar and front camera
• Flexible power adjustable lift
• Flexible portable and easy for storage patter cloth and pattern board
• Integrated modular frame assembled with accessory tools for calibration
• Integrated easy to move pattern board holder, pattern cloth, and pattern board

Software Features

• Smart calibration procedure
• Smart compatible use with leveling lift adjustment
• Accurate regular updates of lates OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
• Complete wide vehicle coverage
• Complete (7) calibration functions fixed and mobile calibrations

MaxiSys 909 Tablet Features

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Package Includes

• MaxiSys MS909 Tablet
• Autel Standard Calibration Frame
• Pattern Board, Wheel Clamps and Laser Crossbar
• DIGITALADAS Add-on for Faster Frame Placement with One Person
• LDW Patterns/Targets for Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
• ADAS Upgrade Software
• LDW Target Case
• Target Board Holder

Specifications

• Shipping Dimensions: 64" H x 105" L x 42" W
• Shipping Weight: 950 lbs.

Frame & Pattern Board Specifications

• Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
• Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
• Calibration Frame Weight GW: 152kg (335.1 lb.)
• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Crossbar Length: 2510mm (98.82")
• Measurement Range of Crossbar's Height Min: 350mm (13.78")
• Measurement Range of Crossbar's Height Max: 950mm (37.40")
• Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
• Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS
