Autel | ADAS All Systems 2.0 Calibration Package (AS20)

Autel | ADAS All Systems 2.0 Calibration Package (AS20)

ADAS AS20 is an All Systems Calibration Package includes Standard Frame, targets, patterns and components for LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch and AVM system calibrations. Includes ADAS software upgrade, compatible with MaxiSYS Tablet (not included); LDW Patterns/Targets for Alpha Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus; Lidar Calibration for VW/Audi, Lexus, Toyota; RCW patterns/package for VW, Nissan, Mercedes; Honda Lanewatch Target; DIGITALADAS add-on for faster frame placement with one person Target Stand; One Year Limited Warranty.

Features

• All Systems Calibration Package Includes Standard Frame, Targets, Patterns, and Components for:
• LDW - Lane Departure Warning
• ACC - Adaptive Cruise Control
• LIDAR - Light Detection And Ranging
• RADAR - Radio Detection And Ranging
• NV - Night Vision
• RCW - Rear Collision Warning
• LW - Lane Watch
• AVM - Around View Monitoring
• Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
• Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
• Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

Hardware Features

• Precise millimeter-level accuracy: crossbar's minor adjustment knob and laser positioning
• Precise laser on sliding plate to locate radar and front camera
• Flexible power adjustable lift
• Flexible portable and easy for storage patter cloth and pattern board
• Integrated modular frame assembled with accessory tools for calibration
• Integrated easy to move pattern board holder, pattern cloth, and pattern board

Software Features

• Smart calibration procedure
• Smart compatible use with leveling lift adjustment
• Accurate regular updates of lates OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
• Complete wide vehicle coverage
• Complete (7) calibration functions fixed and mobile calibrations

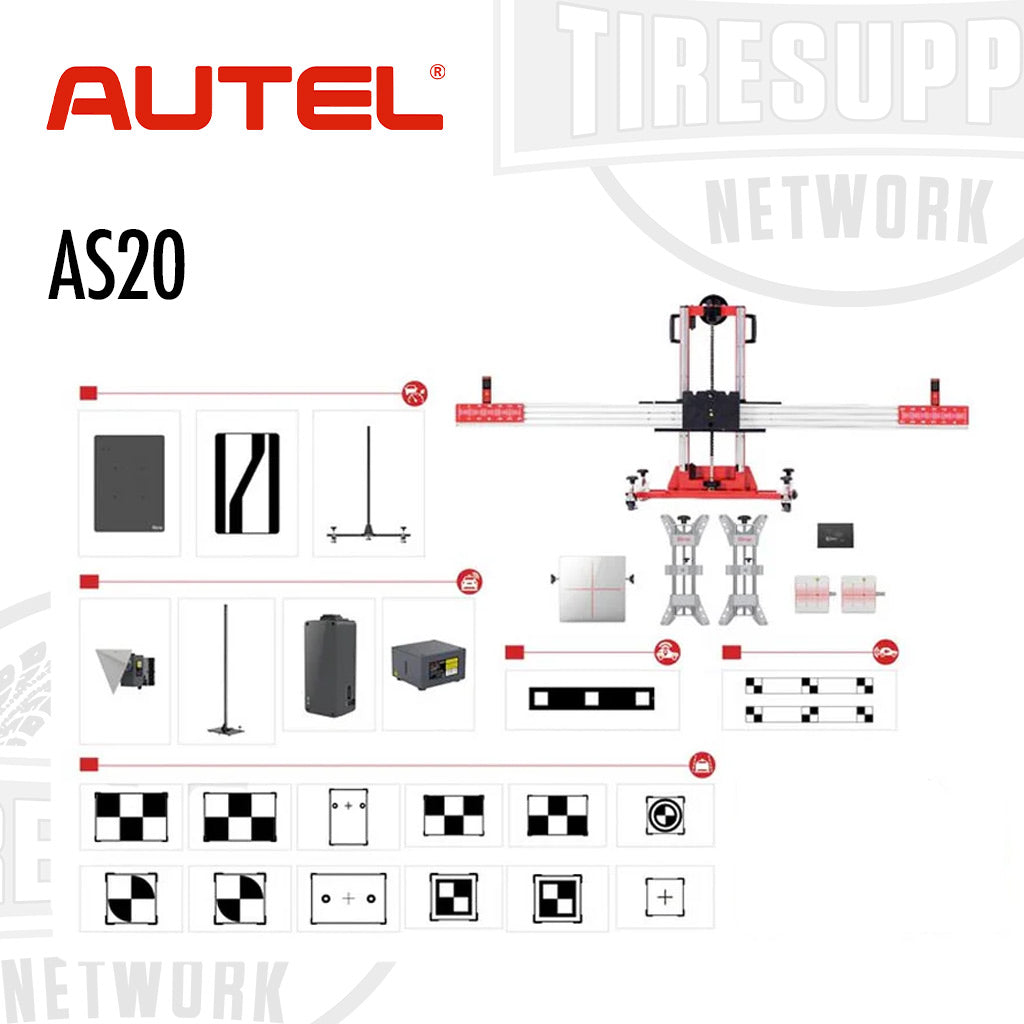

Package Includes

• Autel Standard Calibration Frame
• Pattern Board, Wheel Clamps and Laser Crossbar
• ADAS Upgrade Software, compatible with MaxiSYS Tablet (not included)
• DIGITALADAS Add-on for Faster Frame Placement with One Person
• LDW Patterns/Targets for Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
• LDW Target Case
• Target Board Holder
• Night Vision Calibrator Package for VW, Mercedes, GM
• Lidar Calibrations for VW/Audi, Lexus, Toyota
• AVM Patterns/Package for Hyundai/Kia, Nissan, Mitsubishi, Toyota, VW, Honda, GM
• RCW Patterns/Package for VW, Nissan, Mercedes
• Expansion Pack for RCW, AVM, and NV System Calibrations

Specifications

• Shipping Dimensions: 64" H x 105" L x 42" W
• Shipping Weight: 935 lbs.

Frame & Pattern Board Specifications

• Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
• Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
• Calibration Frame Weight GW: 152kg (335.1 lb.)
• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Crossbar Length: 2510mm (98.82")
• Measurement Range of Crossbar's Height Min: 350mm (13.78")
• Measurement Range of Crossbar's Height Max: 950mm (37.40")
• Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
• Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS
