9K4000B2500E

AMMCO | 4000B Brake Lathe with 2500 Bench and E-Kit Adapter Kit (9K4000B2500E)

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

Notify me when this product is available:

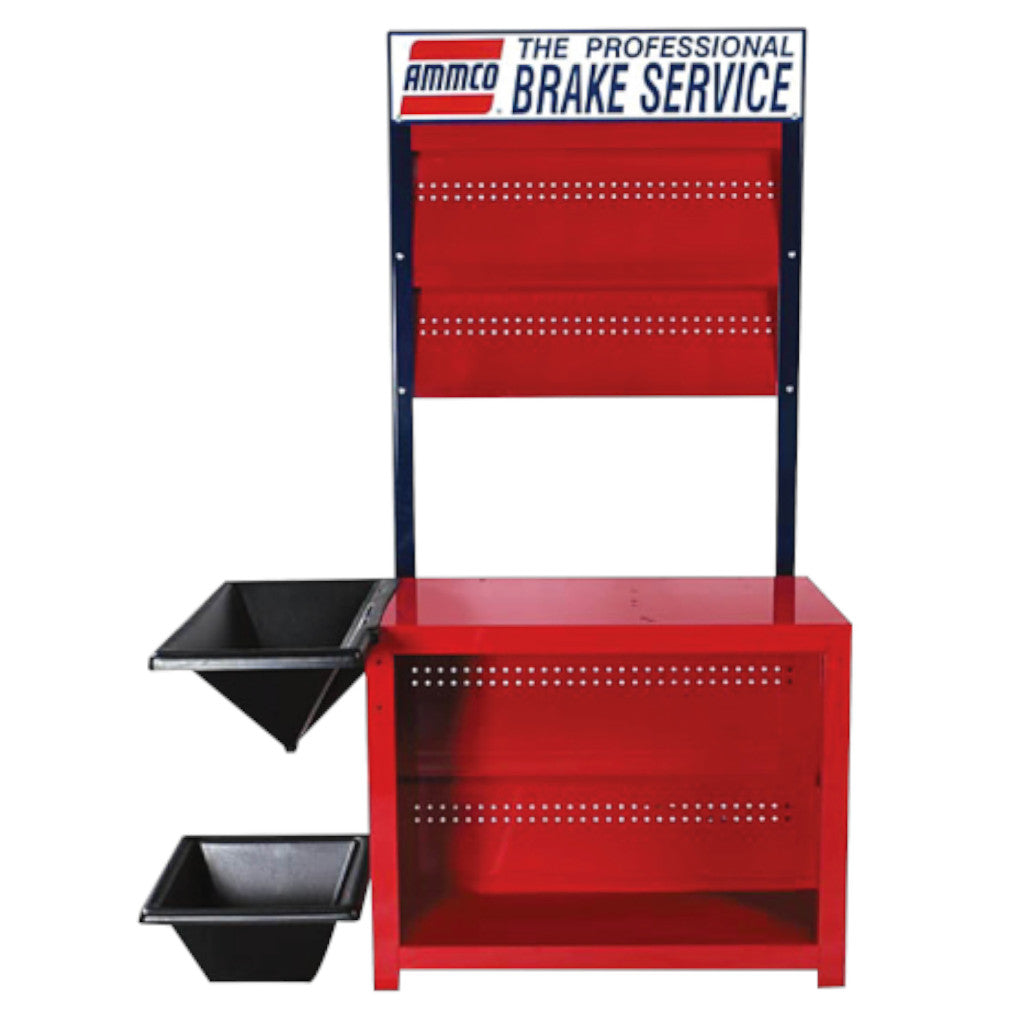

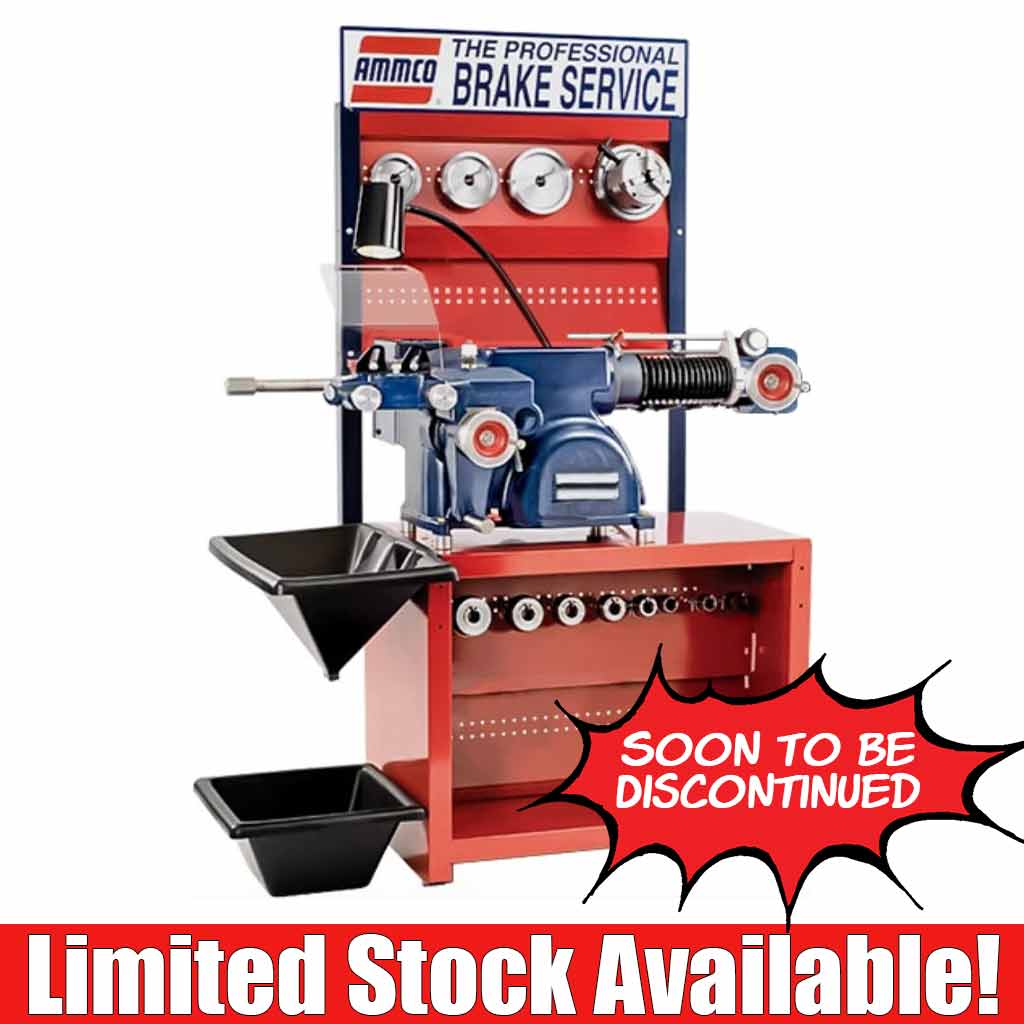

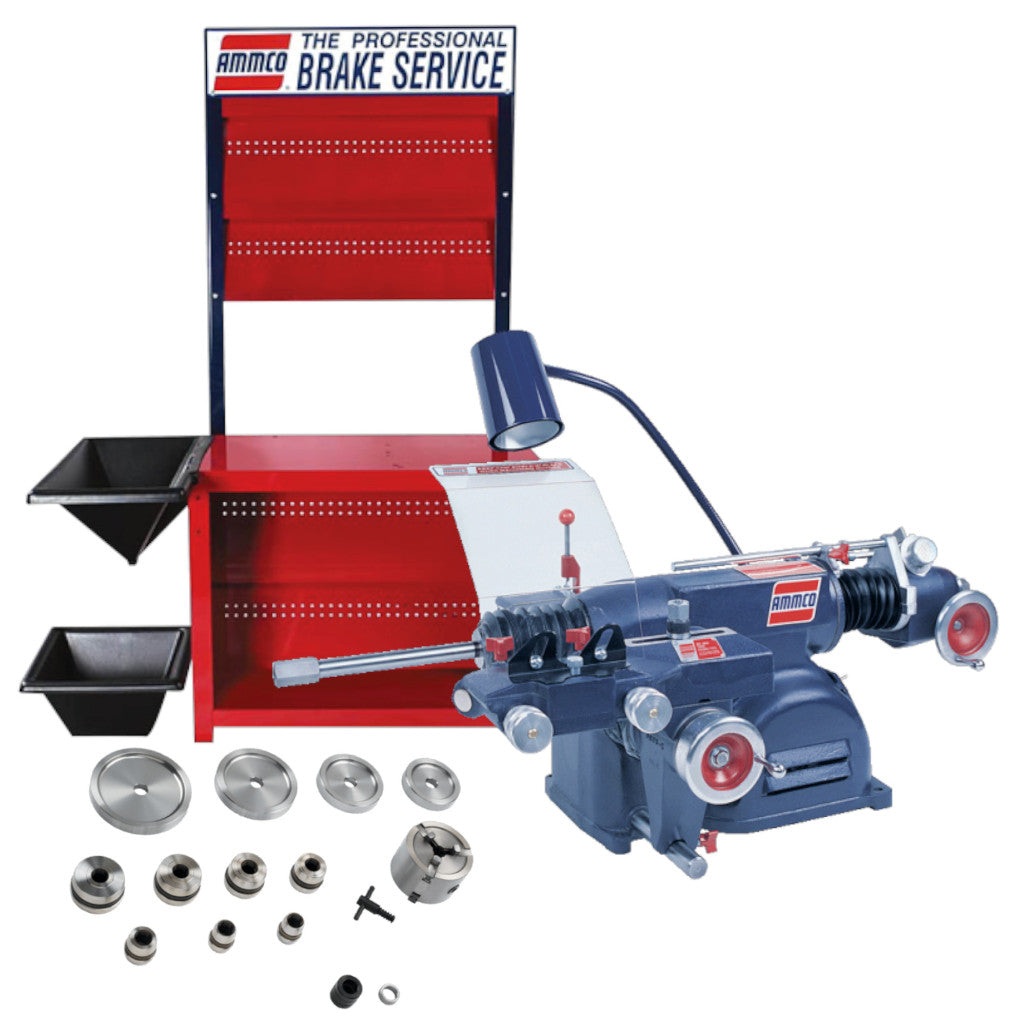

Ammco 4000B Brake Lathe with 2500 Bench and E-Kit Adapter Kit

Hennessy Industries will no longer produce the AMMCO 4000B Brake Lathe.

However, we still have a limited number of this classic machine in stock!

Purchase one today because once they’re gone...they’re gone!

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

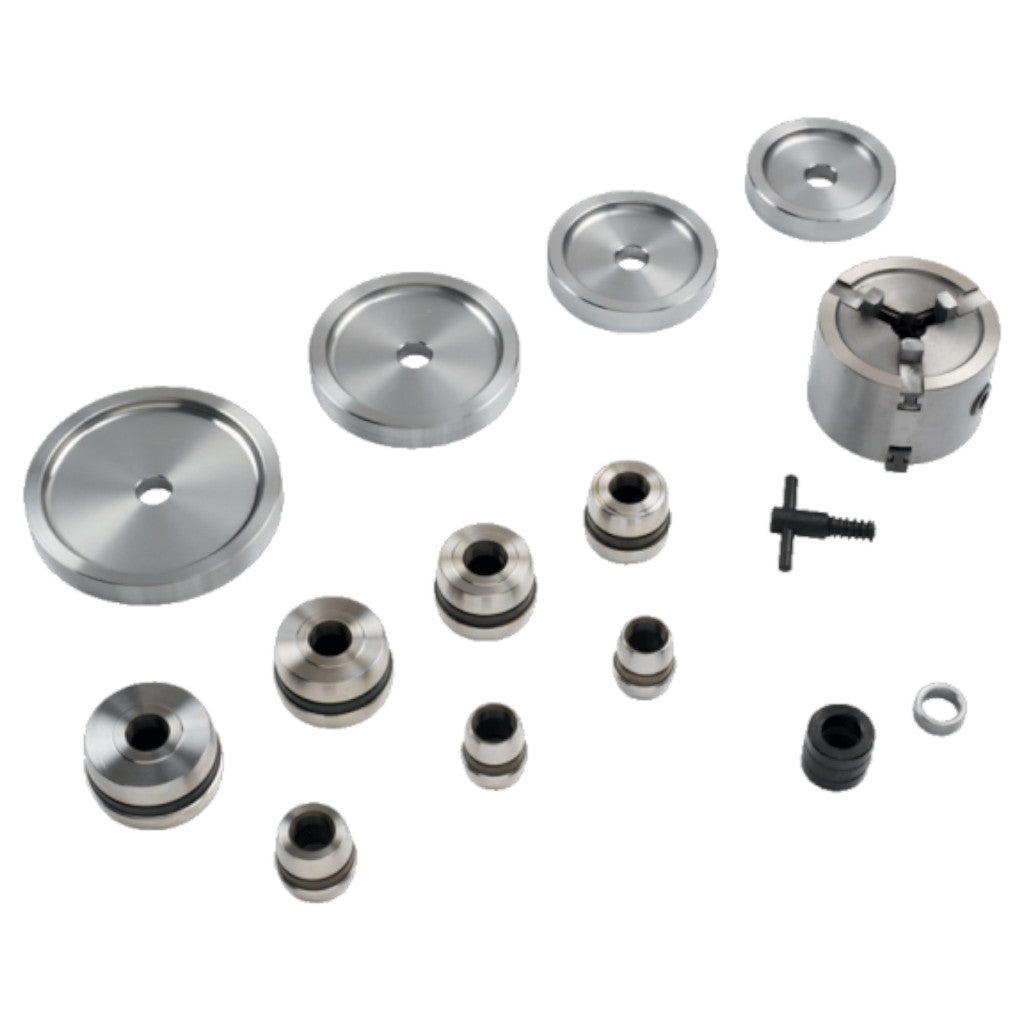

Combination Lathe for Brake Drums and Rotors, Less Adapters, 110V, 60Hz (Must be Purchased with a Bench Lathe Adapter Kit)

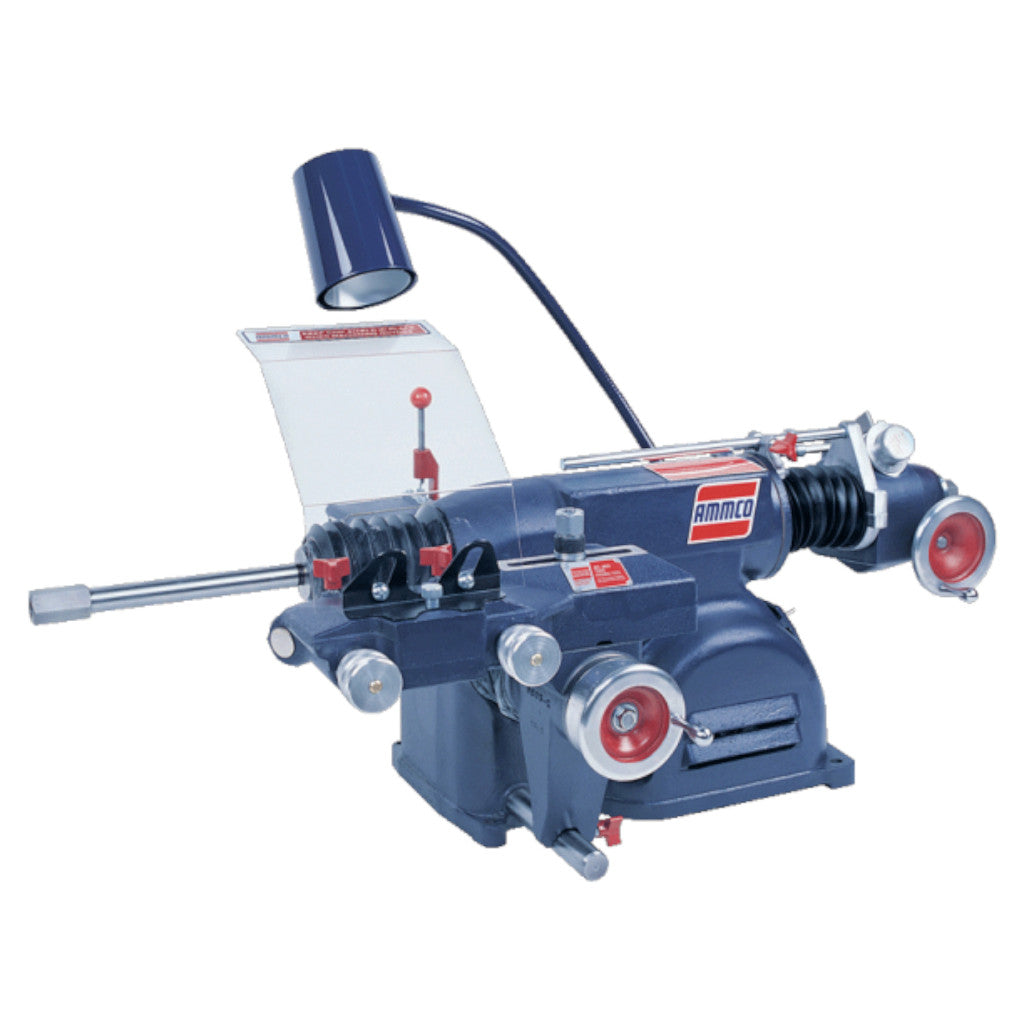

AMMCO™ Model 4000B Combination Disc and Drum Brake Lathe

The Ammco 4000B Combination Disc and Drum Brake Lathe has been professionals' first choice for more than 50 years. And for good reason. It's simple. It's fast. It's very precise. AMMCO combination brake lathes support rotors or drums using a standard one inch arbor. And like all AMMCO brake lathes, it almost never breaks down. It's no wonder that the 4000B has been a favorite of brake technicians everywhere since its introduction five decades ago.

Features:

  • Two adjustable spindle speeds (if desired) allow for fast turning of small pieces and high-quality turning of larger pieces.
  • Two feed rates allow for quick rough-cut and finer finish-cut settings.
  • Forged alloy steel arbor - Two tapered mounting surfaces add stability and handle up to 200 pounds.
  • Feed slide protection keeps travel surfaces free of dirt and chips.
  • Negative rake tool bits standard, provide lower cost of ownership.
  • Solid twin cutter tool simultaneously resurfaces both sides of rotor.
  • Full-drum support hex boring bar guarantees correct tool angle for drums.
  • Infinitely variable drum feed from 0.002" to 0.02" per revolution.
  • Quick drum-to-rotor changeover.
  • User-friendly ergonomics.
  • Supports drums or rotors up to 100 pounds using the standard 1" (25.4 mm) arbor, or up to 200 pounds using the optional 1.875" (47.63 mm) arbor.
  • Micrometer-precise depth-of-cut dials embossed in metal and calibrated in both thousandths of an inch and tenths of a millimeter; easy reset to zero.
  • Extended spindle increases drum capacity to 9.875".

Specifications:

  • Volume: high
  • Type: Rotor and drum
  • Tool bits (shipped with): Negative Rage
  • Standard max arbor capacity: 100 lbs
  • Spindle speed: 100, 200 rpm
  • Spindle bearings: Bronze sleeve
  • Rotor feed rate: 0.002"/0.010"/REV
  • Rotors: Yes
  • Motor: 1HP
  • Max rotor thickness: 1.875"
  • Max rotor face width: 3.75"
  • Max rotor diameter: 14.5"
  • Max drum diameter: No
  • Max drum depth: 6.875"
  • Double taper arbor: Yes
  • Flywheel service capable: Yes
  • Drums: Yes
  • Drum feed rate: 0.002" to 0.020"/REV
  • Heavy duty max arbor capacity: 200 lbs
