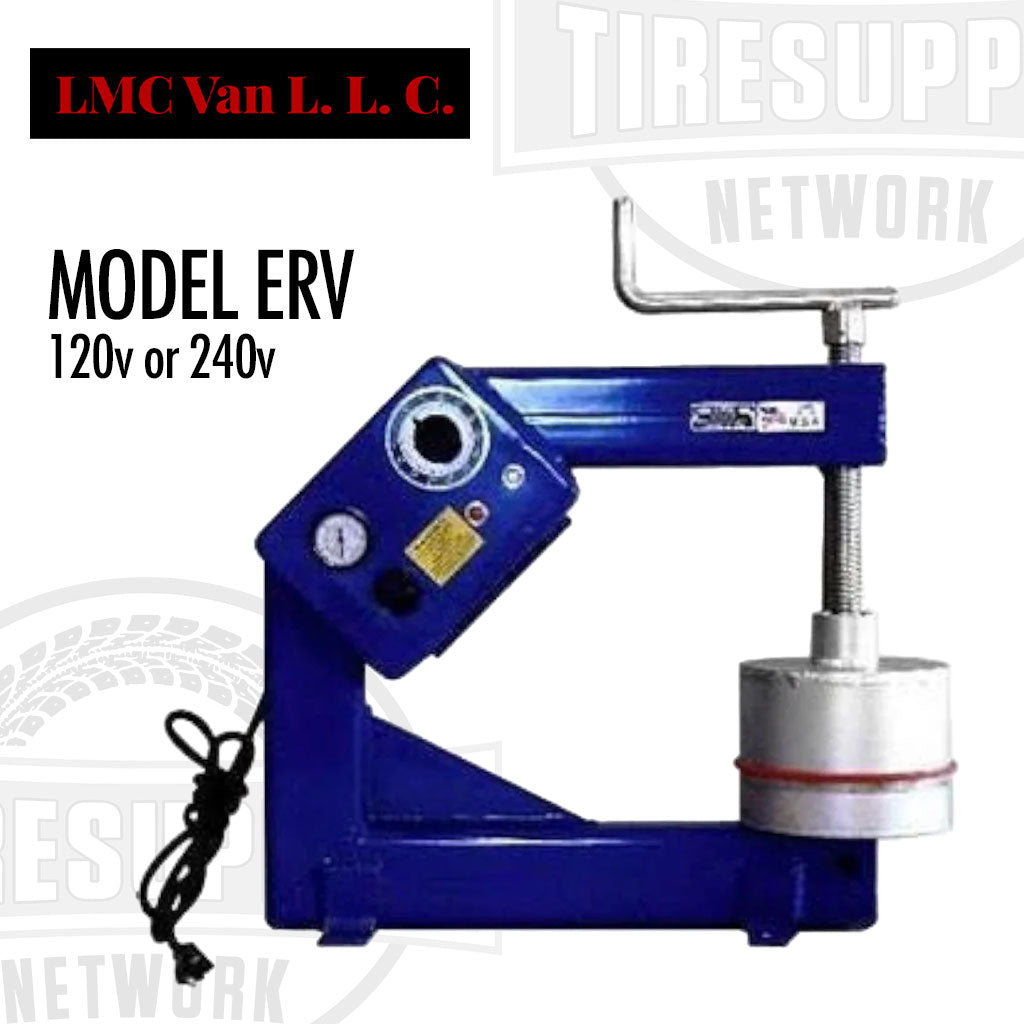

Lincoln LMC Model ERV Envelope Repair Vulcanizer Spotter - Choose 120V or 240V
Features:
- Air operated unit makes all types of envelope, curing-tube, and inner-tube repairs.
- Saves expensive replacement costs.
- Patented air-driven silicone rubber piston pad provides totally even pressure, resulting in a smooth, feathered patch.
- Built-in timer turns off heat, air flow and electricity for total unattended shutdown.
- Current indicator lamp.
- Manually adjustable air regulator and gauge are factory preset to 50 psi.
- Bench-mount bracket included.
- Circuit breaker.
- Available in 120V or 240V.
Specifications:
- Shipping Weight: 54 lbs (24 kg)
- Curing Head Size: 6″ (15 cm)
- Number of Curing Heads: 1 each
- Throat Depth: 14-1/2″ (37 cm)

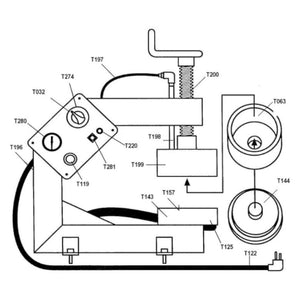

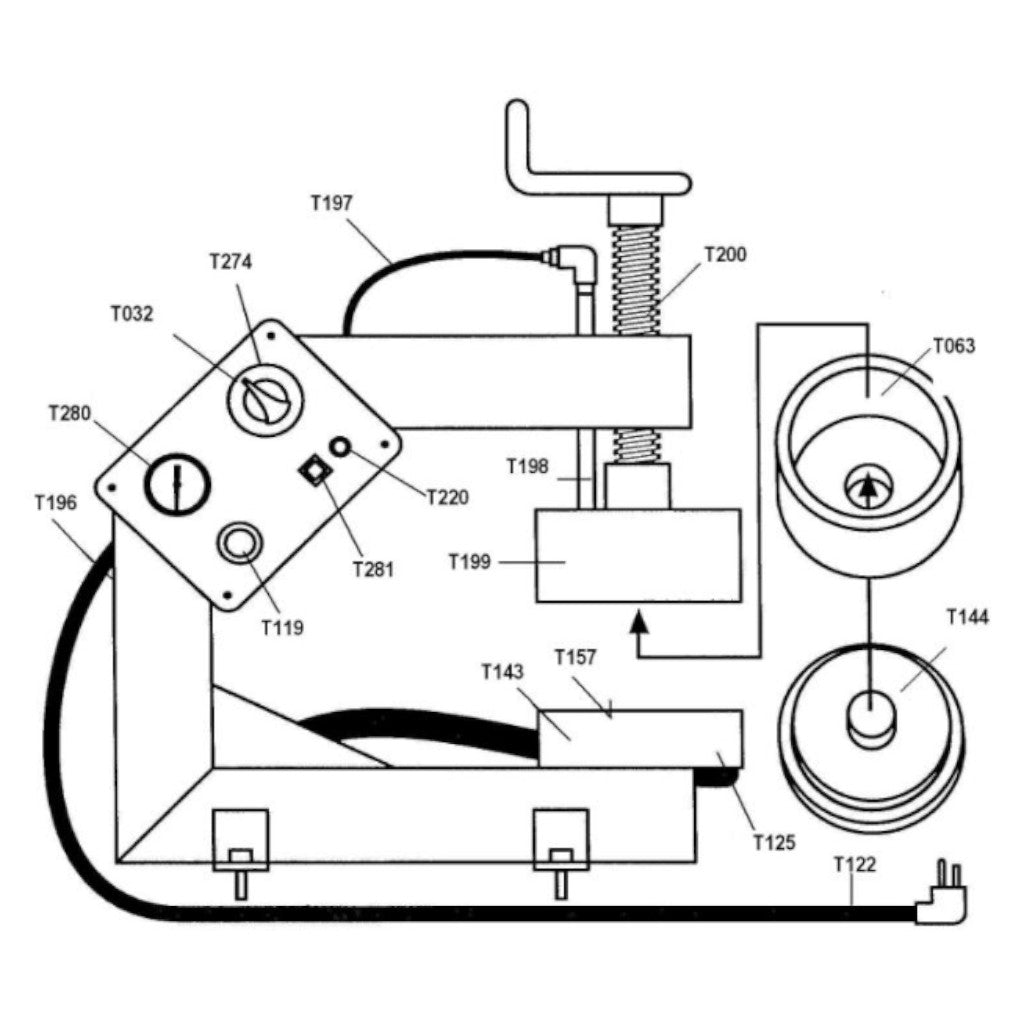

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.
Parts Breakdown:
| Part Number | Model | Description |
| T032 | One hour timer | |
| T063 | AS5-6 | Silicone air seal 6″ diameter |
| T119 | AS9 | Air regulator |
| T143 | AS3-ERV | Lower heat unit (includes T157 and T125) |
| T144 | AS4-ERV | Silicone rubber pad 6″ diameter |
| T157 | B200 Thermostat 6″ | |
| T196 | AS1-ERV | Frame |
| T197 | AS2-ERV | Flexible air tube with fitting |
| T198 | AS2A-ERV | Rigid air tube with fitting |
| T199 | AS6-ERV | Steel air cylinder |
| T200 | AS8-ERV | Hand-wheel and pressure screw |
| T220 | Pilot light | |
| T274 | Humphrey valve | |
| T280 | Panel mount air gauge | |
| T281 | Circuit breaker | |
| T125 | Element for 4″ heat unit | |
| T122 | Electrical cord |
