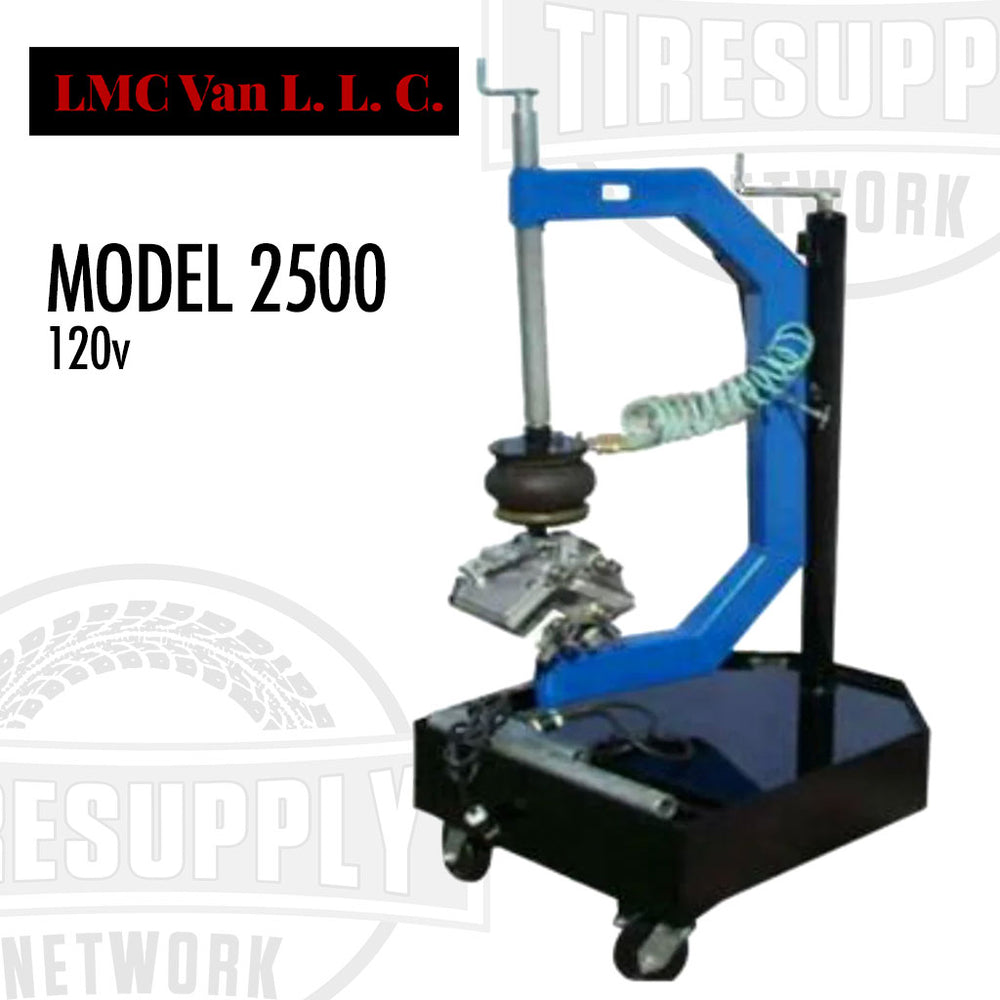

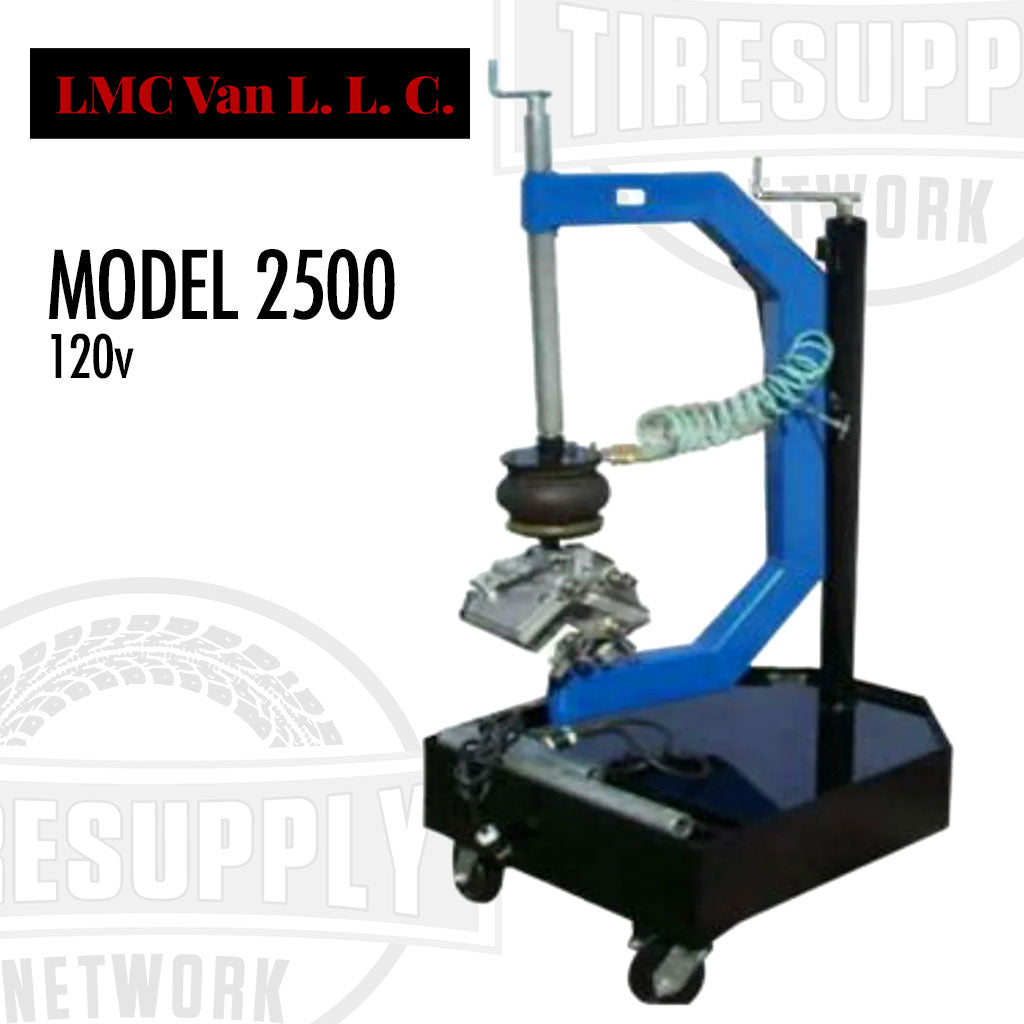

LMC Model 2500 | Mini OTR Multi-Use Tire Vulcanizer Spotter 120V

LMC Model 2500 | Mini OTR Multi-Use Tire Vulcanizer Spotter 120V

Agricultural, skidder, and other off-the-road repairs.

The new Multi-Use Tire Vulcanizer is the ideal size to handle tire repairs on light and medium construction equipment, agricultural tractors, logging skidder, and mining equipment. Additionally, it is the most economically priced vulcanizer of its size on the market, so you can make tire repairs for a fraction of the cost of a replacement tire.

Features:

• Accommodates mid-range tires from 20.5 x 25, handling OTR sizes up to 29.5 x 35, and skidder tires up to 30.5 x 32.
• Easy, one person operation, including quick adjust tightening device.
• 8" x 11" inside and 8" x 15" outside adjust-A-plate contour plate system conforms to heating surface of tire contours.
• Makes tread, shoulder and sidewall repairs.
• Air-Actuator bag applies over 5000 pounds of pressure evenly over entire repair area.
• Thermostatically controlled heat units to maintain optimum temperature.
• Built-in five-hour time shuts off heat units when curing cycle is complete.
• Wheeled car provides maximum mobility.
• Available only in 120V (11 amps).

Specifications:

• Shipping Weight: 950 lbs (432 kg)
• Curing Head Size: 8″ x 10″ (20 x 28 cm) and 8″ x 15″ (20 x 38 cm)
• Number of Curing Heads: 2
• Throat Height: 32.5″ (83 cm)
• Throat Depth: 18″ (46 cm)

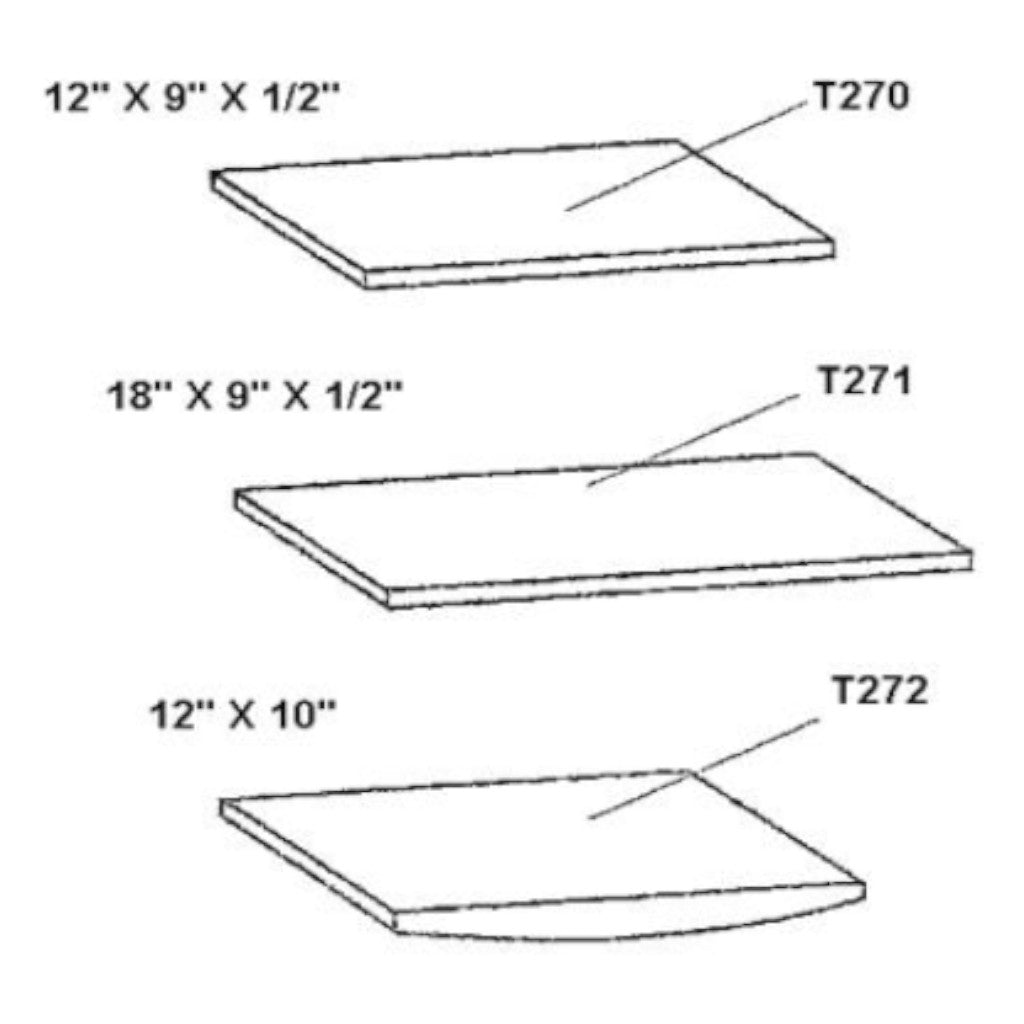

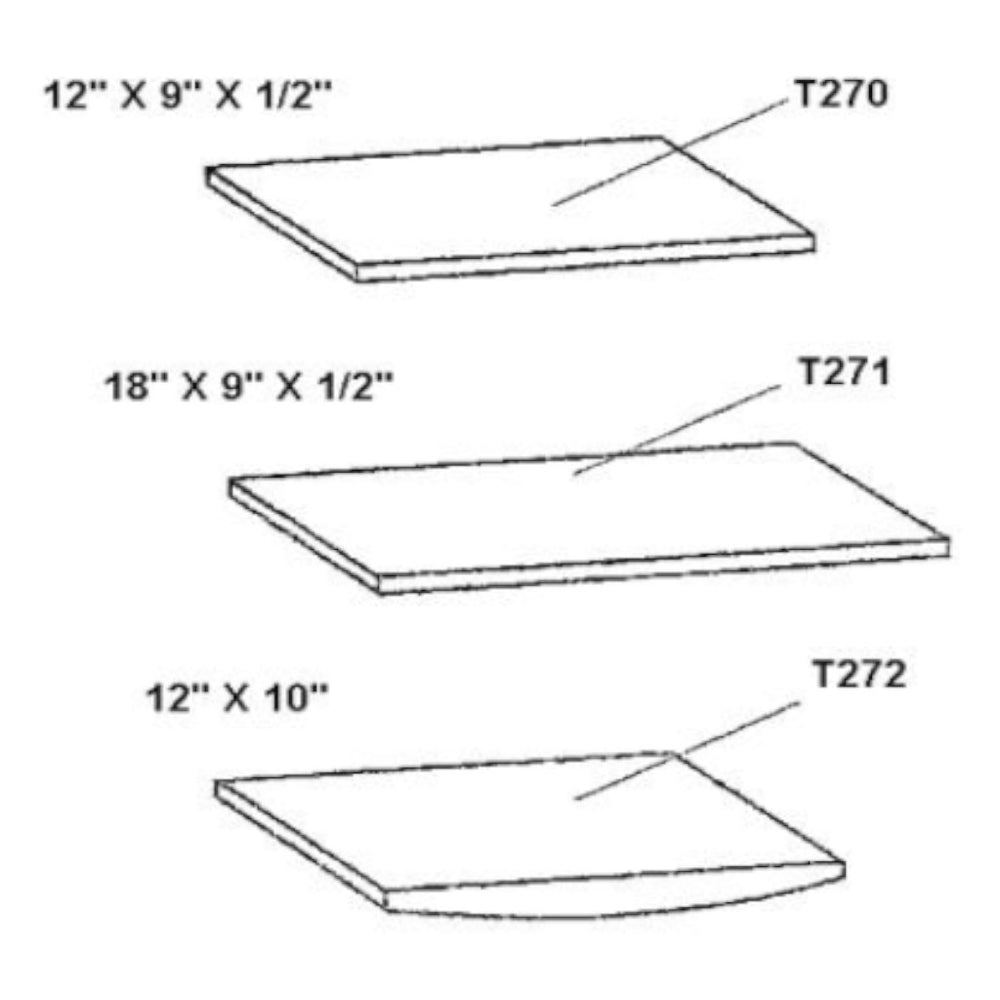

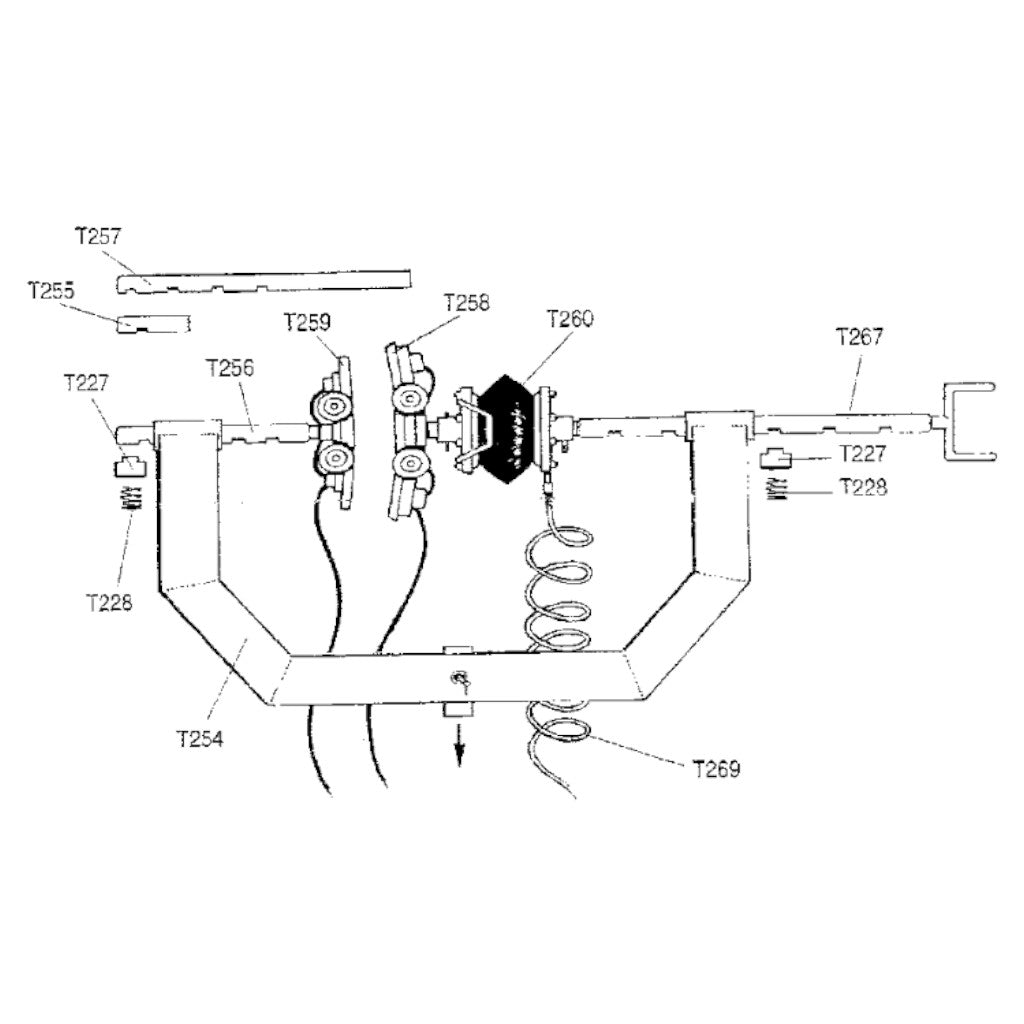

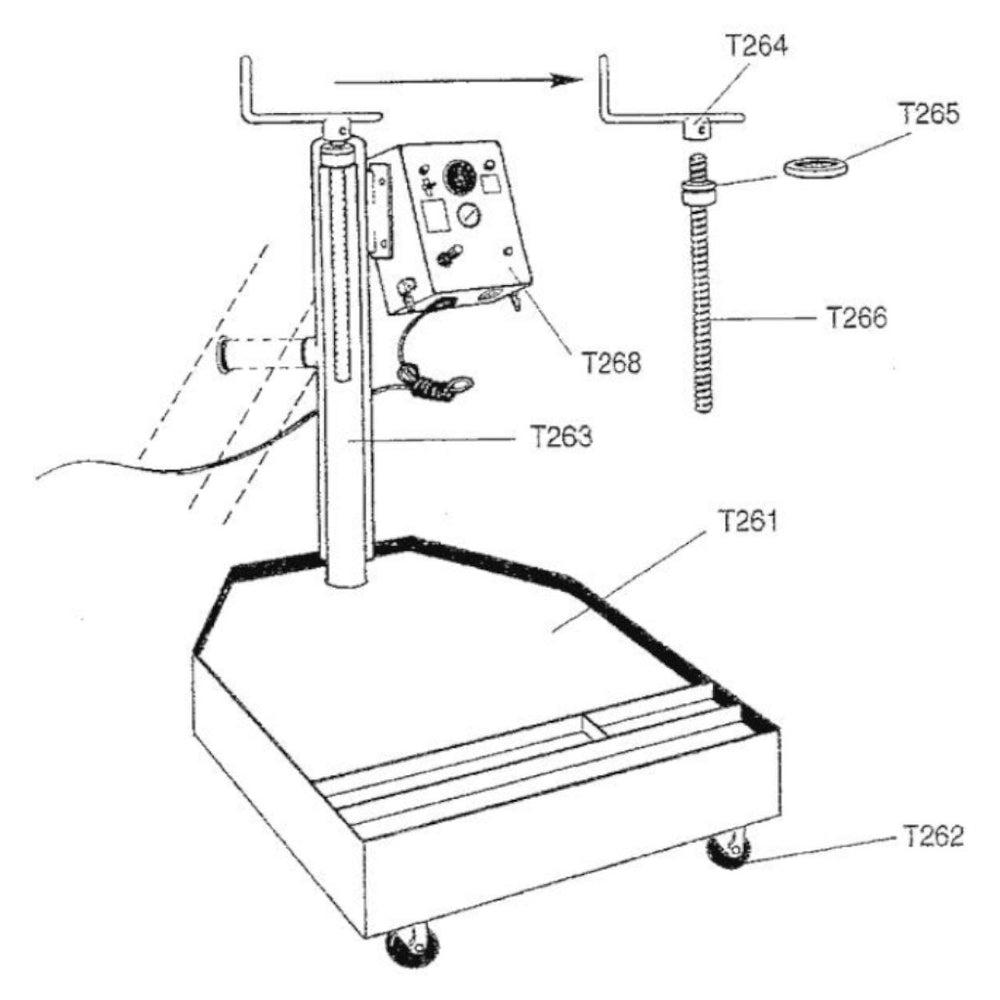

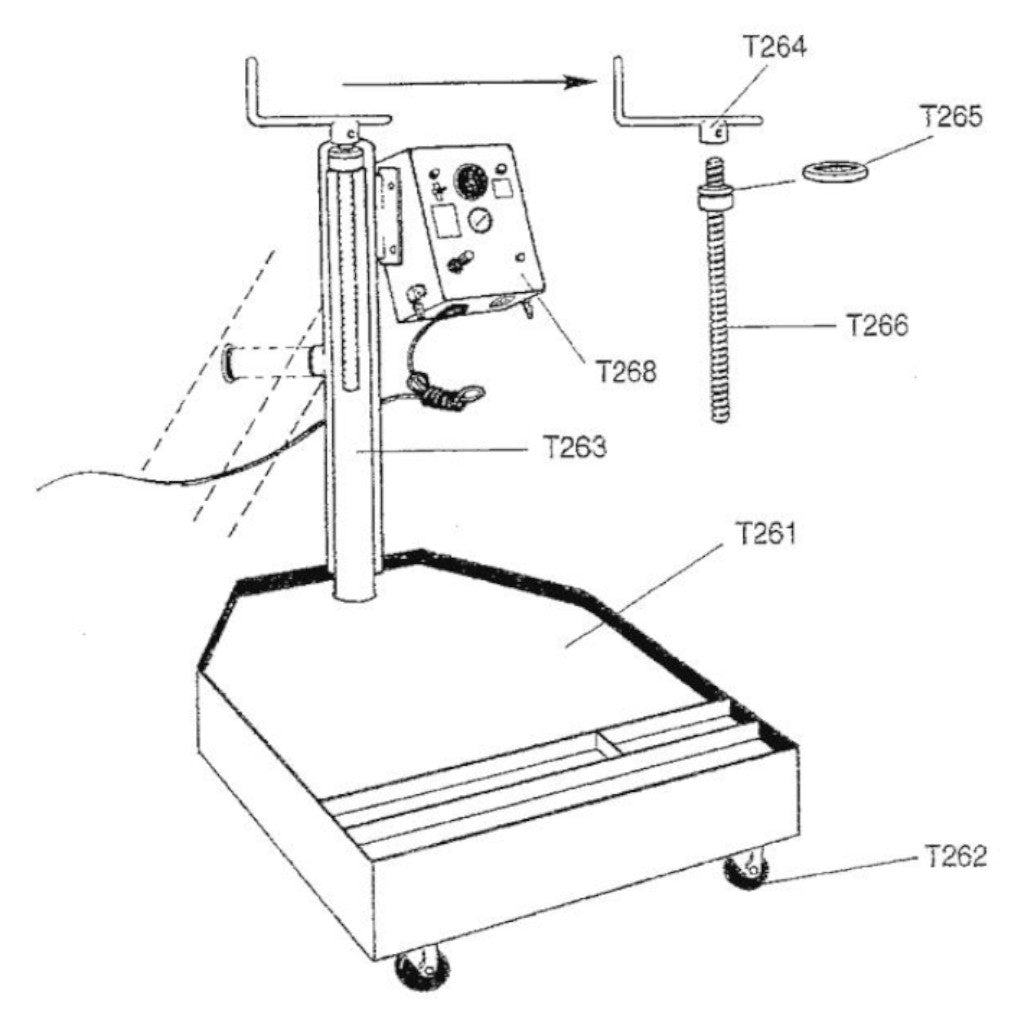

Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

Parts Breakdown:
