Lincoln LMC Model 1000 Large Truck-Tractor Vulcanizer Spotter - Choose 120V or 240V

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Voltage: 120V

Lincoln LMC Model 1000 Large Truck-Tractor Vulcanizer Spotter - Choose 120V or 240V


  • Spring-loaded lower heat unit maintains even pressure throughout the curing process which eliminates frequent retightening of heat units.
  • Lower telescoping assembly slides back for quick mounting or removal of spotter, then locks into position for use.
  • Acme threaded adjusting screw for upper heat unit.
  • Solid one-piece frame is easy to handle and weighs only 30 pounds.
  • 3-5/16" diameter round heat units fit into close quarters for small repairs, yet have wattage output to handle adapter plates for large repairs.
  • Model 1000 has capacity to spot and section repair in all truck, tractor and even many off-road tires.
  • Available in 120V or 240V.


  • Shipping Weight: 30 lbs (14 kg)
  • Curing Head Size: 3-5/16″ (9 cm)
  • Number of Curing Heads: 2
  • Throat Height: 16″ (41 cm)
  • Throat Depth: 14-1/2″ (37 cm)

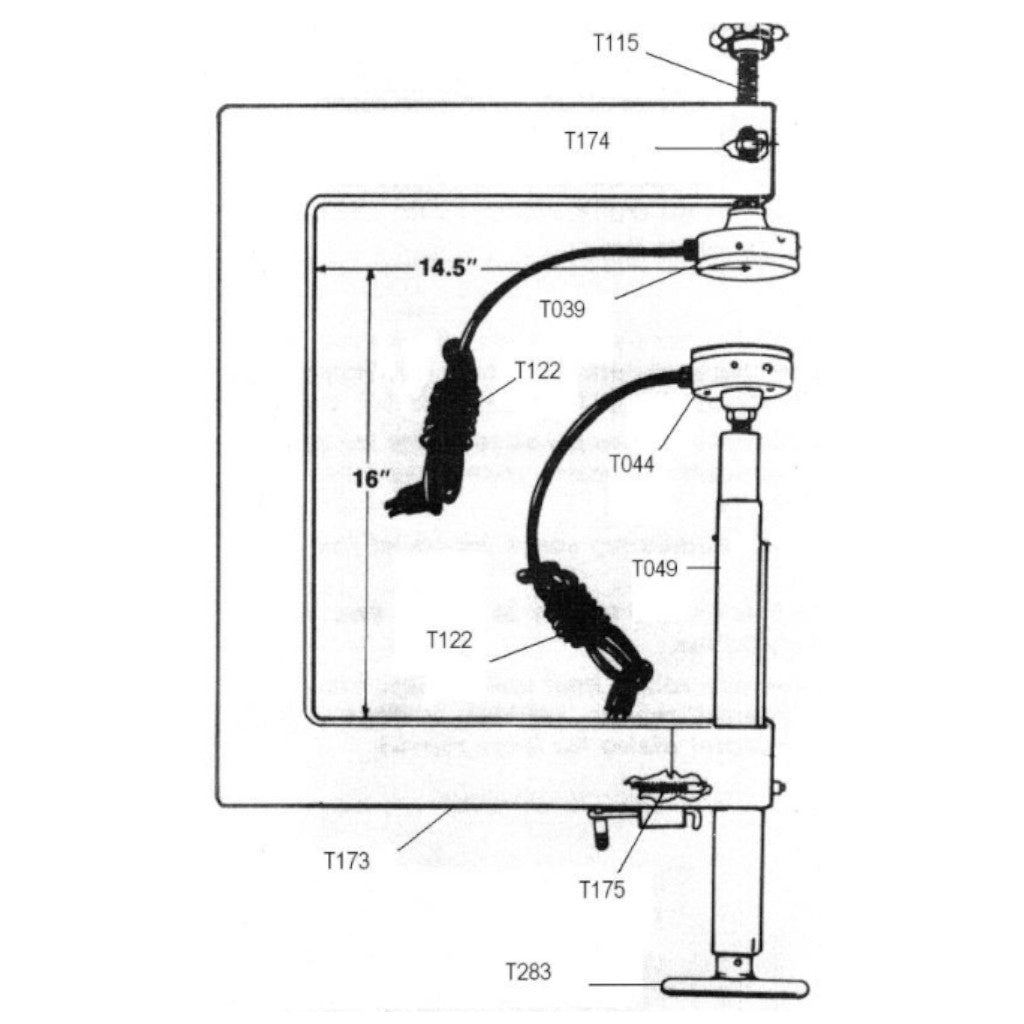

              Replacement parts available! Call or email us for pricing and to place a special order for replacement parts. See the parts diagram in the pictures above and the parts list below to find the replacement part you need.

              Parts Breakdown:

              Part Number Model Description
              T173 1001 Frame for Model 1000
              T039 43 Upper swivel heat unit 3-5/16″ diameter (specify 120V or 240V)
              T044 1004 Lower spring-loaded heat unit 3-5/16″ diameter (specify 120V or 240V)
              T115 46B Hand-wheel adjusting screw (upper)
              Nut for part number T115
              T049 1007 Telescoping pressure screw assembly (lower)
              T175 1008 Compression spring
              T176 1009 Fiber rod
              T123 Thermostat for 3″ heat unit
              T124 Element for 3″ heat unit
              T122 Electrical cord
              T283 Telescoping handle
