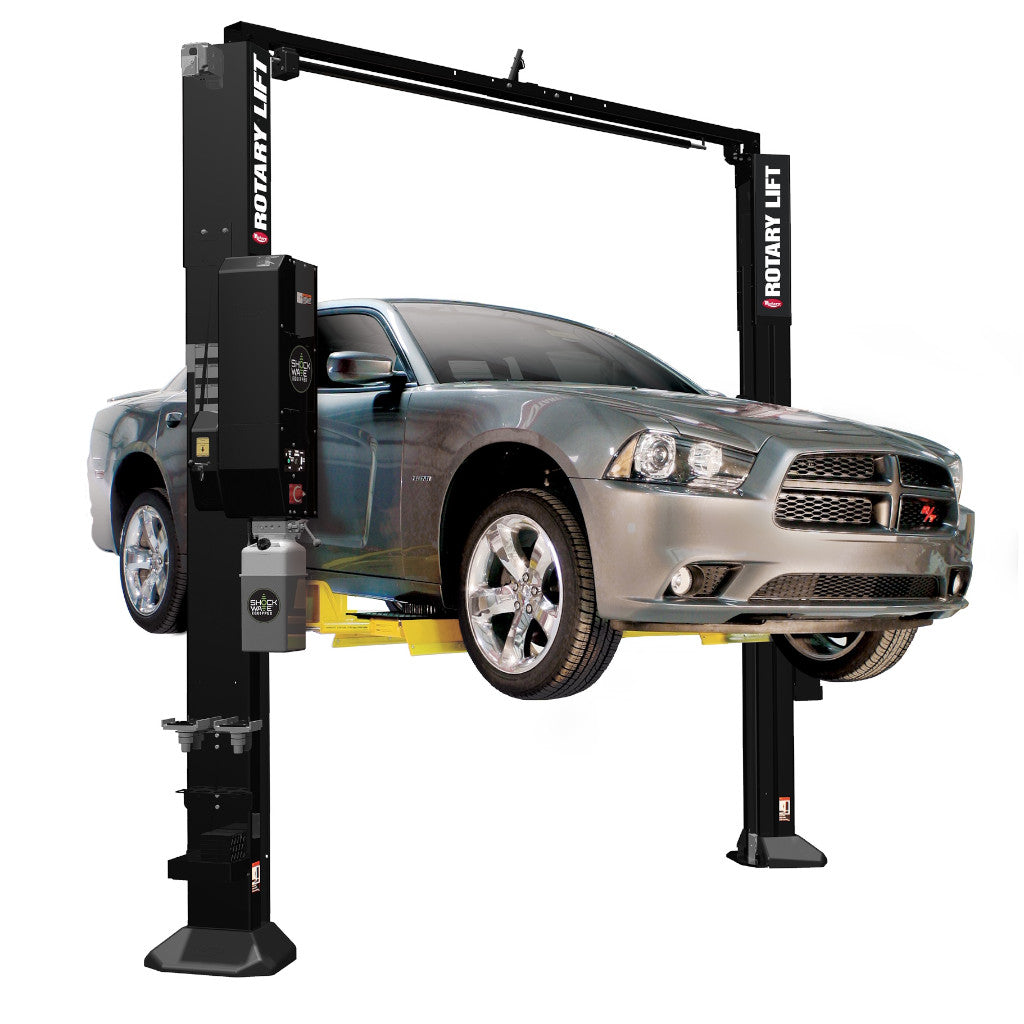

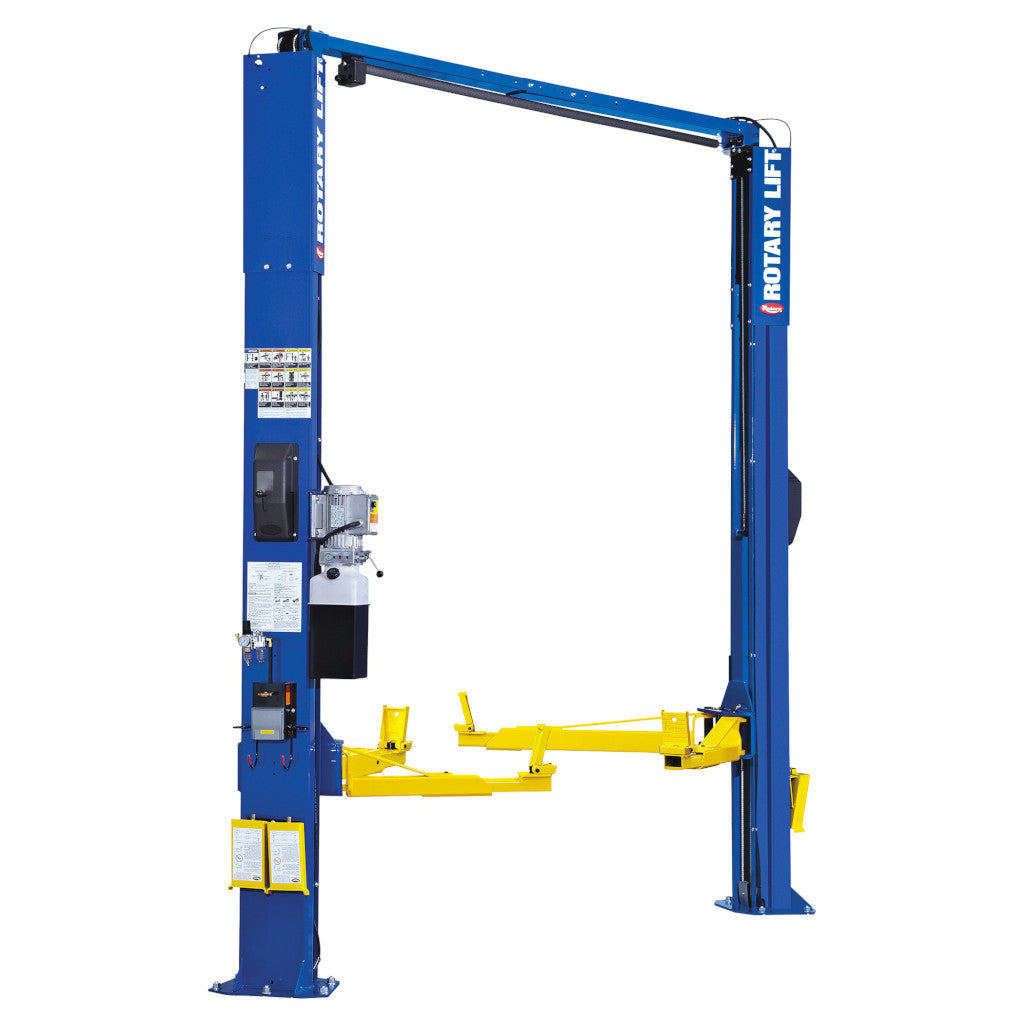

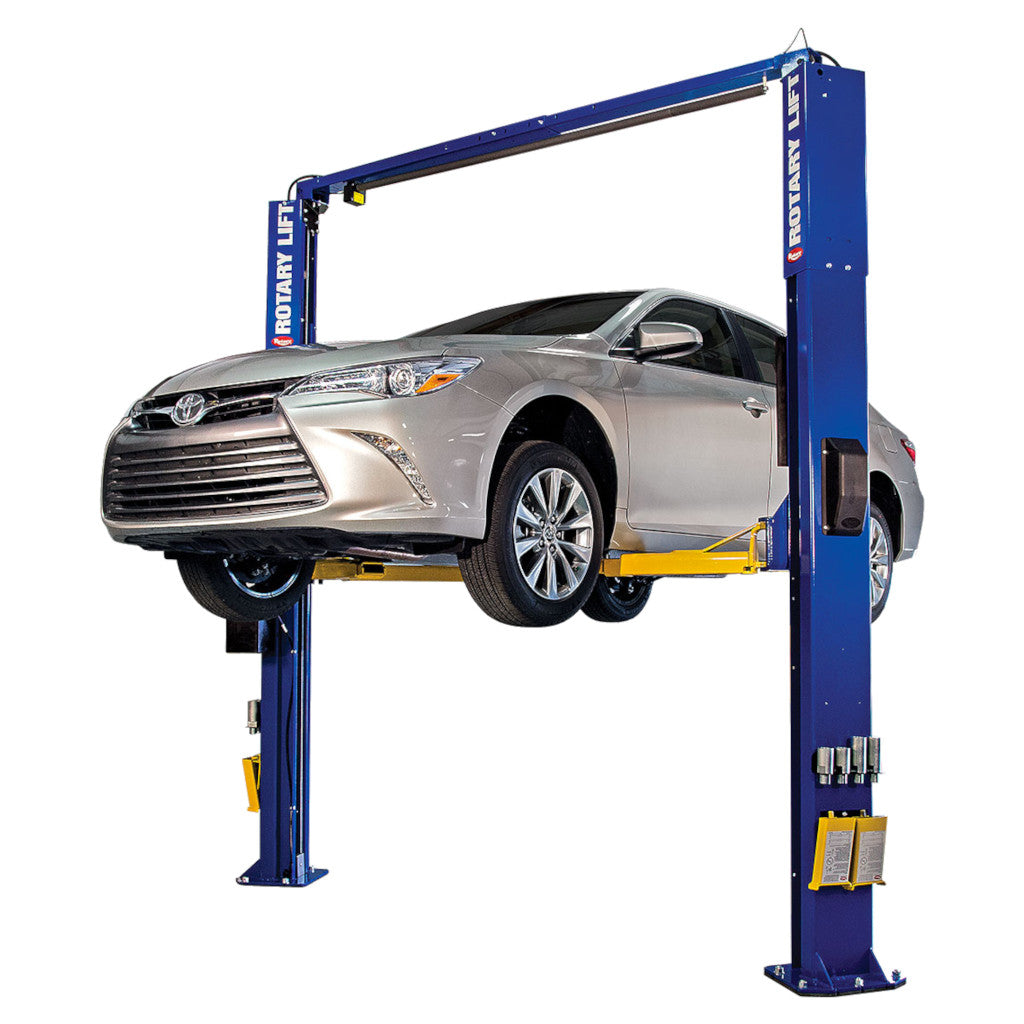

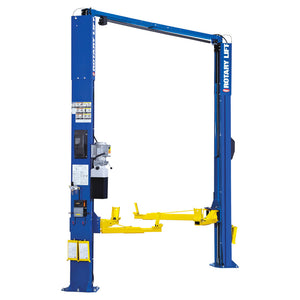

Rotary SPOA10 Asymmetric 10,000 lbs Capacity Two-Post Car Lift
PLEASE NOTE: Rotary Lifts are made to order and typically have a 150 business day lead time. Please contact us for current estimated delivery dates. Also, a forklift MUST be on-site at the time of delivery to unload the lift.
Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.
Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
For over 30 years, Rotary Lift has built 2-post lifts with the engineering, quality and attention to manufacturing detail that can't be found anywhere else. Today, the industry standard SPOA10 represents nearly 90 years of lift building expertise and decades of 2-post surface lift experience. With true asymmetric rotated column design, the original "Double-S" single piece column and numerous other design advantages, the Original Rotary SPOA10 can't be beat...by anyone.
The Rotary Lift Model SPOA10N700 comes equipped with standard conventional 2-stage arms and exclusive 3-position flip-up FA adapters.
The 3-stage flip-up adapters feature great strength in a simple design. The entire assembly is joined with a single pin providing stable support in any position.
True Asymmetrical Lifts: Columns are rotated 30° allowing maximum door opening on passenger cars for improved access to vehicle interior. This column rotation places the approximate center of gravity of the vehicle in line with the optimum load capability of the column, reducing unnecessary wear and tear on the column, carriage, and bearings.
- True asymmetric with columns rotated 30°
- "Double S" column design with single piece construction provides a channel for the bearings to travel in, maximizing the strength of the column and surface contact area of the bearing
- Single point lock release which releases the locks at the same time
- Two full stroke cylinders, one in each column
- Arm restraints on each arm engage when the vehicle is lifted
- Performance tested to 20,000 lift cycles
- Nationwide support
- Third party certified
- ALI Gold Certified
|Arm Type||Conventional 2-Stage Design|
|Rise||72 3/4″ - 78 3/8″|
|Overall Height||11′ 8 1/2″|
|Overall Width||11′ 5 3/8″|
|Front Arm Minimum/Maximum||20 1/2″ - 40 3/4″|
|Rear Arm Minimum/Maximum||40 1/4″ - 61″|
|Minimum Adapter Height||4 3/4″|
|Median Adapter Height||7″|
|Maximum Adapter Height||10 1/4″|
|Inside Columns||107 1/4″|
|Minimum Bay Size||12′ x 24′|
|Minimum Ceiling Height||12′|
|Motor||1 PH, 2 HP|
|Voltage||208V - 230V|
|Time of Full Rise/Decent||45 seconds/40 seconds|
