Rotary | Alignment Scissor Lift 14,000 lbs Capacity (XA14)
PLEASE NOTE: All Rotary items are considered SPECIAL ORDER ITEMS and thus FINAL SALE. Requests for CANCELLATIONS, RETURNS, or REFUNDS cannot be honored. Thank you for your understanding.
PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

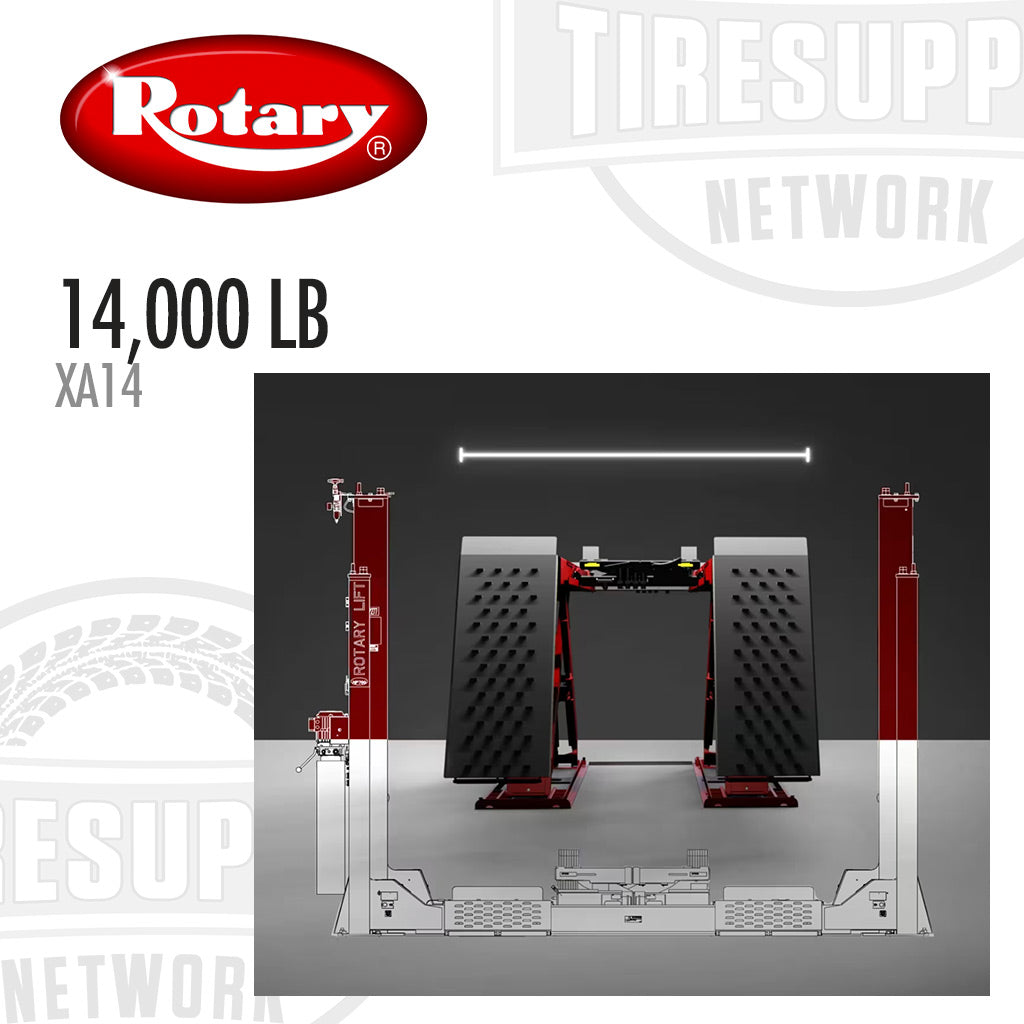

For dealerships and tire shops, space is money, and with all the tools and equipment that go into daily shop life, the less space equipment takes up, the better. Rotary’s XA14 provides shops with a powerful, compact alignment solution that’s over 34% narrower than a standard four-post lift. It is convenient, easy to use, and can be recessed within a shop floor when technicians need extra bay space.
Features:
Open Access From Front to Rear
The scissor lift design offers open access from the front to the rear. With no obstructions, your technician has greater access to the vehicle’s adjustment points for alignments and other repairs.
Specifications:
| Capacity | 14,000 lbs. (6350kg) |
| Length of Runway | 217" |
| Max. Wheelbase (General Service) | 201" |
| Max. Two-Wheel Alignment Wheelbase | 189" |
| Min. Four-Wheel Alignment Wheelbase | 80" |
| Max. Four-Wheel Alignment Wheelbase | 169" |
| Overall Length with Ramps | 283" |
| Maximum Rise* | 72" (surface mount), 61" (recessed mount) (*Rise measures floor to top of runway deck at full stroke) |
| Lowered Height | 11" (surface mount) |
| Overall Width | 7' 8-1/8" |
| Length of Runway | 217" |
| Runway Width | 26" |
| Width between Runways | 40" |
| Motor | 4HP / 1PH |
| Voltage | 208-230V / 60HZ |
| Time of Full Rise | 61 Seconds |
| Time of Descent | 49 seconds |
| Air Supply | 85-110 psi |
| Min. Bay Size** | 13' x 28' (**Factor in any additional space required in front of the lift based on manufacturer recommendations if a tower camera aligner system or ADAS target calibration system is being paired with this scissor lift) |

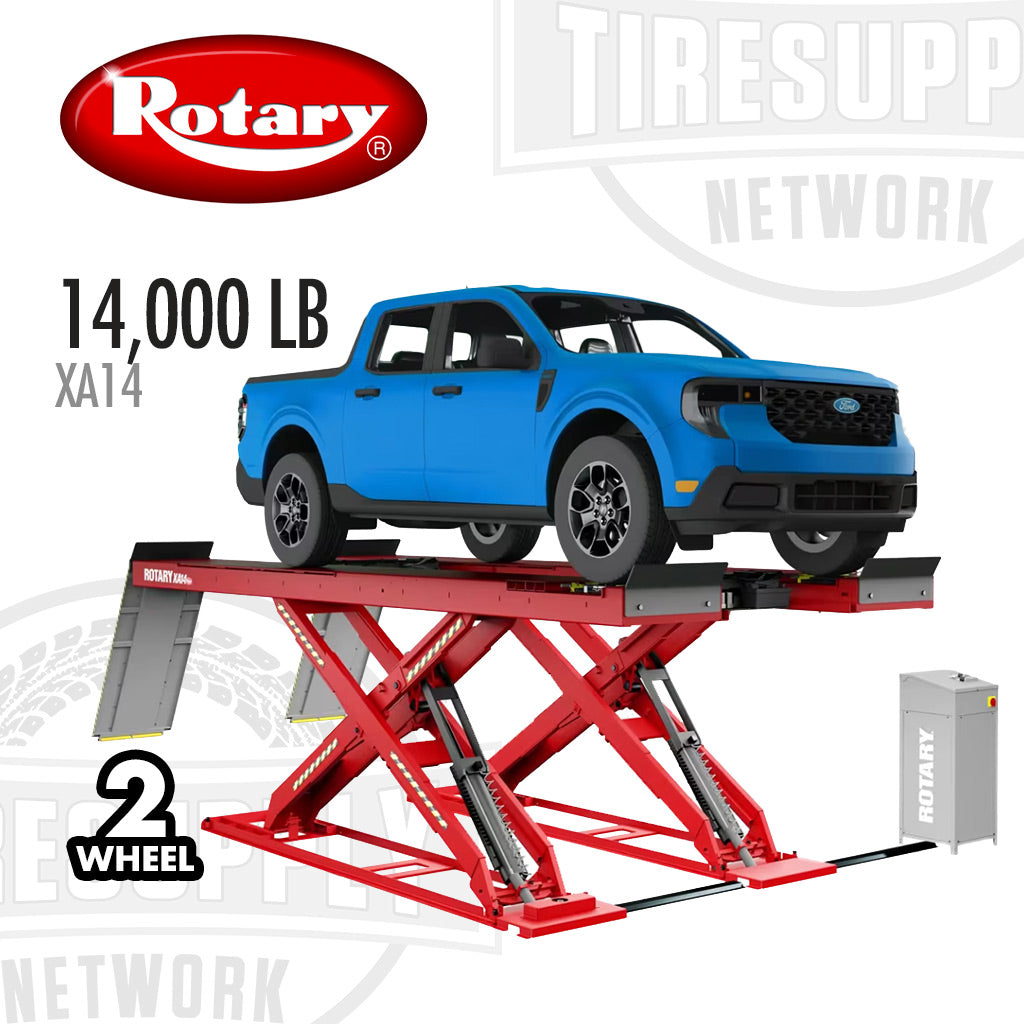

| Lift Colors | Red & Blue (Console, ramps, and chocks are gray) |
