Description
Description
Coats | Two Post Lift 16,000 lb / 7.3T Capacity - Red (4T216SSR1)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
PLEASE NOTE: All lifts do not include installation. If you do not have a forklift, we can arrange for a dock pickup at the freight carrier.
SEMA REBATE PROMOTION - OCTOBER 1 - NOVEMBER 30, 2025
Maximize Uptime and Productivity
2 POST STYLE 16,000 LB. / 7.3T CAPACITY RED
Blue Color Lift Option is Available. Inquire via email - help@tiresupplynetwork.com
Features
- Built to higher quality standard;100% North American made premium US made Monarch (Bucher) 4HP/ 3 kw power unit, 3/8" / 9.5mm non fatigue equalizing cables, 5" / 127mm steel pulleys and 2" / 51mm ID yHydraulic Cylinders.
- Greater flexibility available in a 16,000 lb./ 7.3T capacity with lighter arms and a lowered pad height of 3 1/2" / 89mm or the heavy duty 18,000 lb. / 8.2T version with heavy non sag arms and a 5 1/2" / 140mm pad height.
- More working room for larger trucks 120 1/2" / 3061mm between the inside of the columns and 192 1/2" / 4890mm under the shut off bar.
- Stronger and more stable structure single piece columns 15" x 9" / 381mm to 229mm up to 199 1/4" / 5061mm tall can be custom ordered to fit your building. Large irregular shaped base plate 17" x 31" / 432 x 787mm.
- Corrosion resistant protection steel components are wheela-brator shot blasted and acid washed before a "double bake" powder coat finish is applied.
- Lifts higher to provide more under car work area the 72" / 1829mm long cylinder stroke provides 76" / 1930mm lift without adapters with a maximum attainable lift height of 85 1/2" / 2172mm.

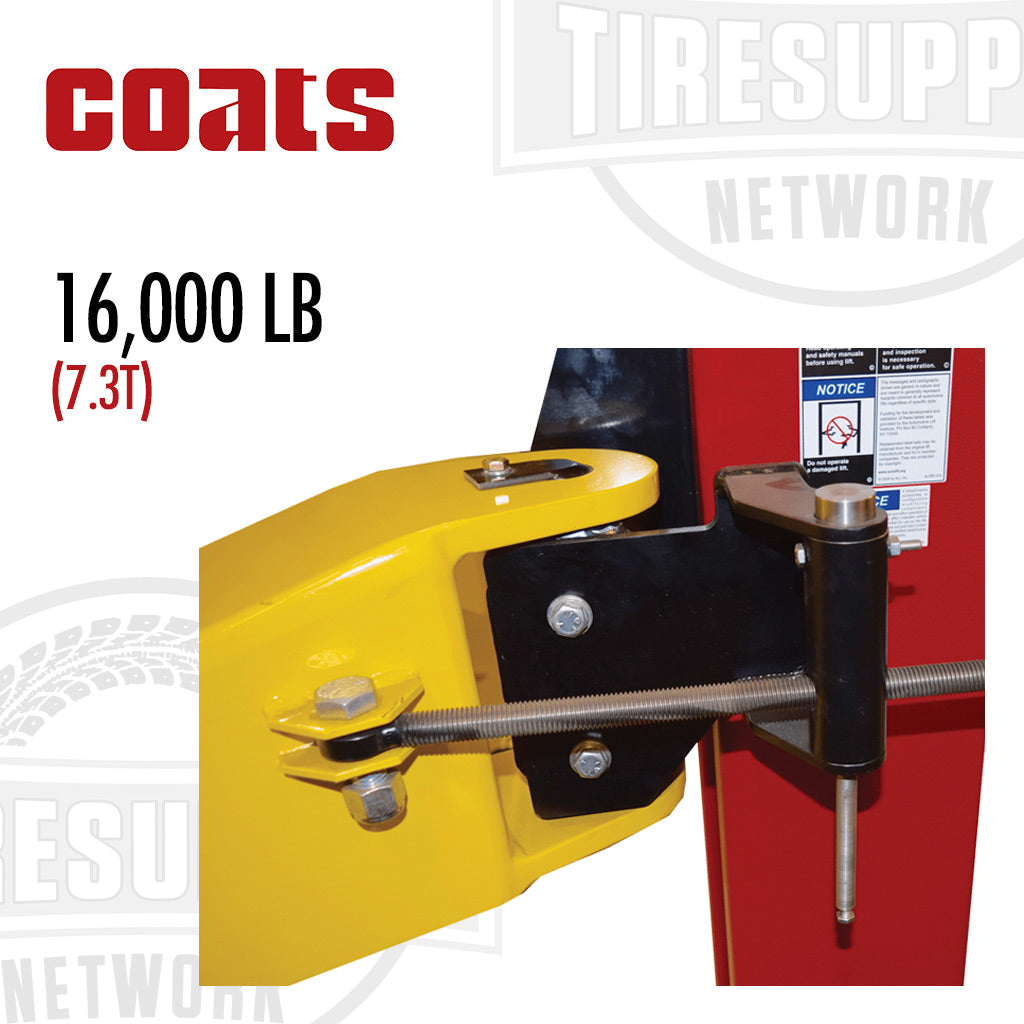

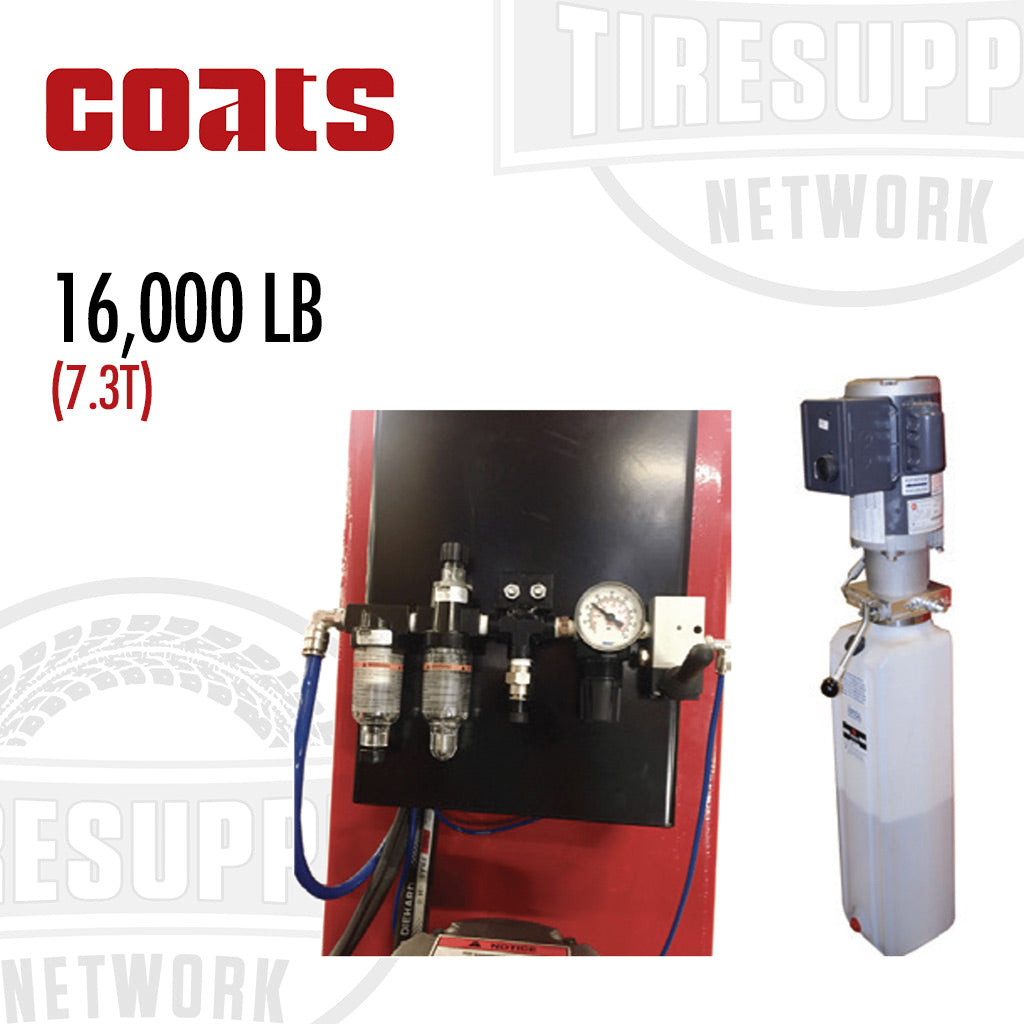

- Ease of operation Positive air release mechanical locking system with stainless steel air cylinders. Includes built in air regulator / filter water trap. Power unit can be installed on either side.
- Reduced vehicle setup time "Drop in" style steel saddle style lift can be extended in height with 1 1/2" / 38mm , 4" / 102mm or 10" / 254mm steel adapters.
- Quieter operation less than <75 decibels rubber mounting grommets reduce power unit noise.
Specifications:
Part# | 4T212SSR1 |
Capacity | 16,000 lb / 7.3T |
Lifting Style | Symmetric |
Overall Height | 199.5"/ 5067mm |
Overall Width | 152”/ 3861 mm |
Width Between Columns | 120.5”/ 3061 mm |
Drive Thru Width | 108”/ 2743mm |
Under Bar Clearance | 192.5”/ 4890mm |
Lowered Height - Standard Lift Pad | 4”/ 102mm |
Raised Height - Standard Lift Pad | 76”/ 1930mm |
Raised Height - w/ Adapters | 87.5"/ 2223mm |
Front Arm Reach | 34” to 62” / 864mm to 1575mm |
Rear Arm Reach | 34” to 62” / 864mm to 1575mm |
Lifting Time | 75 seconds |
Standard Power Requirements | 220V-60Hz-1ph-25amp |
Footprint | 199"h x 152"w x 31"d |
Ceiling Height Required | 17' |
Shipping Weight | 3350 lb. / 1,520 kg |
ALI Certified w/ Gold Label | Yes |
Need replacement parts? Call or email us and we can special order them for you!
