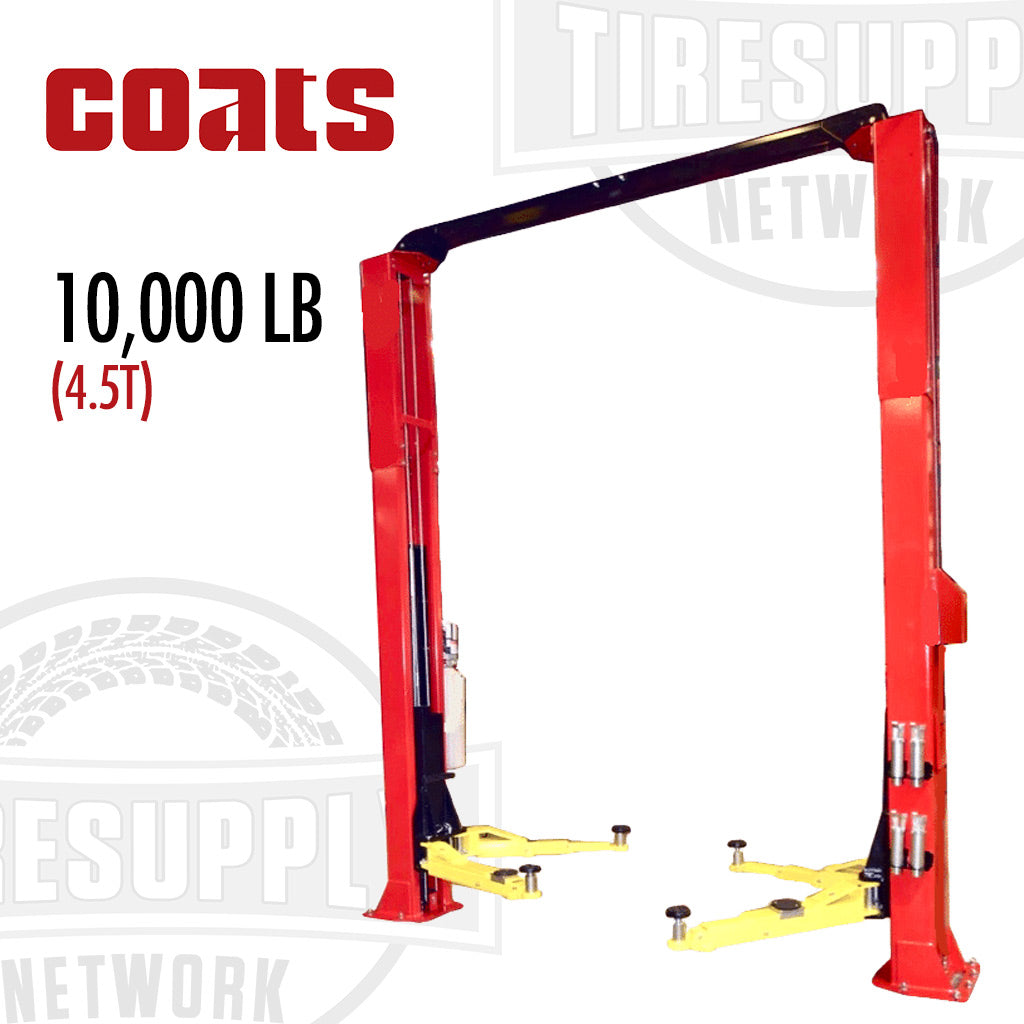

Coats | Two Post Lift 10,000 lb / 4.5T Capacity - Red (4TV21NSR1)*
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Blue Color Lift Option is Available. Inquire via email - help@tiresupplynetwork.com

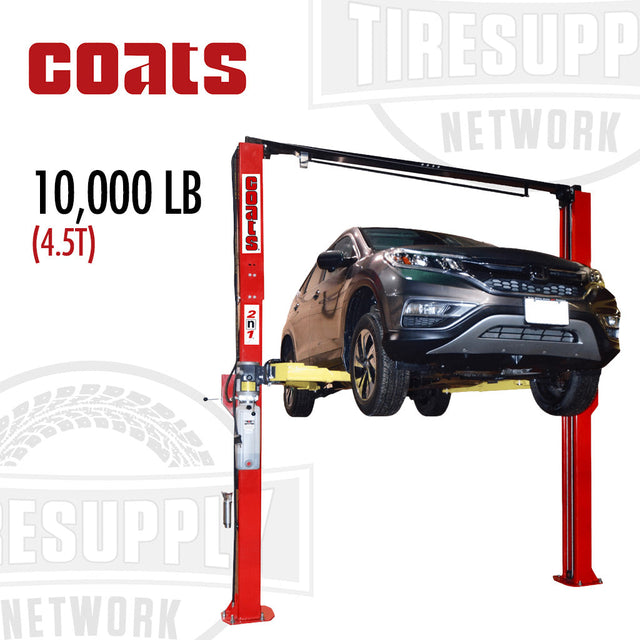

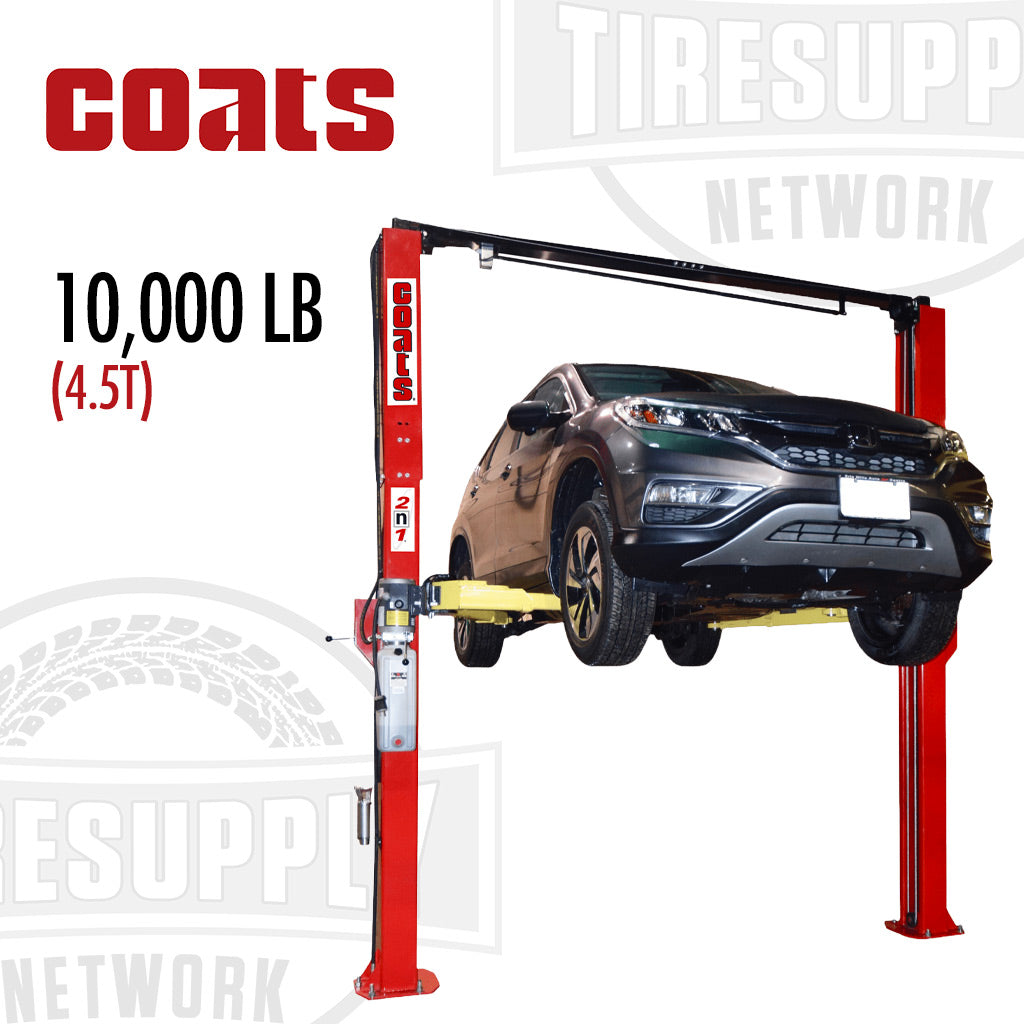

2 POST LIFT 10,000 LB. / 4.5T CAPACITY - RED
| Features | Benefits |
| Premium bake Powder coat finish | Protects against structural corrosion |

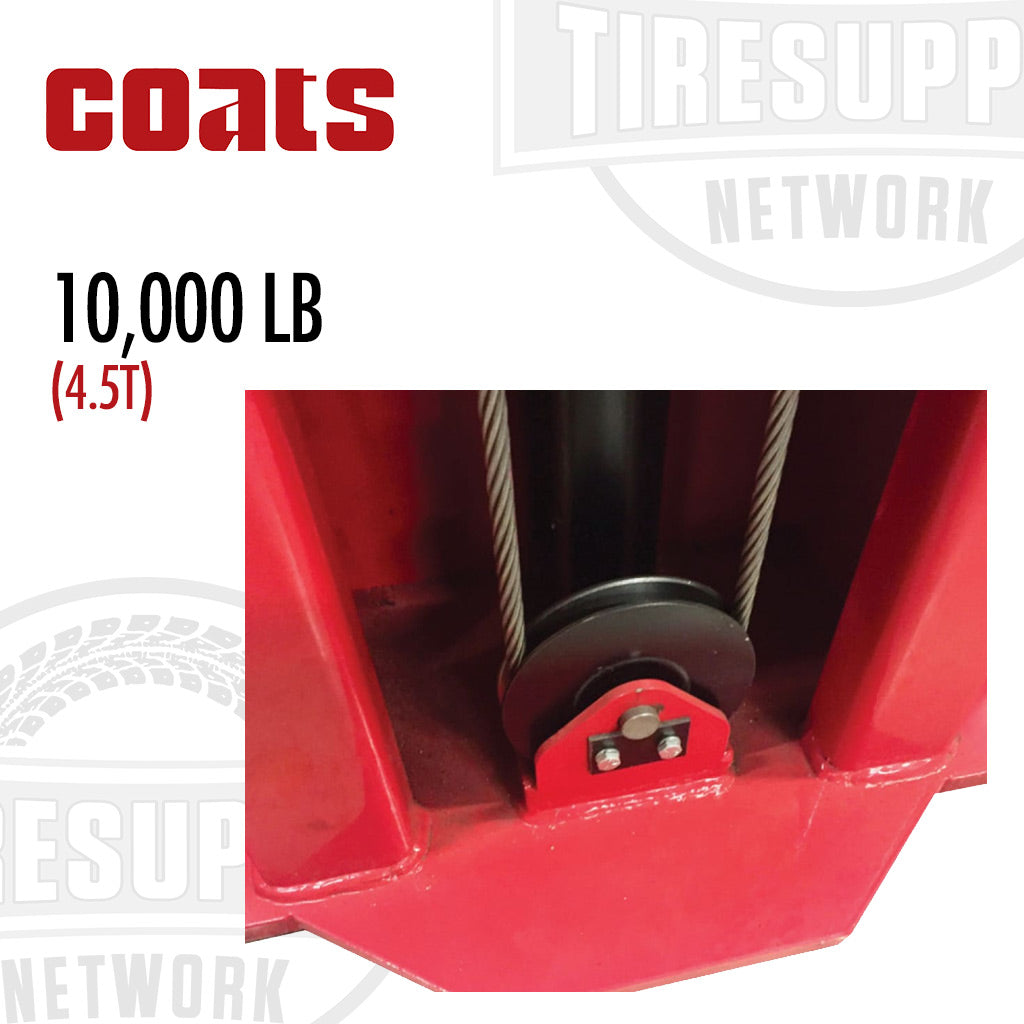

| 3 1/2”/89mm Steel Pulleys & 3/8”/9.5mm IWRC 6 x 36 cables | Last longer with less maintenance |

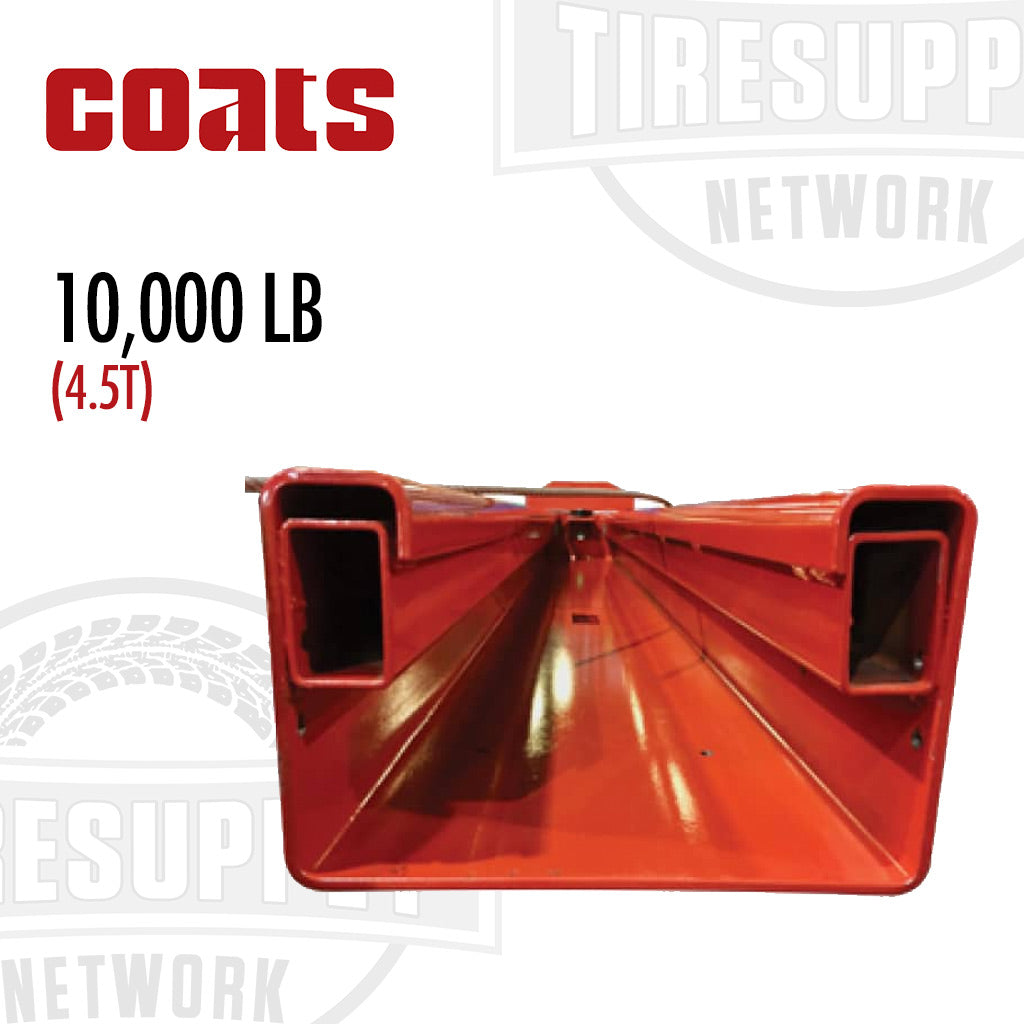

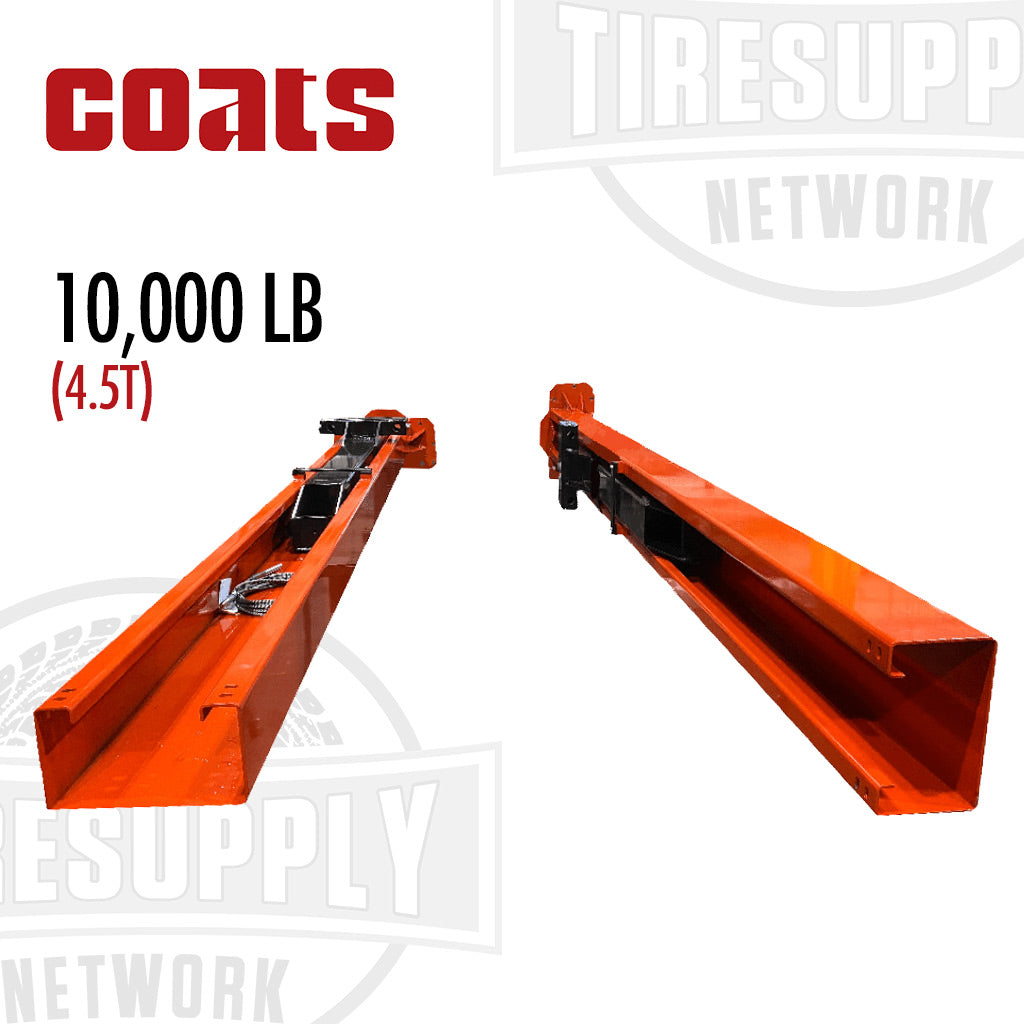

| Columns 1 1/2” x 2 1/2” / 51 x 64mm inner tube support | Up to 18% heavier columns ex less under load |
| Reinforced carriage Arms pin holes | Carriage & lift arms last longer with less sag |
| Replaceable plated gear style arm restraints | Last longer with lower maintenance cost |
| Carriage mounted rubber door bumper guards | Protects customer cars from door damage |
| Single point release - controls can be on either column | Greater flexibility for the operator |
| Premium US Made Bucher Power Unit | Lasts longer with Less maintenance |
| 70 1/2”/ 1791mm stroke cylinders | Lifts higher for more under car working height |
| Field adjustable height setting | Lower installation cost more flexibility |
| Rubber power unit motor mounts | Motor lasts longer and runs quieter |

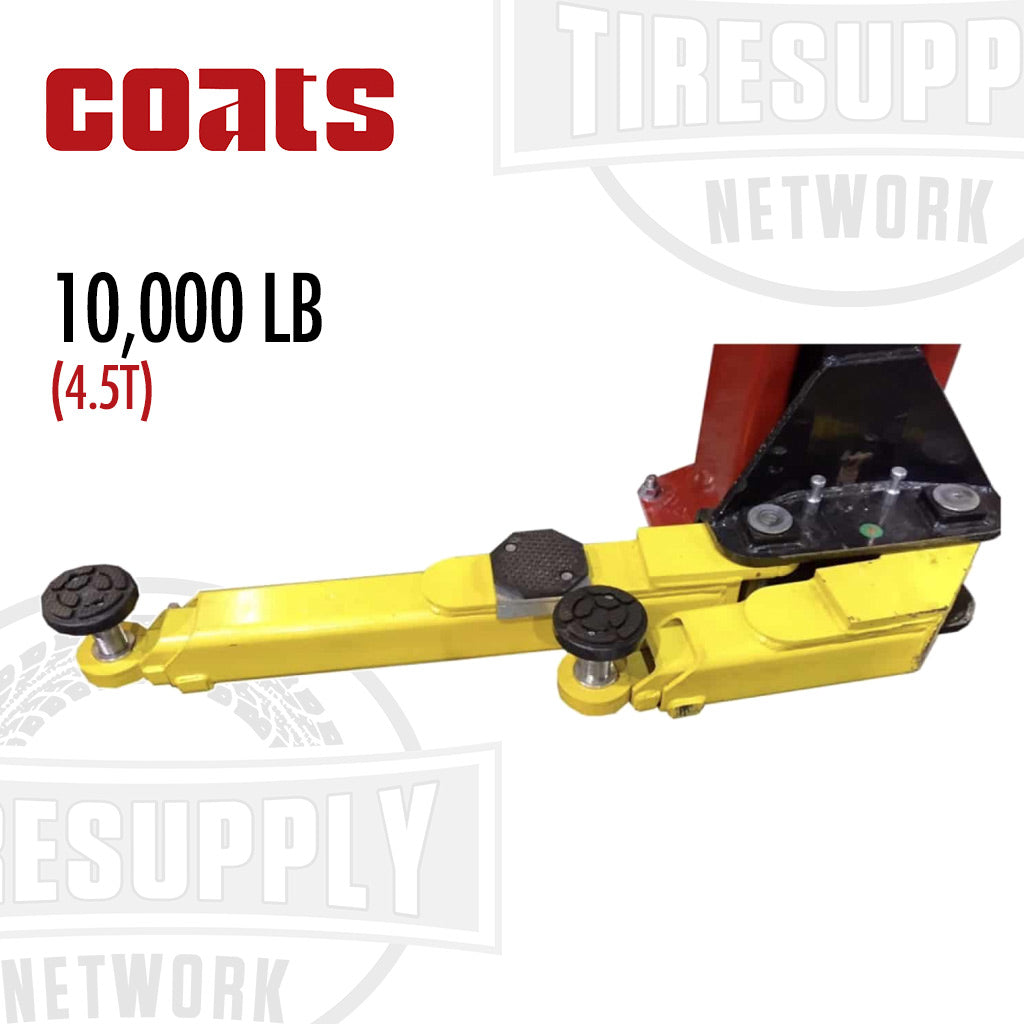

| 3 piece retractable arms front & rear | Provides greater access to approved lift points |
Specifications:
| Details | 2N1 |
| Part # | 4TV21NSR1 |
| Capacity | 10,000 lb/ 4.5T |
| Overall Height (Field Adjustable) | 138" or 148"/ 3505mm or 3759mm |
| Overall Width | 135.5"/ 3442mm |
| Width Between Columns | 112.75"/ 2845mm |
| Drive Thru Width | 92"/ 2337mm |
| Under Bar Clearance (Field Adjustable) | 131" or 141"/ 3327mm or 3581mm |
| Height to Lowered Lift Pad | 4.5"/ 110.3mm |
| Raised Height with Standard Pad | 76"/ 1930mm |
| Raise Height with Adapters | 87"/ 2210mm |
| Front Arm Reach | 18" to 44"/ 457mm to 1118mm |
| Rear Arm Reach | 33” to 62”/ 838mm to 1575mm |
| First Lock Position from Floor | 11.5”/ 292mm |
| Lifting Time | 55 seconds |
| Standard Power Requirements | 230 Volts - 50/60 Hz - 1 PH - 20amp |
| Shipping Weight | 1,980 lbs/ 900 kg |
Need replacement parts? Call or email us and we can special order them for you!
