Coats | SKU: 4T415CSSR1

Coats | Four Post Service Lift 15,000 lb / 6.8T Capacity - Red (4T415*)

$23,059.73

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $320.27 for 72 months Finance Now!

Style

Closed Front Open Front Extended Closed Front Extended Open Front

Product variants

Coats | Four Post Service Lift 15,000 lb / 6.8T Capacity - Red (4T415CSSR1)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Maximize Uptime and Productivity

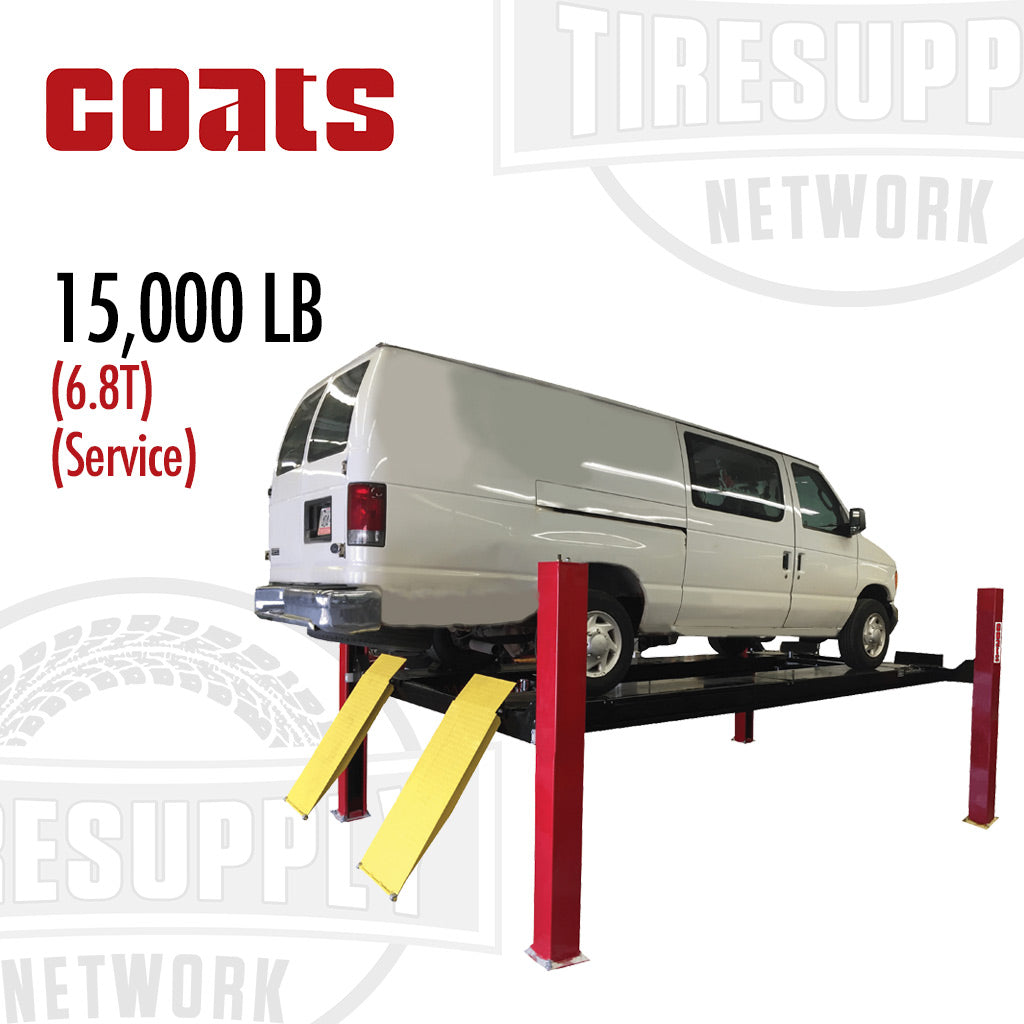

4 POST STYLE SERVICE LIFT 15,000 LB. / 6.8T CAPACITY - RED

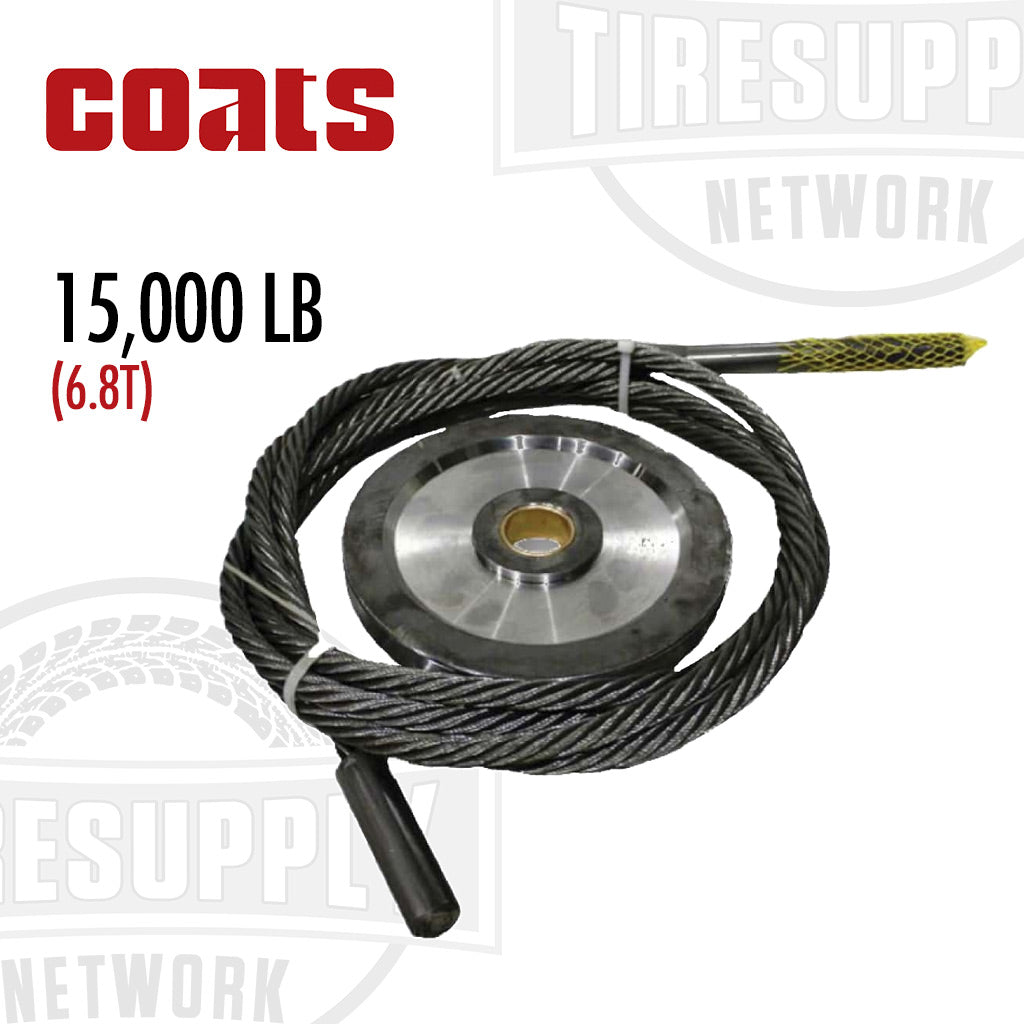

Heavy Duty Cables

North American cables are pre-stressed non-twist providing resistance to heat and corrosion.

Adjust With Ease

With Camber Neutral Technology on our open front lifts, runways can be easily adjusted and leveled without shimming under posts, even as internal components wear over time.

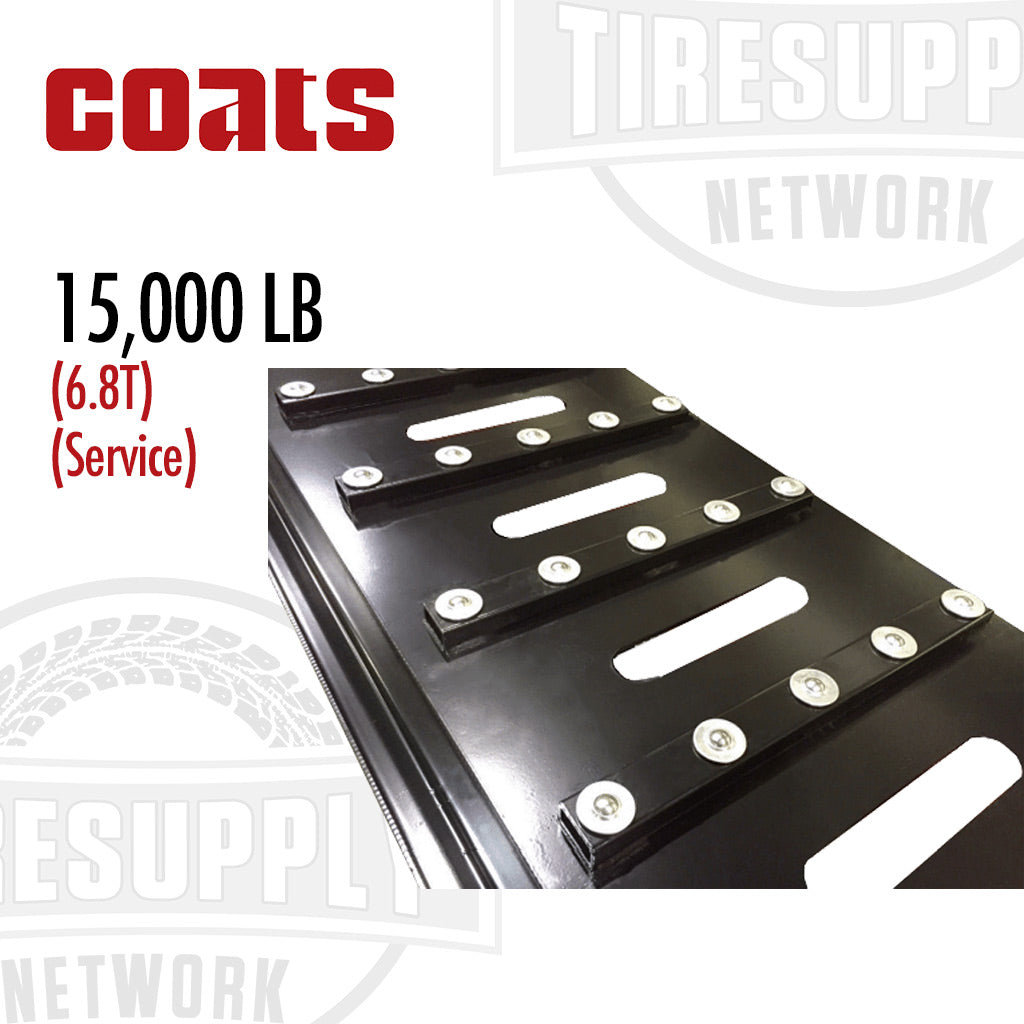

Open Runway Slots

Under the rear slip plates are openings that prevent water, dirt, and other debris from collecting. With enclosed plated steel slip plate balls raised, this lift is ideal for all weather and shop conditions.

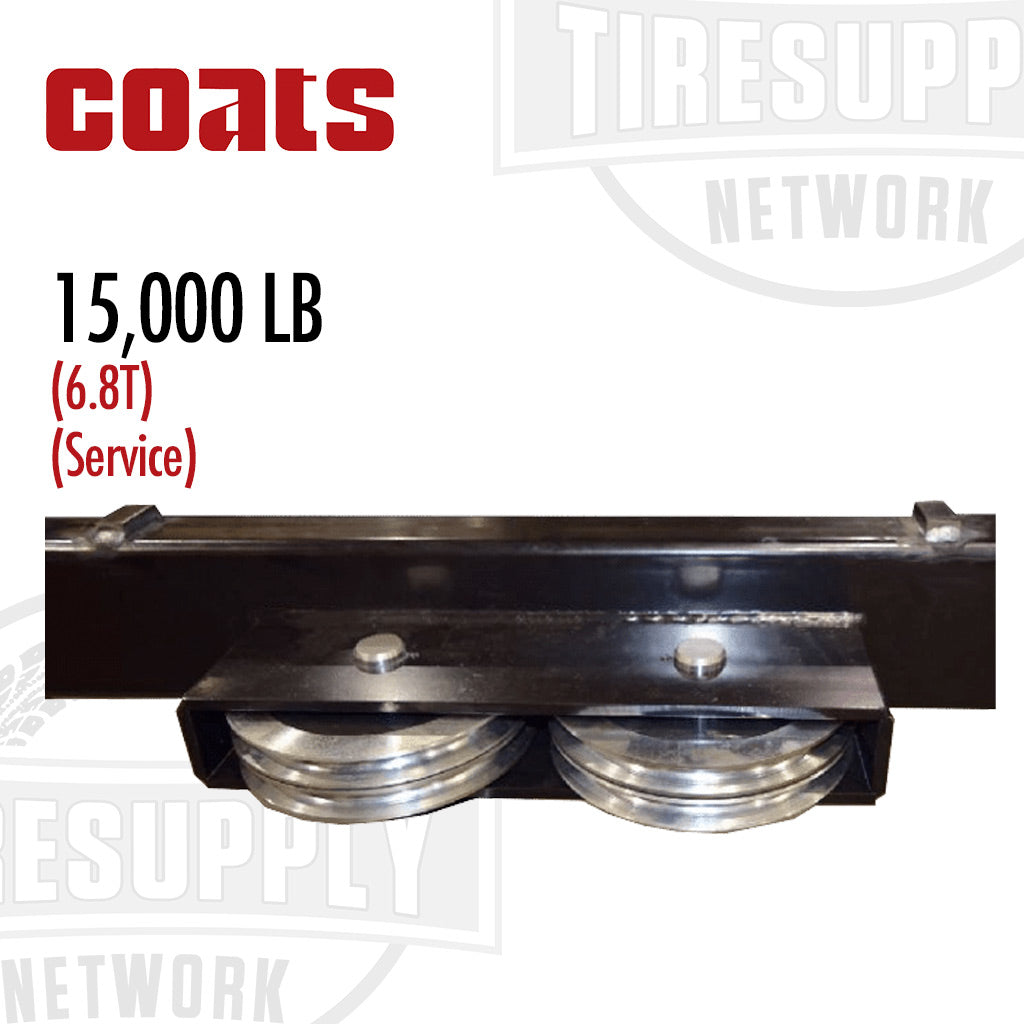

Premium Pulleys

Our 9” machined steel pulleys are stacked two high (compared to four) to reduce stress and wear on components.

Features:

FEATURE	BENEFITS
1. 9” / 229mm steel pulleys with 1/2” / 12.3mm cables	Last longer with less maintenance
Wide 23” / 584 mm double wall non flex runways	More stable platform for light & medium duty trucks
Optional “Open Front Design”	Improved worker productivity
Durable powder coat double bake finish	Resists corrosion reduces & maintenance costs
Heavy Duty 3” x 8 1/4” / 74 - 210mm	Less runway sagging & longer cable/pulley life
Water trap/ air regulator/ filter	Protects locking & jack system for lower maintenance cost
Single point air lock releases	Safer raising & lowering on the mechanical locking system
Premium US made Bucher Power Unit	Lasts longer with less maintenance
Open Runways with 7/8”/ 875mm plated slip plate balls	Easier to maintain reduces corrosion
Flip down/ up front wheel stops	Allows for clear access when performing alignment
4” Diameter x 65” long / 102 x 1651 mm cylinder	Lasts longer with less maintenance

Specifications:

PRODUCT DETAILS	CLOSED/OPEN FRONT	EXTENDED CLOSE/OPEN FRONT
Capacity	15,000 lb / 6.8T	15,000 lb / 6.8T
Raised Height	74" (1880mm)	74" (1880mm)
Lowered Height	8 3/8" (213mm)	8 3/8" (213mm)
Overall Length	257 7/8" (6550mm)	284 7/8" (7336mm)
Deck Length	210" (5334mm)	237" (6020mm)
Width Between Runways	41" (1041mm)	41" (1041mm)
Runway Deck Width	23" (584mm)	23" (584mm)
Overall Width Front/Rear	137.5" (3493mm) front / 143" (3632mm) rear	137.5" (3493mm) front / 143" (3632mm) rear
Max Column Height	101.5" (2578mm) front / 86" (2184mm) rear	101.5" (2578mm) front / 86" (2184mm) rear
Max Wheel Base Vehicle	161" (4089mm)	161" (4089)
Lift Time	70 sec	70 sec
Power Requirements	220v 60hz 1Ph 50/60Hz	220v 60hz 1Ph 50/60Hz
Jacking Beam Capacity	7,500 lb (3.4t)	7,500 lb (3.4t)
Shipping Weight	4450-4750 lb (2030-2159 kg)	4450-4750 lb (2030-2159 kg)
