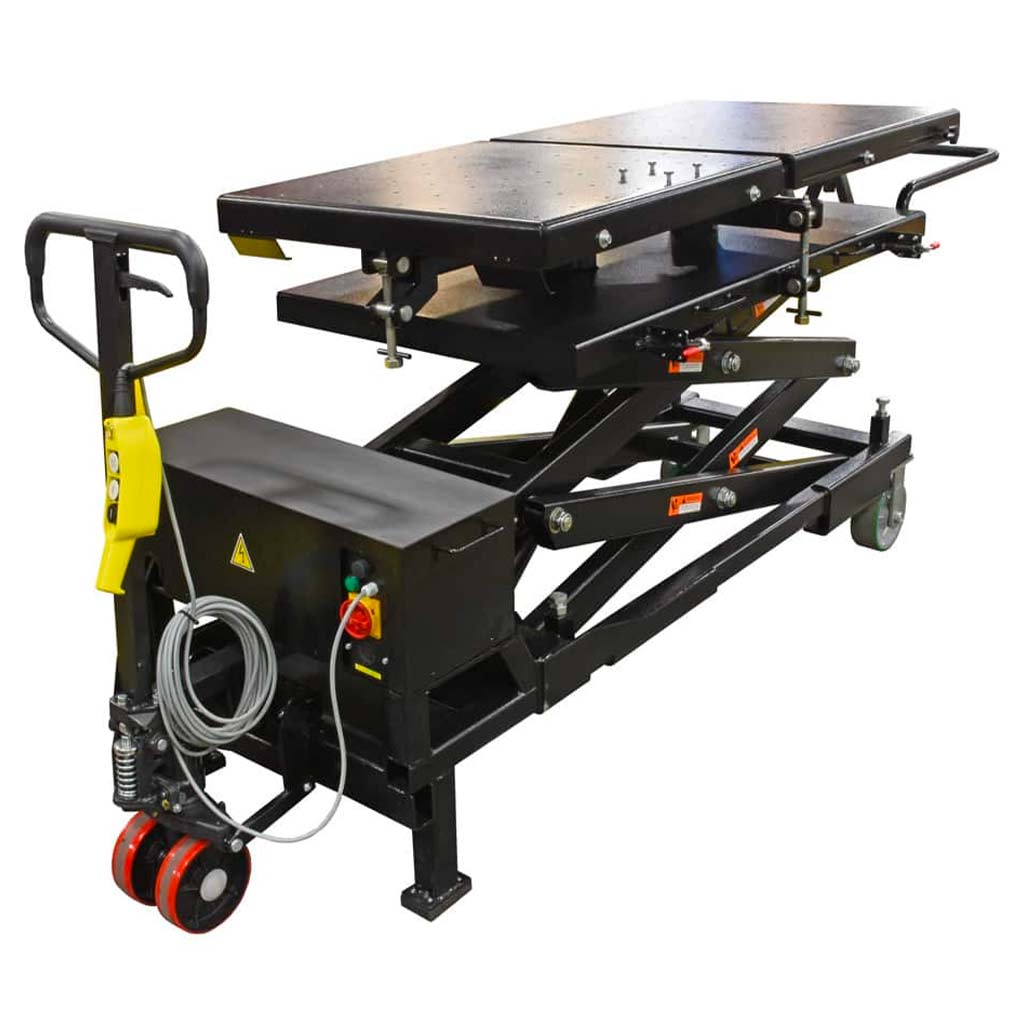

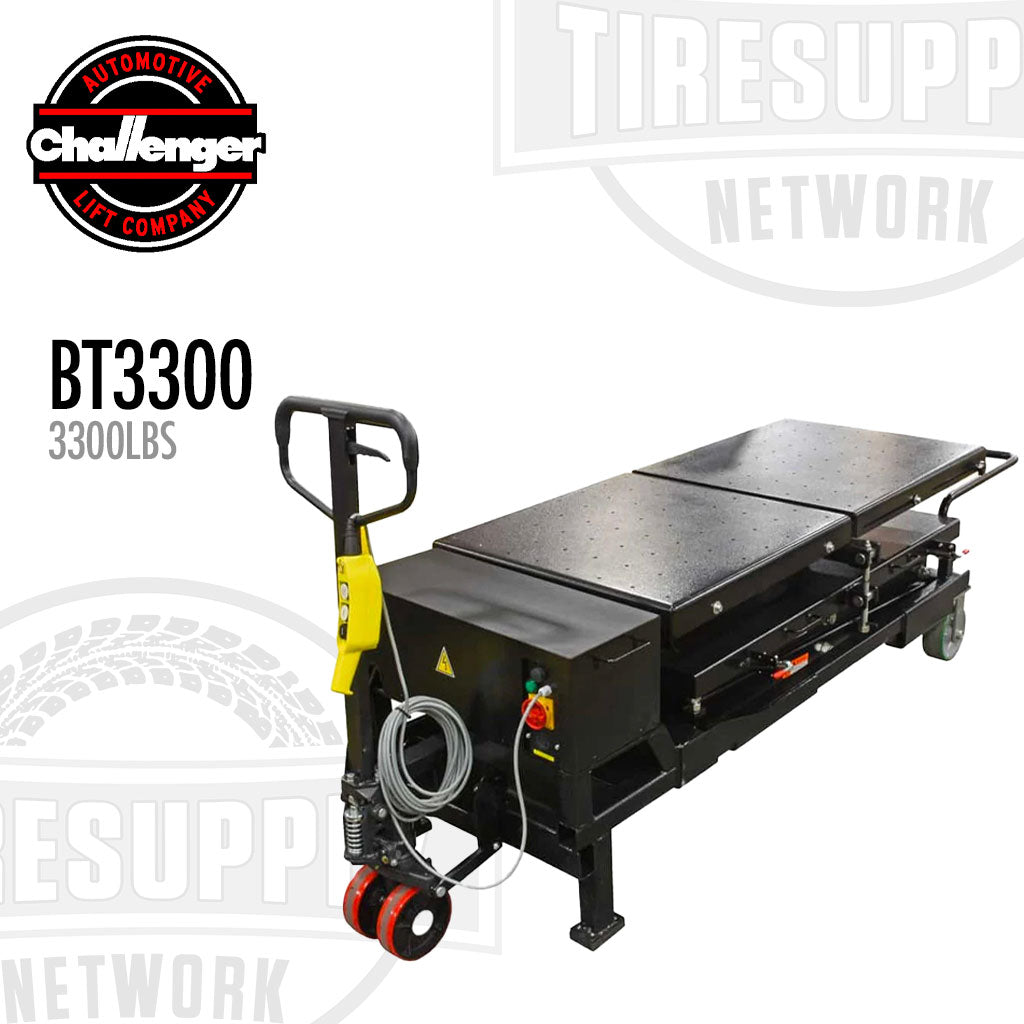

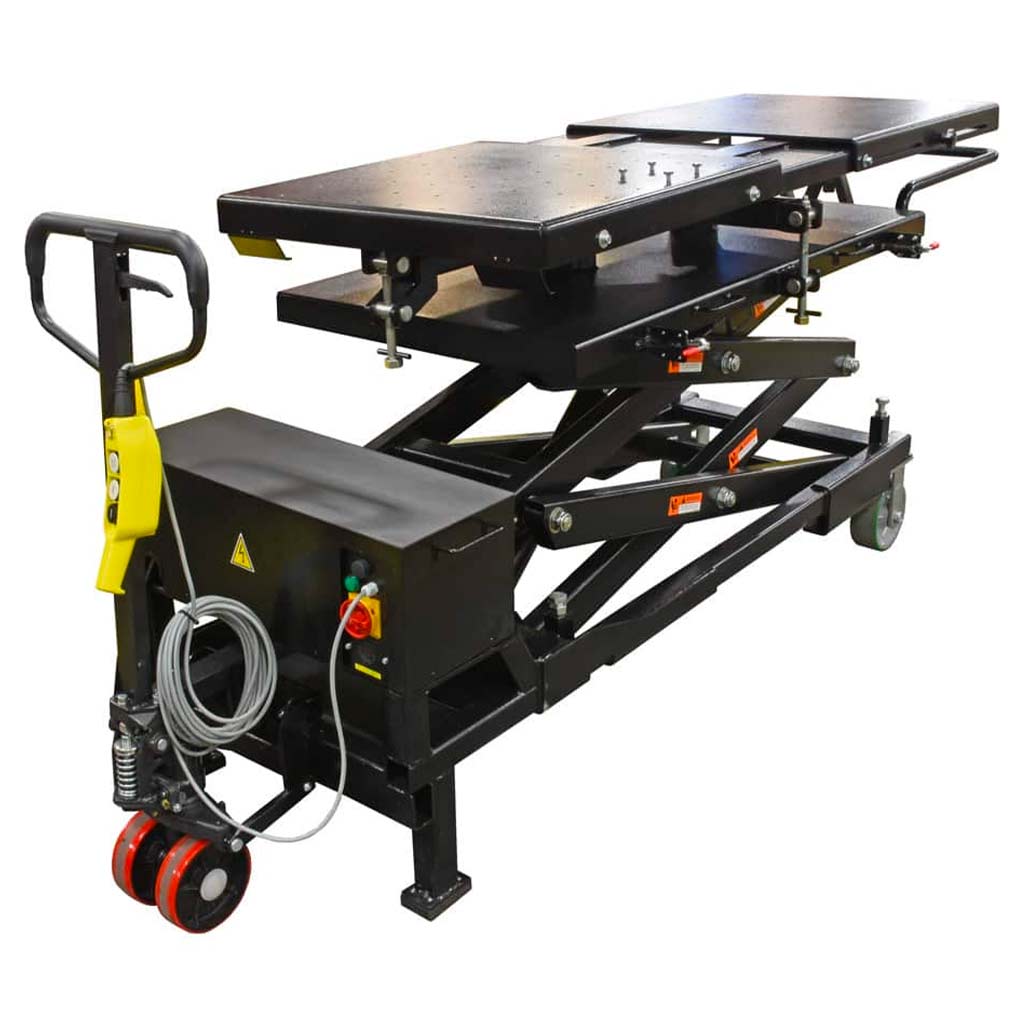

Challenger Lifts | Electric Vehicle Battery Lifting Table with 3300 lb. Capacity (BT3300)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
PLEASE NOTE: All lifts do not include installation. If you do not have a forklift, we can arrange for a dock pickup at the freight carrier.
Used to facilitate and safely perform the installation and removal of EV batteries, electric car battery packs, transmissions, gearboxes, clutches, engines, and various components of the car chassis.
Features:
- Scissor-style lifting

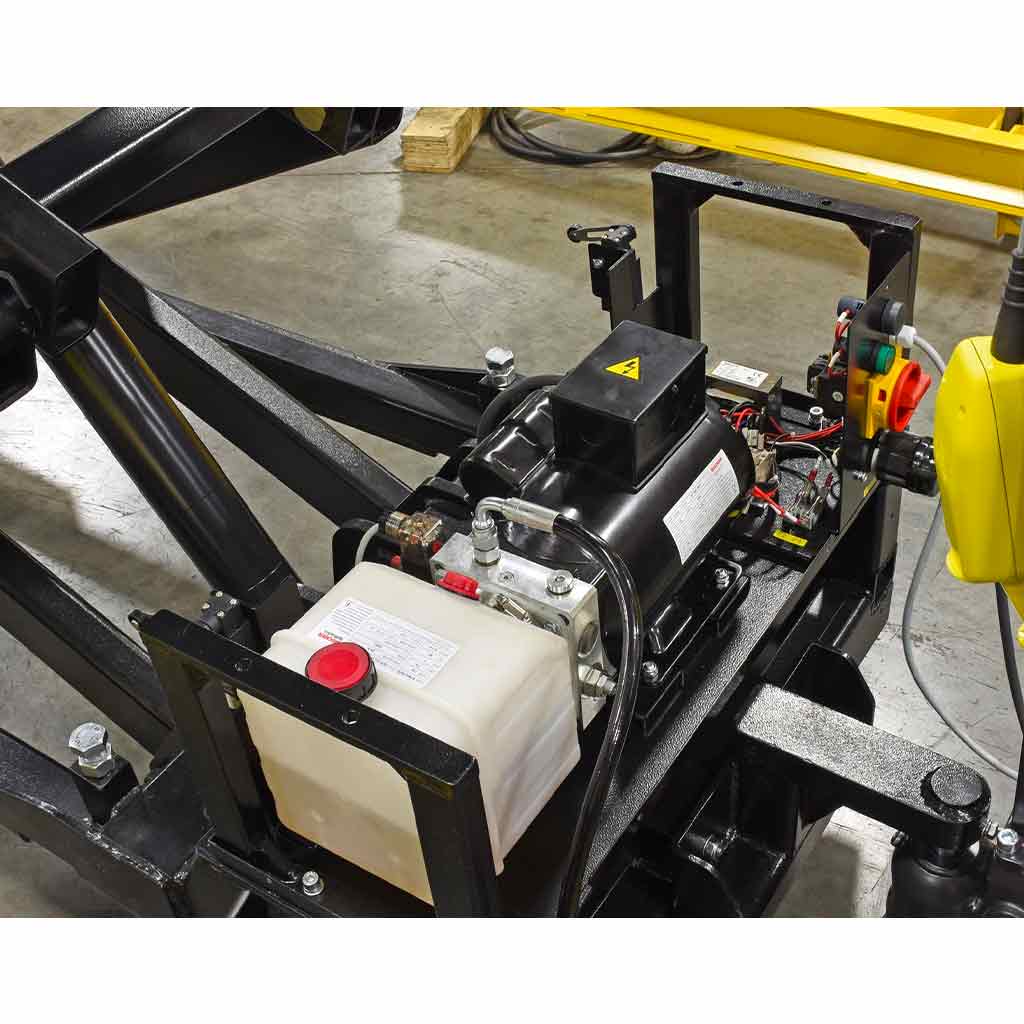

- Hydraulic cylinder
- Max reachable height 76.5”
- Easy maneuvering, thanks to pallet-jack style handle

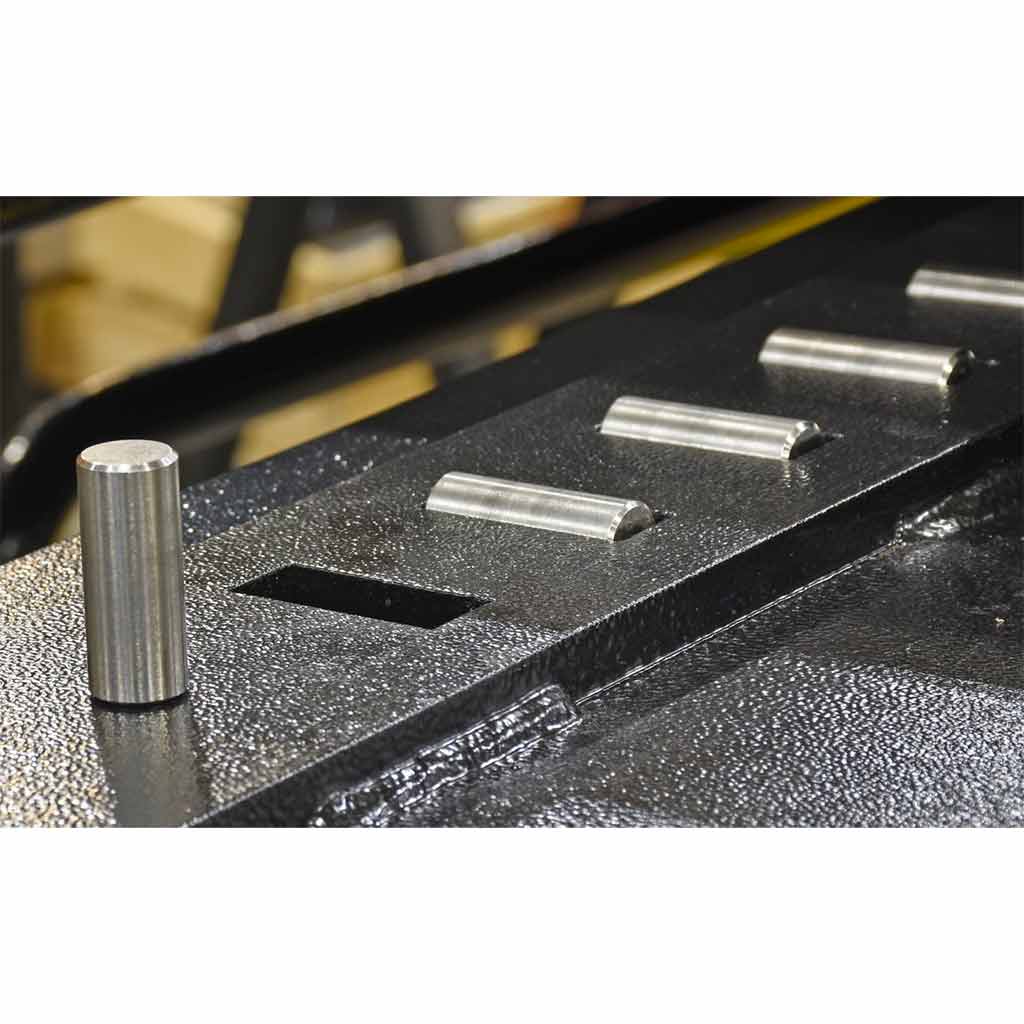

- Extending, adjusting and tilting top plate
- Plugs in to any 120v outlet
- Power cord included
- Complies with ASME PASE-2019
Specifications:
| Model Number | BT3300 |
| Lifting Capacity |
3,300 lbs. |
| Rise Height |
76.77″ |
| Collapsed Height |
29.53″ |
| Platform Height Adjustment |
1.77″ |
| Platform Angle Adjustment |
6° |
| Platform Length |
68.54″ - 81.34″ |
| Platform Width |
31.5″ |
| Platform Height | 9.02″ ± 1.77″ |
| Deck Length |
59.06″ |
| Base Height |
8.07″ |
| Wheel Diameter |
7.87″ |
| Overall Length |
116.375″ |
| Motor |
2 HP |
| Power Supply |
110V, 60 Hz, 1 PH |
| Current Draw |
14 Amps |
| Control Voltage |
24V |
| Hydraulic Pressure |
3,625 psi |
| Safety Limit Switch |
Yes |
| Full Stroke Time (Rated Load) |
45 sec / 70 sec |
| Full Descent Time (Rated Load) | 55 sec |
| Shipping Weight | 1900 lbs |
| Shipping Size (LxWxH) | 88″ x 41″ x 37″ |
| Warranty | 2 Years Parts, 1 Year Labor |
