Challenger Lifts  |  SKU: SA10-Red

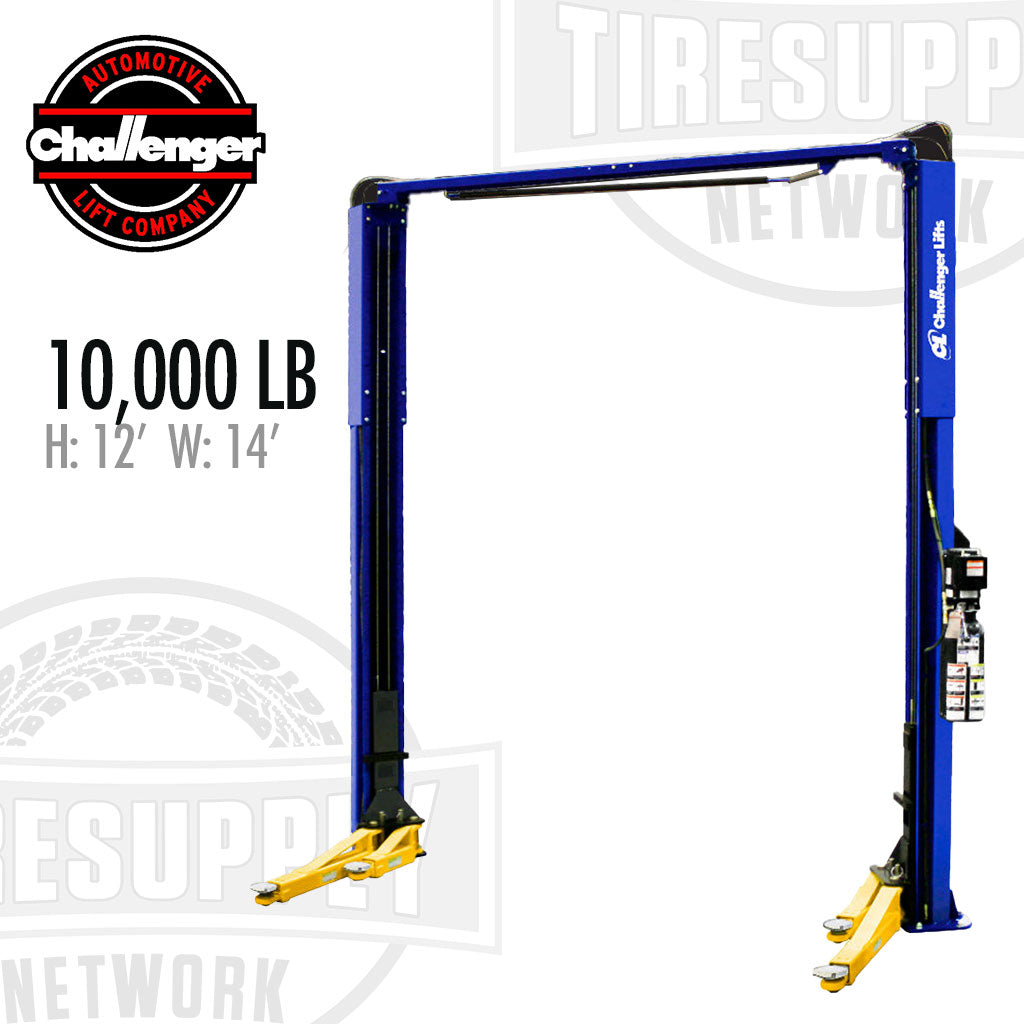

Challenger Lifts | 10K Two-Post Lift (SA10)

Regular price $5,822.63

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $80.86 for 72 months Finance Now!


Color: Red


Challenger Lifts | 10K Two-Post Lift (SA10)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

PLEASE NOTE: All lifts do not include installation. If you do not have a forklift, we can arrange for a dock pickup at the freight carrier.

Challenger’s SA10 2-post lift offers 10,000 lb. capacity. You can install the SA10 in either symmetric or asymmetric position, depending on your service needs. The SA10 also features adjustable height and width options to further customize it to meet your needs. Innovative 3-stage front and 2-stage rear arms provide greater overall sweep.

Features
  • 10,000 lb. lift capacity
  • 3-stage front arms provide greater sweep for versatility and ease of spotting
  • Can be installed in either symmetric or asymmetric position, depending on your service needs
  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • Adjustable heights and widths provide versatility at installation for service facilities with special constraints
  • Single-point mechanical lock release system allows technician to disengage both columns simultaneously
  • Padded overhead shut off system prevents vehicle damage
  • Premium powder coat finish provides long-lasting durability
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Specifications:
Model Number  SA10 SA10
Lifting Capacity 10,000 lbs. 10,000 lbs.
Lifting Configuration Symmetric Asymmetric
Arms 3-stage front/2-stage rear 3-stage front/2-stage rear
Rise Height 74.5” 74.5”
Overall Height 136.5” / 142.5” 136.5” / 142.5”
Overall Height (Cylinder Extended) 142.5” 142.5”
2’ Height Extension Available Yes Yes
Overall Width 129” / 135” 131.5” / 137.5”
Drive-Thru Clearance 92.75” / 98.75” 88.5” / 94.5”
Floor to Overhead Switch 131.125” / 137.125” 131.125” / 137.125”
Front Arm Reach 22.375” / 41.5” 22.375” / 41.5”
Rear Arm Reach 38.25” / 59” 38.25” / 59”
Screw Pad Height 4.75” / 6.875” 4.75” / 6.875”
Inside Columns 106.75” / 112.75” 101.5” / 107.5”
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 43 s 43 s
Ceiling Height Required 12’ 12’
ALI/ETL Certified Yes Yes
Colors Available Red, Blue Red, Blue
