BendPak | Complete Rolling Jack Air Line Kit for XR-Series Scissor Lifts (5174008)

BendPak | Complete Rolling Jack Air Line Kit for XR-Series Scissor Lifts  (5174008)

Rolling bridge jacks are great for extending the functionality of your BendPak four-post lift, and they're about to get a whole lot better. Install this helpful kit and elegantly hide the airlines beneath your lift's own runways. This Airline Kit comes with all the accessories you need to connect both of your rolling bridge jacks to your air compressor with ease.

Features

• Provides air to two bridge jacks at once
• Complete Air Line Kit
• For use with BendPak XR-Series Scissor Lifts

The AK-14 Airline Kit comes with adapter fittings that allow you to connect airlines to your rolling bridge jack air/hydraulic pumps. With the fittings installed, you’ll only need one hose to provide air for both of your rolling bridge jacks. Not only does this simplify the process, but the fittings in the Airline Kit also allow you to hide the airline up and away, mounting the airlines securely to the bottom of your lift’s runways.

Messy airlines not only look bad, but they are a major tripping hazard. The Airline Kit gives you peace of mind while you work, and comes with everything you need to give your four-post lift, and your shop, a clean and efficient setup!

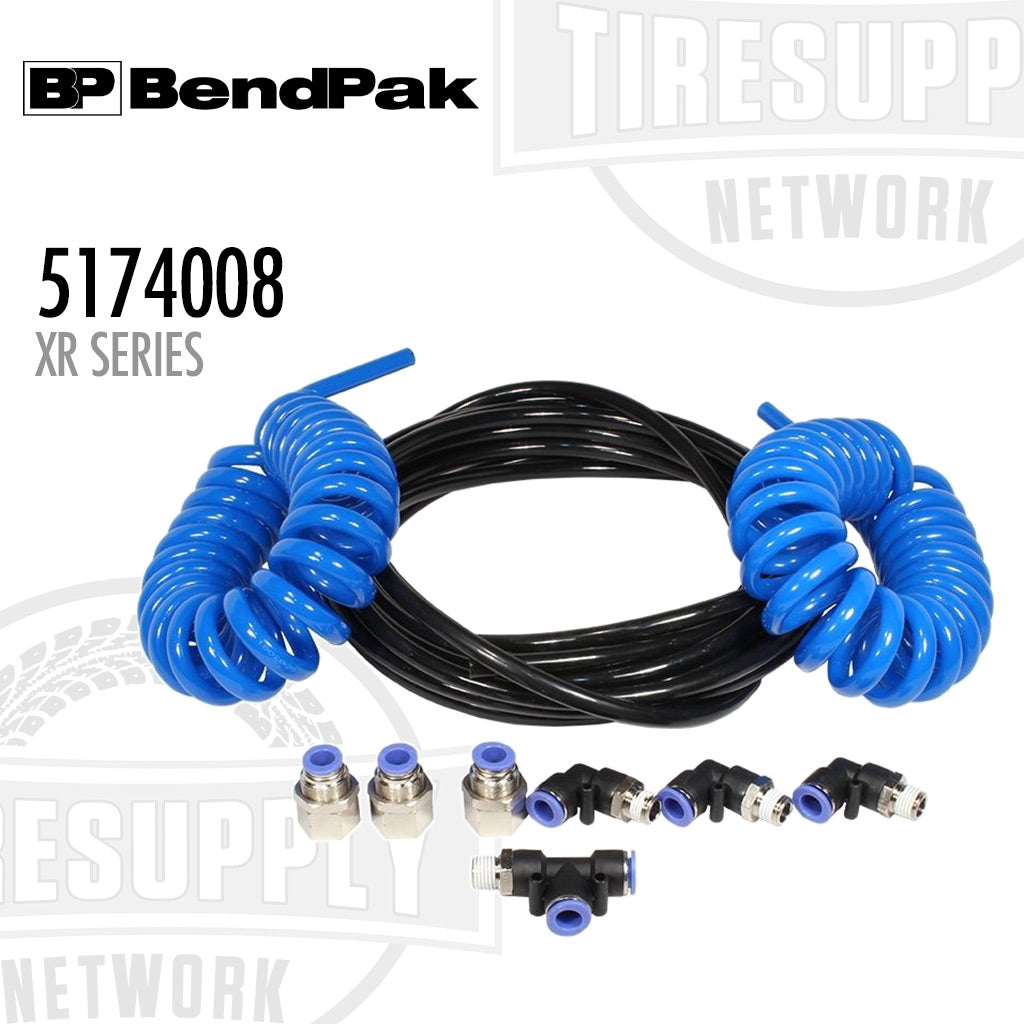

Air Line Kit Components Include

• Black Tubing - Length varies based on which 4-Post Lift you are using. You will need to cut it into two pieces: one short and one long.
• Two Blue Coiled Air Lines - Installed between the Rolling Jack and a Straight Fitting.
• Three Straight Fittings - Installed in the sides of the Powerside Runway in three locations.
• One Tee Fitting (black, plastic) - Connects to tubing in two places and a Straight Fitting.
• Three Elbow Fittings (black, plastic) - Two connect to the Rolling Jacks, one to a Straight fitting
• Six Washers - Install Washers where the Straight Fittings connect to the sides of the Powerside Post.
• Air Hose Holders (5174009 Only) - Keep the Air Hose clear of the Lift Cables by installing the Air Hose
• Holders (5520480) spaced approx. every 12″ (305mm) on the underside of the Power Side Runway.

Other Air Line Kit Models

• 5174008 - Air Line Kit for BendPak XR-Series Scissor Lifts
• 5174009 - Air Line Kit (includes Air Line Holders) for BendPak HD-9 / HD-12 / HD-14 / HDS-14 / HDSO-14 Series 4-Post Lifts
• 5174010 - Air Line Kit for BendPak HDS-18 / 27 / 35 Series 4-Post Lifts
• 5174011 - Air Line Kit for BendPak HDS-27X / 35X / 40X Series 4-Post Lifts
