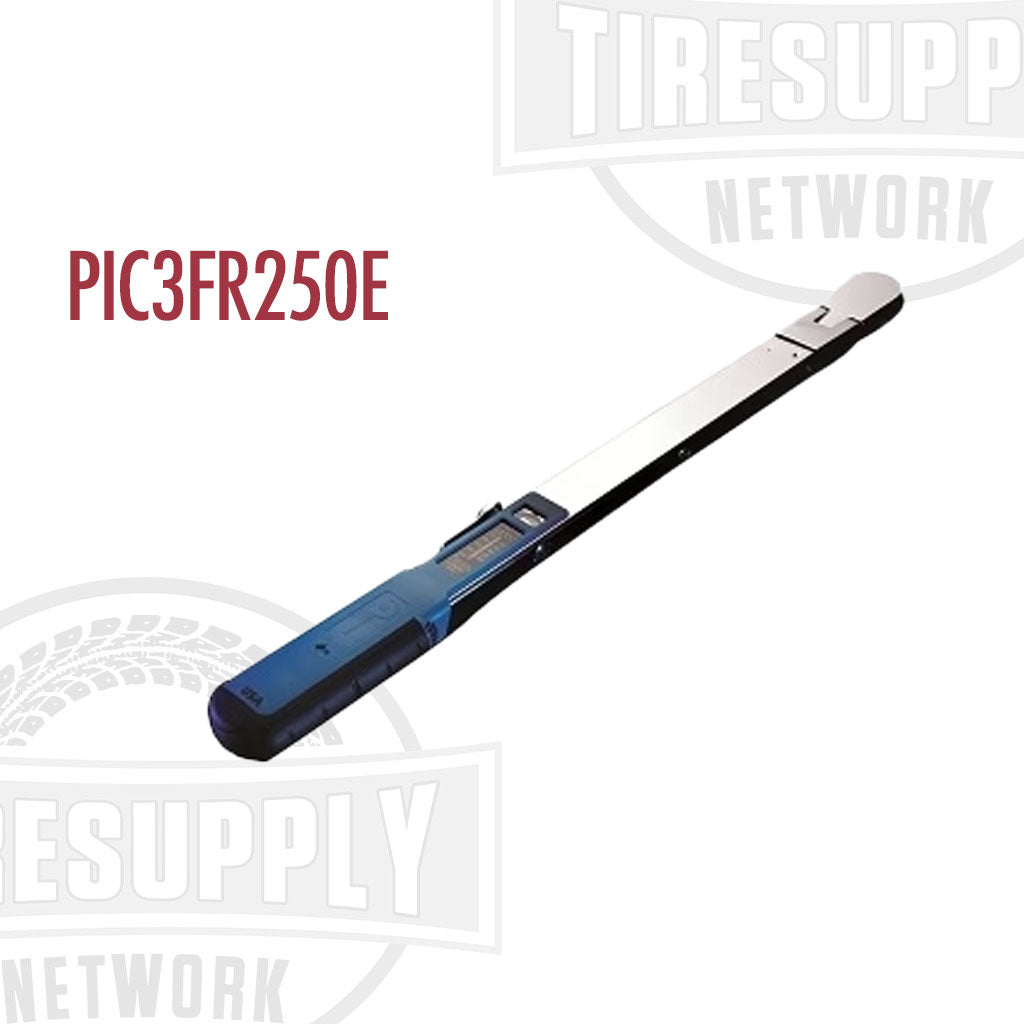

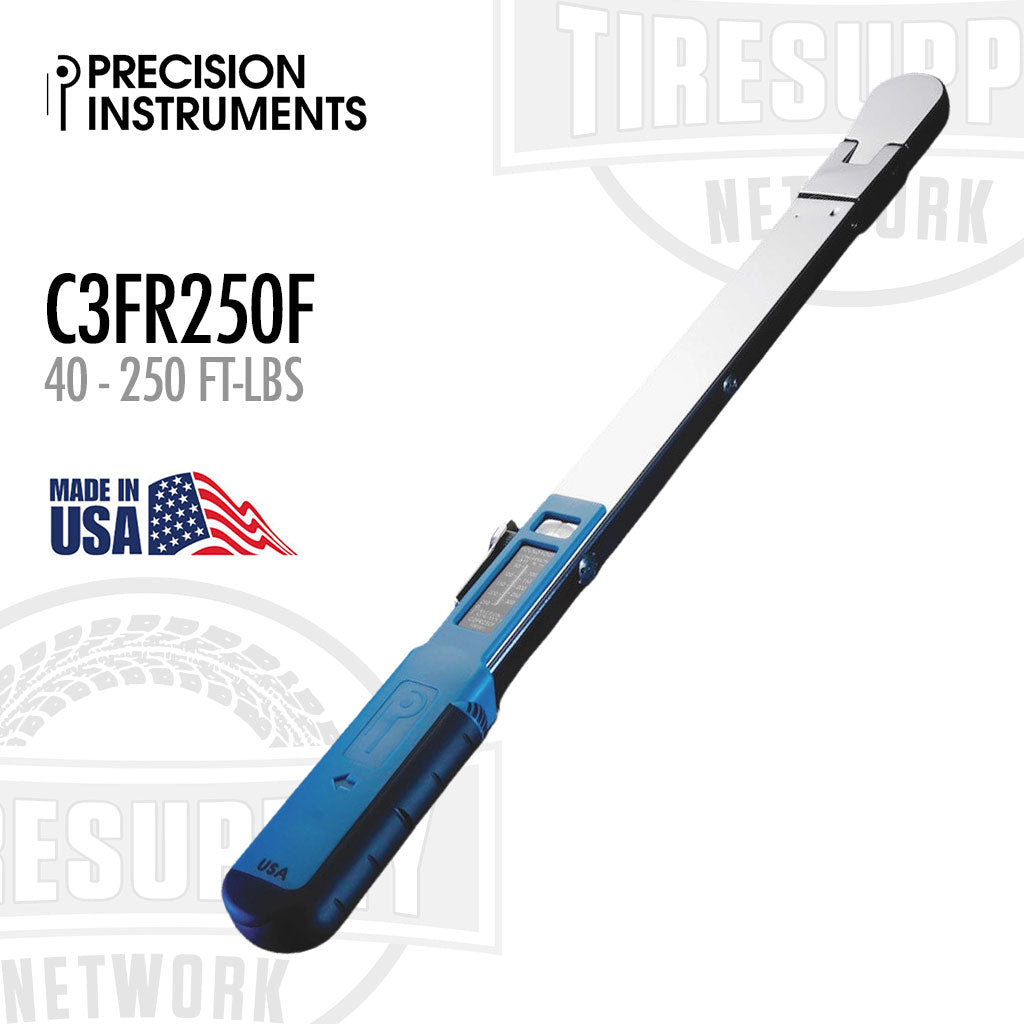

Precision Instruments PIC3FR250E | 1/2″ Drive Torque Wrench - Split Beam - 40-250 ft-lbs

Precision Instruments 1/2″ Drive Torque Wrench - Split Beam - 40-250 ft-lbs (PIC3FR250E)

Split-Beam Click Wrenches overcome many of the problems associated with micrometer-style clock wrenches in abusive environments. The wrench has few components, and all critical parts are welded together at assembly. There is no need to "work in" a C series torque wrench before using it the first time. Nor is it necessary to adjust to the lowest torque setting after use. Setting the tool requires only fingertip force since the adjustment mechanism is not under load.

Product Details:

• Overall Length: 22-1/8"
• Effective Length: 19"

• Width: 1-5/8"

• Head Height (without square): 3/4"

• Weight: 3.39 lbs.

• (w/plastic case): 4.33 lbs.

• Finish: Nickel / Chrome with ergonomic grip

• Ratchet Service Kit: R33BF-RK

• Meets or Exceeds the following Specifications:

• GGG-W-686C, ANSI B107.14M

Specifications:

• Drive Size: 1/2-inch
• Torque Range: 40 to 250 lb-ft (ft-lbs)
• Head Type: Flex-head ratchet
• Accuracy: ±4% clockwise
• Mechanism: Split-beam design

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
