Hofmann | Monty 1675 Swing-Arm Tire Changer (EEWH779CU2)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

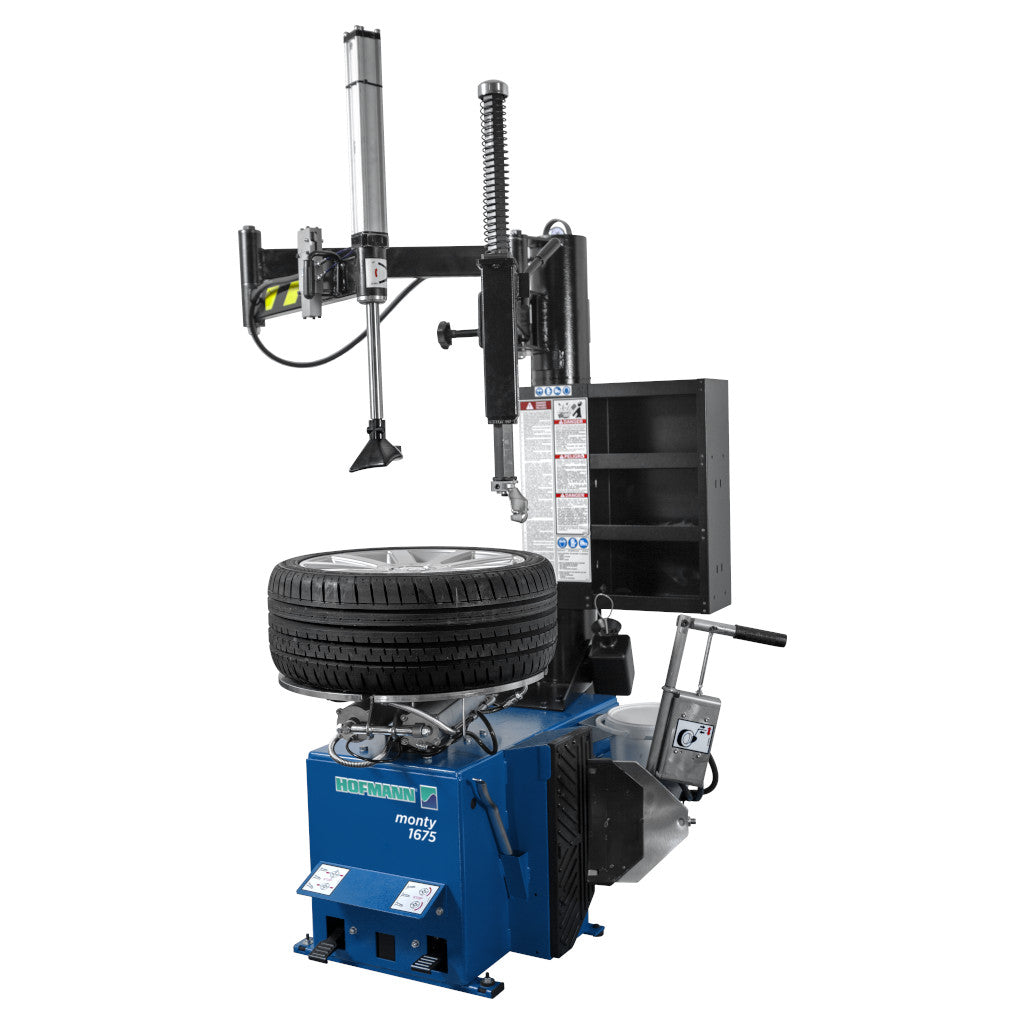

The Monty 1675 tire changing system is ideal for handling passenger cars, light trucks, and high-performance wheel/tire assemblies. Ergonomic design and safety-enhancing features provide the technician with a safe workspace when changing a variety of tires. Locking mount/demount head offset provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies.
Robust, Professional Design:
- Precision cast and machined shoes with robust cast jaws make for precise, slop free clamping

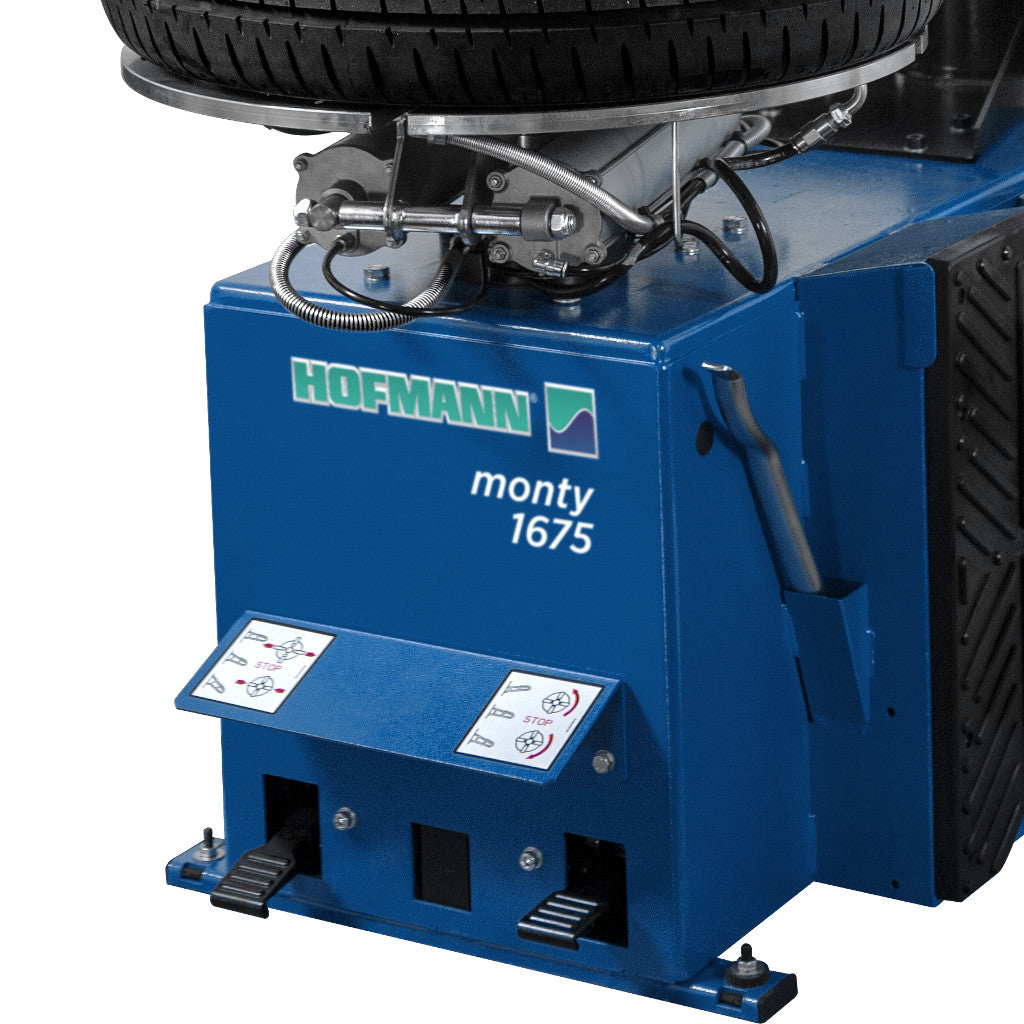

- Heavy-duty pneumatic valves are simple to operate and offer intuitive functionality
- Powerful electric motor generates 1200Nm of torque to the table top to mount stiff, difficult tires

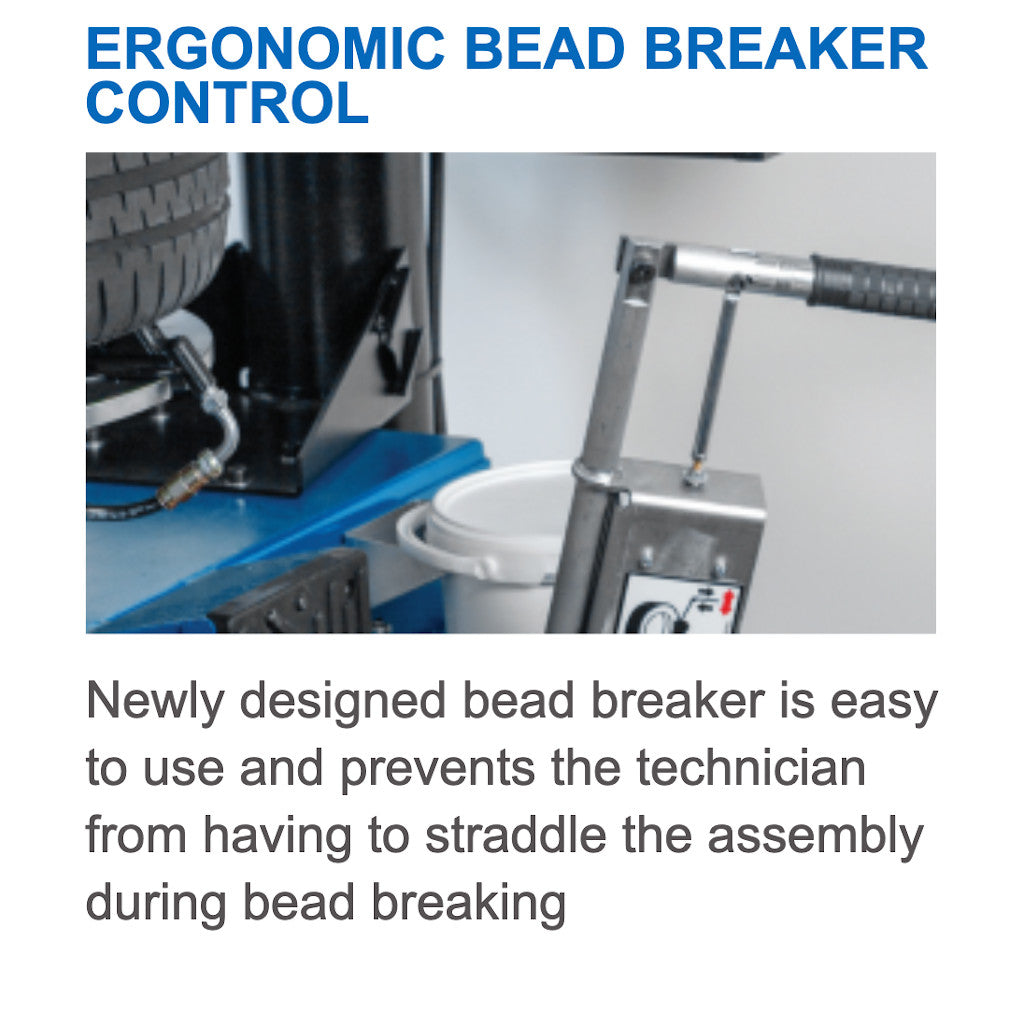

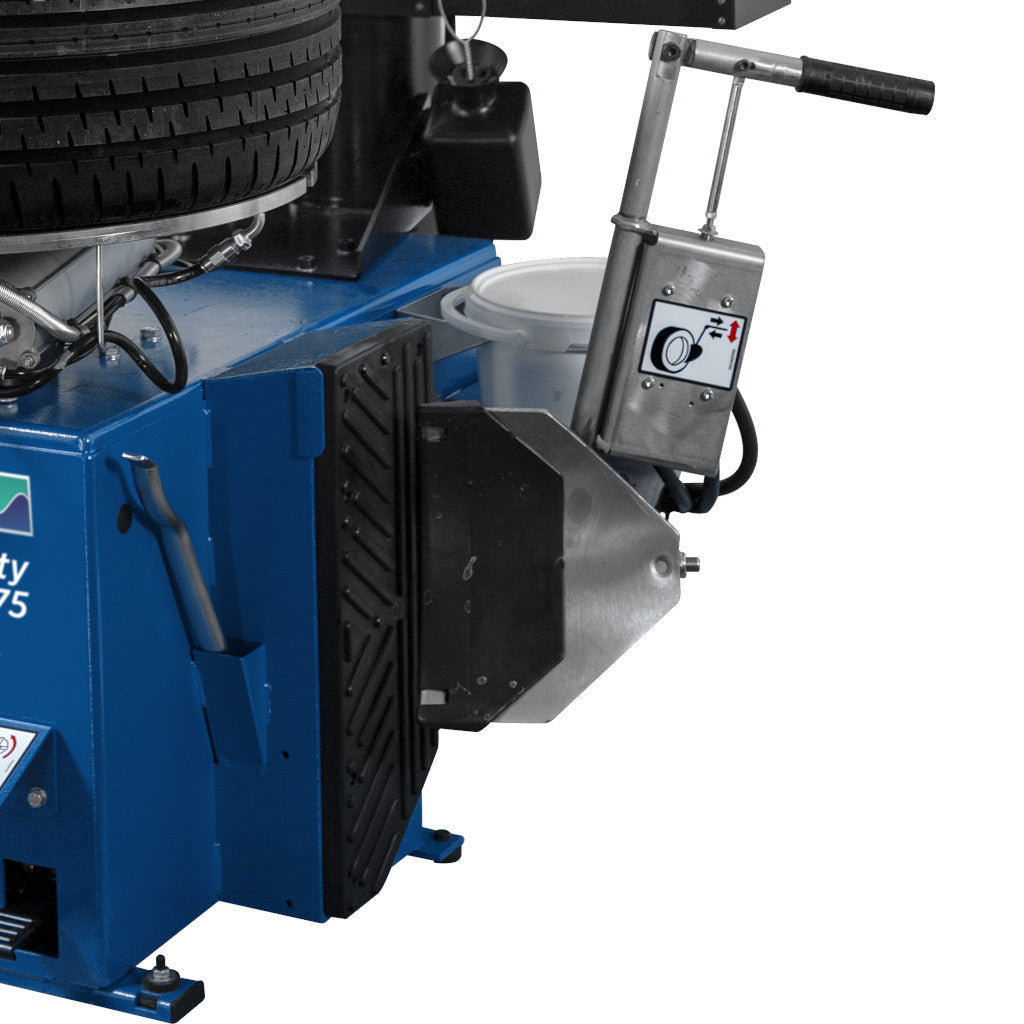

Ergonomic, Hand Operated Bead Breaker Control: Newly designed bead breaker is easy to use and prevents the technician from having to straddle the assembly during bead breaking.

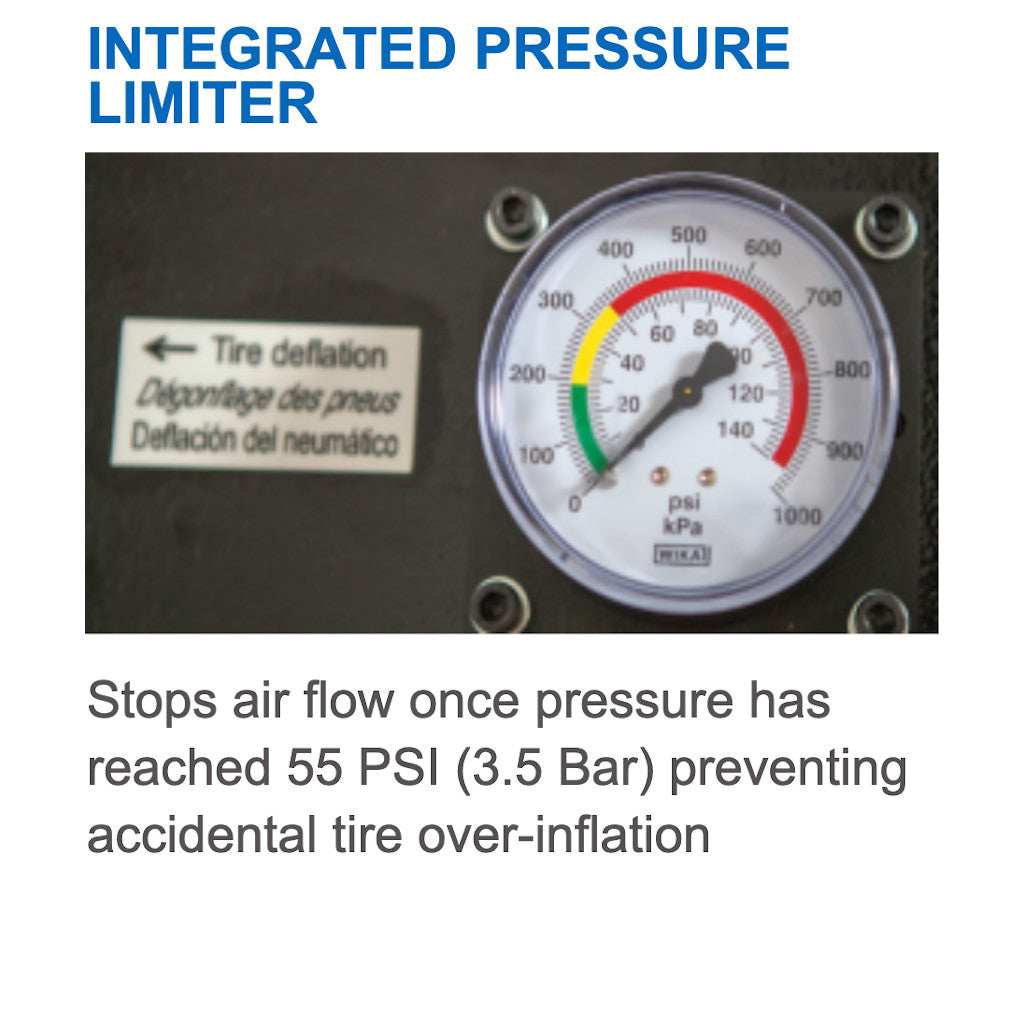

Integrated Pressure Limiter: Stops air flow once pressure has reached 55 PSI (3.5 Bar) preventing accidental tire over-inflation.

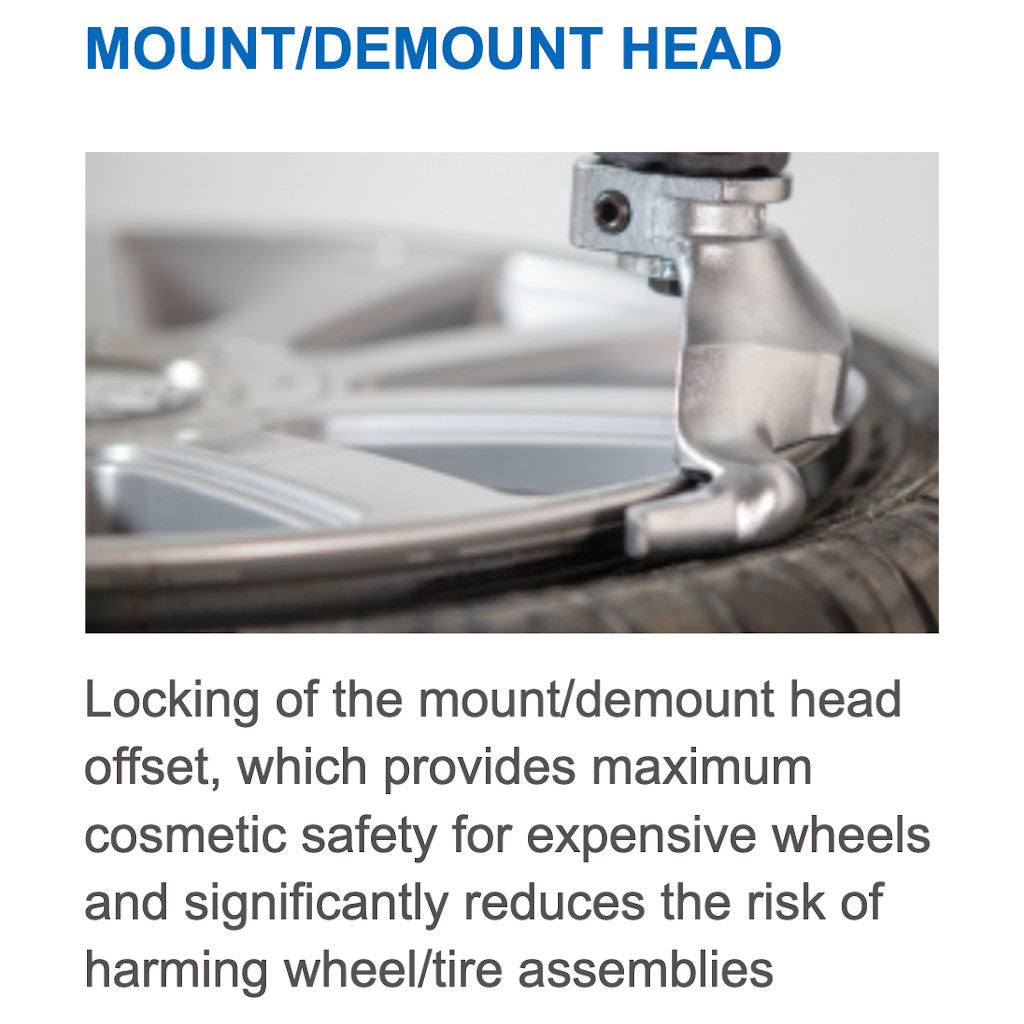

Mount/Demount Head: Locking of the mount/demount head offset, which provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies.

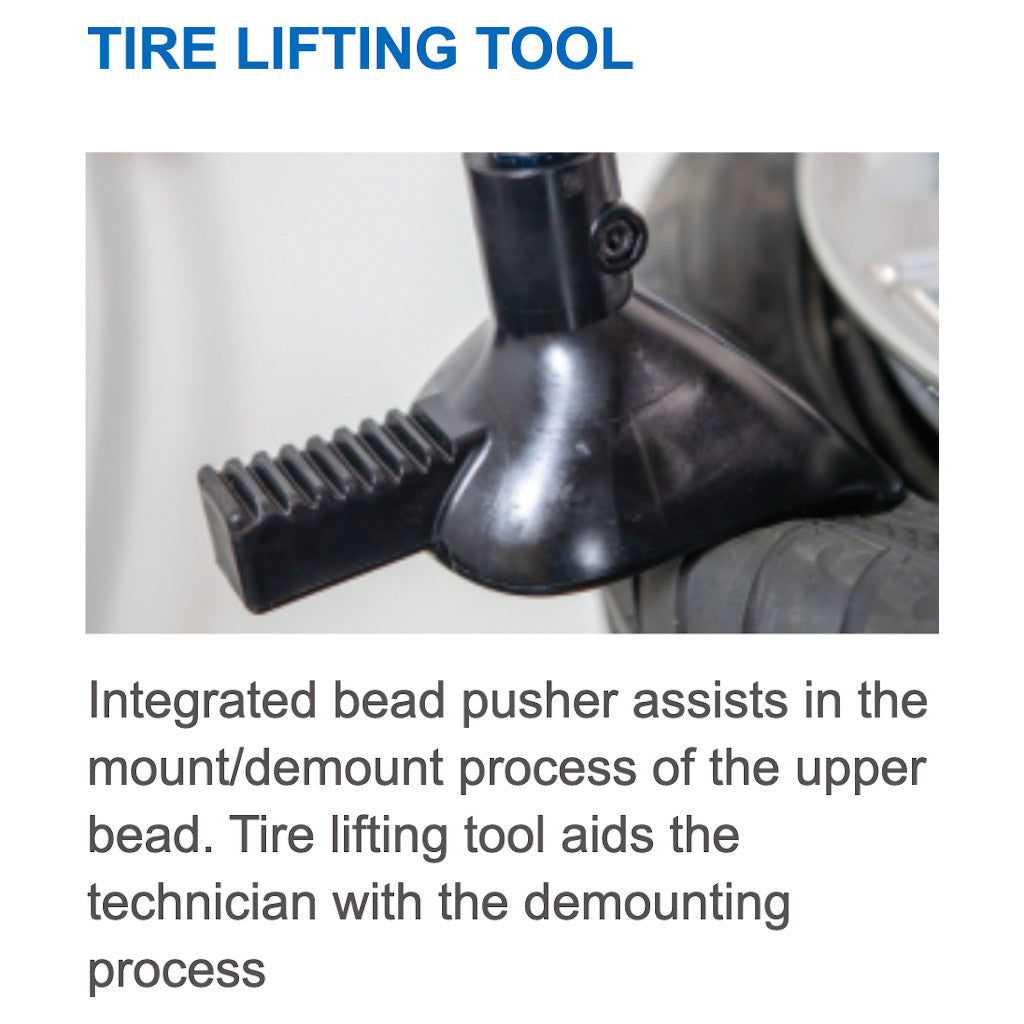

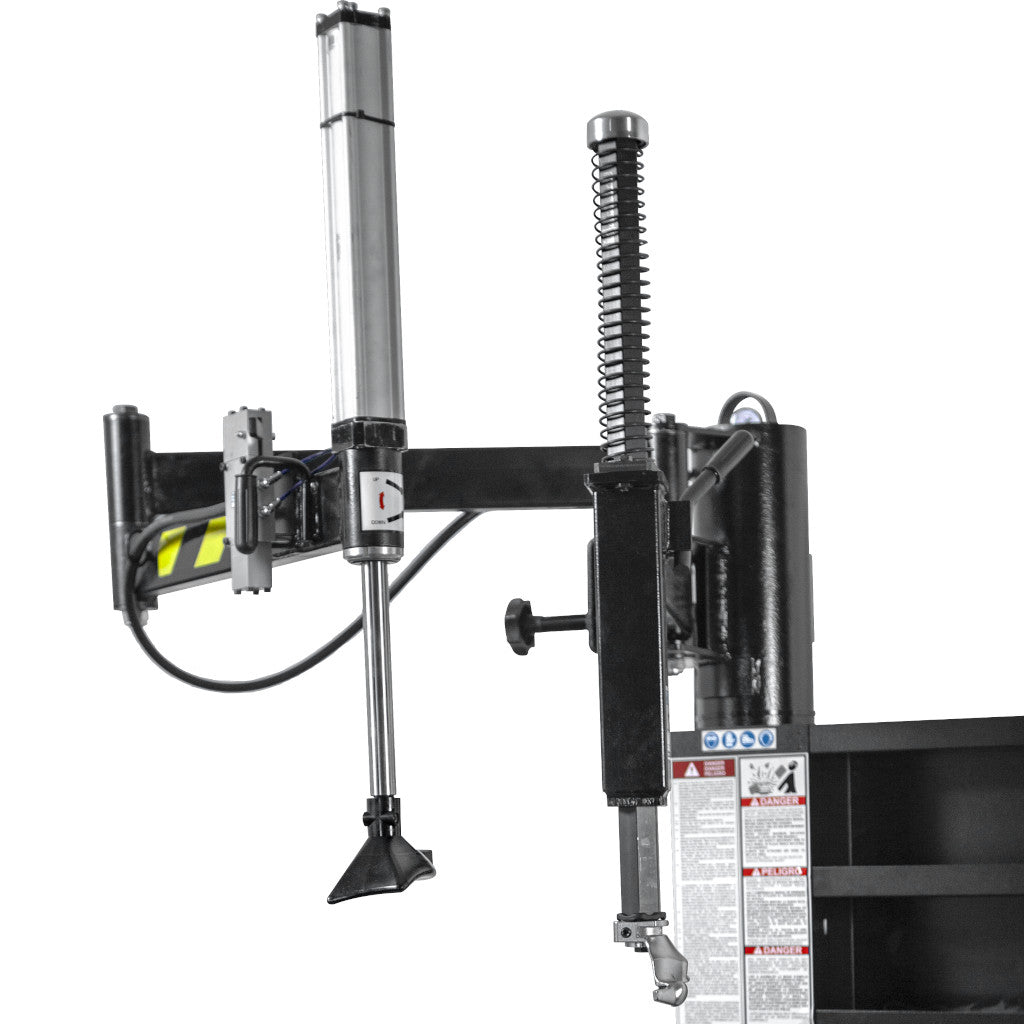

Tire Lifting Tool: Integrated bead pusher assists in the mount/demount process of the upper bead. Tire lifting tool aids the technician with the demounting process.

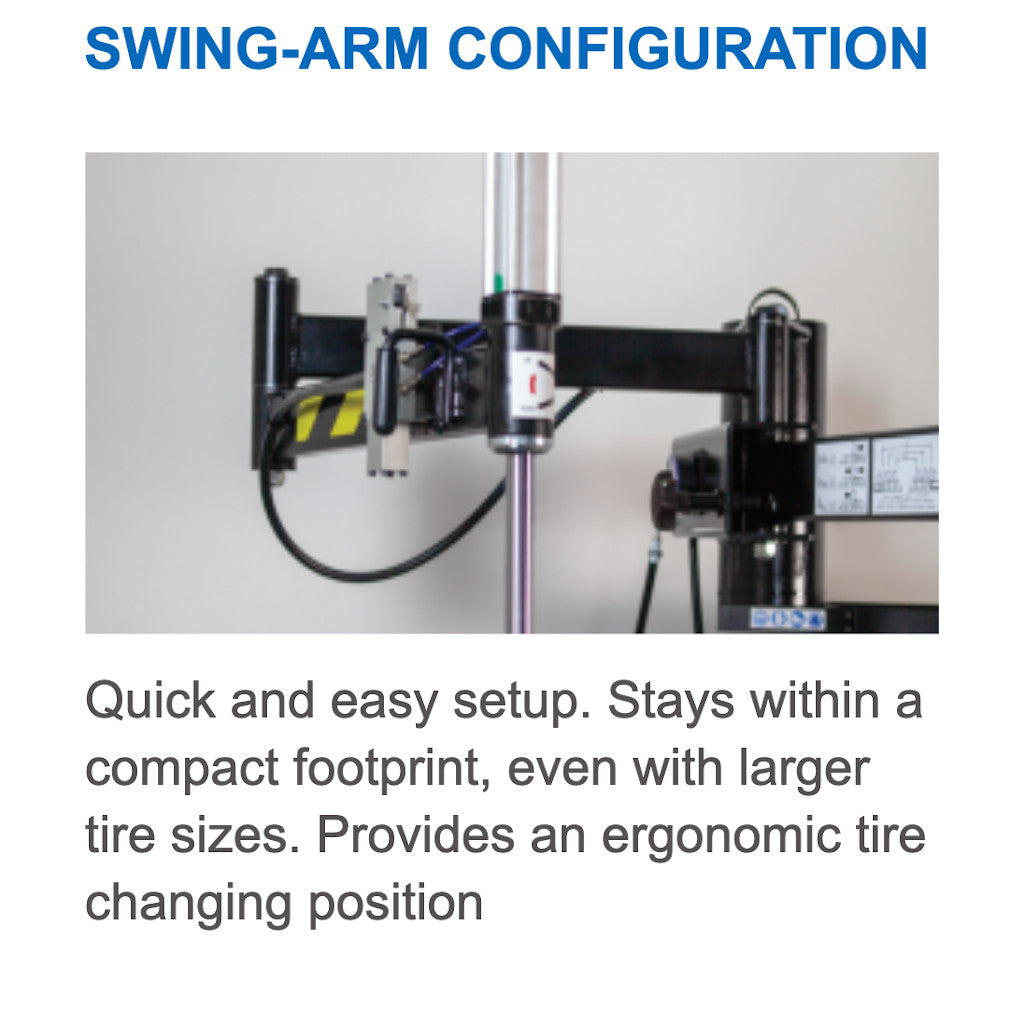

Swing-Arm Configuration: Quick and easy setup. Stays within a compact footprint, even with larger tire sizes. Provides an ergonomic tire changing position
Toolbox: Attached storage compartment allows easy access for tools and accessories.
Accessories Included:
- Lube Brush
- 5kg Lube Bucket Holder
- 5kg Lube Bucket
- Plastic Rim Protector
- Bead Breaker Sleeve
- Wave Bead Lever
- Wave Bead Lever Protector
| Technical Data | Monty 1675 |
| Hofmann Part Number | EEWH779CU2 |
| Outer-Clamping Diameter |
10″ - 24″ (25 - 610 mm) |
| Inner-Clamping Diameter |
12″ - 24″ (305 - 610 mm) |
| Maximum Tire Diameter |
53″ (1346 mm) |
| Maximum Wheel Width |
15″ (380 mm) |
| Compressed Air Supply |
110 - 170 psi (7.6 - 11.7 bar) |
| Adjustable Four-Claw Clamp |
Included |
| Integrated Bead-Seating Jets |
Included |
| Pressure Timer |
Included |
| Twin Cylinder Turntable Clamping |
Included |
| Rotation Speed |
6.5 rpm |
| Bead Breaker Power |
2700 lbs (12 kN) |
| Bead Breaker Range |
1.7″ - 16.3″ (43 - 414 mm) |
| Recommended Floor Space (WxDxH) | 53″ x 46″ x 81″ |
| Shipping Weight | 750 lbs (340 kg) |
| Power Requirements | 115 V, 1 Ph, 50/60 Hz, 12 Amp |
