Corghi | Service Pro 324 Electric Tilt-Back Tire Changer
*** Additional 2nd Quarter Promo *** >>> Click Here to View the Details
Direct from Corghi - Get 10% cash rebate on the higher of two items when you purchase a combination of two of the following: ALL machines, helper arms, and related accessories. Simply download the rebate form below, fill it out, and submit it within 2 weeks of purchase.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
BUNDLE & SAVE: Buy a helper arm with your tire changer purchase now and save up to 10% on the price of the arm (if purchased separately). Simply add the “tire changer with helper arm” option to your cart to purchase the bundle.

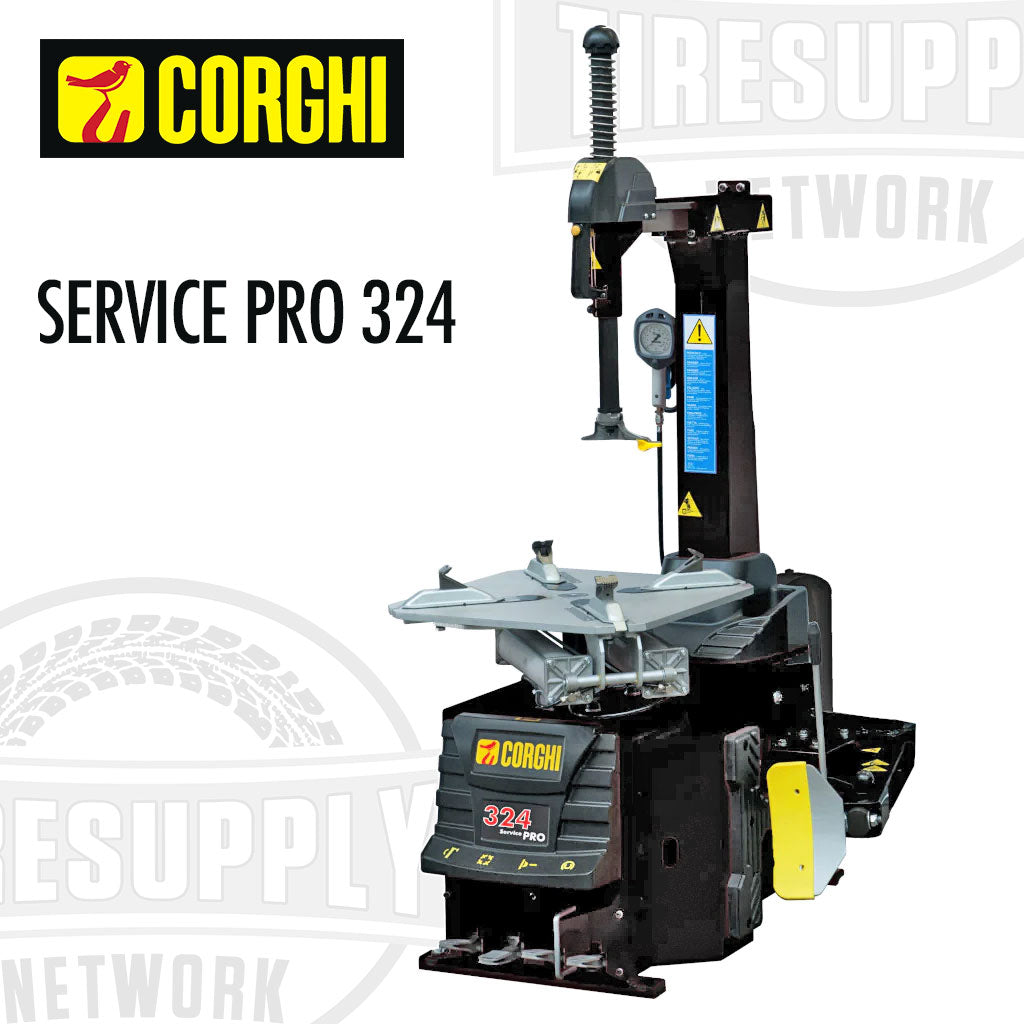

Automatic tire changer for cars, lightweight transport vehicles, and motor vehicles.
Helper Assist Arm Accessory Option: The helper arm is specifically designed for the Service Pro 324 to assist the operator in the tire changing process with its bead pressing functionality. The HTB24 is similar to helper arms for other Corghi tire changer models.
| Technical Data | Service Pro 324 |
| Corghi Part Number | 0-11901304/00 |
| Outside Clamp | 11″ - 24″ |
| Inside Clamp | 13″ - 26″ |
| Maximum Wheel Diameter | 43.3″ (1100 mm) |
| Tire Width | 3″ - 14″ |
| Bead-Breaker Opening | 15″ (380 mm) |
| Bead-Breaking Power | 3372 lbf (15000 N) |
| Working Air Pressure | 116 - 145 psi (8 - 10 bar) |
| Motor Power | 1.1 hp - 1.47 hp (0.85 kW - 1.1 kW) |
| Power Unit | 115 V / 60 Hz / 1 Ph |
| Chuck Rotation Speed | 7 rpm - 2V 6.5 - 13 rpm |
| Noise Level Running | less than 70 dB |
| Net Weight Machine | 562 lbs (255 kg) |
| Gross Weight Machine | 650 lbs (295 kg) |
| Maximum Dimensions (W x D x H) | 52″ x 71″ x 80″ (1320 x 1810 x 2050 mm) |
Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
