Coats  |  SKU: HIT9000-220V3

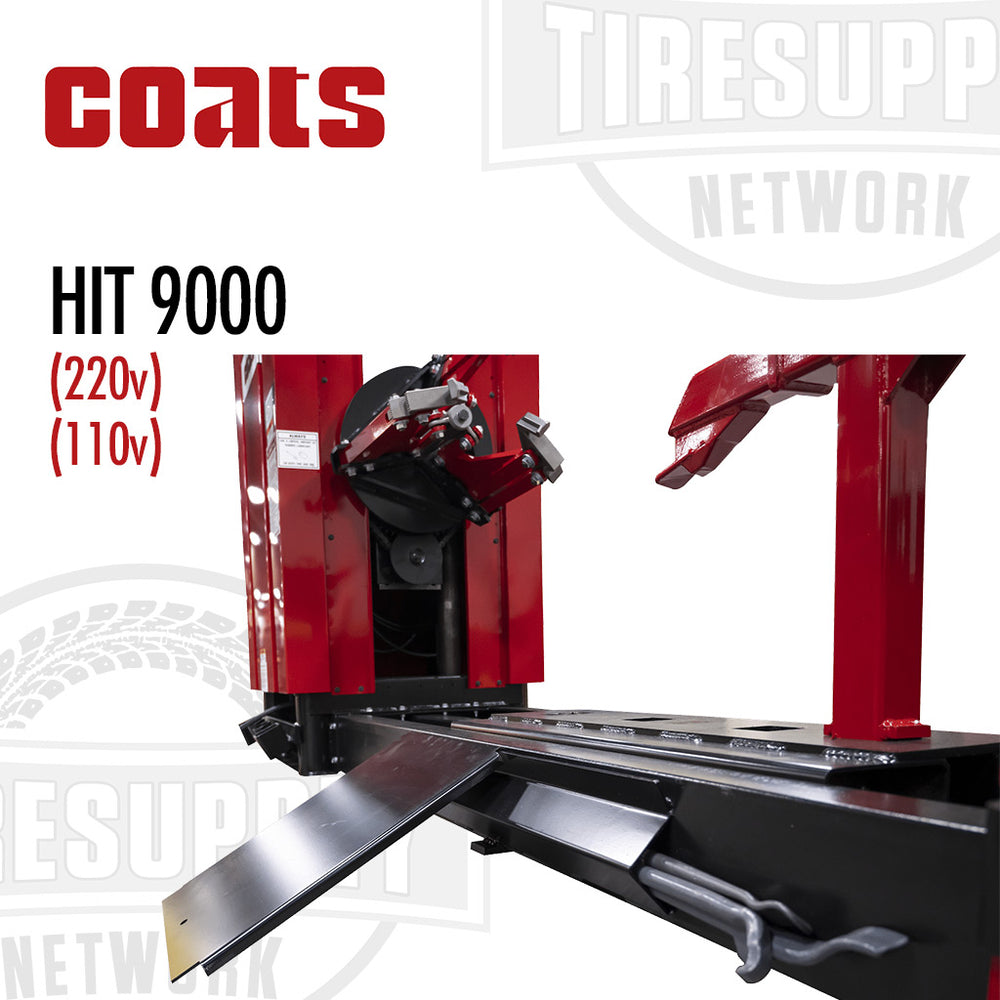

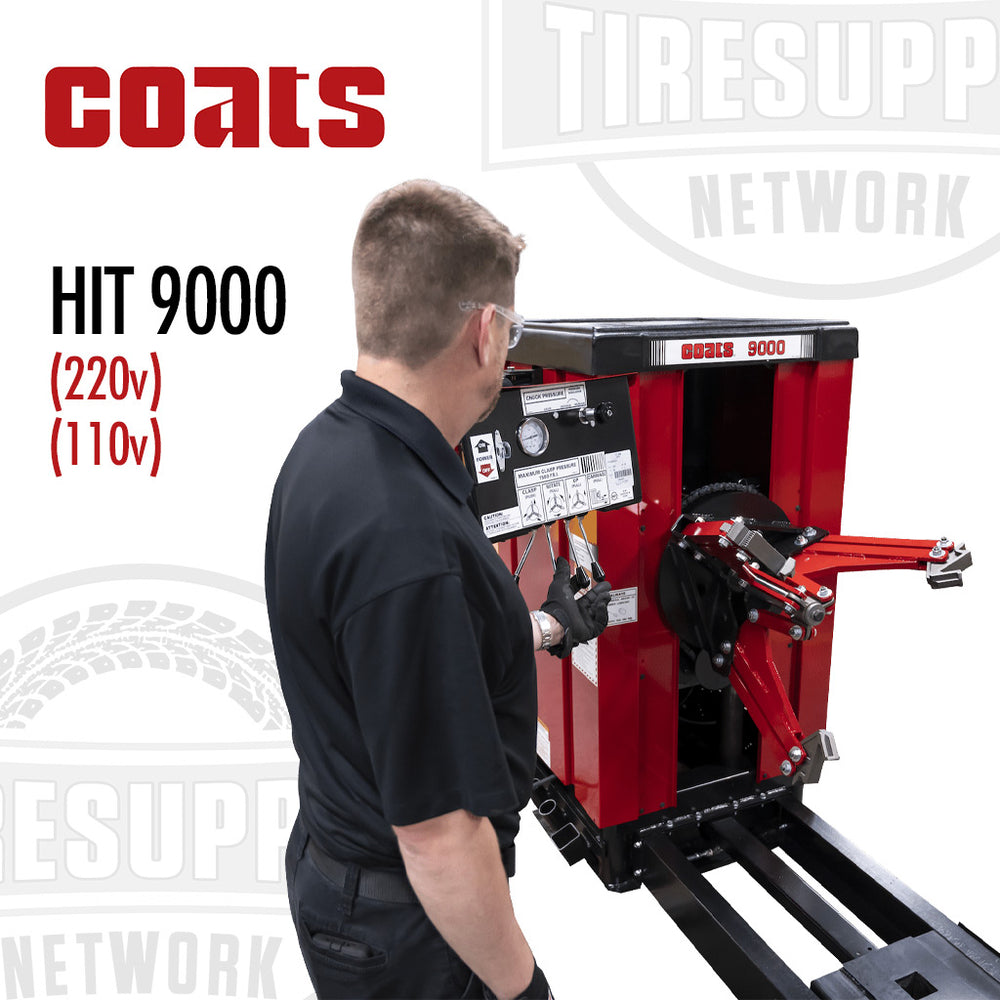

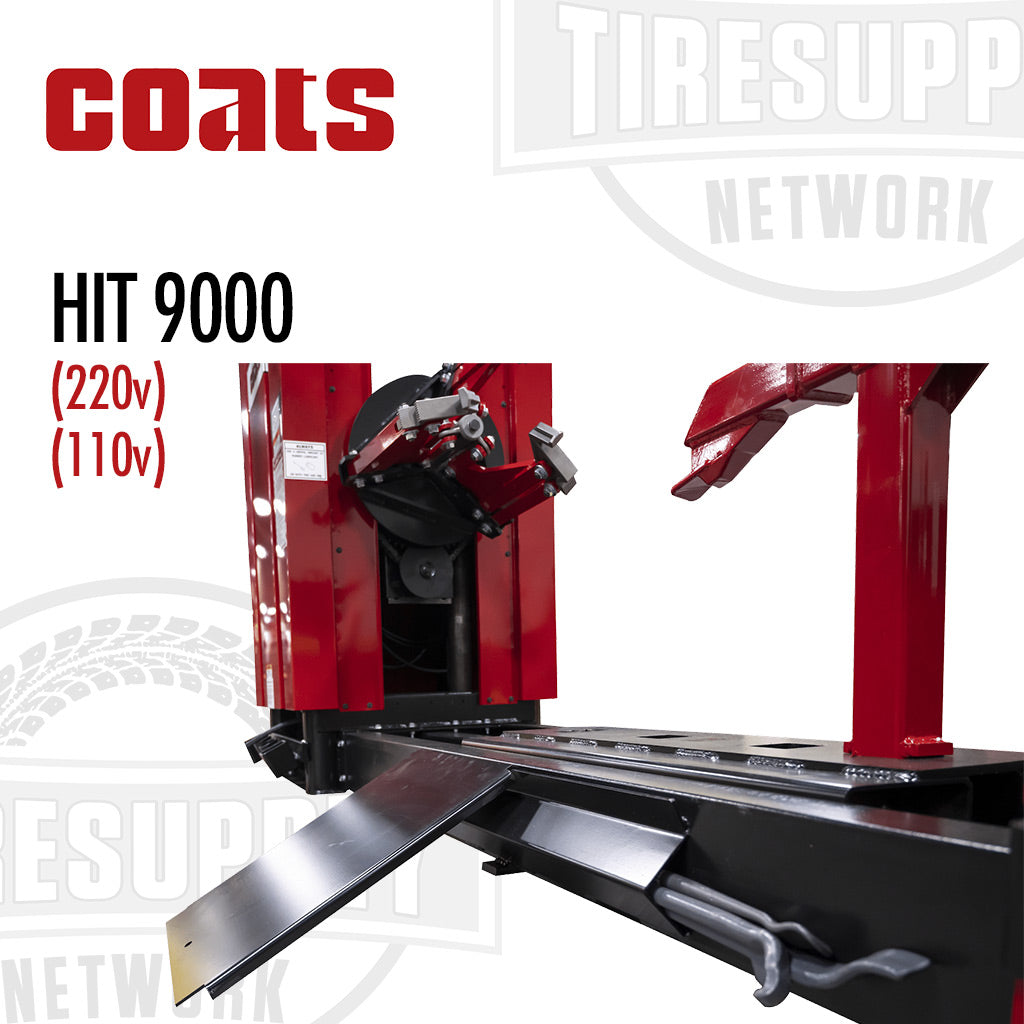

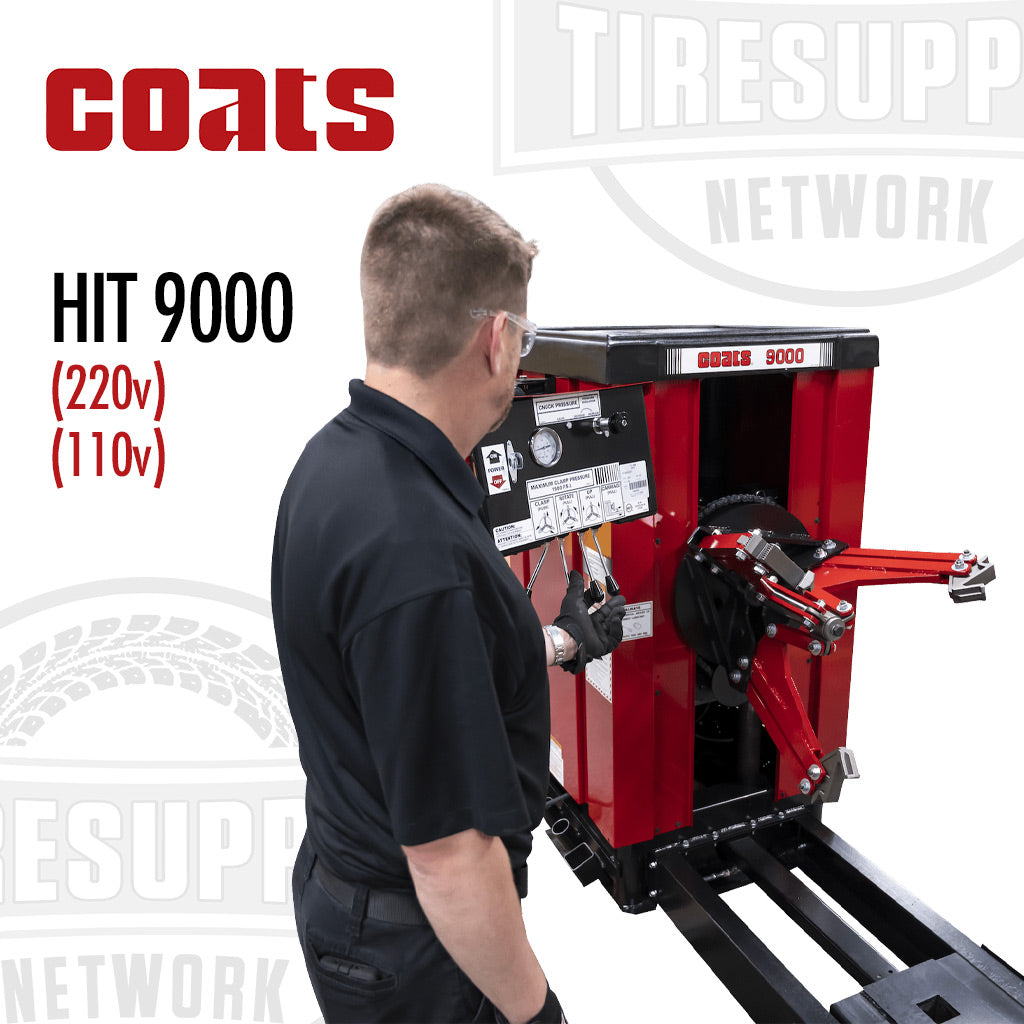

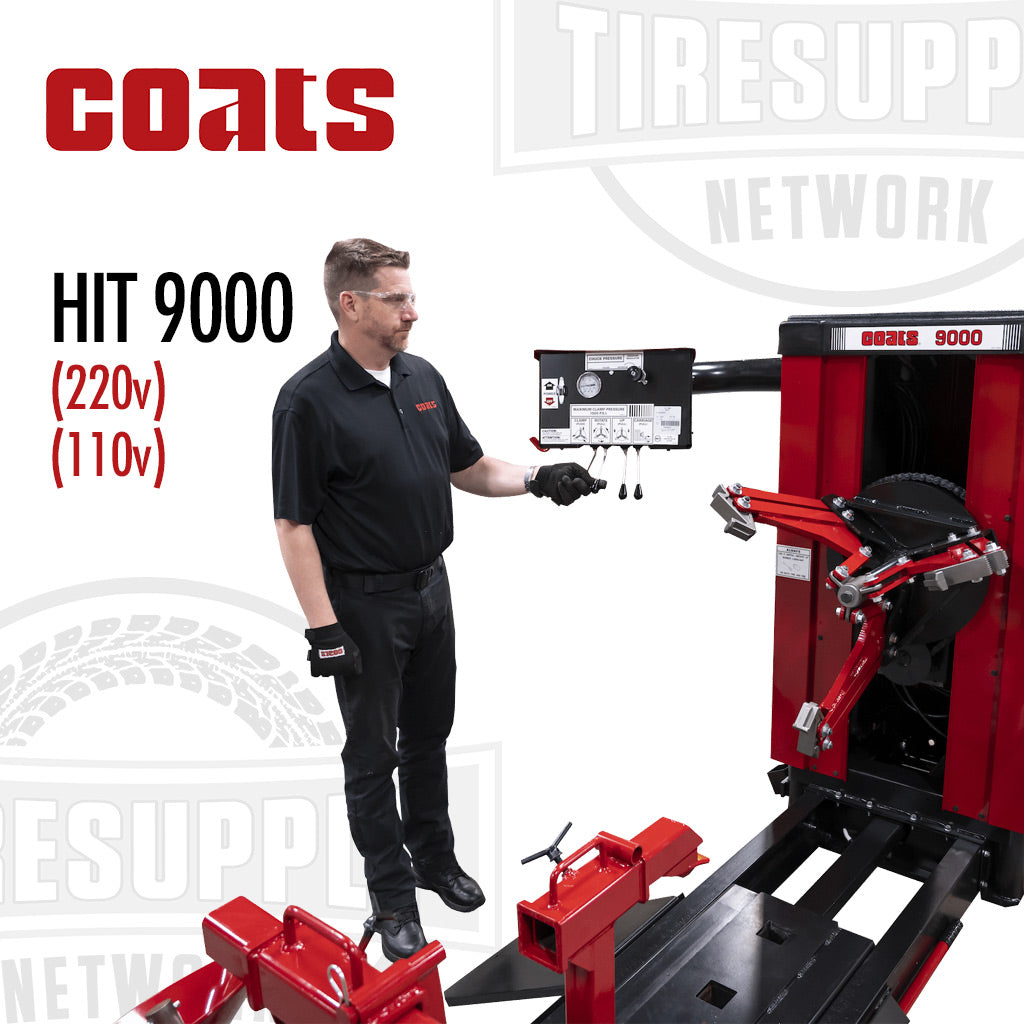

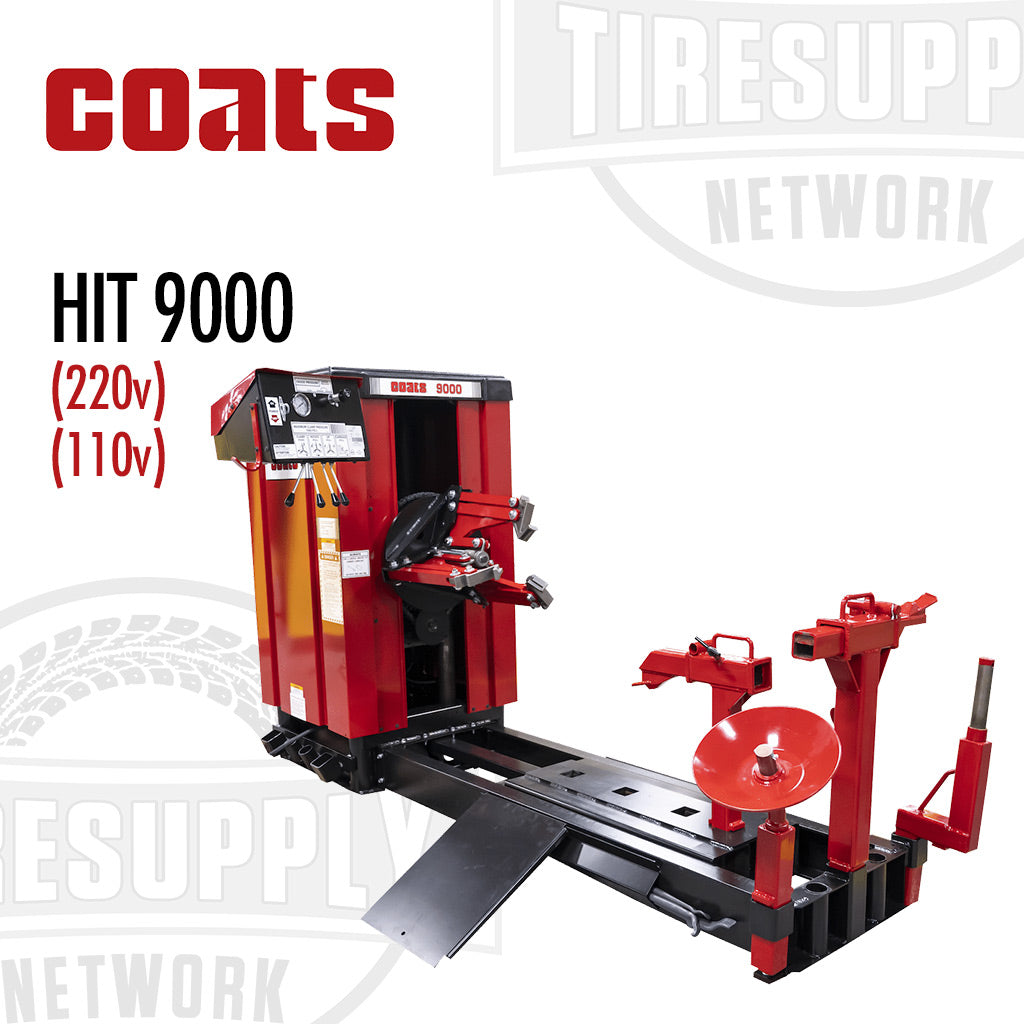

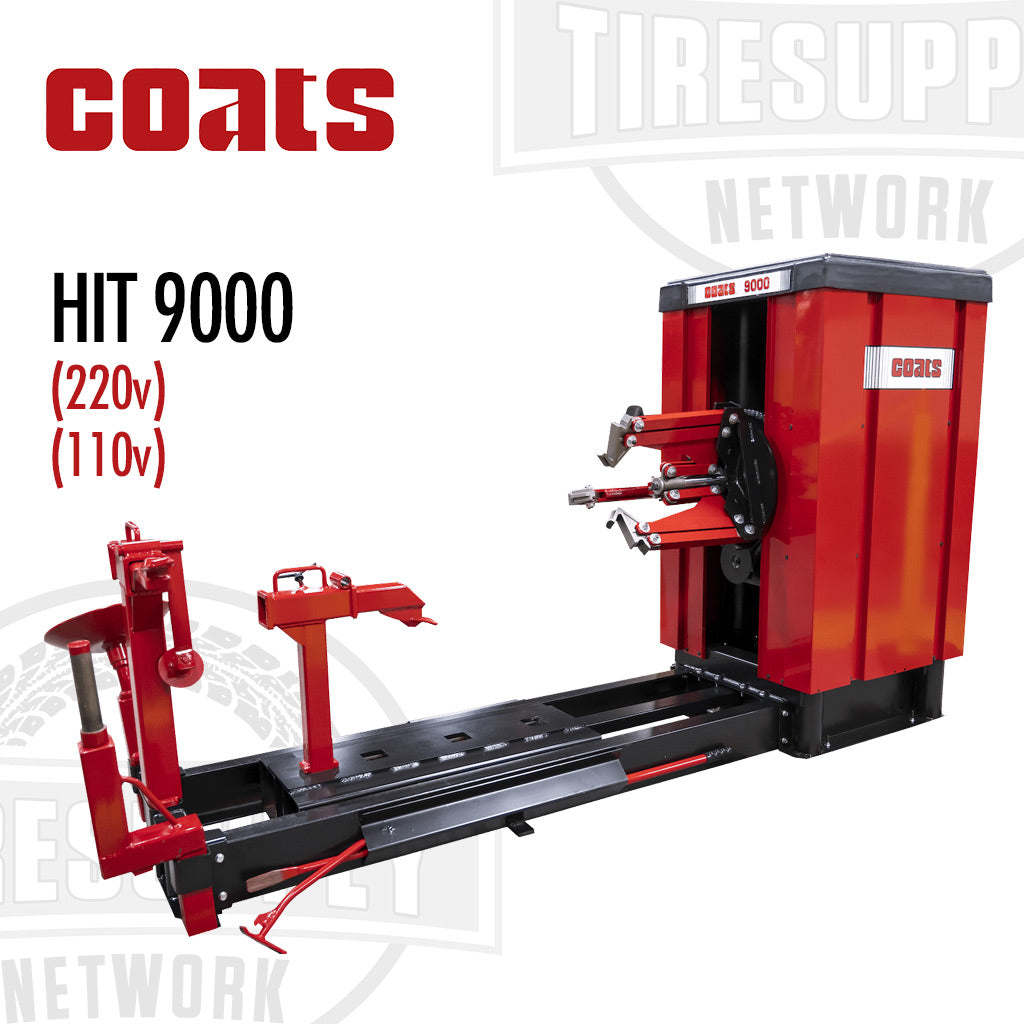

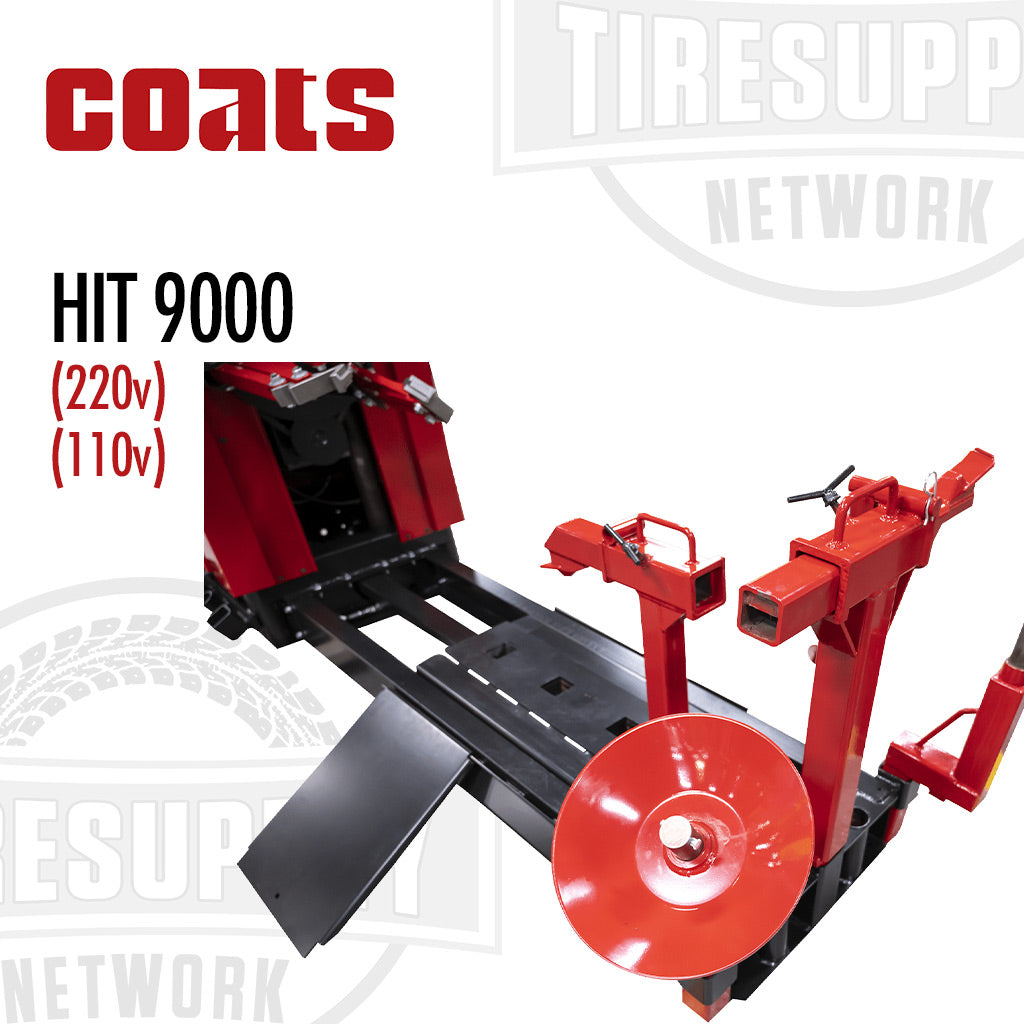

Coats | HIT 9000 Heavy Duty Tire Changer with Independent Hook & Roller - Electric (HIT9000*)

$34,300.00 $34,326.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $476.38 for 72 months Finance Now!

Choose Motor

Coats HIT 9000 Heavy Duty Tire Changer with Independent Hook & Roller - Electric 220v 3ph, 220v, 110v (HIT9000*)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

These heavy duty changers can accommodate tube or tubeless tires with rim diameters from 15” to 44” (9000).

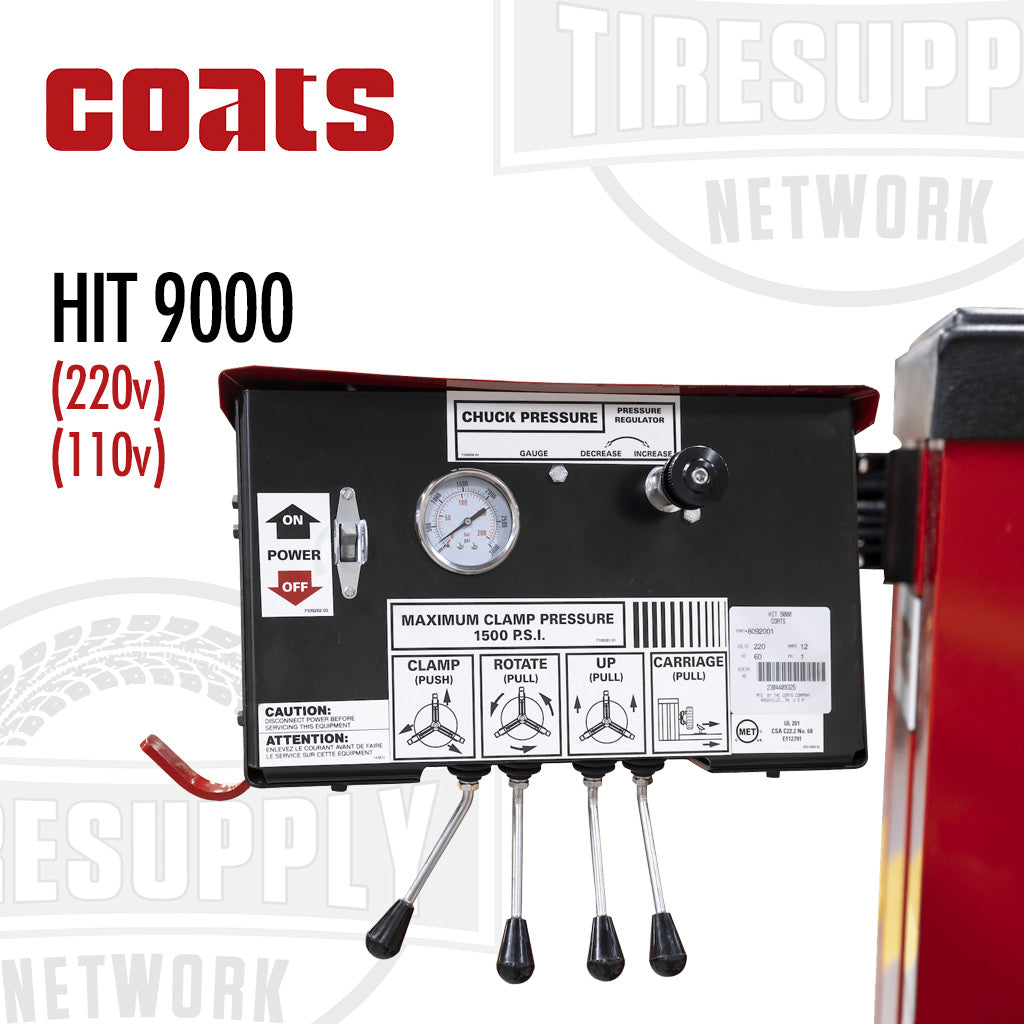

  • Easy to use swing arm houses all hydraulic controls, with a dedicated lever for each powered function
  • Self centering hydraulic clamping chuck
  • Adjustable pressure regulator ensures proper matching of chuck pressure to rim strength
  • Heavy tapered roller bearings and dual direction hydraulic motor provide smooth torque
  • Roller type tire spreader standard

                      Specifications:

                      Coats Model Number HIT 9000
                      Coats Part Number

                      8092002 : 220V 3PH  |  8092001 : 220V  |  8092000 : 110V
                      Operation
                      		 3 Jaw Chuck
                      Wheel Handled Budd & Dayton, Tube & Tubeless
                      Mount Demount
                      		 Independent Hook & Roller
                      Tool Head Offset
                      		 Independent removable, mount in table
                      Table
                      		 Moving table centered in frame
                      Wheel Clamping System
                      		 3 Jaw Chuck
                      Wheel Lift Clamp Arm Lifting
                      Frame Structure
                      		 Center Carriage
                      Max Tire Diameter 76"
                      Max Tire Width 25"+
                      Riam Diameter Range 15" - 44"
                      Electric Specifications 220v / 1ph or 220v / 3ph, 60Hz
                      Air Required No
                      Max Chuck Torque 4400 ft/lbs
                      Max Overall Dimension 96"w x 66"h x 108"d
                      Weight with Standard Accessories Shipping 1600 lbs


                      Accessories:

                      Description Part # 5000 9000  6000
                      Five Foot Pry Bar 8120334 S S S
                      Lube Bucket 8120347 S S S
                      Lube Applicator 8120366 S S S
                      Earth Mover Bead Loosener Roller Shaft 7110652 S S N/A
                      Tubeless Tire Iron 7109342 S S O
                      Lock Ring Iron 7109343 S S O
                      Drop Center Iron 7109344 S S O
                      Bead Starting Tool 7109345 S S N/A
                      Vise Grip 7109346 S S N/A
                      Stud Piloted Budd Wheel Plate 7110853 S S N/A
                      Extension Clamps, Add 6" dia. 7110843 O S N/A
                      Portable Ramps 7110842 O S N/A
                      Tractor Tire Combo Tee 7110851 O S N/A
                      Offset Roller Assembly for Wider Application 7110852 O O N/A
                      Hub Piloted Budd Wheel Plate 8183803 O O N/A
                      Nylon Head Combo Tool 8183945 N/A N/A O
                      Nylon Replacements 8183950 N/A N/A O
                      Duplex Combo Tool Head 8120564 N/A N/A O
                      S = Standard  |  O = Optional  |  NA = Not Applicable





                       Need replacement parts?  Call or email us and we can special order them for you!
