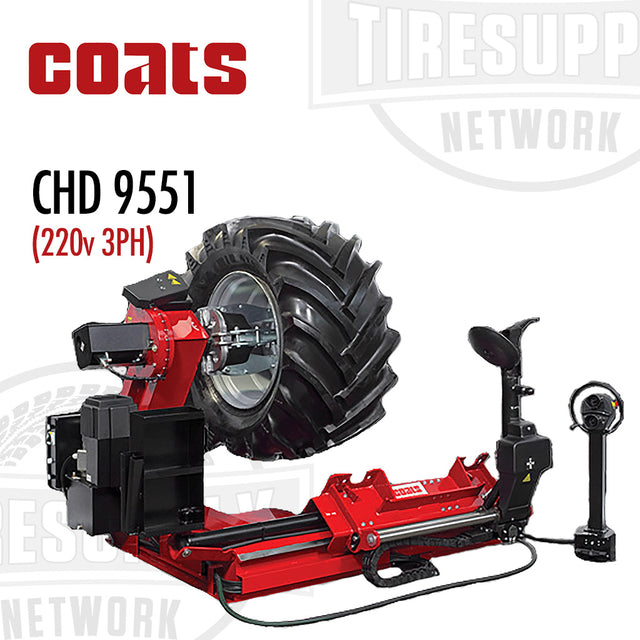

Coats | CHD 9551 Heavy Duty Tire Changer - Electric 220v 3PH (CHD9551-220V3)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Our premier model is specially designed to handle the really tough jobs Our top-of-the-line changer is designed for high-volume shops. The CHD-9551 makes it easy to handle the toughest super-single, skidder, agricultural, and off-road tires on the market.
- Offers the most automated features and widest range of fittings in the CHD line
- Remote control rotating tool head/arm for the fastest, easiest tool changes in the business
- Optional wireless remote gives you freedom to move around the machine without cumbersome cables
- Handles rims from 14” to 46” (up to 56” with clamp extensions) and tires up to 95” in diameter and 51” wide
Hydraulic Clamping Chuck: Extended capacity four-jaw chuck, which allows for use on a massive range of applications.
Manually Controlled Tool Head: Use the manually controlled tool head to assist with the mounting and demounting of tough applications.
Sturdy, Solid Frame: The solid, single piece frame is for added capacity and dependability, and the open frame is designed for easy wheel movement.
The All-Around Solution: A great solution for moderate to high volume shops and fleets where fitments vary widely, including agricultural applications.
Specifications:
| Description | 220v 3PH: 8009551 |
| Max Tire Diameter | 95" (2400mm) |
| Max Tire Width | 51" (1300mm) |
| Rim Diameter Range | 14"-46" (47"-56" w/ clamping extensions) |
| Electric Specifications | 208-230VAC, 3ph, 60Hz, 22Amp |
| Hydraulic Motor Power | 2.9HP (2.2kW) |
| Chuck Rotation Motor Power | 3.2-4.4 HP (2.4-3.3 kW) |
| Max Chuck Torque | 7017 ft/lbs (5175 Nm) |
| Clamping Power | 10,802 lbs (4900 kg) |
| Chuck Rotation Speed | 5-11 rpm |
| Max Wheel Weight | 3970 lbs (1800 kg) |
| Acoustic Pressure | <70dBA |
| Single Piece Frame w/ Solid Floor-Plate | Yes |
| Tool Arm Positioning | Remote Operated |
| Tool Head Positioning | Remote Operated |
| Footprint (WxDxH) | 112″w x 75″h x 81″d |
| Weight | 2282 lbs (1035 kg) |
| Warranty | 1 Year Parts, 90 Days Labor |
Standard & Optional Accessories:
| Description | Part #1 | 4730 | 6330 | 9041 | 9043 | 9551 |
| Small Double Tool | 9209552 | O | S | N/A | N/A | N/A |
| Large Double Tool | N/A | N/A | S | S | S ** | |
| Allow Tubeless Roller | 9299274 | N/A | N/A | O | O | O |
| Plastic Tubeless Roller | 9209546 | S | O | N/A | N/A | N/A |
| Bead Lifting Guide Bar (for agricultural tires) | 9299269 | N/A | O | O | O | O |
| Large Tire Bar | 6601002 | 0 * | S | S | S | S |
| Small Tire Bar | 3001061 | 0 * | S | S | S | S |
| Single G-Clamp (for steel wheels) | 2001059 | S | S | S | S | S |
| Single G-Clamp (for alloy wheels) | 9299271 | 0 | O | O | O | O |
| Pair of G-Clamps (for bead loosening on tube tires with rim ring) | 9299273 | N/A | N/A | O | O | O |
| Set of 4 clamping protectors (for allow wheels) | 9299272 | N/A | O | O | O | O |
| Set of 4 clamping extensions 47"- 56" | 929970 | N/A | N/A | O | O | O |
| Radio Remote Control Set | 9299234 | N/A | N/A | N/A | N/A | O |
| Set of Clamping Cones and Hub Nut | S | N/A | N/A | N/A | N/A | |
| * (Included w/ 9209552) | ||||||
| ** (Remote Operated) |
Need replacement parts? Call or email us and we can special order them for you!
