Coats | 90C Center Clamp Tire Changer with Robo-Arm & Robo-Roller Tool - Electric or Air Motor (90C*)
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
As low as $194.37 for 72 months Finance Now!
Coats | 90C Center Clamp Tire Changer with Robo-Arm & Robo-Roller Tool - Electric or Air Motor (90C*) - 220v is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

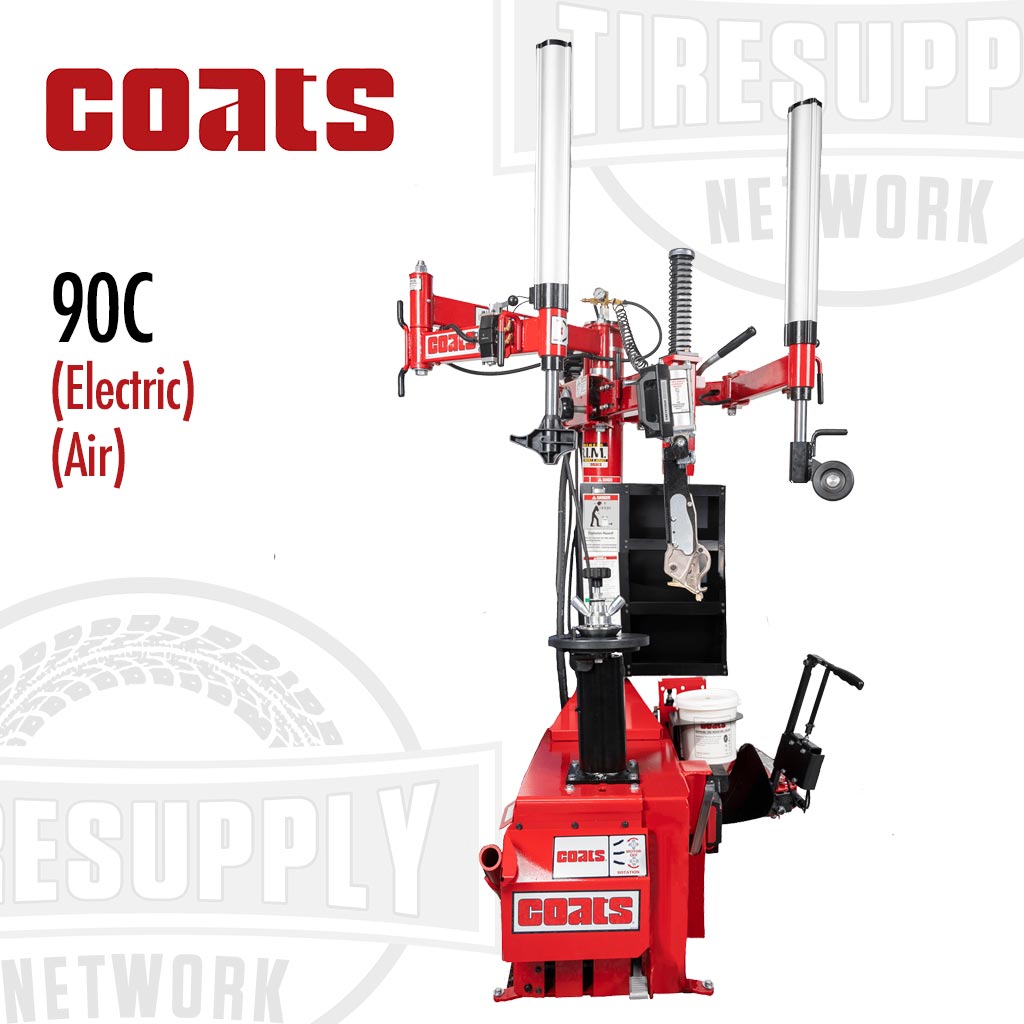

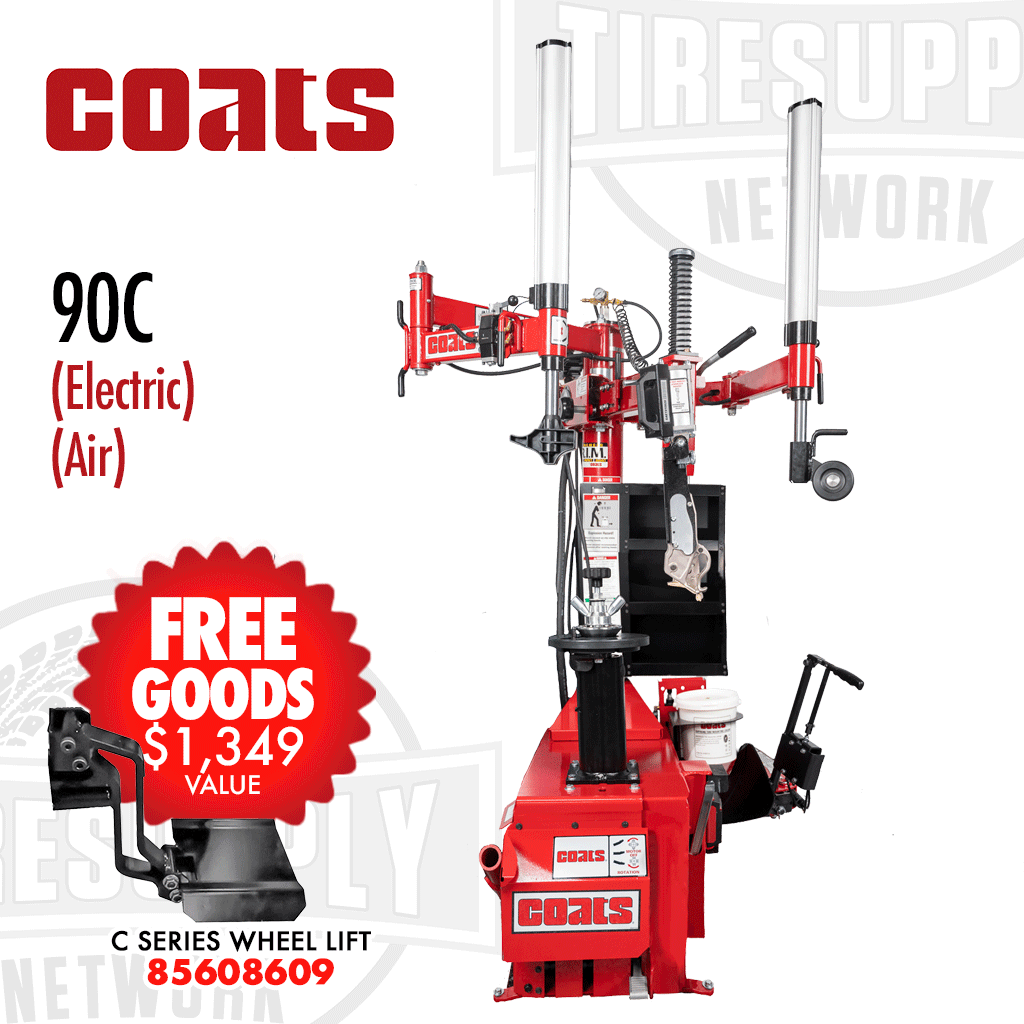

Coats | 90C Center Clamp Tire Changer with Robo-Arm & Robo-Roller Tool - Electric (90C-220V) or Air Motor (90C-A)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
SEMA REBATE PROMOTION - OCTOBER 1 - NOVEMBER 30, 2025
Classic swing arm speed with the confidence of a center clamp and leverless design.

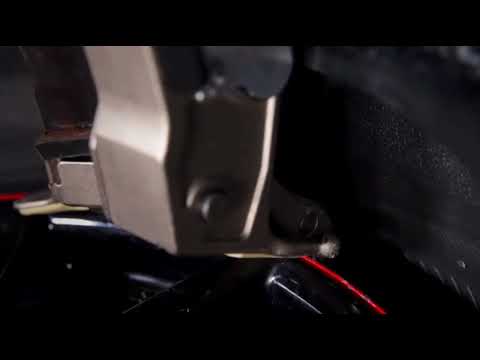

Leverless Duckhead Mount/Demount Tool: In addition to the RoboRoller, this feature acts as a traditional helper device and eliminates traditional tire tools that can mar the surface due to application difficulty.

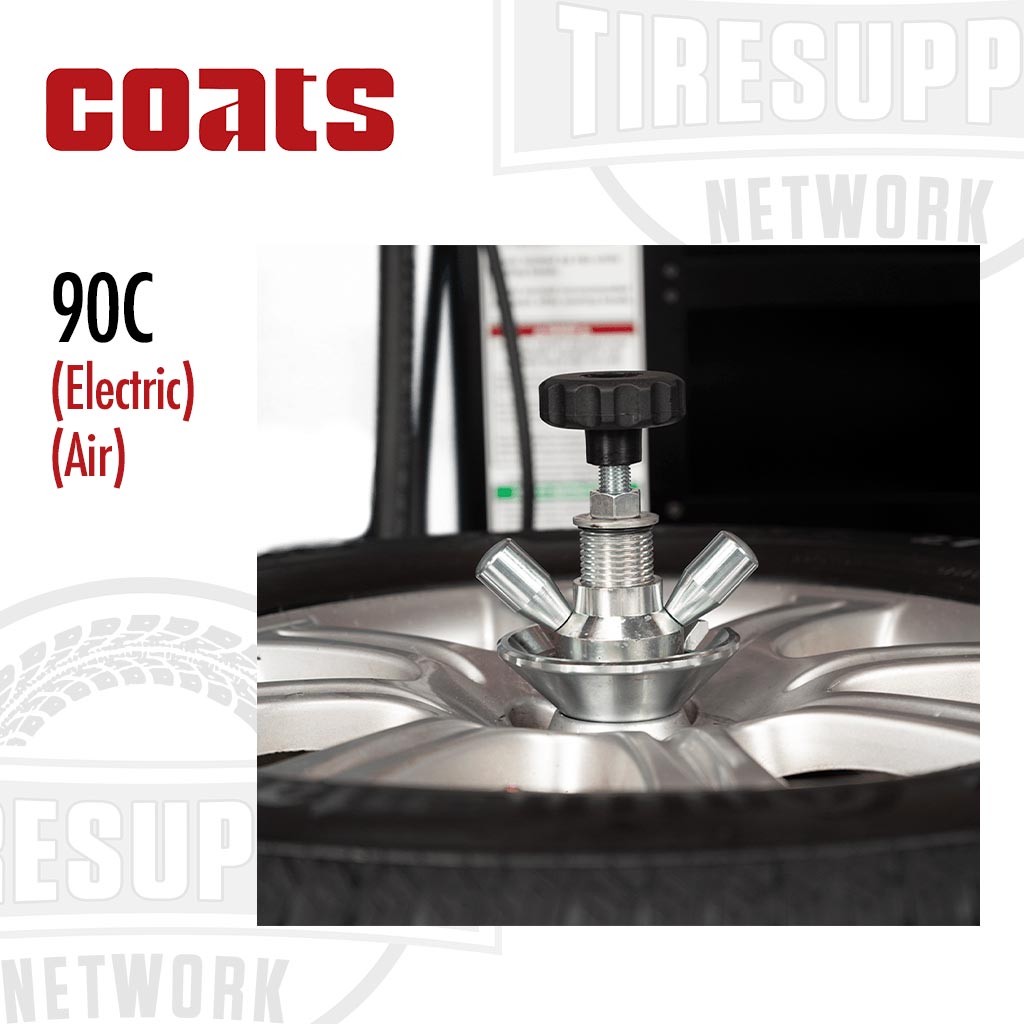

Center Locking Clamp Design: The easy to use center locking mechanism is fast, robust and helps prevent metal to metal contact with customer wheels.
Robo-Roller® Powered Assist: The Robo-Roller® provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool.

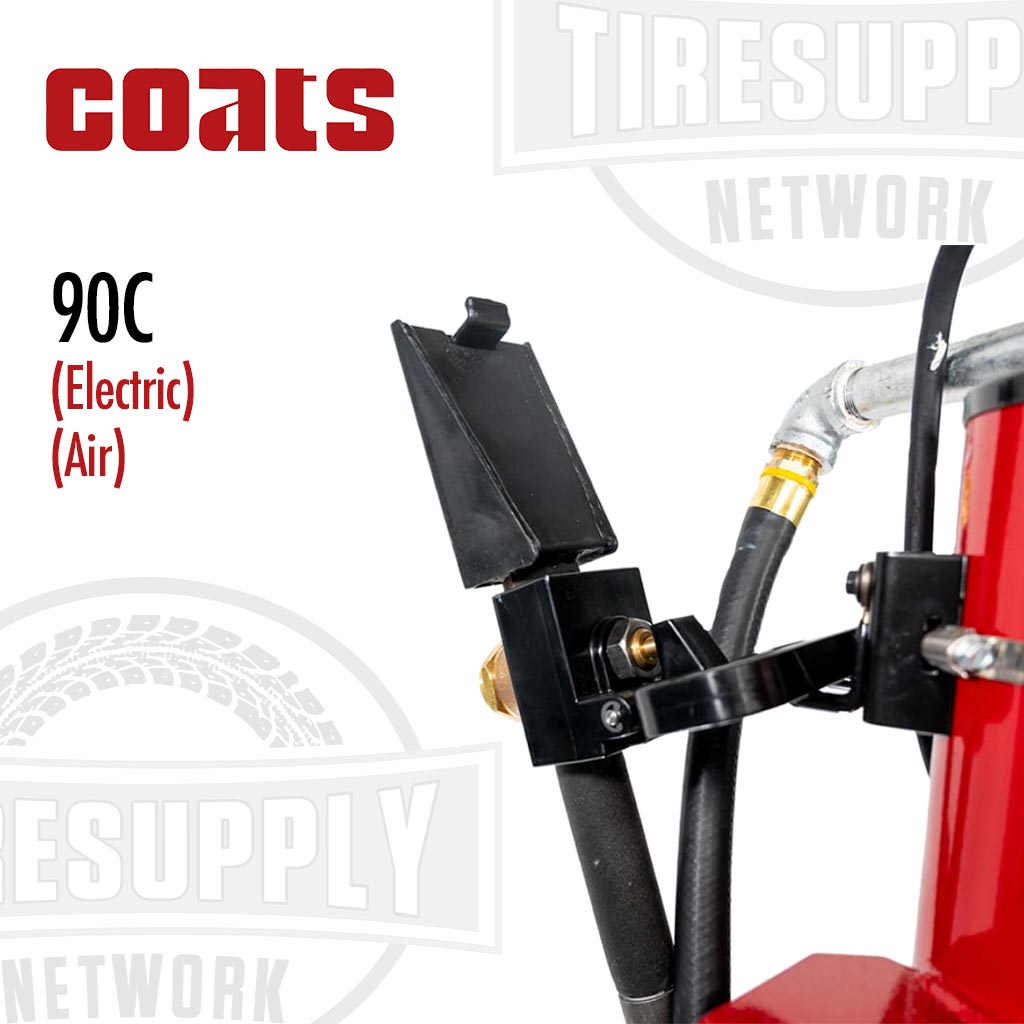

Auxiliary Bead Sealer: Concentrates air flow wherever it is needed on the assembly to seal beads more efficiently and eliminates excessive maintenance.

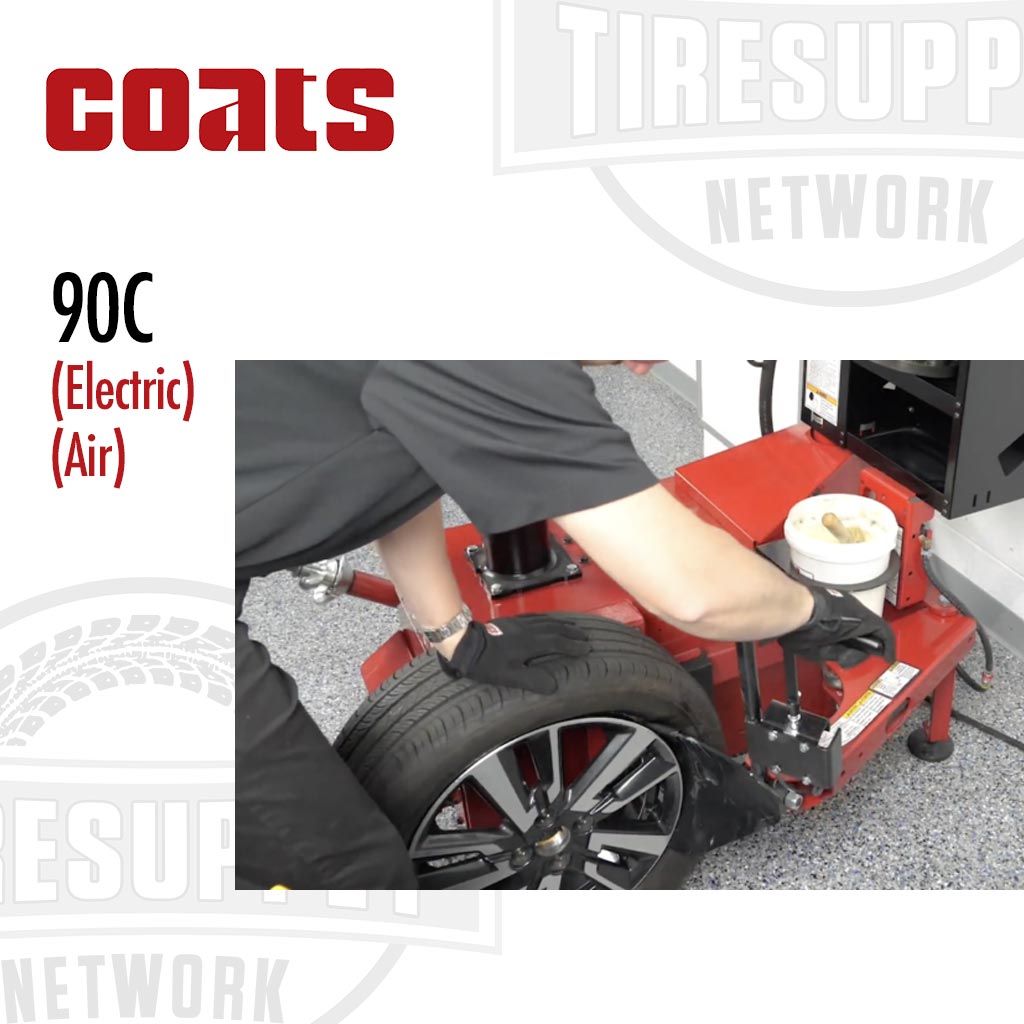

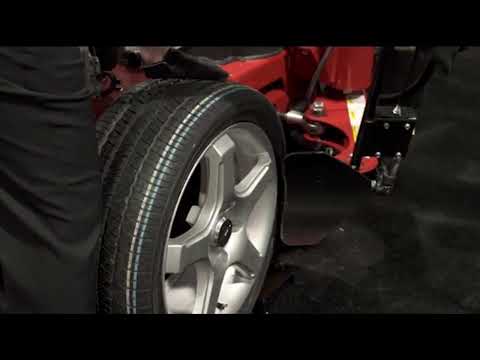

Operated Focused Features: In addition to a rugged 220V, 2-horsepower motor, the 90C has a hand operated bead loosener that offers point-of-use controls to the technician, providing direct line of sight, reducing the risk of wheel damage.
Included Accessories:
- 85606545 Auxiliary Bead Sealer (ABS)
- 8183606 Bead Loosener Shoe Socks (Qty 2)
- 85009048 Paste Lube Bracket & Brush
- 83019057 Protection Cone for Center Lock (Qty 2)
- 89233409 Leverless Duckhead® Mount/Demount Tool Plastic Inserts
- 8183710 Paste Lube
- 83031335 Anti-Rotation Extension Pin
- 83032475 Light Truck Cone Kit - 5.86" Center Bore
- 89231517 Rubber Protection Pad (Qty 2)
- 85610105 Premium Storage Cabinet
Specifications:
Coats Part Number | Electric Model: 80090CEH220, Air Model: 80090CAH3 |
Wheel Handled |
Alloy and Steel for Car and Light Truck |
Rim Diameter |
12″ - 30″ External |
Maximum Tire Diameter |
50″ |
Maximum Rim Width |
15″ |
Bead Loosening System |
Hand Controlled, Up to 14″ Wide |
Wheel Clamping System |
Center Clamp with Manual Lock |
Mount/Demount Mechanism |
Swings Away for Better Access and Durability |
Helper Devices |
Robo-Arm (18″ of Automated Vertical Stroke), RoboRoller |
Bead Seating Air Volume |
5.4 Gallons in Tower |
Inflation Gauge |
0 - 60 psi |
Air Supply Gauge |
0 - 300 psi |
Air Drive System |
1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only) |
Electric Drive System | 2 HP Electric Motor, 220 V, 60 Hz, 14 Amp (Electric Model Only) |
Footprint (WxDxH) | 74″ x 88″ x 65″ |
Weight | 700 lbs |
Warranty | 3 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
Compliance and Restrictions:
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
