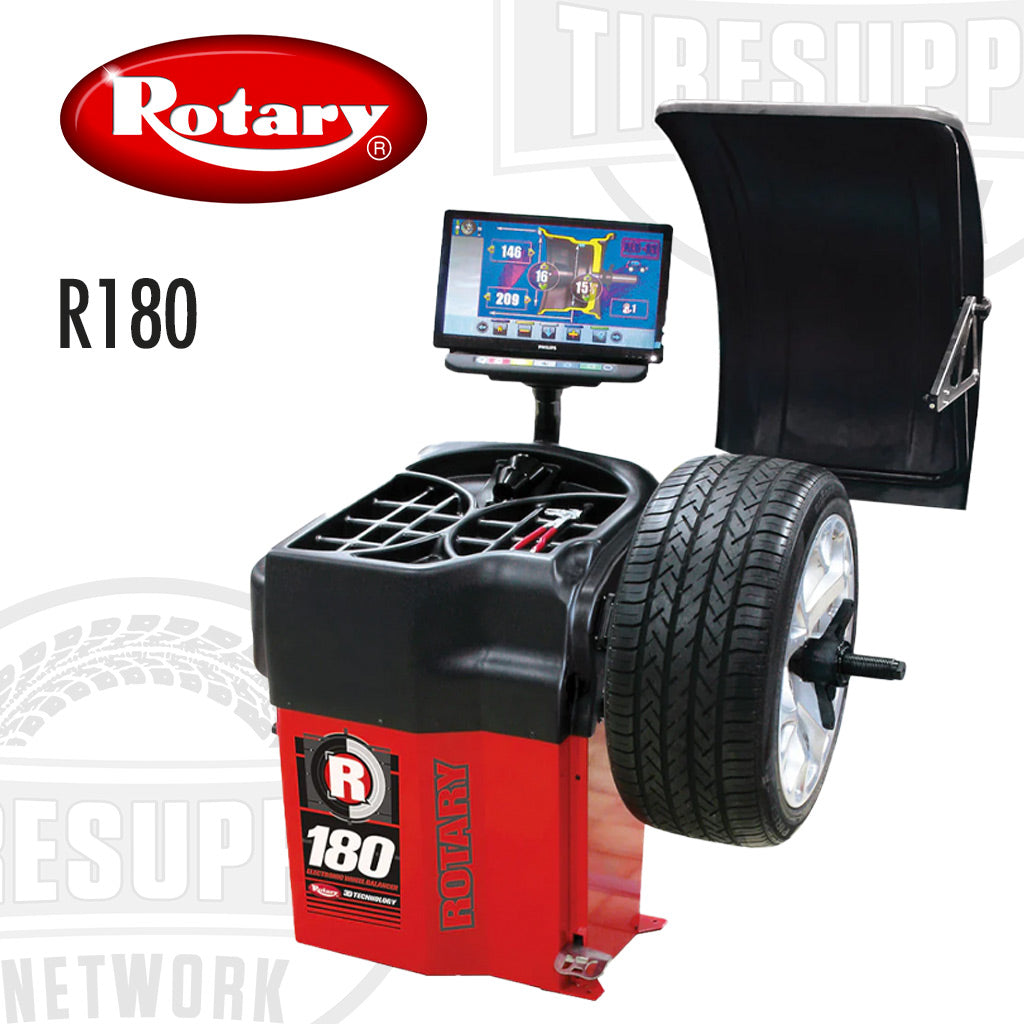

Rotary | Pro 3D Auto Wheel Balancer (R180)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Rotary’s premier wheel balancer, the R180’s automatic balancing mode provides the precision that ensures your techs are able to do the job right the first time. And the automatic wheel dimension sonar and laser rim profile scanner minimize the number of necessary wheel weights — saving you time and money.
Features:

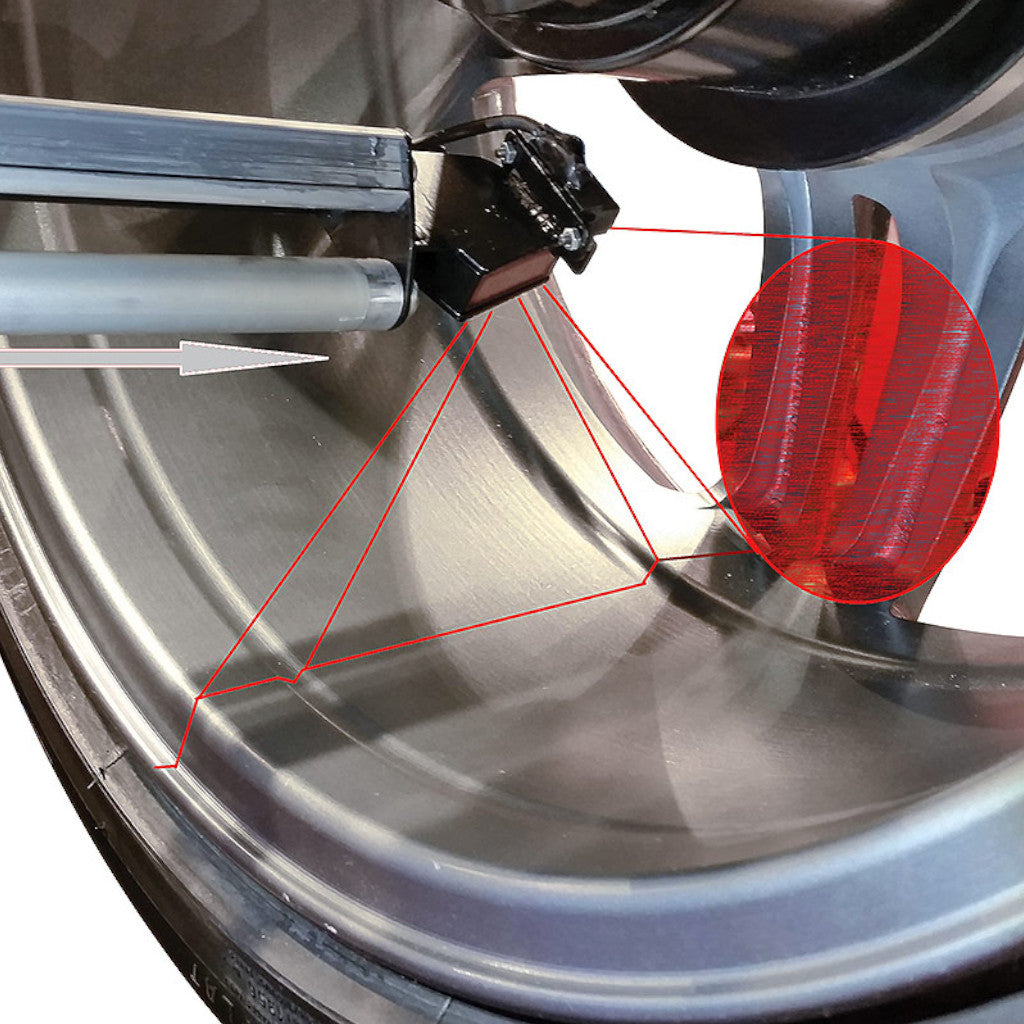

- Rim profile laser scanner
- Multiple balancing programs
- Save weight memory feature
- Pinpoint laser weight indicator
- The R180’s laser pointer shows techs the exact positioning for weights

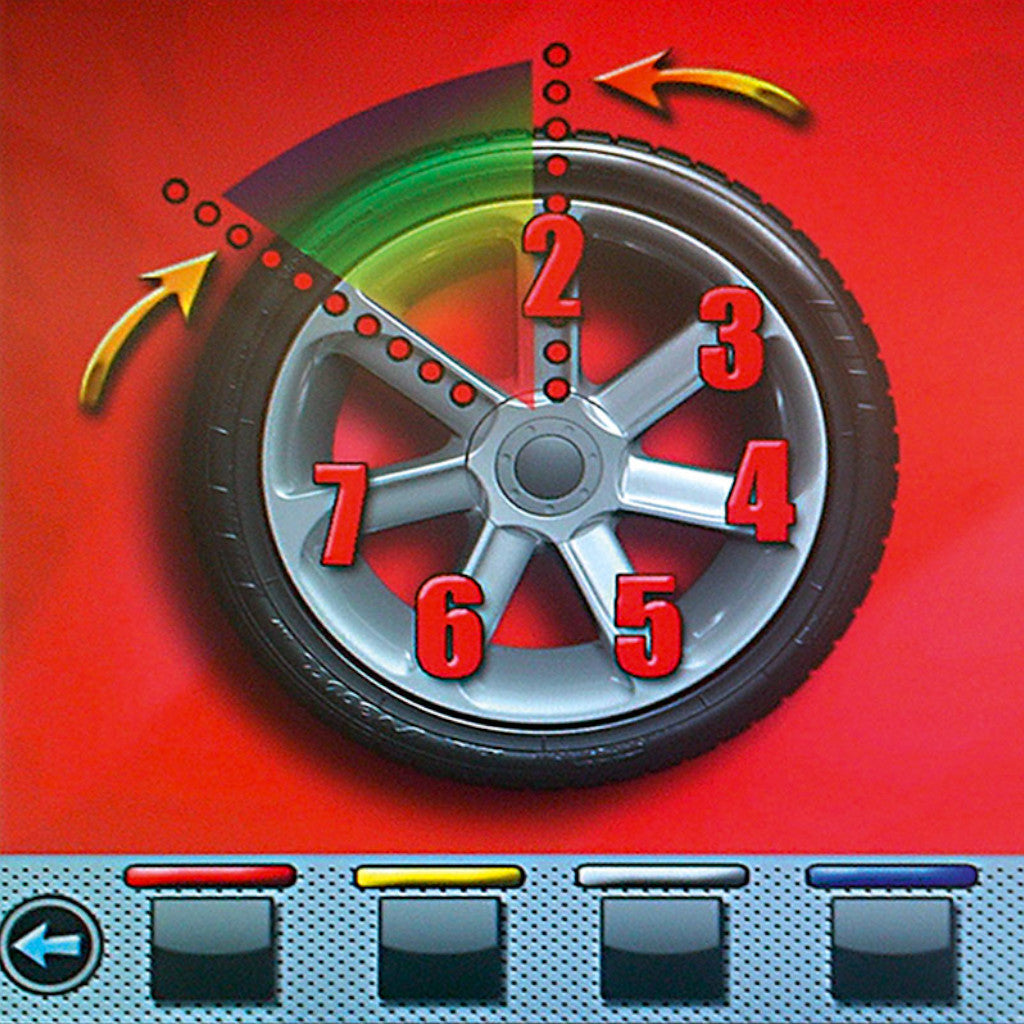

- The R180’s display walks techs through the process with specific, easy-to-understand icons on the screen

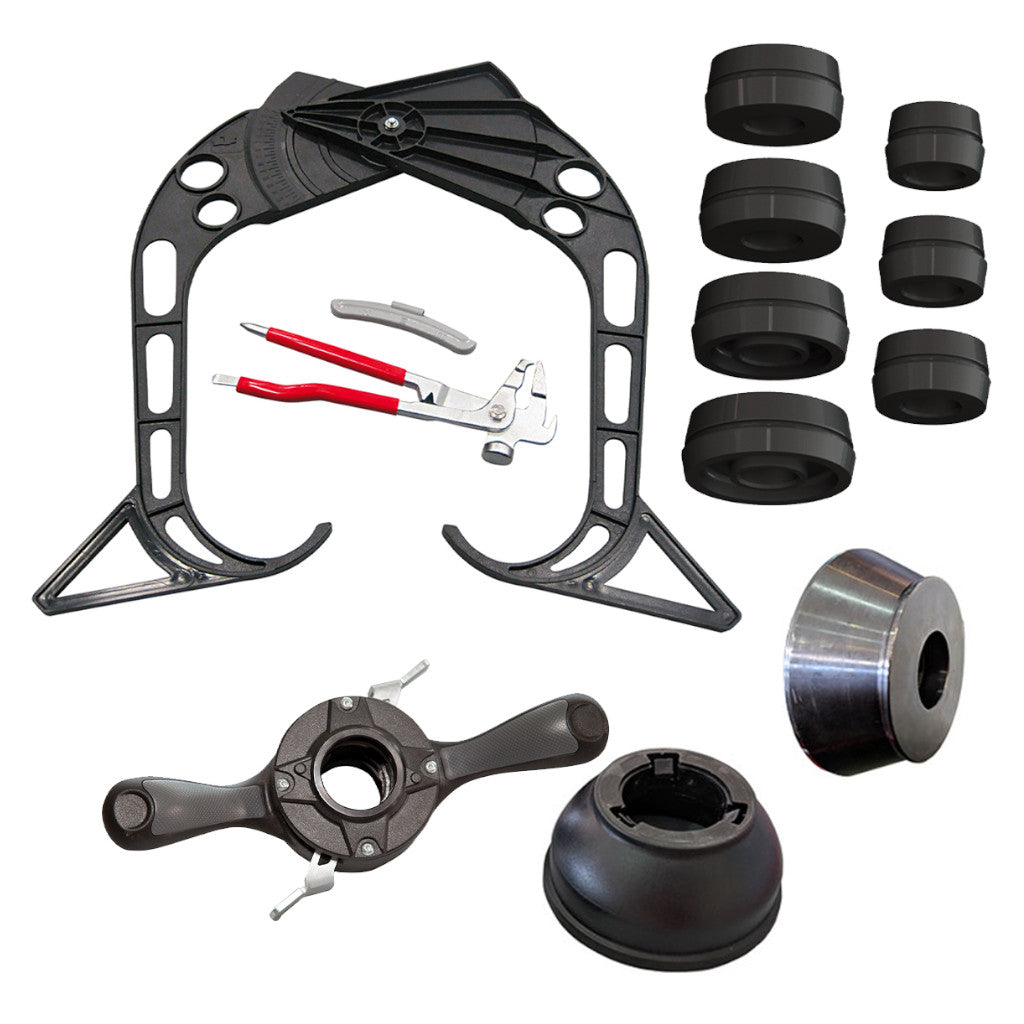

- Standard accessories include a Caliper, 7 Collets, Quick-Locking Wingnut, Rubber Ring Protector, Light Duty Truck Cone, Calibration Weight, and Weight Pliers
- Made in Italy
Automatic Lock Position
- When the cover is lowered, the R180 automatically begins to spin the shaft.
- The balancer automatically stops at the external unbalanced position.
- The balancer automatically rotates to the internal side.
- Finally, it automatically stops at the internal unbalanced position.
Warranty: 3 years on parts, 1 year on labor
Specifications:
- Wheel Diameter: 10″ – 30″ automatic
- Tire Width: 1.5″ – 22″
- Maximum Tire Diameter: 44″
- Maximum Shaft Weight: 176 lbs. (80kg)
- Read Out Accuracy: 1g
- Cycle Time: 6 Seconds
- Rotation Speed: Less Than 100 rpm
- Power Supply: 110v / 60 Hz / 1 PH
- Height: 57.125” / 66.5” with hood up
- Width: 53.625”
- Depth: 30.375” / 35.625” with hood up
