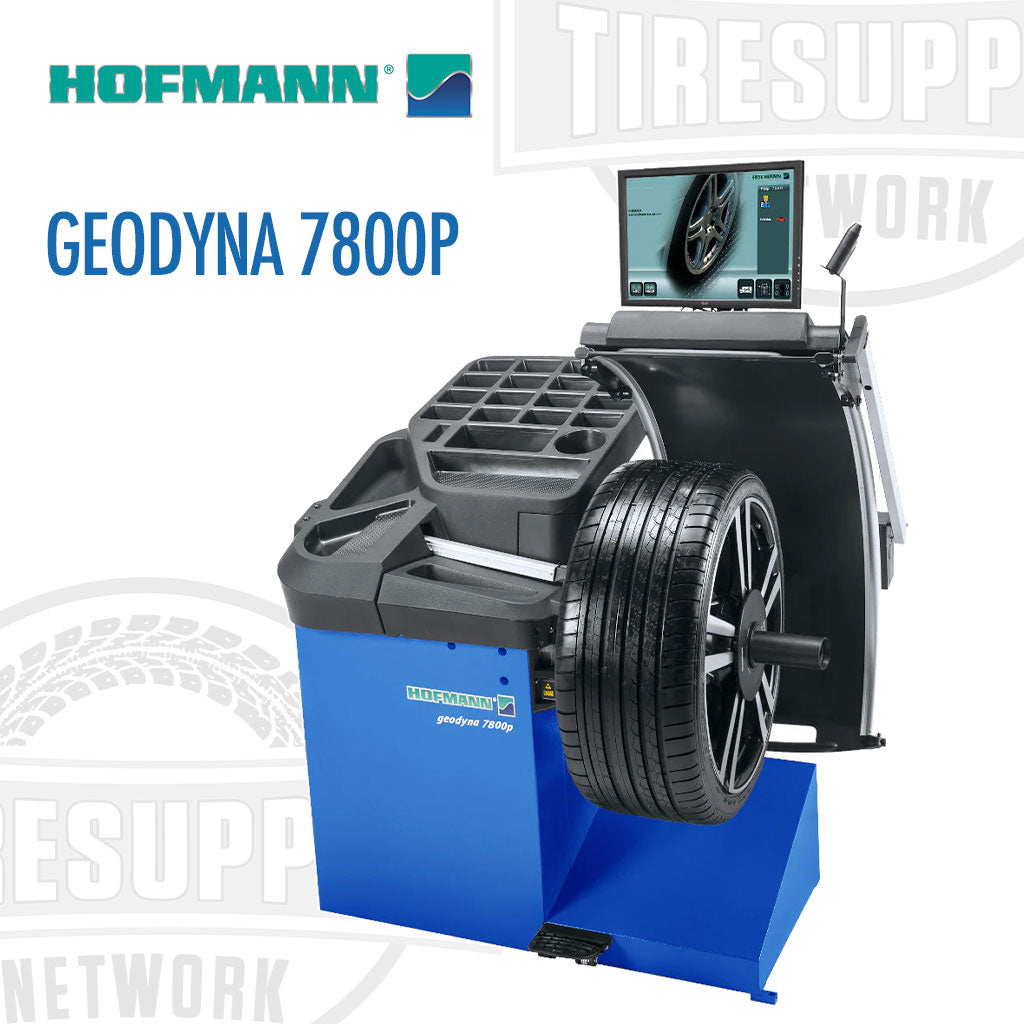

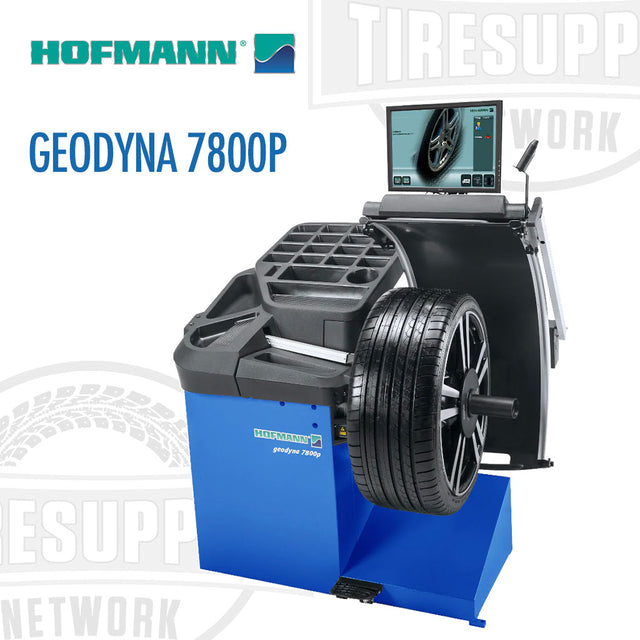

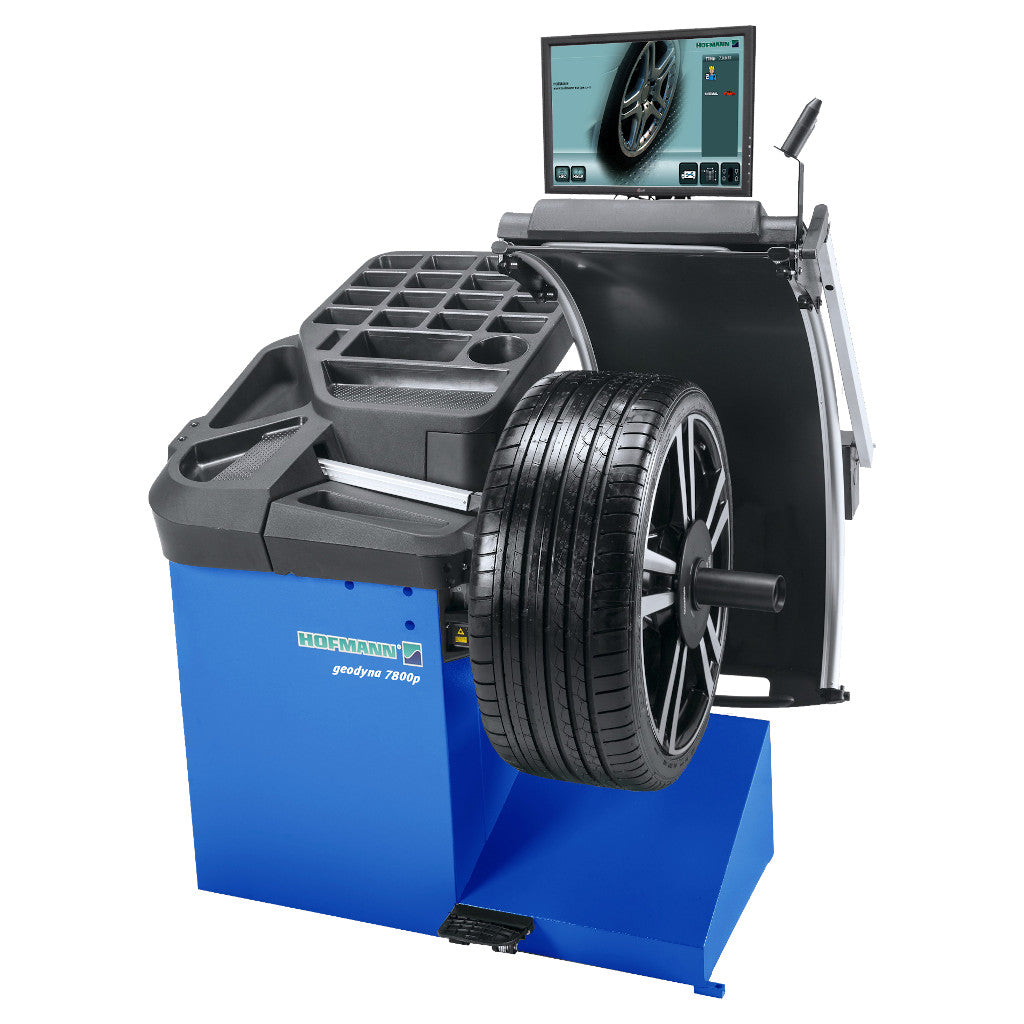

Hofmann Geodyna 7800P Wheel Balancer with Touchscreen Monitor & Non-Contact Data Entry

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Hofmann Geodyna 7800P Wheel Balancer with Touchscreen Monitor & Non-Contact Data Entry

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

The wheel balancer for garages, car dealerships, tire shops, and premium workshops with high tire service volume. With touchscreen monitor, automatic non-contact data entry, and easyWEIGHT pinpoint indicator light - an accurate, fast, and easy solution to position adhesive weights on the wheel.

Productivity Enhancing Features:

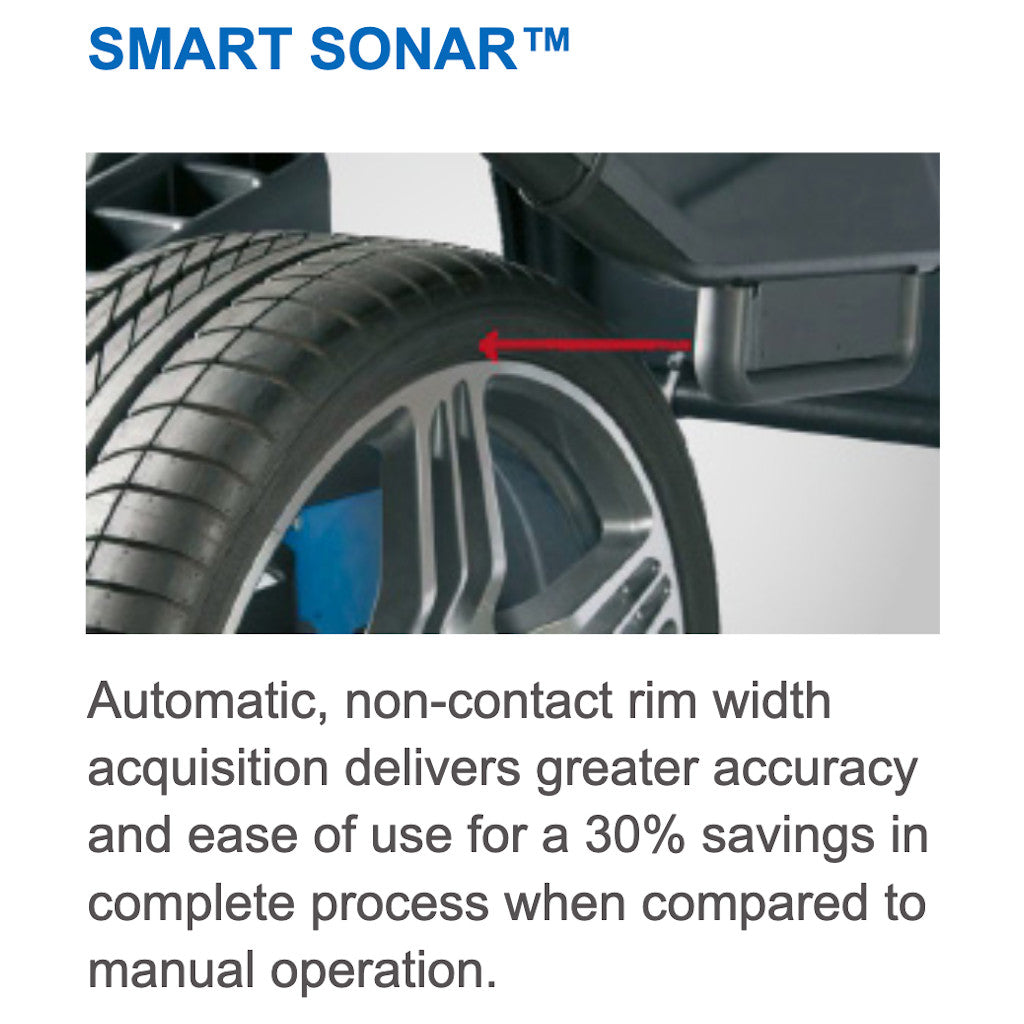

  • Automatic data entry and selection of balancing mode via scanner and Smart Sonar

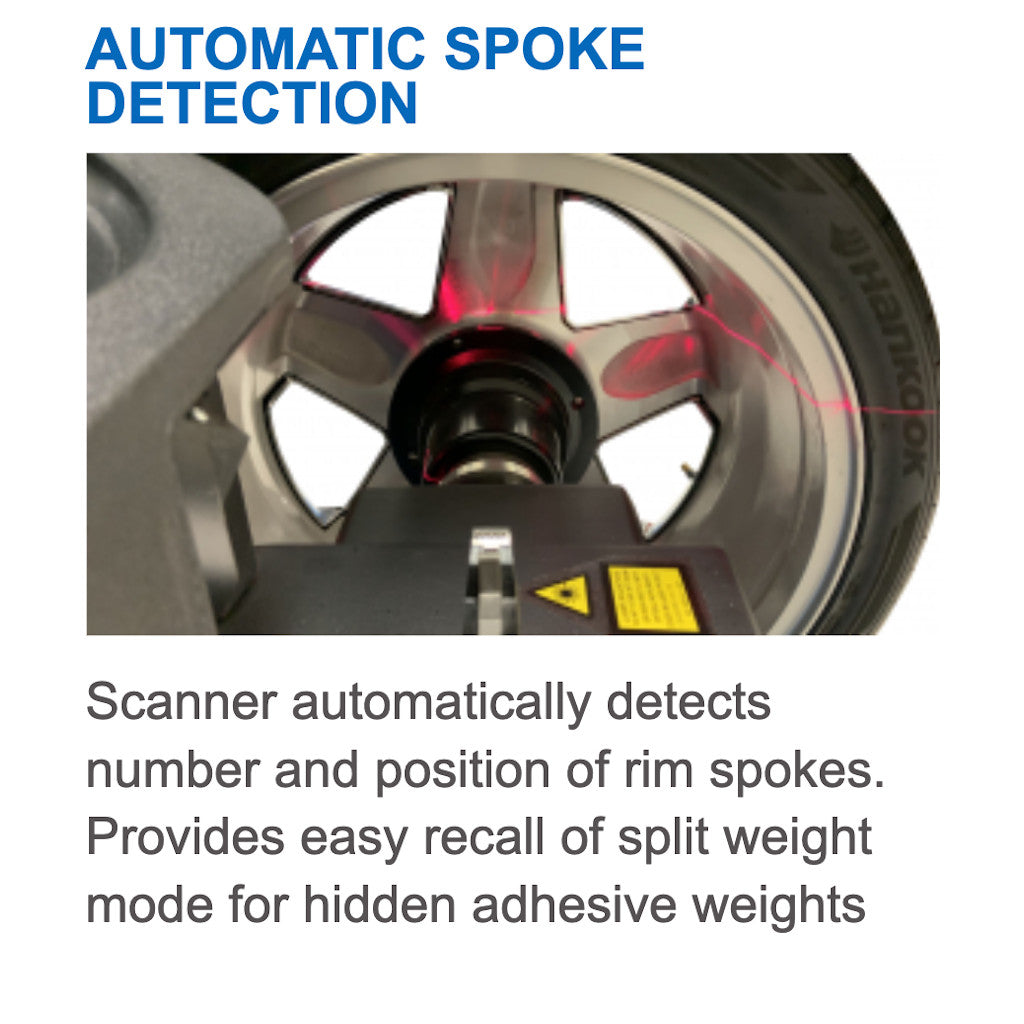

  • Automatic Spoke Detection automatically detects the number and position of rim spokes
  • One-spin balance
  • VPM measurement technique for uncompromised accuracy

Intuitive, Ergonomic Design:

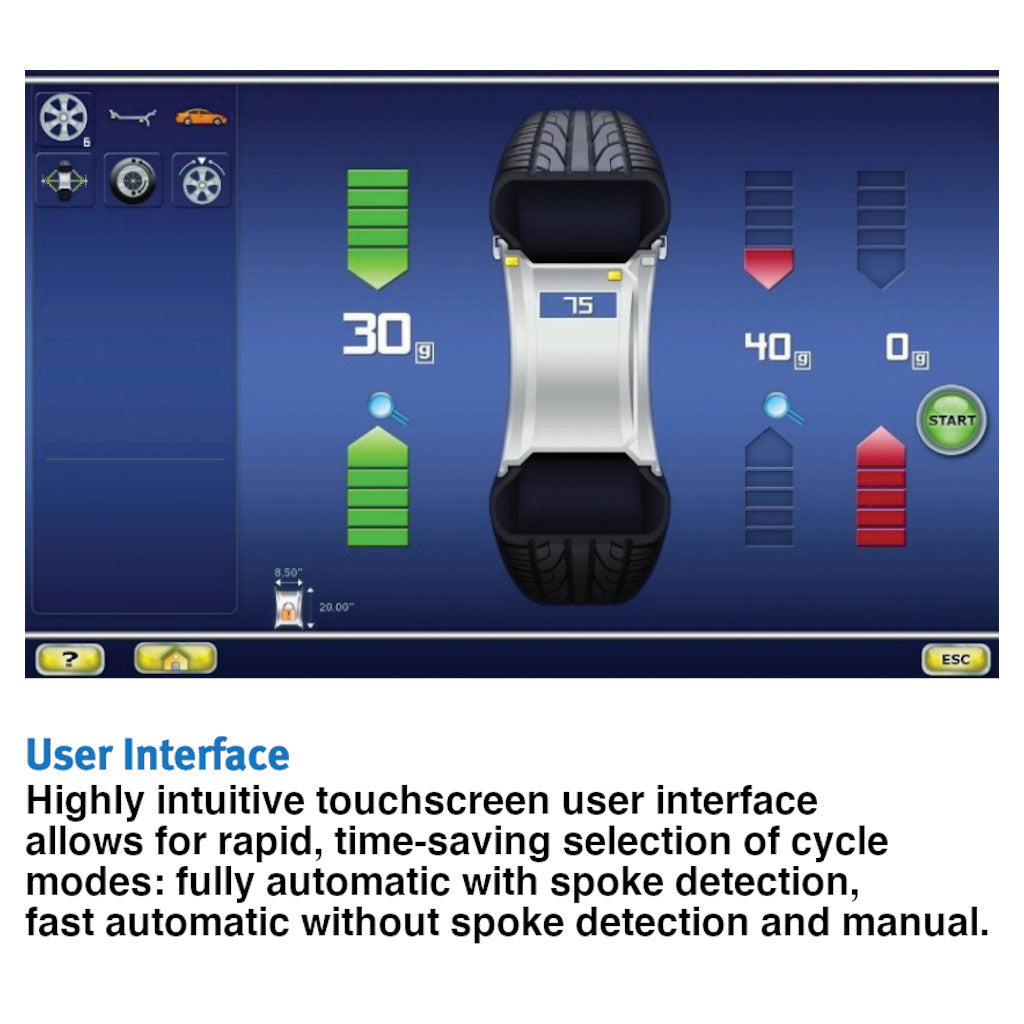

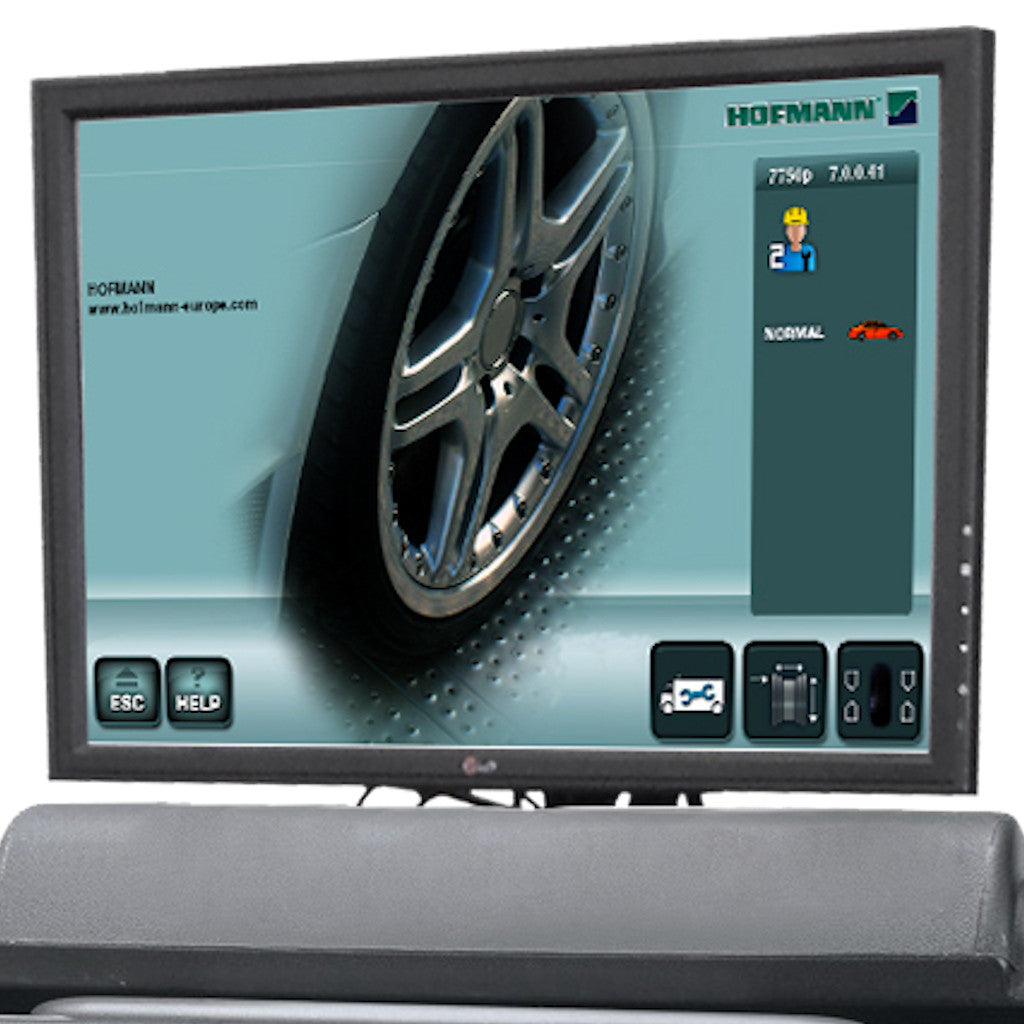

  • Platinum Touchscreen User Interface: New resistive touch display with large icons for use with or without gloves on
  • Fast and Intuitive Selection of the Cycle Modes: Fully automatic with spoke detection, fast automatic without spoke detection, and manual mode

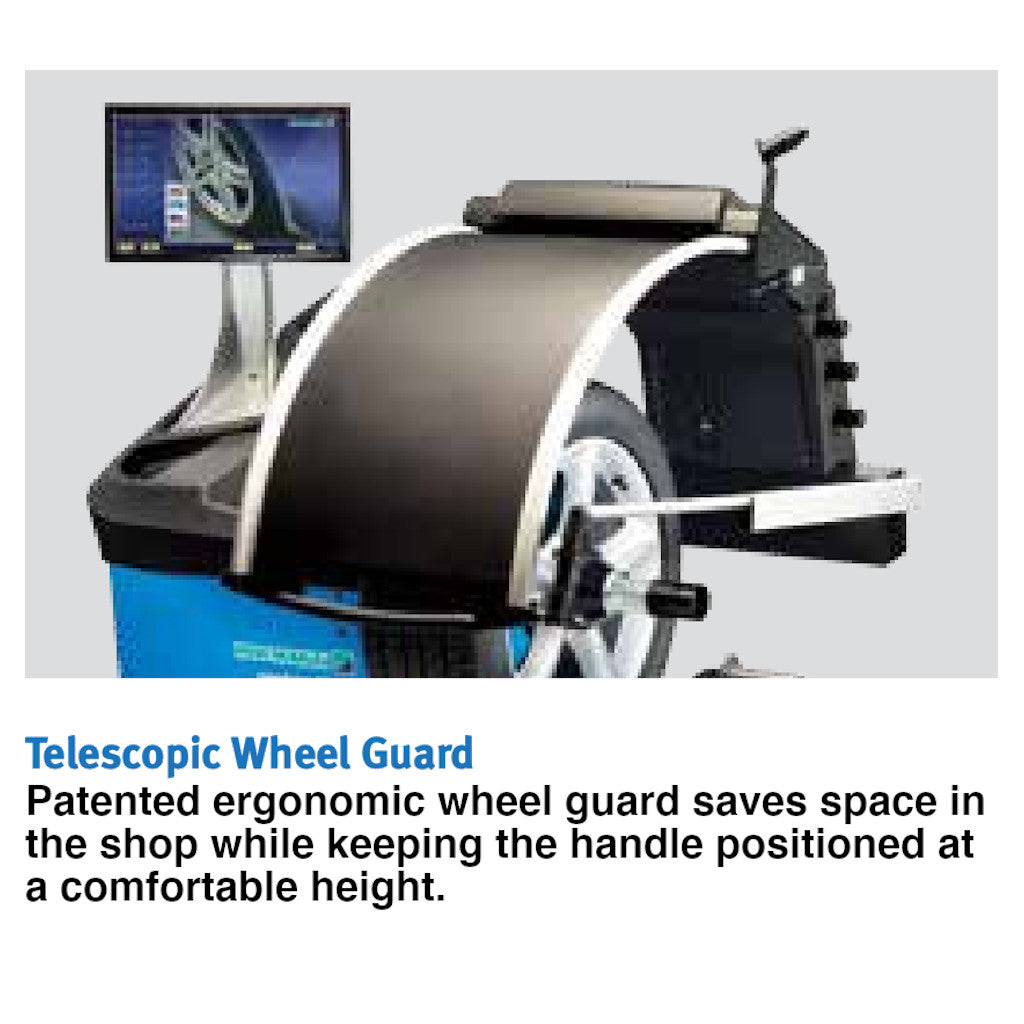

  • Patented Ergonomic Telescopic Wheel Guard reduces the overall equipment footprint

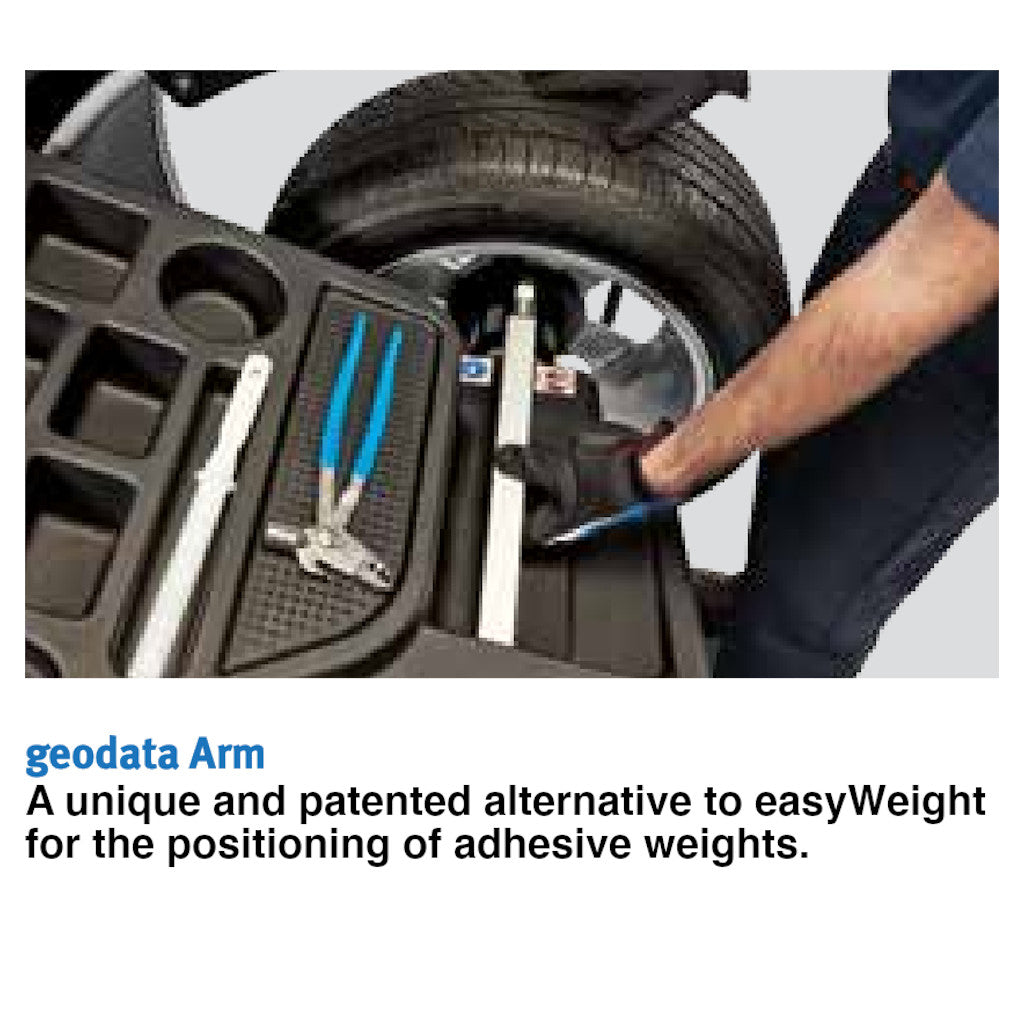

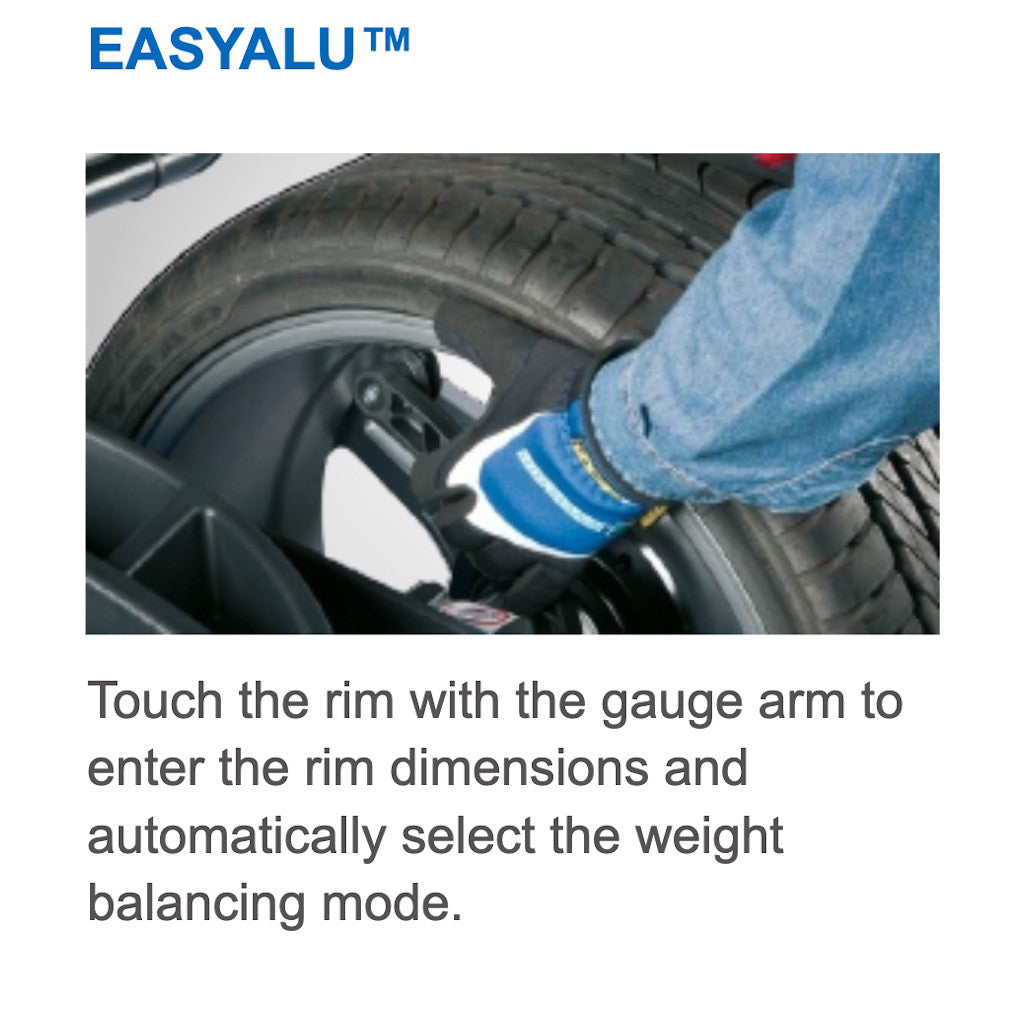

The Geodyna 7800p is equipped with the Geodata Arm, a unique and patented tool.

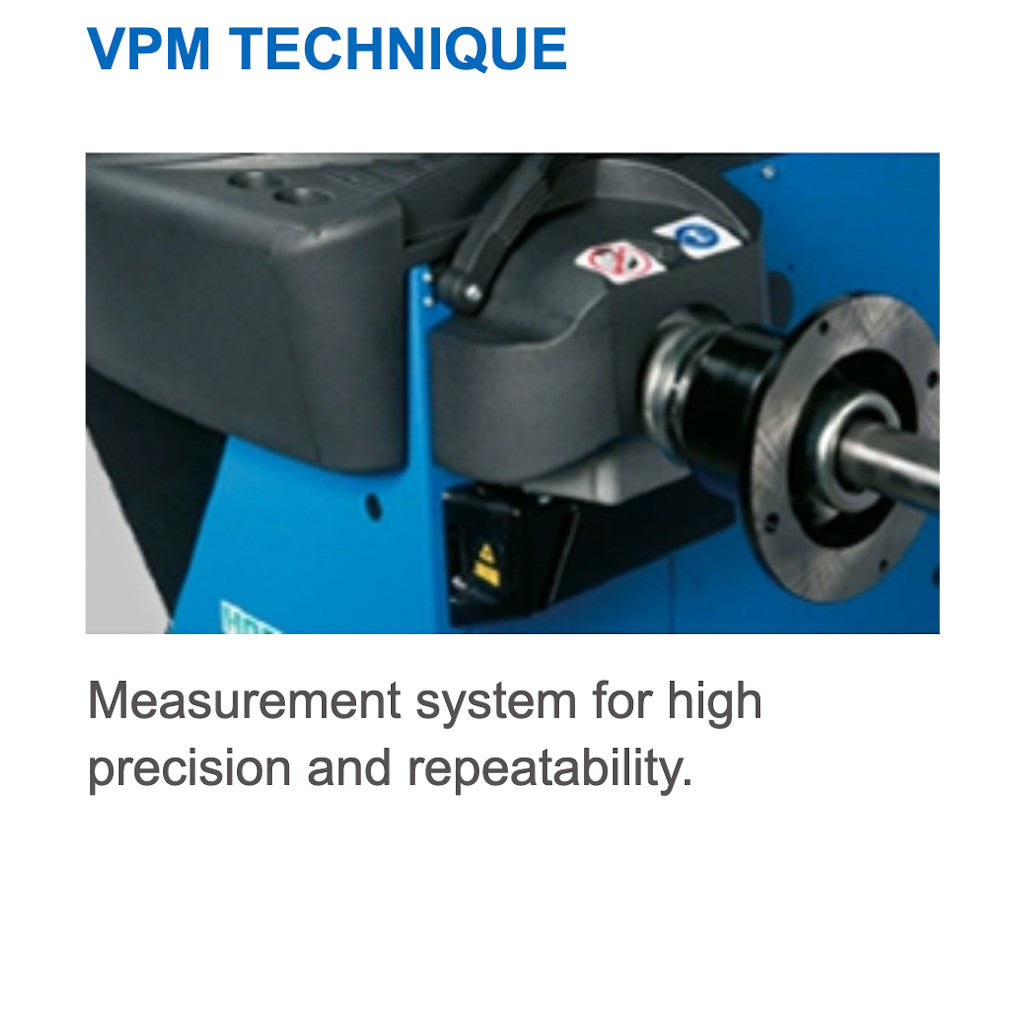

VPM Measurement Technique: The Geodyna 7800P comes with the patented virtual plane measurement (VPM) technique which ensures accurate balancing results while being insensitive to ambient conditions.

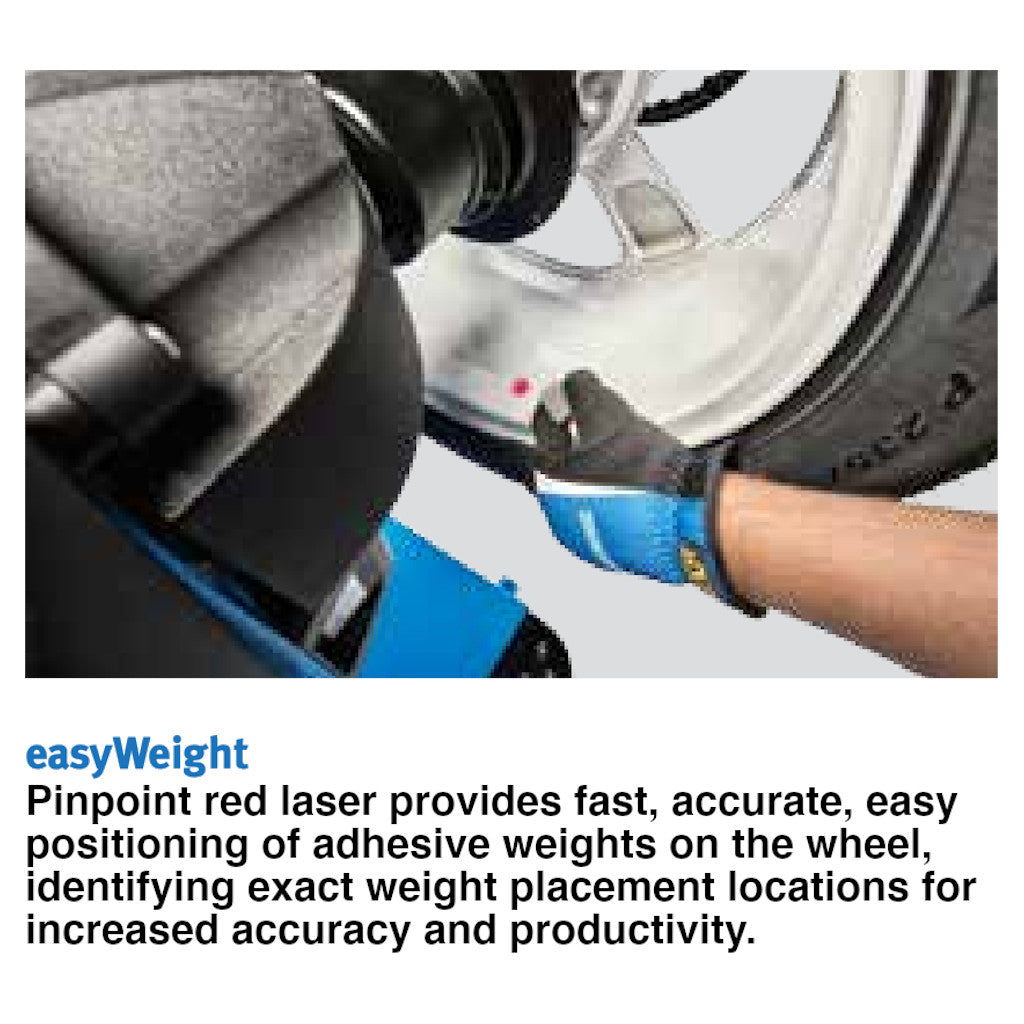

easyWEIGHT: Pinpoint indicator light is the accurate, fast, and easy solution to position adhesive weight on the wheel.

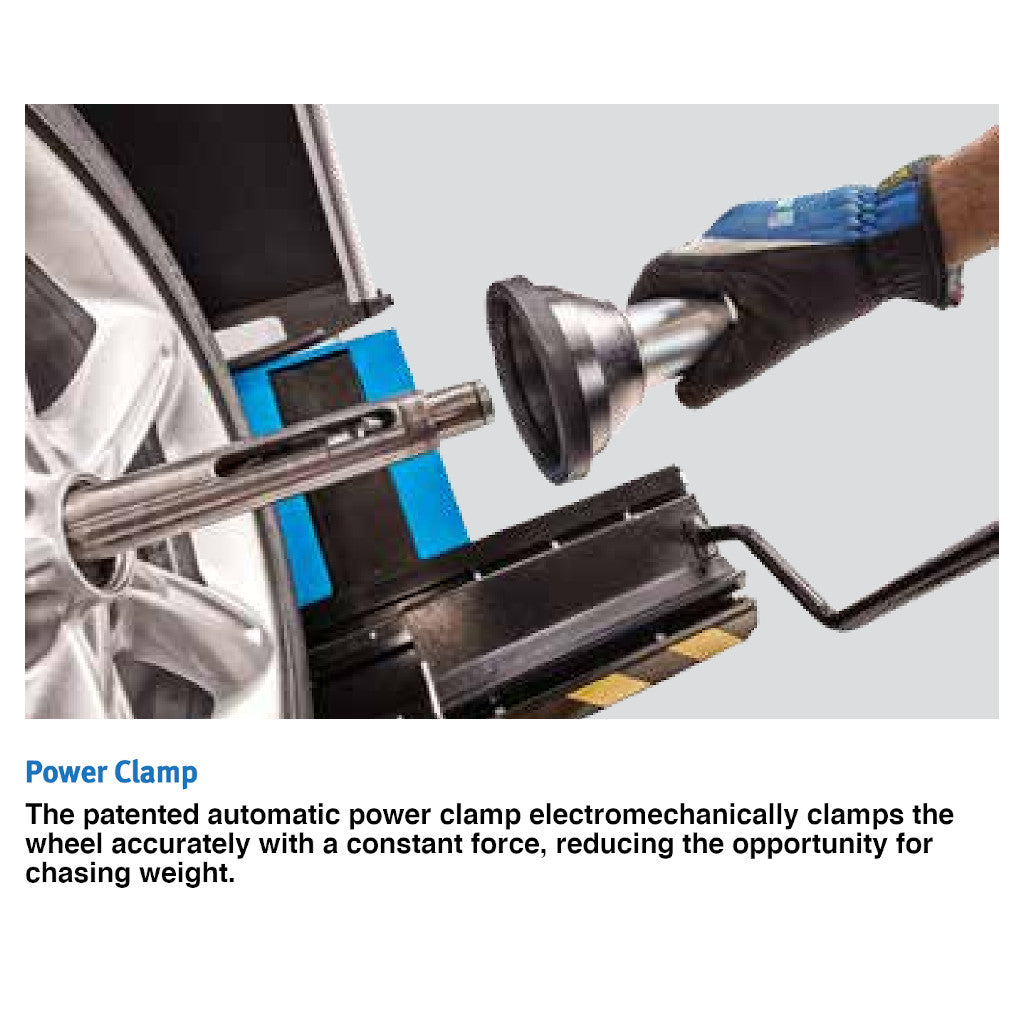

Power Clamp: The electromechanical power clamp always clamps the wheel accurately and with a constant force.

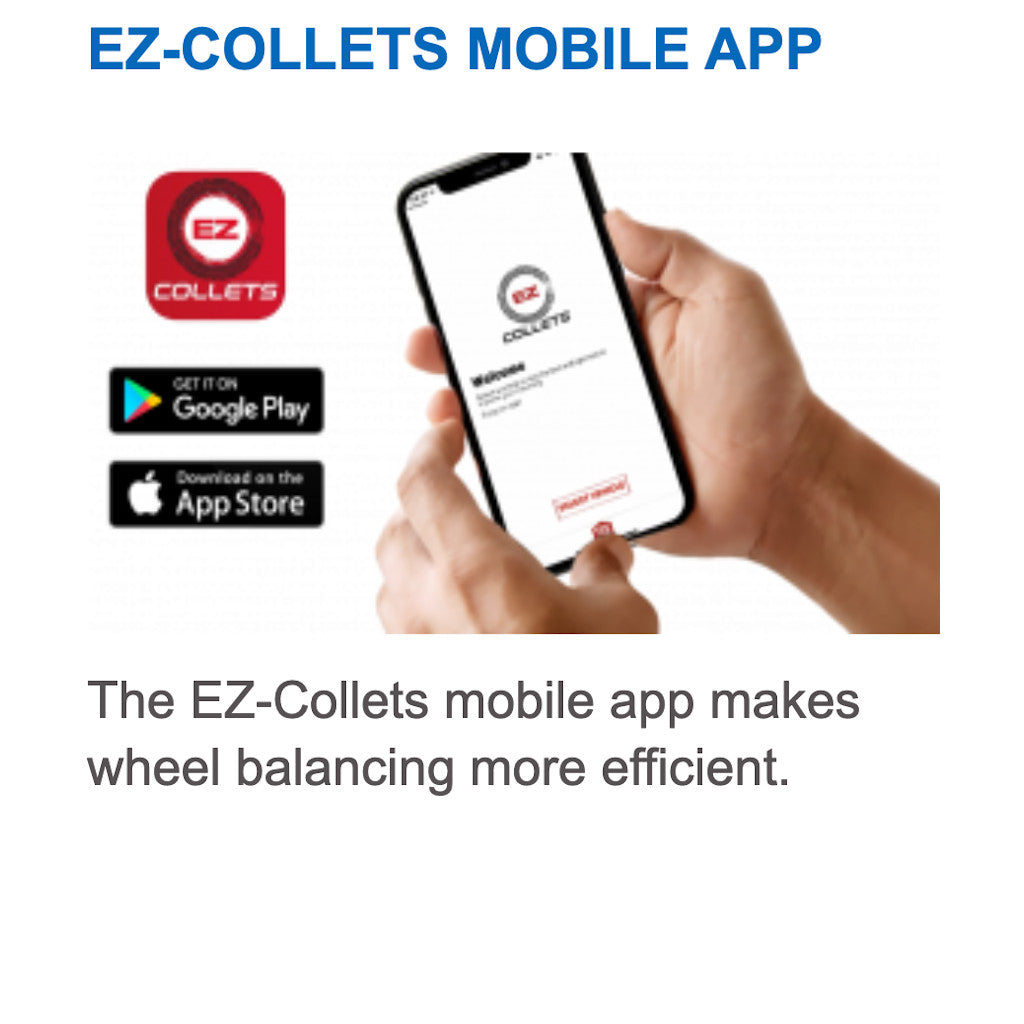

EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets Mobile App, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.

The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.

Additional Features:

  • The patented wheel scanner detects wheel diameter and offset as well as the number and position of wheel spokes

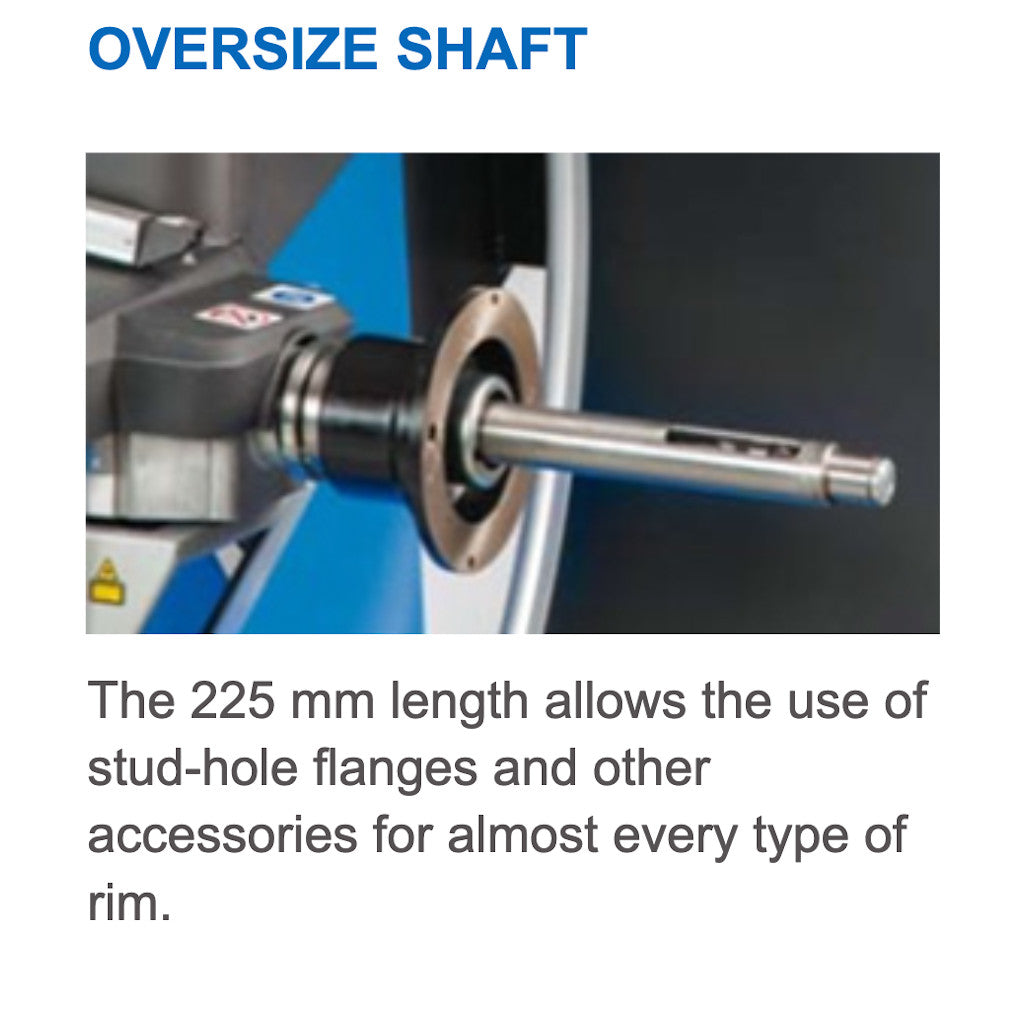

  • The 225mm long shaft allows the use of accessories with every type of wheel
  • The operator only has to touch the amount of unbalance on the screen and the tire is automatically indexed to the correct position

Accessories Included:

  • Spacer Ring
  • Universal Drum
  • Universal Drum Cushion
  • Large Cone (96 Mm–116 Mm)
  • Medium Cone (72 Mm–99 Mm)
  • Small Cone (42 Mm–77 Mm)
  • Rim Width Calipers
  • User Calibration Weight
  • Weight Pliers
  • Kit of 4 Pegs to be Mounted to the Left Side
        TECHNICAL DATA Geodyna 7800P
        Hofmann Part Number EEWB753BE8
        Vehicles Supported Cars, Light Trucks, SUVs
        Measuring Speed Less than 200 rpm
        Balancing Accuracy 0.035 oz / 1g
        Angular Resolution 0.7°
        Start/Stop Balancing Time (Wheel 195/65R15) 6.5 seconds
        Check Spin 4.5 seconds
        With Automatic Data Entry 7.5 seconds
        With Automatic Data Entry & Spoke Counting 10.5 seconds
        Manual Data Entry
        Rim Diameter Range 8″ - 32″ (203 - 813 mm)
        Offset Range 1″ - 20″
        Rim Width Range 1″ - 20″
        Semi-Automatic Data Entry (SAPE)
        Rim Diameter Range 8″ - 30″
        Offset Range 1″ - 20″
        Rim Width Range 1″ - 20″
        SAPE Working Range 0″ - 10.55″ (0 - 268 mm)
        Automatic Data Entry (Scanner / smartSonar)
        Rim Diameter Range 14″ - 26″
        Rim Width Range 3″ - 15.8″
        Scanner Offset Range 4.7″ - 16.3″
        Automatic Spoke Counting Yes
        smartSonar Operation Conditions: Rim Diameter Range 14″ - 26″
        Maximum Wheel Dimensions
        Maximum Wheel Diameter 42″ (1067 mm)
        Maximum Wheel Width 3″ - 20″ (76.2 - 508 mm)
        Maximum Wheel Offset 1″ - 20″ (25.4 - 508 mm)
        Maximum Wheel Weight 154 lbs (70 kg)
        Additional Specifications
        Diameter of Shaft 40 mm
        Length of Shaft 8.86″ (225 mm)
        Balancer Flange Offset 10.55″ (268 mm)
        Wheel Braking After Measurements Automatic
        Power Requirements 230 V, 1 Ph, 50/60 Hz, 4 Amp
        Dimensions (Wheel Guard Open) 76.4″ L x 40.2″ W x 61.8″ H
        Shipping Dimensions 70.1″ L x 47.2″ W x 72.8″ H
        Net Weight 297 lbs (135 kg)
        Software Features
        Multiple User Capability Yes (9 Users)

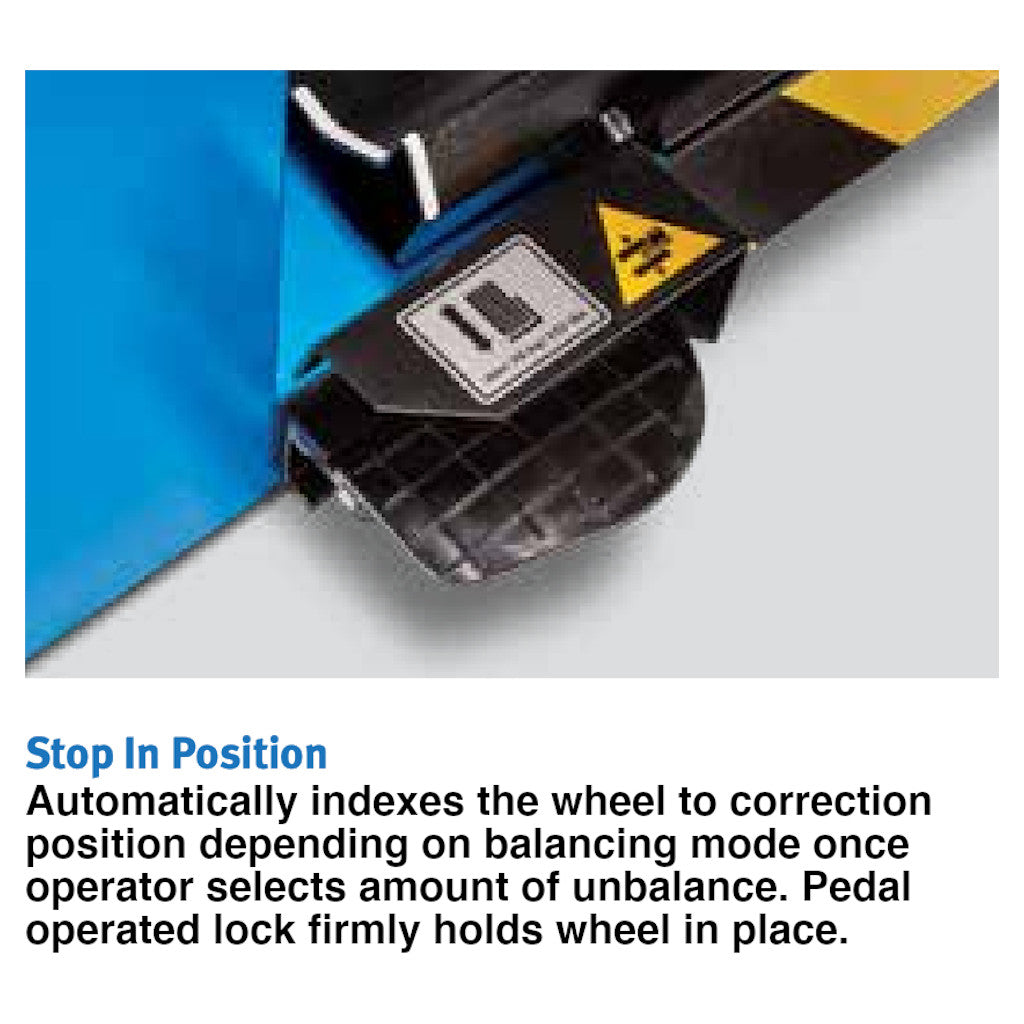

        Stop In Position Yes
        Auto Stop System (Weight Arm) Yes

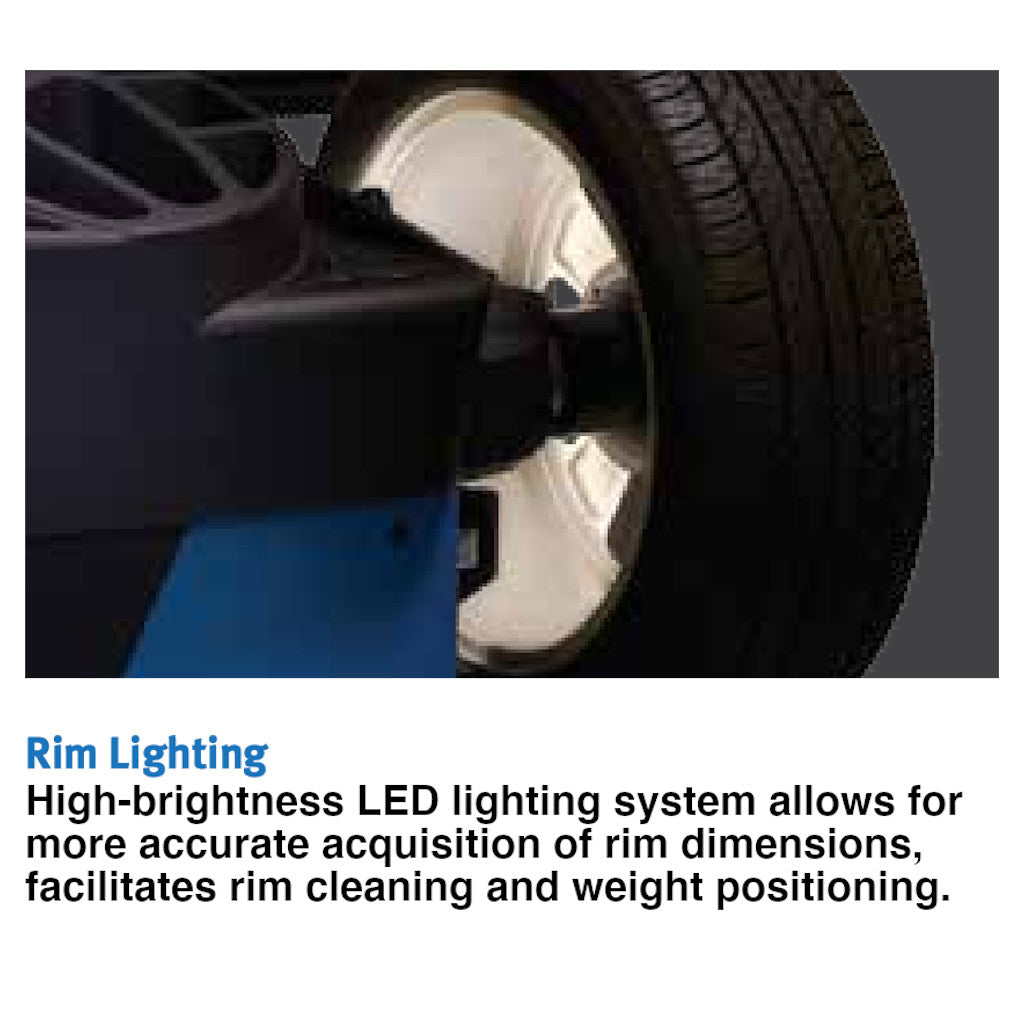

        Rim Lighting Yes

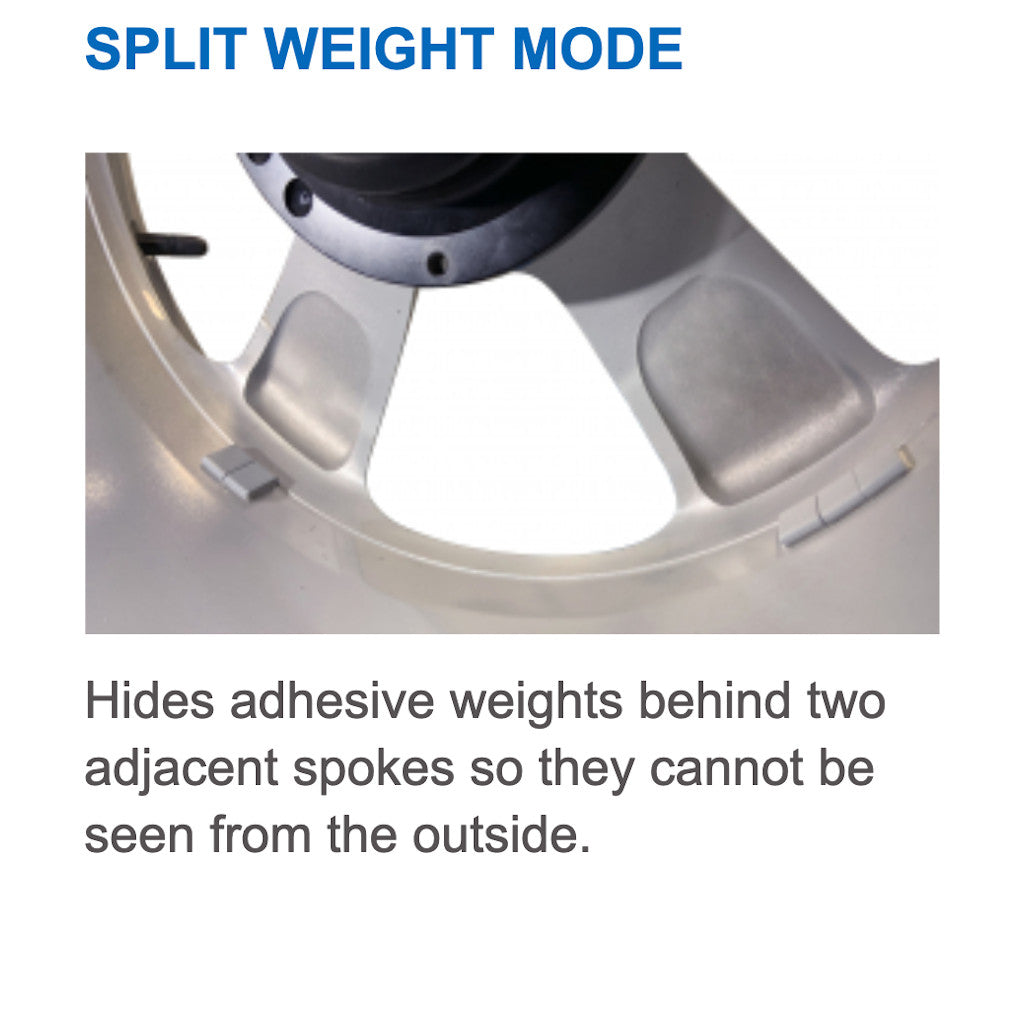

        Split Weight Yes
        Minimization Yes
        Optimization Yes
        Job Counter Yes
          Compliance and Restrictions
