For over 30 years, Rotary Lift has built 2-post lifts with the engineering, quality and attention to manufacturing detail that can't be found anywhere else. Today, the industry standard SPOA10 represents nearly 90 years of lift building expertise and decades of 2-post surface lift experience. With true asymmetric rotated column design, the original "Double-S" single piece column and numerous other design advantages, the Original Rotary SPOA10 can't be beat...by anyone.

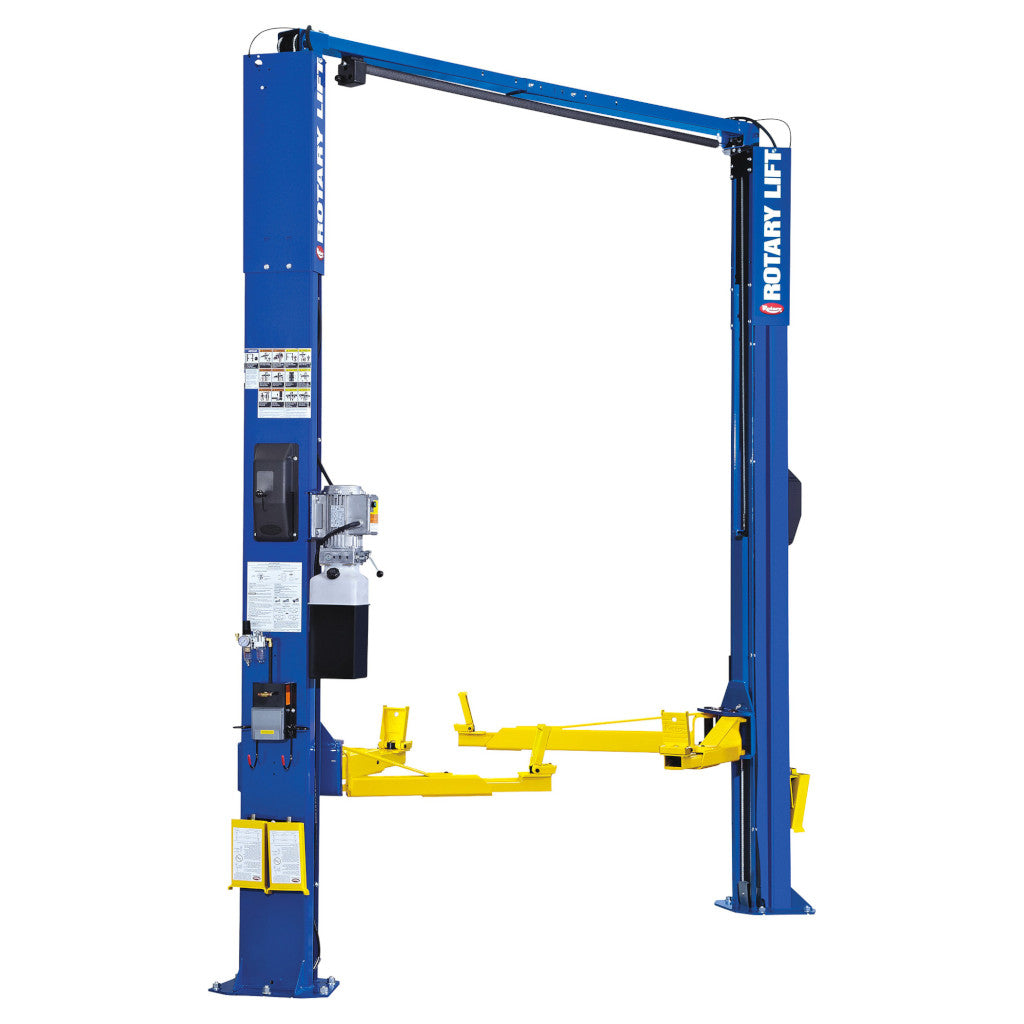

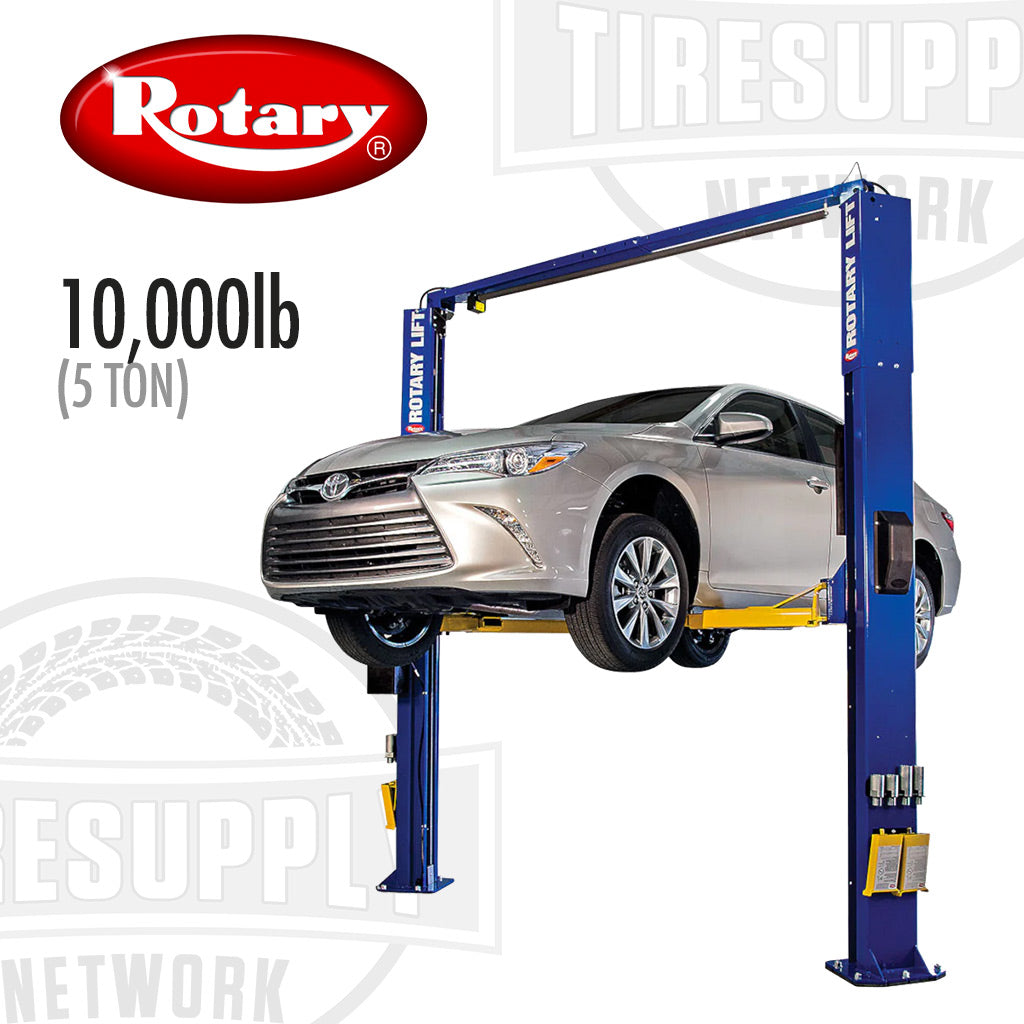

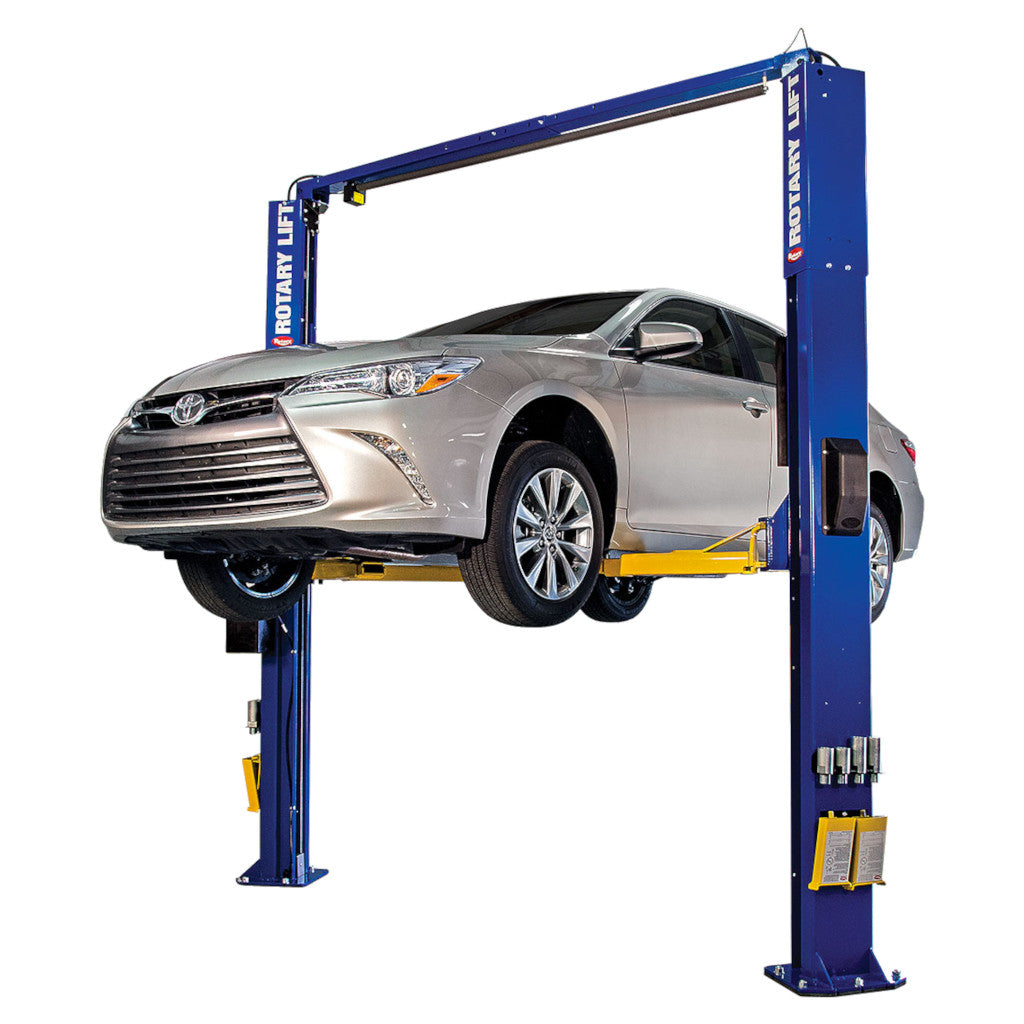

The Rotary Lift Model SPOA10N700 comes equipped with standard conventional 2-stage arms and exclusive 3-position flip-up FA adapters.
The 3-stage flip-up adapters feature great strength in a simple design. The entire assembly is joined with a single pin providing stable support in any position.
True Asymmetrical Lifts: Columns are rotated 30° allowing maximum door opening on passenger cars for improved access to vehicle interior. This column rotation places the approximate center of gravity of the vehicle in line with the optimum load capability of the column, reducing unnecessary wear and tear on the column, carriage, and bearings.
|Arm Type||Conventional 2-Stage Design|
|Rise||72 3/4″ - 78 3/8″|
|Overall Height||11′ 8 1/2″|
|Overall Width||11′ 5 3/8″|
|Front Arm Minimum/Maximum||20 1/2″ - 40 3/4″|
|Rear Arm Minimum/Maximum||40 1/4″ - 61″|
|Minimum Adapter Height||4 3/4″|
|Median Adapter Height||7″|
|Maximum Adapter Height||10 1/4″|
|Inside Columns||107 1/4″|
|Minimum Bay Size||12′ x 24′|
|Minimum Ceiling Height||12′|
|Motor||1 PH, 2 HP|
|Voltage||208V - 230V|
|Time of Full Rise/Decent||45 seconds/40 seconds|
Compliance and Restrictions
