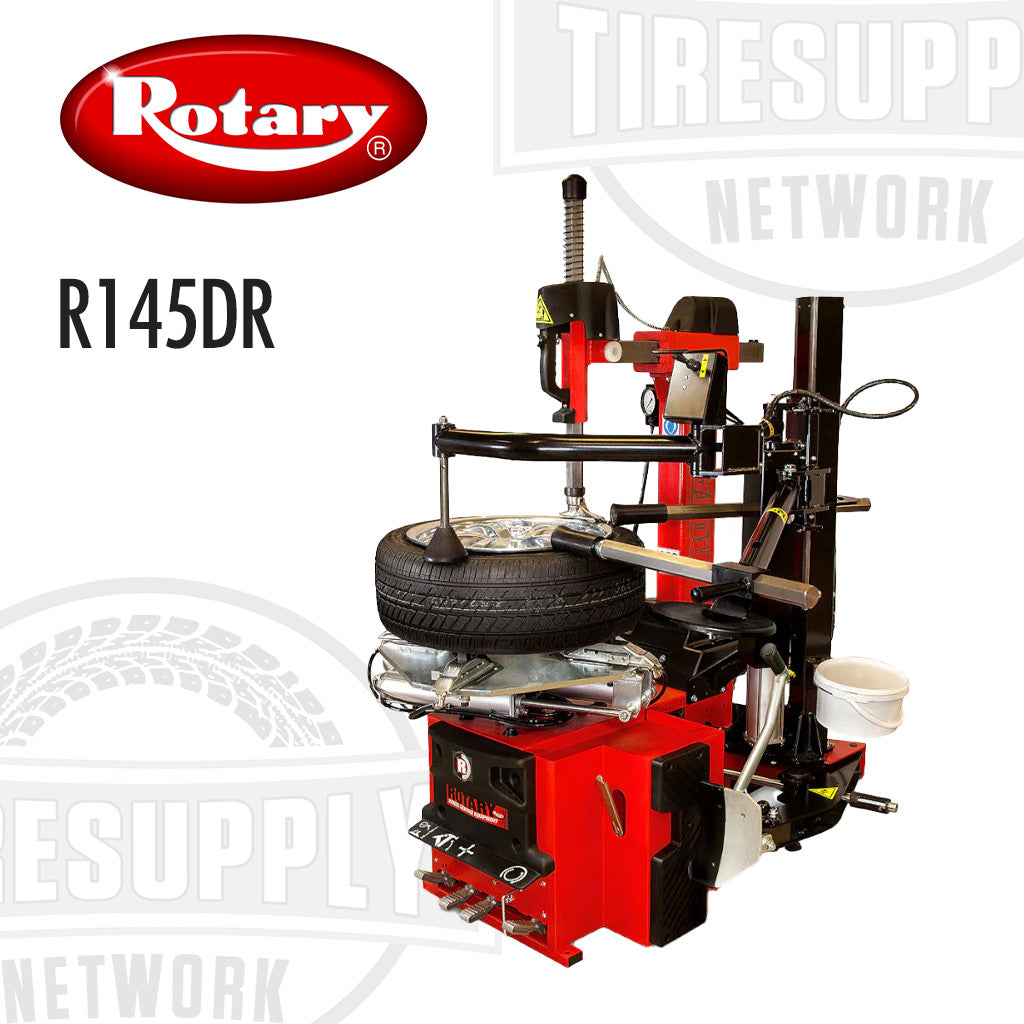

Rotary | Tilt Back VSC Tire Changer (R145DR)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The R145DR is an automatic tire changer with an innovative electric motor inverter, which gives the ability to regulate the chucking table rotation speed to reduce the stress on the bead to avoid any damage to the tire. This tire machine is also equipped with the Fast Inflation (FI) configuration.
- Automatic Tire Changer
- FI Configuration (quick inflation for tubeless tires)
- 220V power-driven motor
- Invemotor 0-16 Variable Speed Control (VSC)
- Designed for Large and Wide Tires
- Shown with standard helper included
- Hand operated bead breaker handle
- Made in Italy
Features:
- Galvanized cylinder with double-acting bead breaker designed to protect alloy rims.

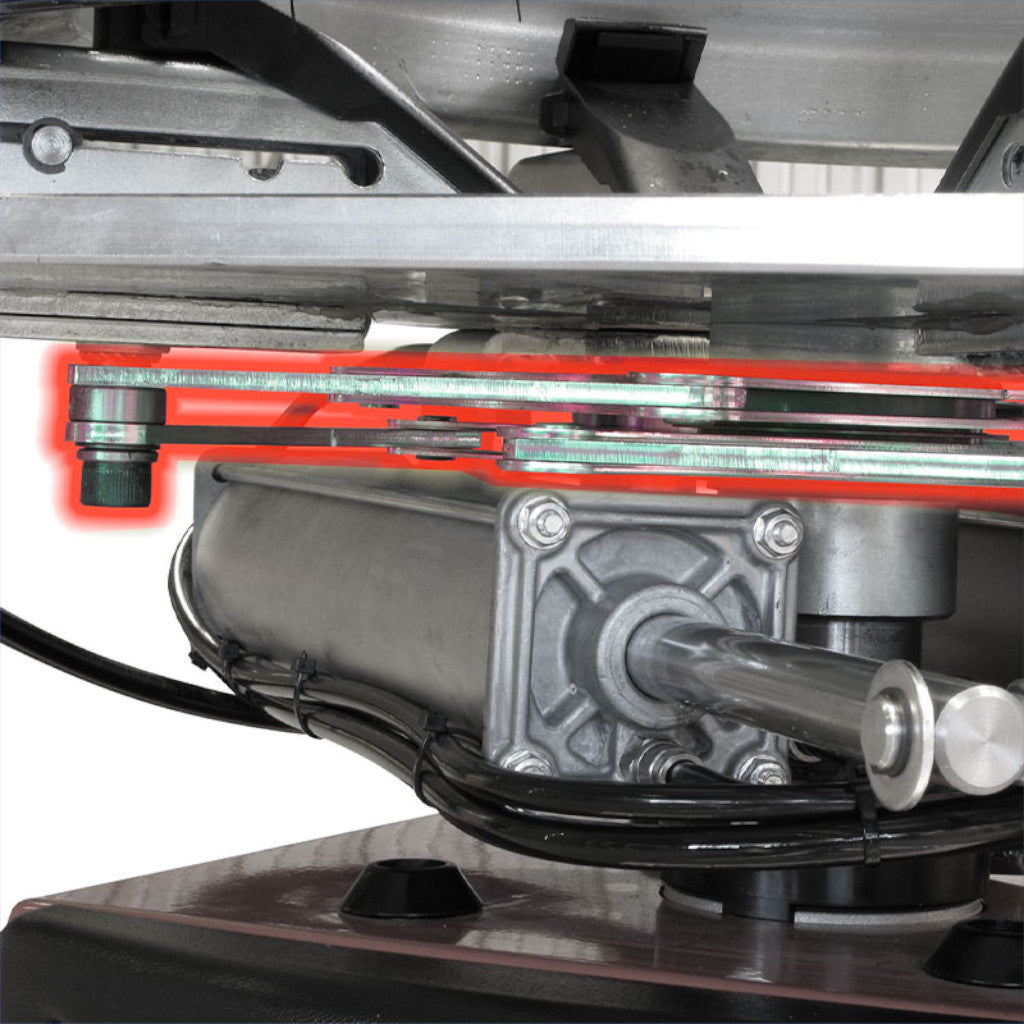

- Double synchronization: perfect load distribution for maximum durability.

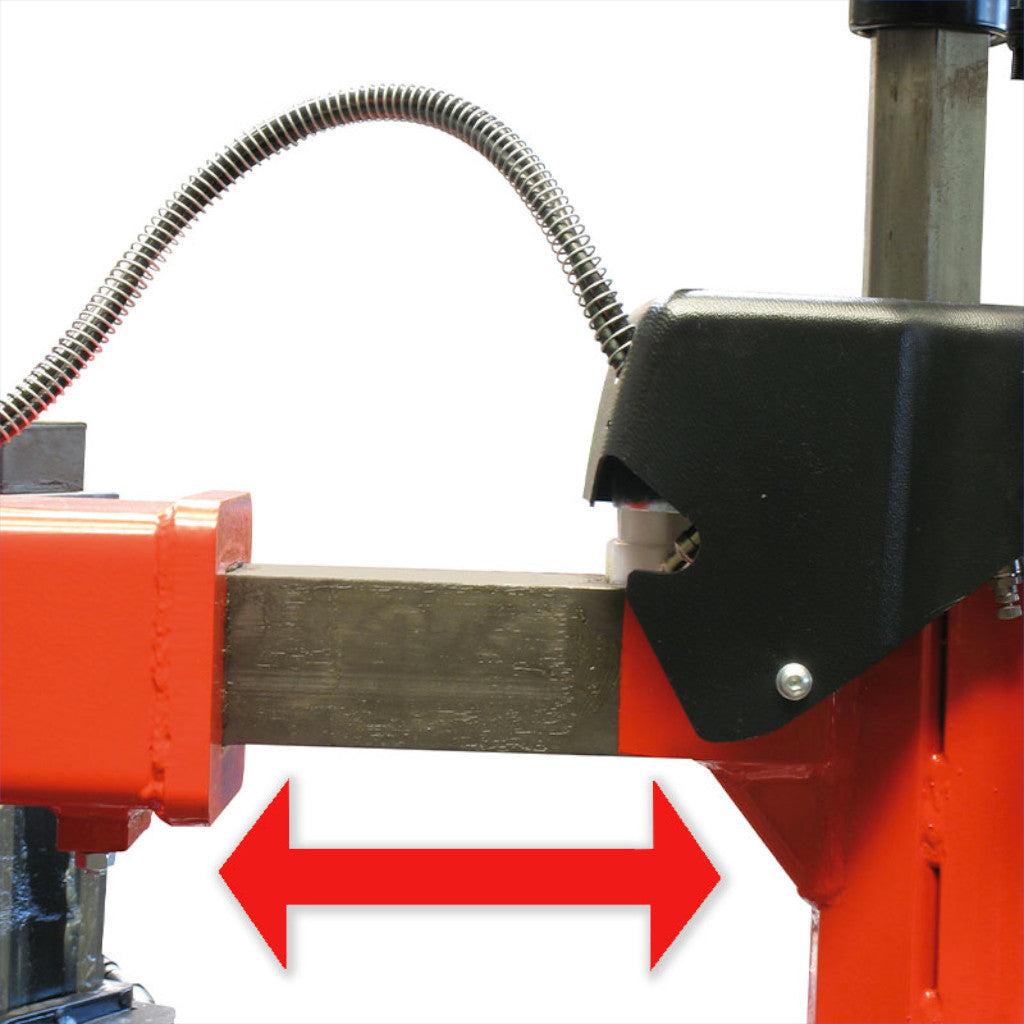

- Maximum rigidity with 2.4″ x 2.4″ horizontal shaft.

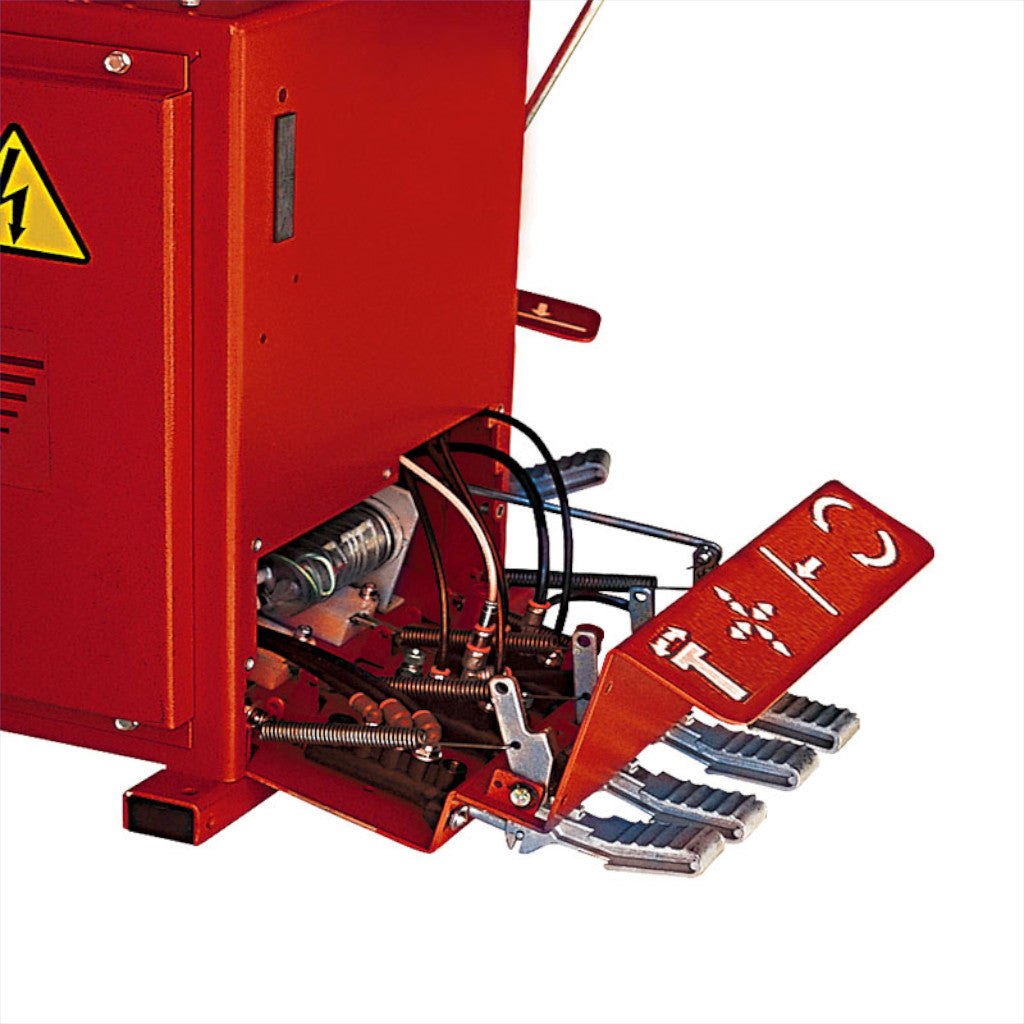

- Removable pedal unit for easy maintenance.
- Quick inflation valve for tubeless tires. Pedal-operated inflation device complete with inflator valve and pressure gauge.

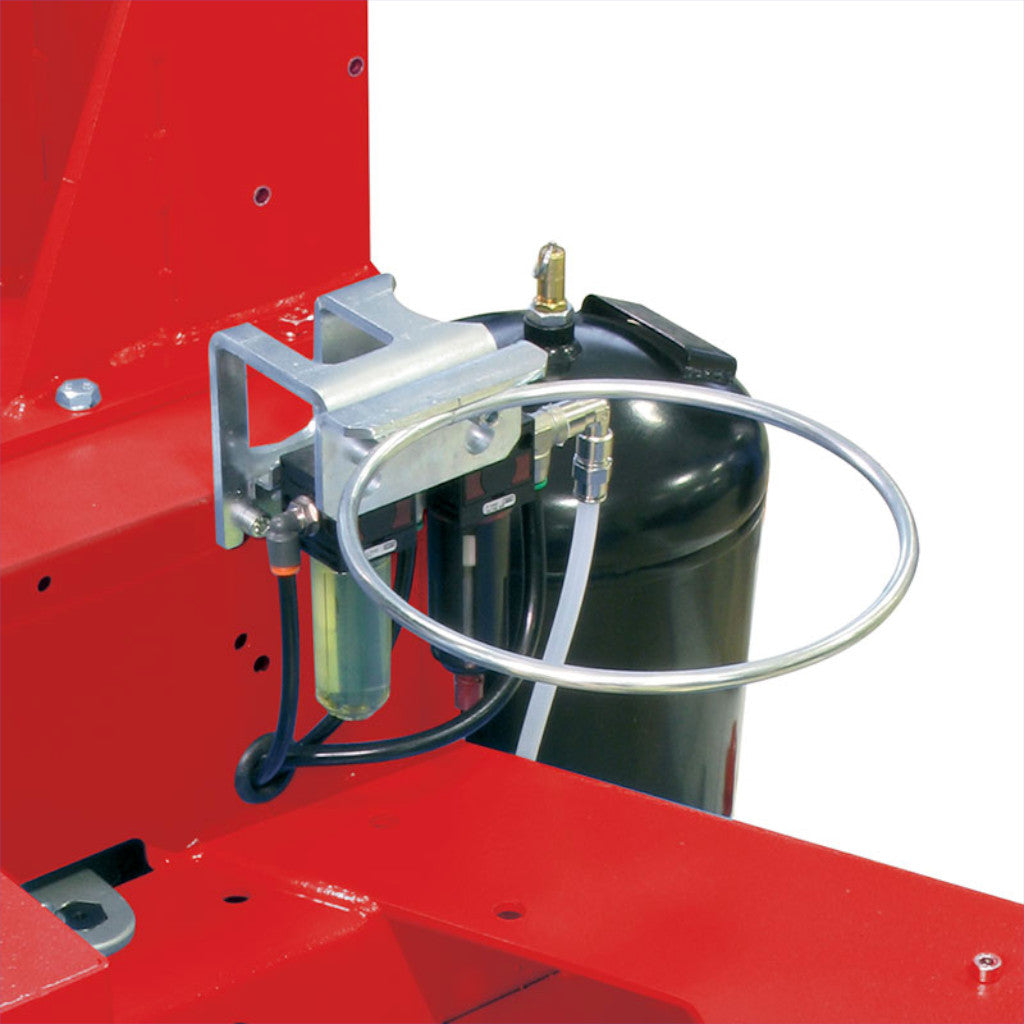

- Air filter and lubricator included.
Warranty: 3 years on parts, 1 year on labor
|
|
R145DR |
|
Motor |
180/260V (60Hz) / 1ph 0.75kW |
|
Maximum torque to chuck |
885 Ft/lbs (1200 Nm) |
|
Self-centering lock: external |
10” - 26” |
|
Self-centering lock: internal |
12” - 28.5” |
|
Tool working span |
8” - 32” |
|
Maximum tire diameter |
45” (1143mm) |
|
Maximum tire width |
17” (431mm) |
|
Bead breaker cylinder power at 145 psi |
6,745 lbs/force |
|
Power supply Motor |
220v / 1Ø / 60 Hz 1 Hp |
