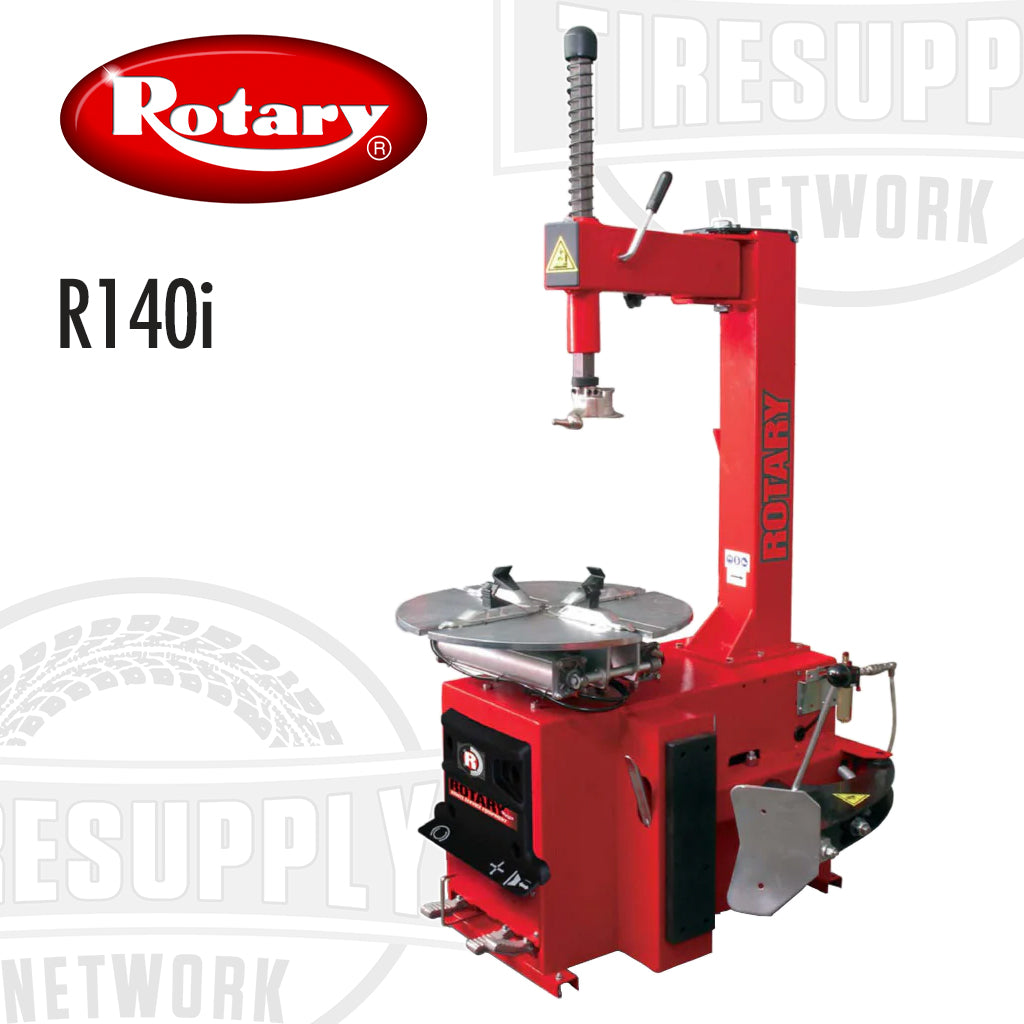

Rotary | Swing Arm Tire Changer (R140i)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Bundle & Save: Buy a helper arm with your tire changer purchase now and save up to 15% on the price of the arm (if purchased separately). Simply add the helper arm option to your cart to purchase the bundle.

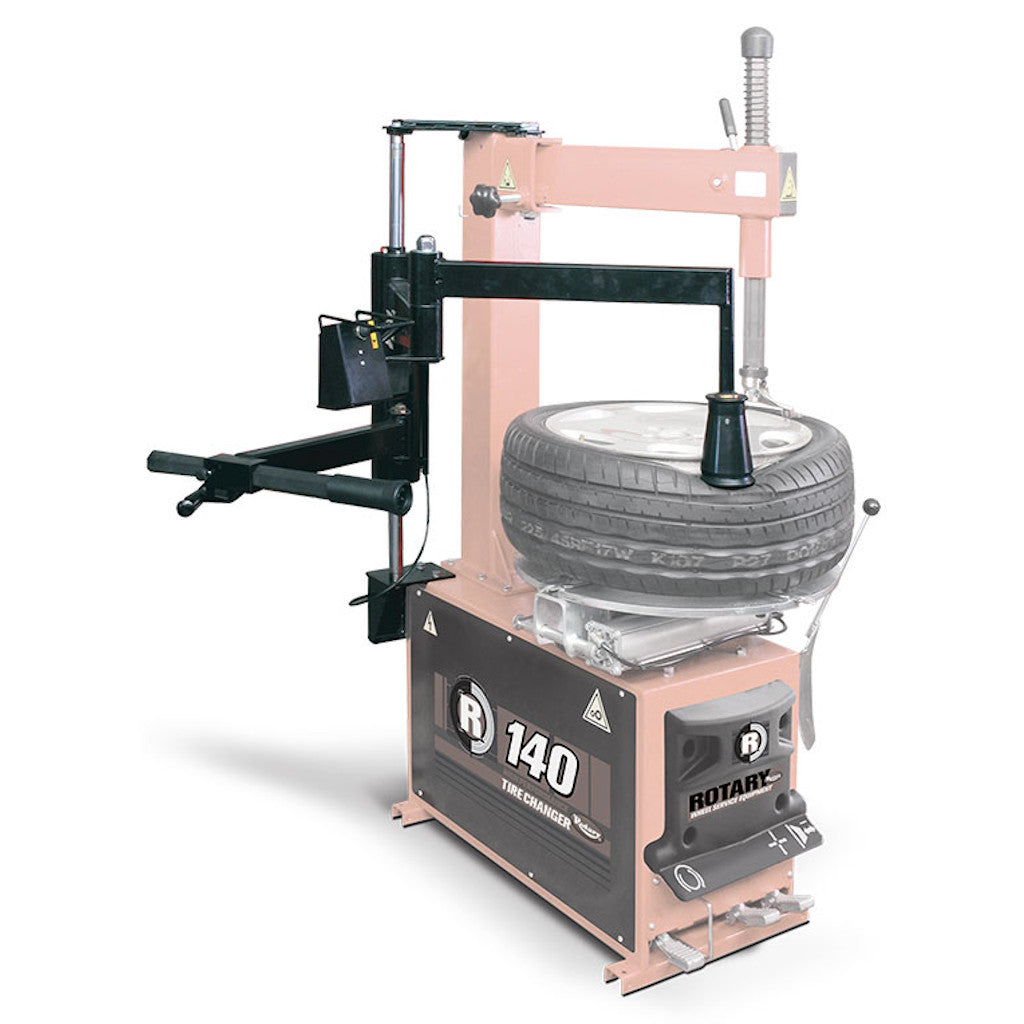

The Rotary PLUS91N Helper Arm Upgrade Option is an air-driven attachment with following arm and lower bead roller for the R140i Swing Arm Tire Changer. This top-pressing bead tool and tire lifting device is designed to handle large and special tires.
Heavy duty swing arm structure guarantees proper working conditions for every job. The exclusive 110v single speed motor provides needed torque and the rigid self-centering chuck with a wide clamping range handles a variety of needs. Equipped with a galvanized, double-operating bead breaker cylinder.
- Standard Swing Arm Changer
- Top Quality at an Entry Level Price
- 22″ Outside Clamping
- 24″ Inside Clamping
- Tire Diameters of 40″

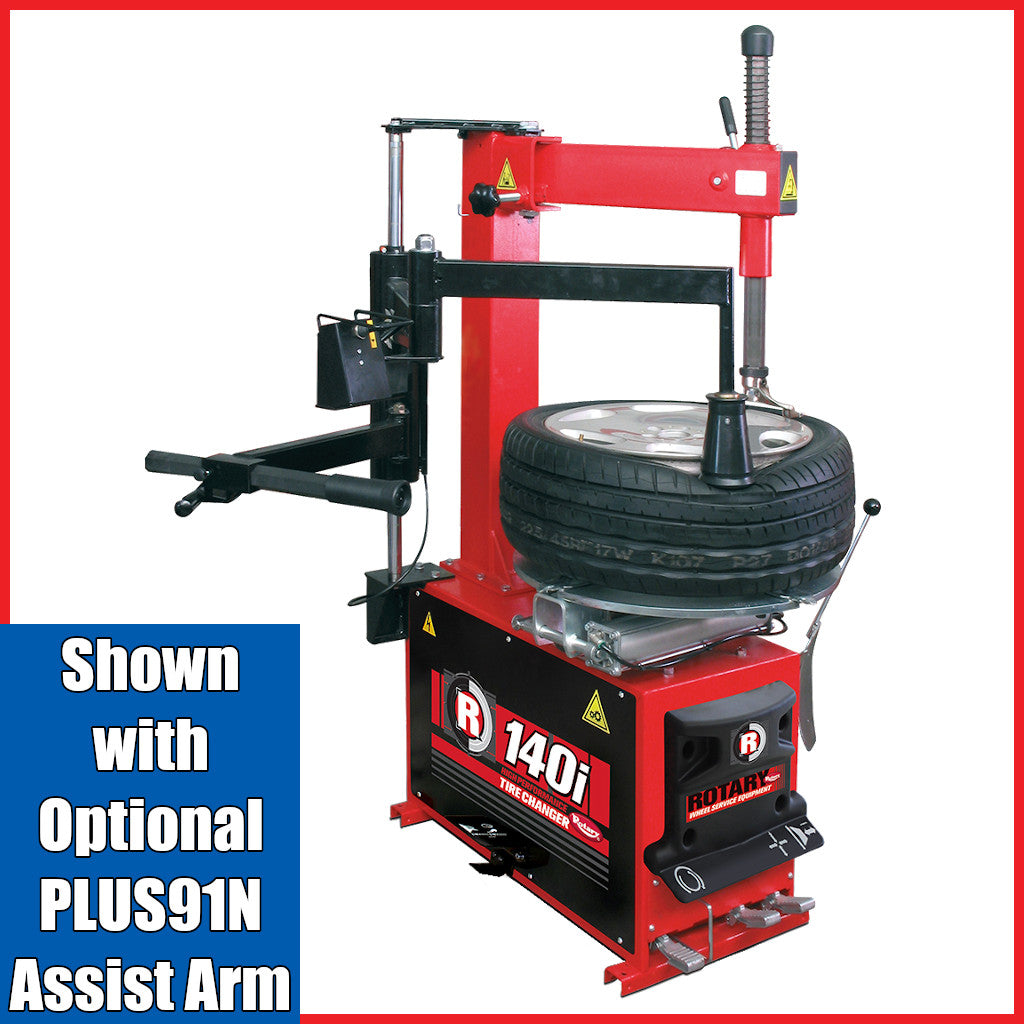

- Shown with optional helper arm
- Made in Italy
Other Features:

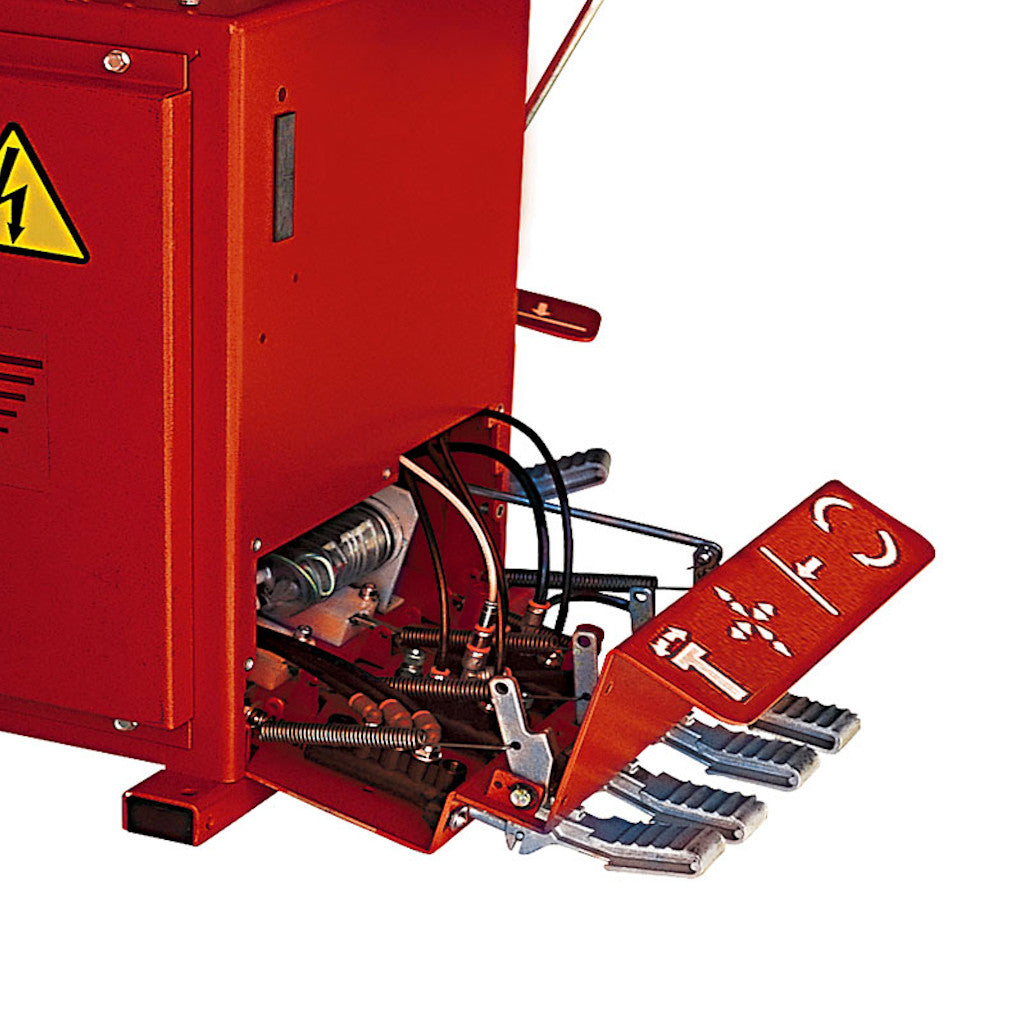

- Removable pedal unit for easy maintenance.
- Galvanized cylinder with double-acting bead breaker designed to protect alloy rims.
- Optional helper arm for bead top pressing and tire lift for large and special tires.
Standard Equipment:

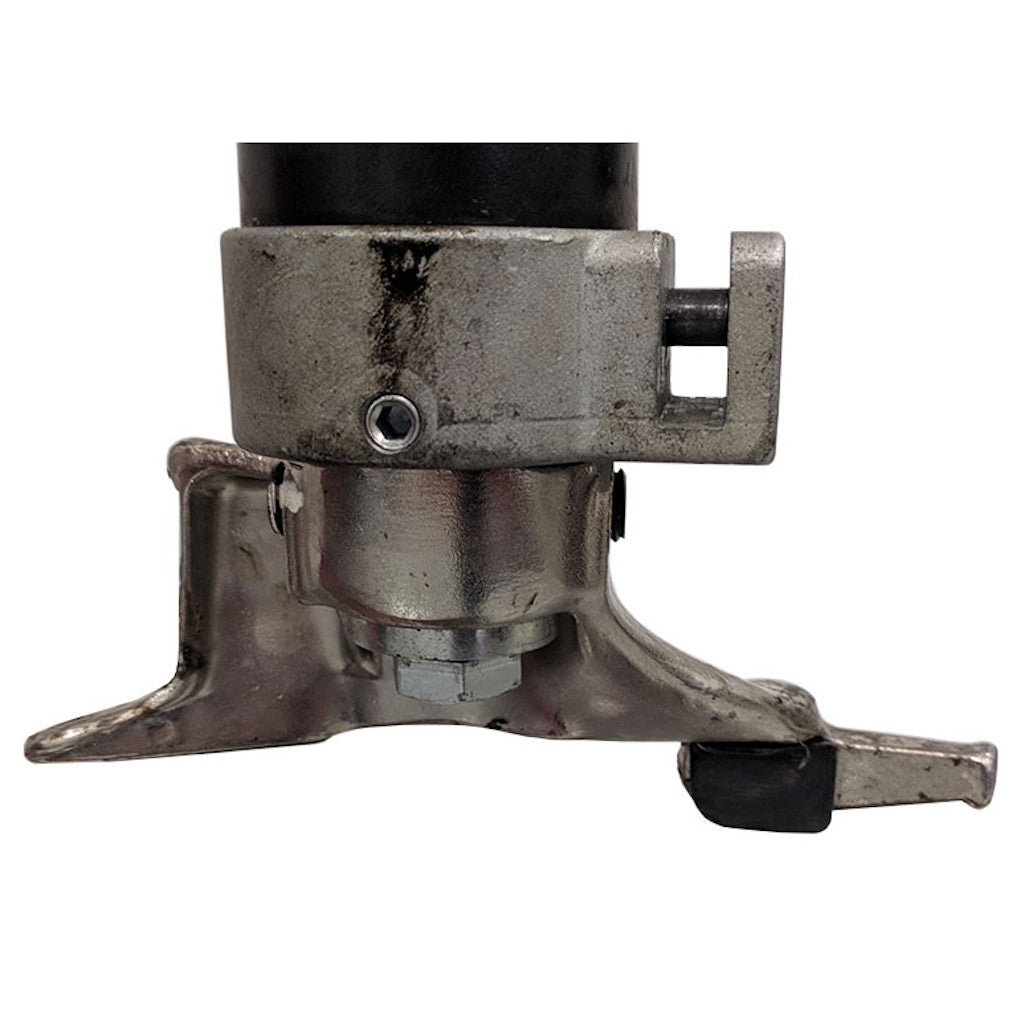

- Rotary VSG800A60 Plastic Tool Head with Support
- Tire paste lubricant and brush
Warranty: 3 years on parts, 1 year on labor
| TECHNICAL DATA | R140i |
| Internal Clamping | 13” - 24.5” |
| Outer Clamping | 11” - 22” |
| Maximum Wheel Diameter | 40.5” (1030 mm) |
| Maximum Wheel Width | 12” (305 mm) |
| Maximum Bead Breaker Opening | 15” (380 mm) |
| Bead Breaker Cylinder Power at 145 psi | 6,745 lbs/force |
| Rotation Speed | 7.3 rpm |
| Maximum Torque Turntable | 885 ft/lbs (1200 Nm) |
| Power Supply | 110v / 60 Hz / 1 Ph |
