BendPak | RWS-200WL Rechargeable Portable Wheel Lift, 200 lb Capacity, Lithium-Ion Power (5150087)

BendPak | RWS-200WL Rechargeable Portable Wheel Lift, 200 lb Capacity, Lithium-Ion Power (5150087)

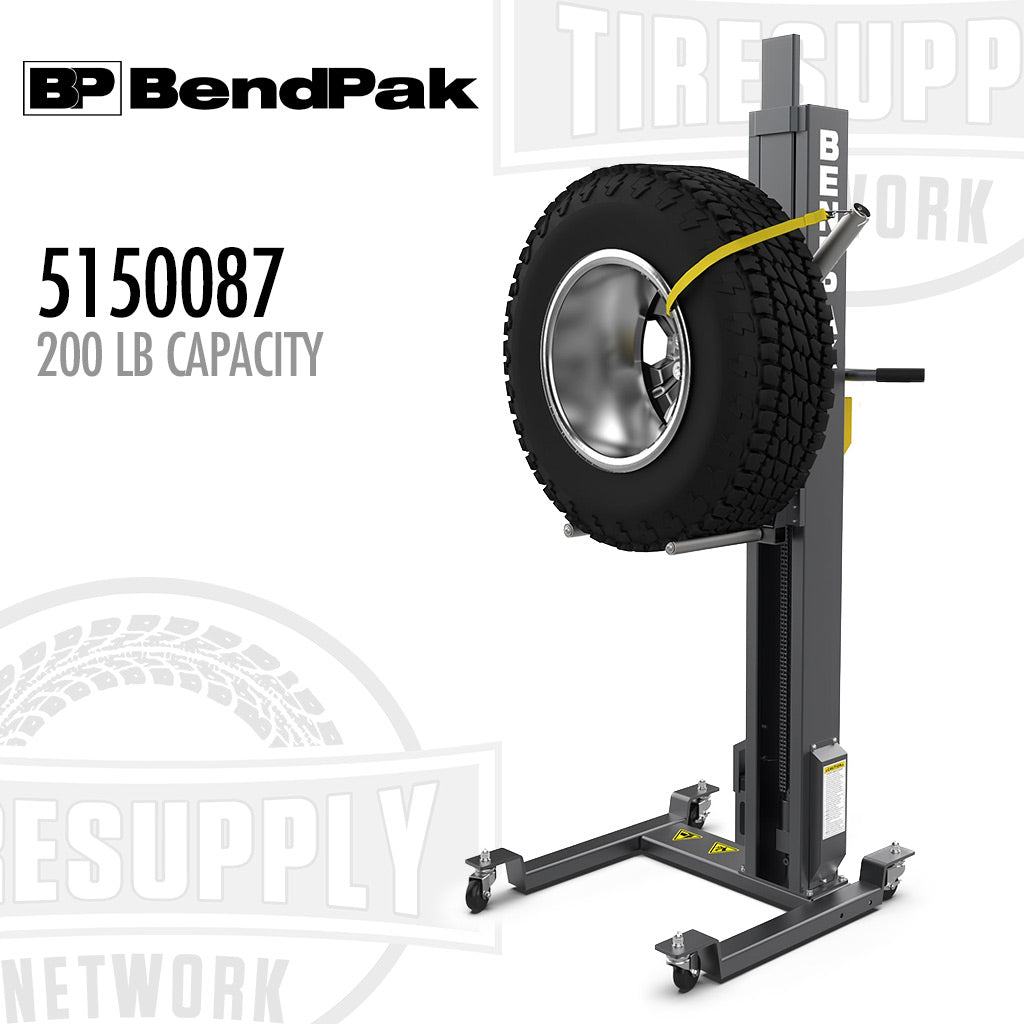

The BendPak RWS-200WL battery-powered wheel lift is engineered to tackle the heavy lifting of tires and wheels, significantly reducing technician fatigue and workplace injuries. With a robust 200-lb lifting capacity, precision lithium-ion powered actuator, and rugged steel construction, it offers cordless freedom, quiet operation, and unmatched safety, ideal for tire shops, fleet facilities, and EV service bays.

Features

• Rechargeable 24V lithium-ion battery

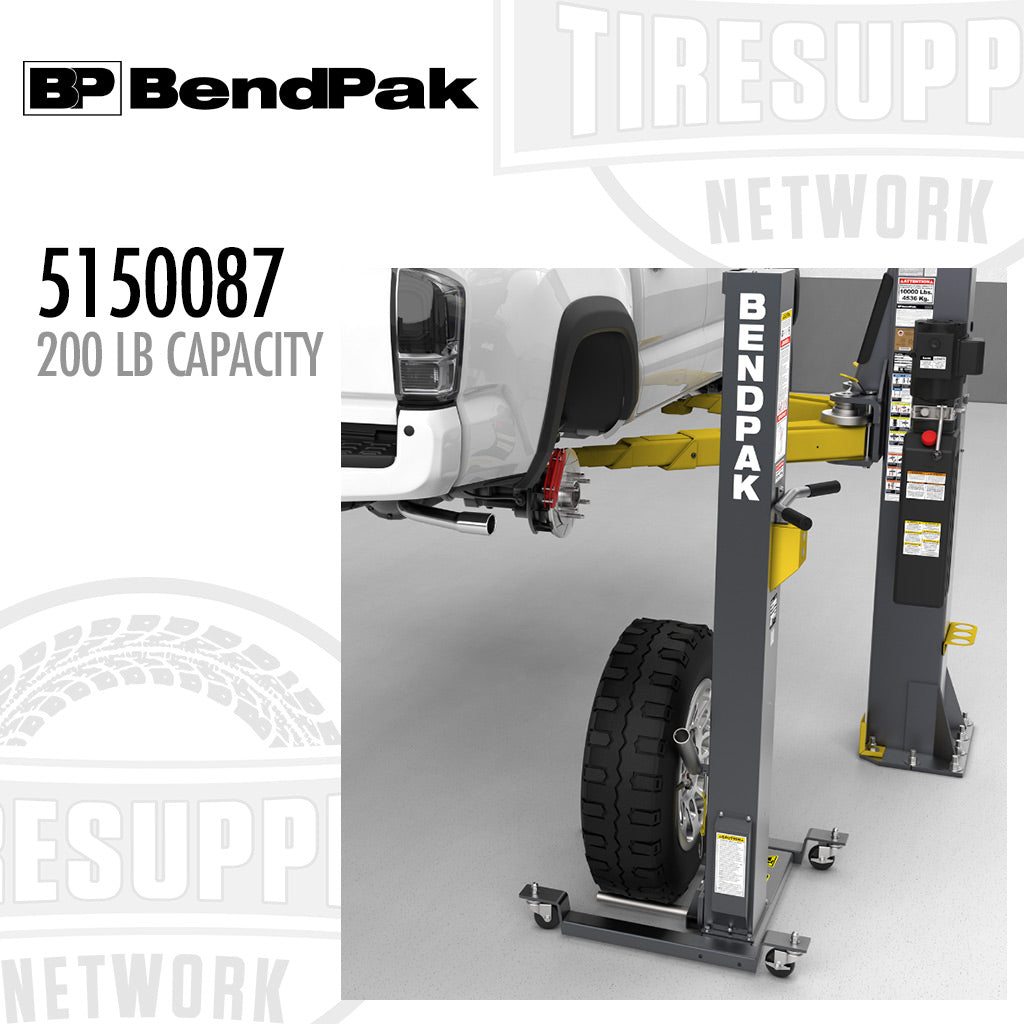

• Ideal for removing and installing heavy wheels on vehicles raised on car lifts or floor jacks
• Integrated smart charger that accepts 110 - 240V AC input
• Onboard 12V accessory outlet

Take the strain out of heavy wheel service with the BendPak RWS-200WL Portable Wheel Lift – the next evolution in wheel-handling equipment. Unlike pneumatic models that must stay tethered to an air supply, the RWS-200WL runs on a powerful 24V lithium-ion battery for true cordless freedom. Move it anywhere in the shop and position it exactly where you need it – no hoses, no cords, no compromises.

With double the voltage of many competing 12V units, the RWS-200WL delivers faster lift speeds, superior torque, and a full 200-lb. lifting capacity to easily handle the oversized wheels and tires found on today's trucks and SUVs.

At its core is a heavy-duty 24V DC linear actuator with a hardened acme lead screw and reduction gearbox. This advanced drive system eliminates the inconsistent, "spongy" feel of pneumatic lifts, delivering steady, predictable motion at 1.6 in./sec. for precise vertical positioning. Lug-bolt alignment, hub centering, and delicate mounting tasks become faster, easier, and safer.

With fewer moving parts than hydraulic or pneumatic systems, the sealed, factory-lubricated linear actuator provides long service life with minimal maintenance. Precision-machined components, hardened screw threads, and a permanently lubricated gearbox ensure peak performance over thousands of cycles, reducing downtime and lowering total cost of ownership.

The RWS-200WL is ideal for removing and installing heavy wheels on vehicles raised on car lifts or floor jacks, elevating wheels to waist height for mounting on wheel balancers or positioning them gently on tire-changing machines, eliminating the strain and risk of injury from manual lifting.

A low-profile 2.5" frame height makes it easy to roll even the heaviest wheels into position, while offset carriage arms provide better access to lug bolts during installation or removal. Side-mounted thrust rollers let you rotate the wheel effortlessly for perfect alignment without straining your back.

Charging is simple and universal with an integrated smart charger that accepts 110–240V AC input without the need for transformers, making it ideal for shops anywhere in the world. Extra touches like the onboard 12V accessory outlet, quick-glance battery status indicator, rugged powder-coated steel construction, and smooth-rolling casters (with locking rears) make the RWS-200WL a shop essential you’ll rely on every day.

When it comes to mobility, performance, and operator comfort, nothing else in its class compares. The RWS-200WL doesn’t just lift wheels–it lifts your whole workflow.

Additional Details

• Reduces Risk of Lifting Injuries – Minimizes strain, sprains, and repetitive motion injuries associated with lifting heavy tires and wheels
• Helps Prevent Common Workers’ Comp Claims – Protects technicians from one of the most common shop-related injury types
• OSHA-Friendly Safety Practices – Shows compliance with OSHA 29 CFR 1910.176 (handling of materials) and 29 CFR 1910.132 (PPE and ergonomic hazards)
• 200-lb. (90.7 kg) Lifting Capacity – Handles oversized, heavy-duty and performance wheels with ease
• Battery-Powered 24VDC Linear Actuator – Delivers smooth, controlled lifting with zero air or wall power required
• 44.8Ah Industrial Lithium-Ion Battery – Provides long runtime with up to 1000 charge cycles for years of dependable use
• No Air Lines. No Power Cords. No Hazards. – Unlike pneumatic or 110V lifts, the RWS-200WL operates without tethered hoses or cords, eliminating tripping hazards, tangled lines, and shop clutter. No need to drag cables or hunt for outlets – just charge and go.
• Fast Lift Speed: 1.6 in/sec – Boosts productivity while maintaining safe, steady motion

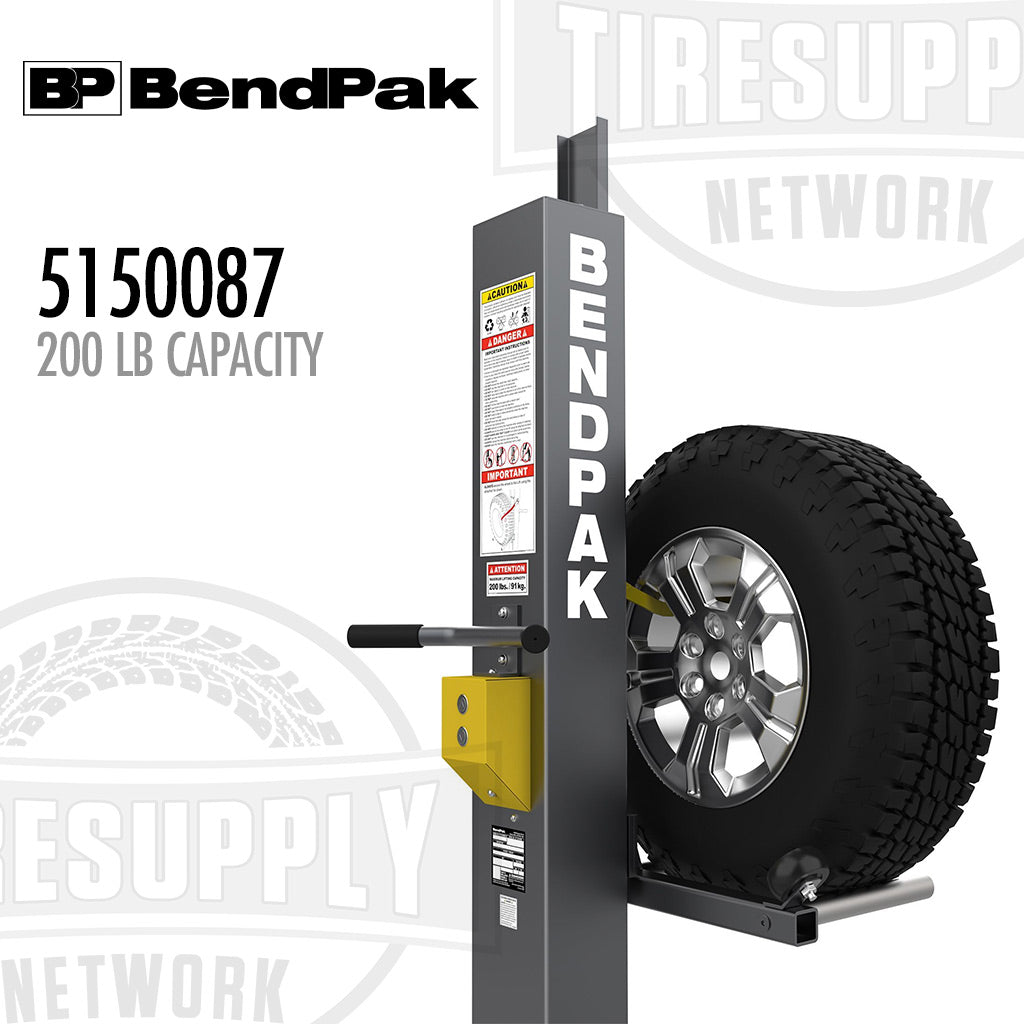

• One-Touch Control Panel – Simple UP/DOWN buttons ensure intuitive operation for any technician

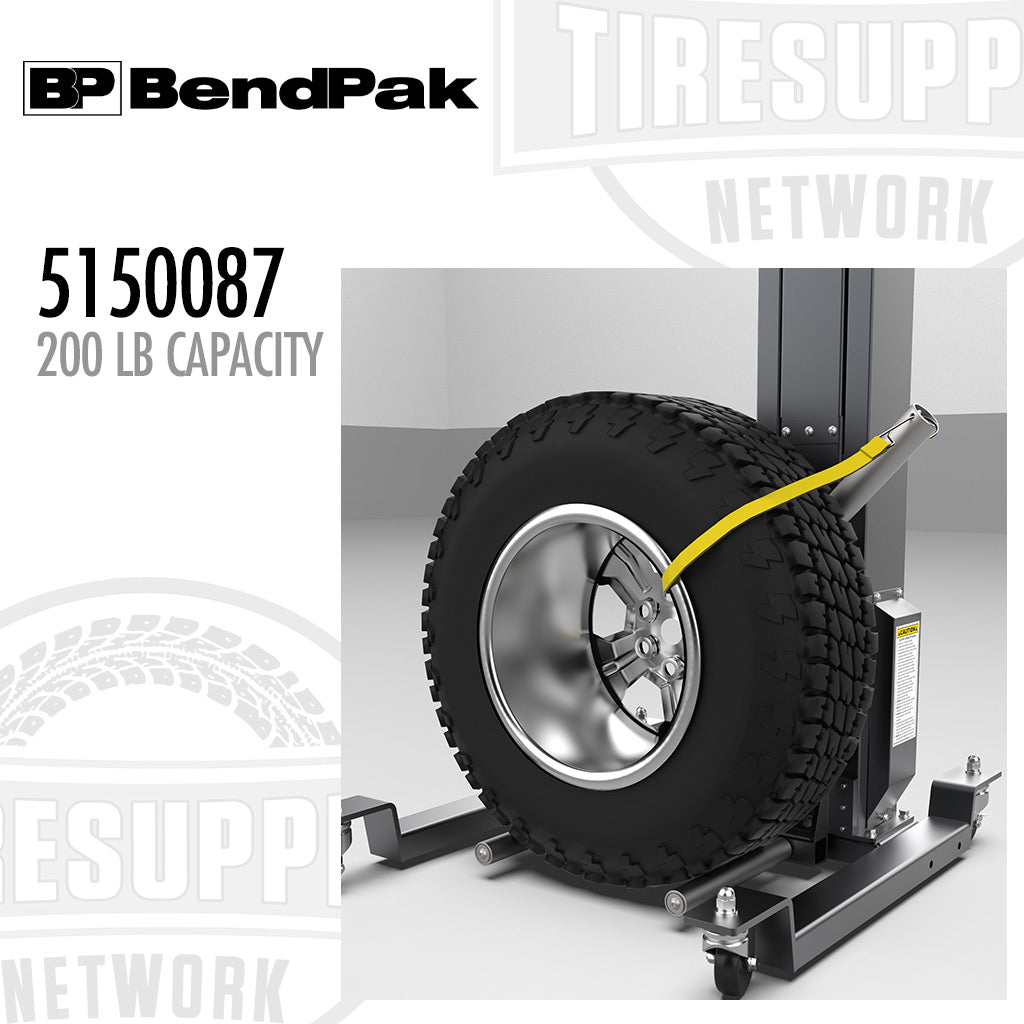

• Integrated Safety Tie-Down Strap – Keeps wheels restrained in place during lifting and transport
• Powder-Coated All-Steel Construction – Built to withstand daily abuse, corrosive chemicals, and shop hazards
• Compact Base with Heavy-Duty Casters – Moves easily around tight bays; two locking casters keep the lift firmly in place
• Oversized Roller Assembly – Supports large wheels securely, helps technicians align easily
• Stable Nylon Slide Blocks – Minimize friction and wear on the lift post for smoother operation and longer life

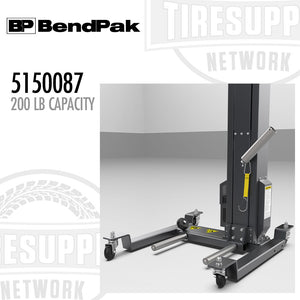

• Low-Profile Base Frame – Wheels roll easier into position during set up. Fits under low ground-clearance vehicles.
• High-Productivity Precision Use – Ideal for tire shops, EV service bays, fleet facilities, and OEM service departments
• Global Battery Charger – Accepts 100–240VAC input; no adapters required in most regions
• Tool-Free Setup and Maintenance – Designed for easy assembly and long intervals between maintenance checks
• Battery Status Indicator – Displays remaining battery life automatically when powered on.
• 12V DC Output – Provides convenient power for accessories or small tools.

Specifications

Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
