BendPak | EV Battery Pack Lift Table 4,500 lb Capacity - EVS4500 (5175613)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase. Customer must have a Forklift for delivery and Installation is NOT included with purchase.
4,500 Lb. Cap. / EV Battery Pack and Powertrain Lift Table / Rechargeable 12V / Incl. Battery

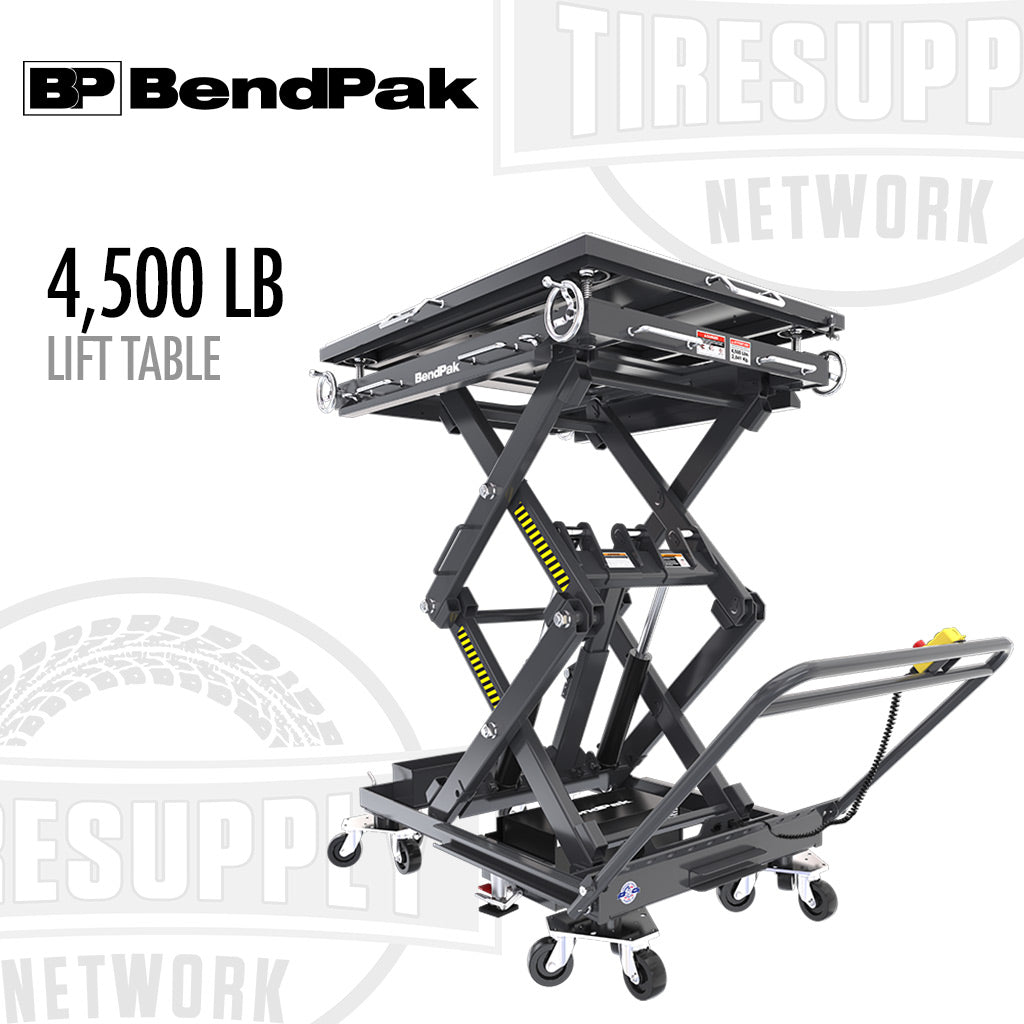

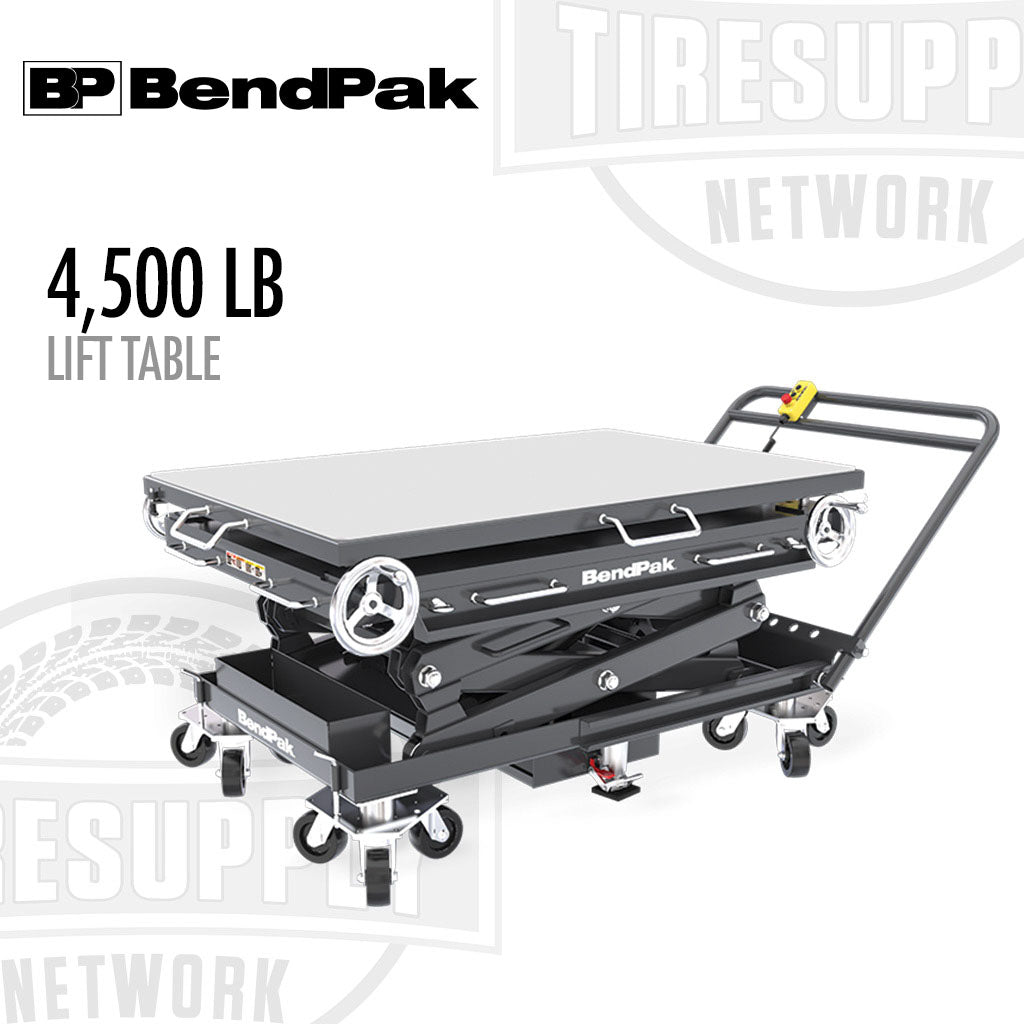

BendPak’s revolutionary Mobi-EVS™ line of full-rise battery powered mobile scissor lift tables are perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. The EVS4500 boasts a 4,500-lb. lift capacity and features a compact design which can be easily transported anywhere in the workplace, making them ideal for multi-bay facilities or workplaces with confined areas..
PRODUCT DETAILS:

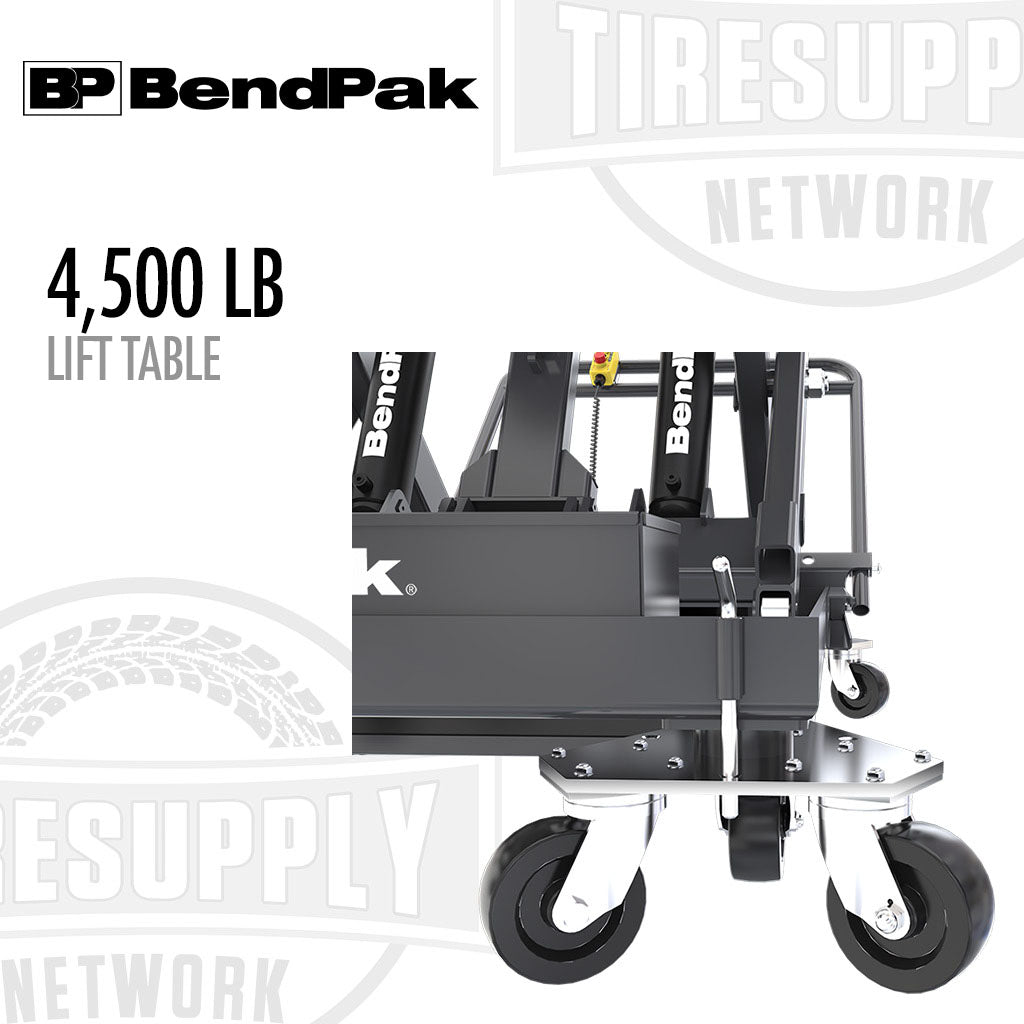

- Zero-throw casters for extreme maneuverability
- Stowable Tow Bar
- Twin hydraulic cylinders
- Tri-caster locking pin
- DC Electric power system with onboard charging
- Multi-point safety locks
- Remote control operation
- Full-length utility trays

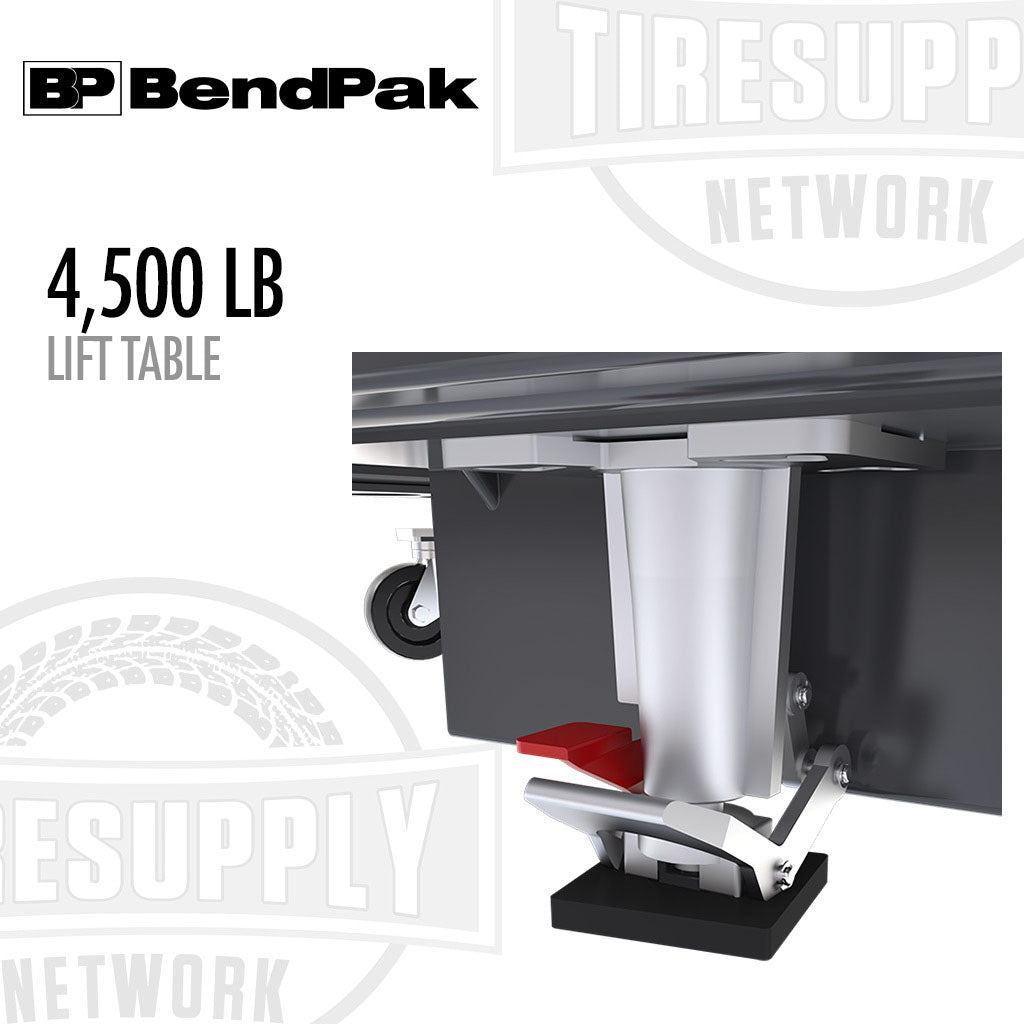

- Manual floor locks

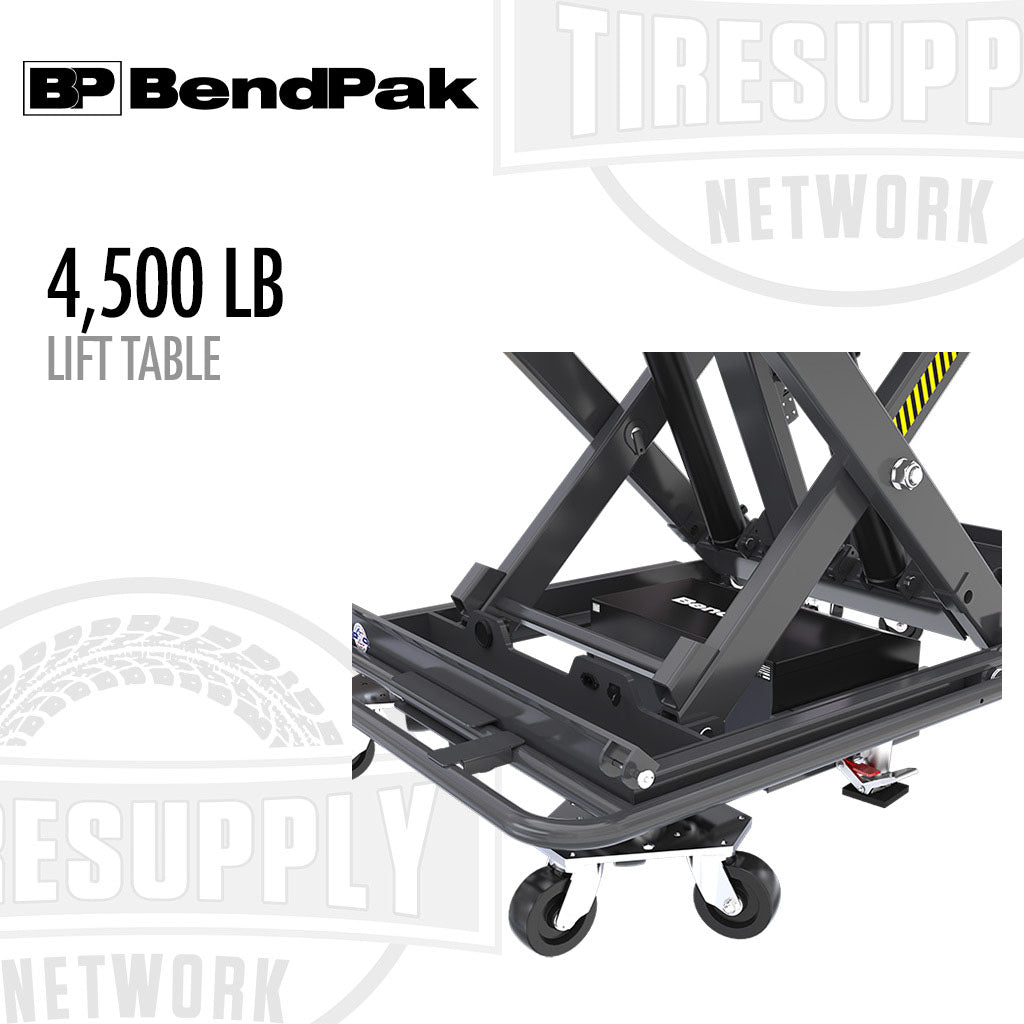

- Dual scissor design
- 12-Volt deep cycle battery
INFORMATIONAL LINKS:
- Free Shipping to Contiguous 48 States > CLICK HERE
- User Manual >CLICK HERE
- Sales Sheet > CLICK HERE
- Warranty >CLICK HERE
WARRANTY:
- 2 Years Structure
- 1 Years Hydraulics
- 1 Year Parts & Labor

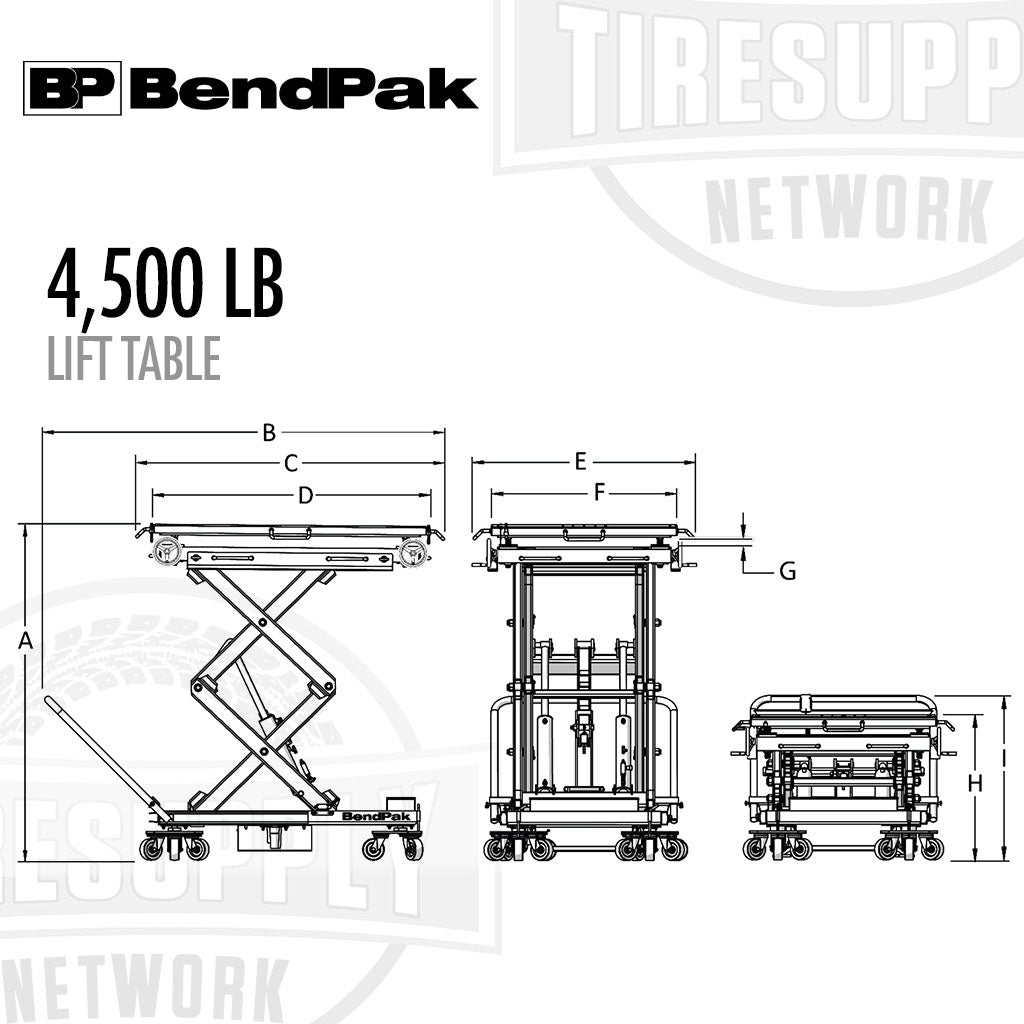

| CAPACITY | |
| Lifting Capacity | 4,500 lbs. (2,041 kg) |

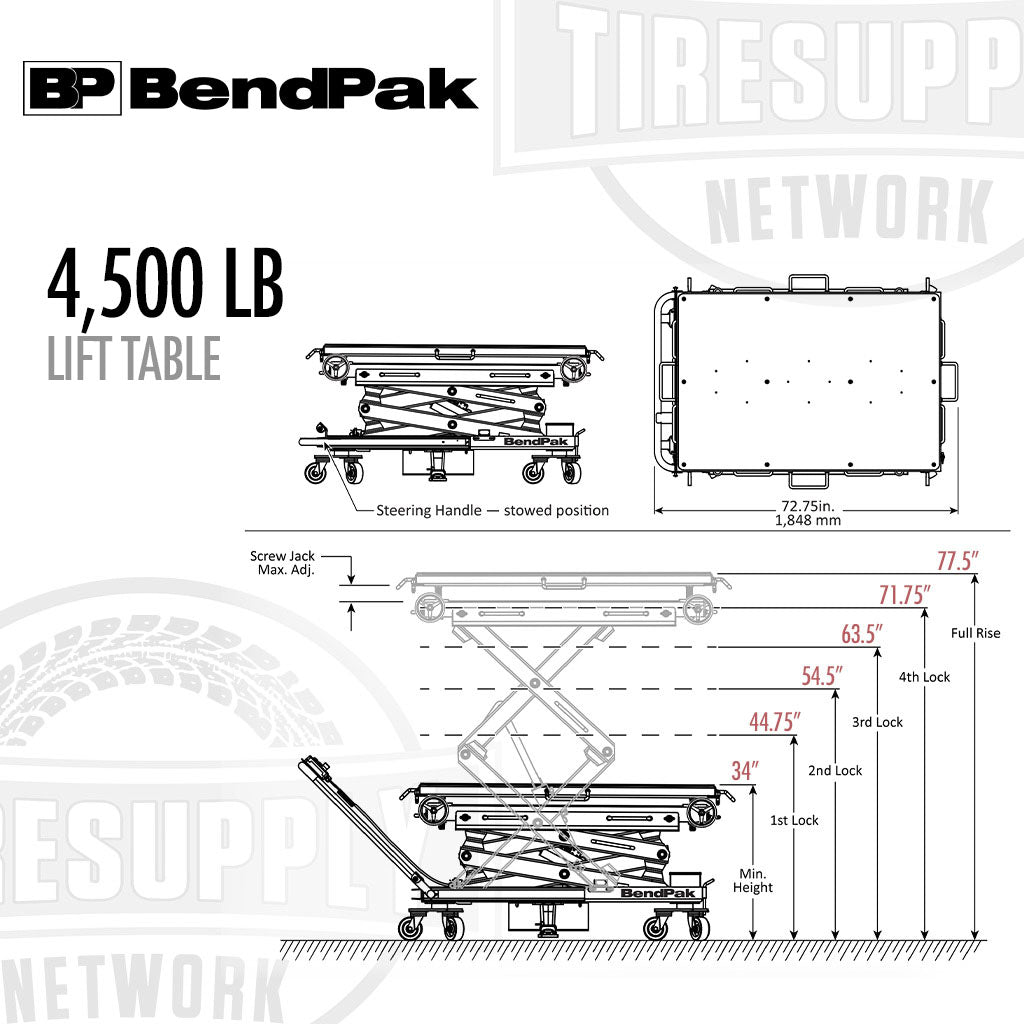

| Maximum Rise | 77.75" (1,972 mm) |
| Overall Length | 91.25" (2,318 mm) |
| Top Deck Length (w/Handles) | 71.25" (1,807 mm) |
| Top Deck Length | 63" (1,600 mm) |
| Overall Width (w/Handles) | 53" (1,348 mm) |
| Top Deck Width | 42.75" (1,088 mm) |

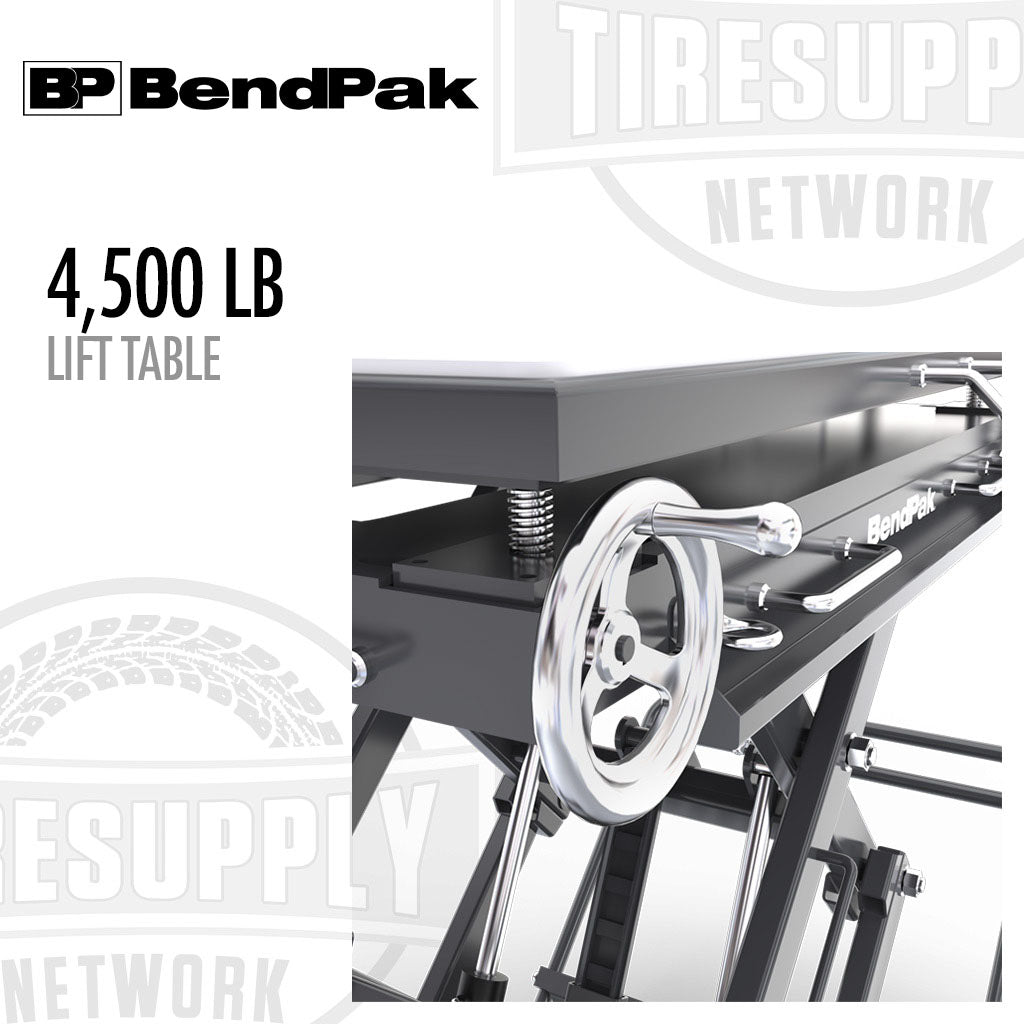

| Screw Jack Max Adjustment | 1.5" (38 mm) |
| Minimum Deck Height | 34.25" (868 mm) |
| Height of Steering Handle | 39.25" (997 mm) |
| Motor | 12VDC |
| Operating Pressure at Max Load | 1720 psi |
| Battery Charger | Input 120 VAC, 60 Hz | Output 12VDC, 15A |
| Battery Charge Time | 10-12 Hours of full charge from 20% |
| Lifting Time | 18 Seconds |
| Weight | 1,918 lbs (870 kg) |
DESCRIPTION

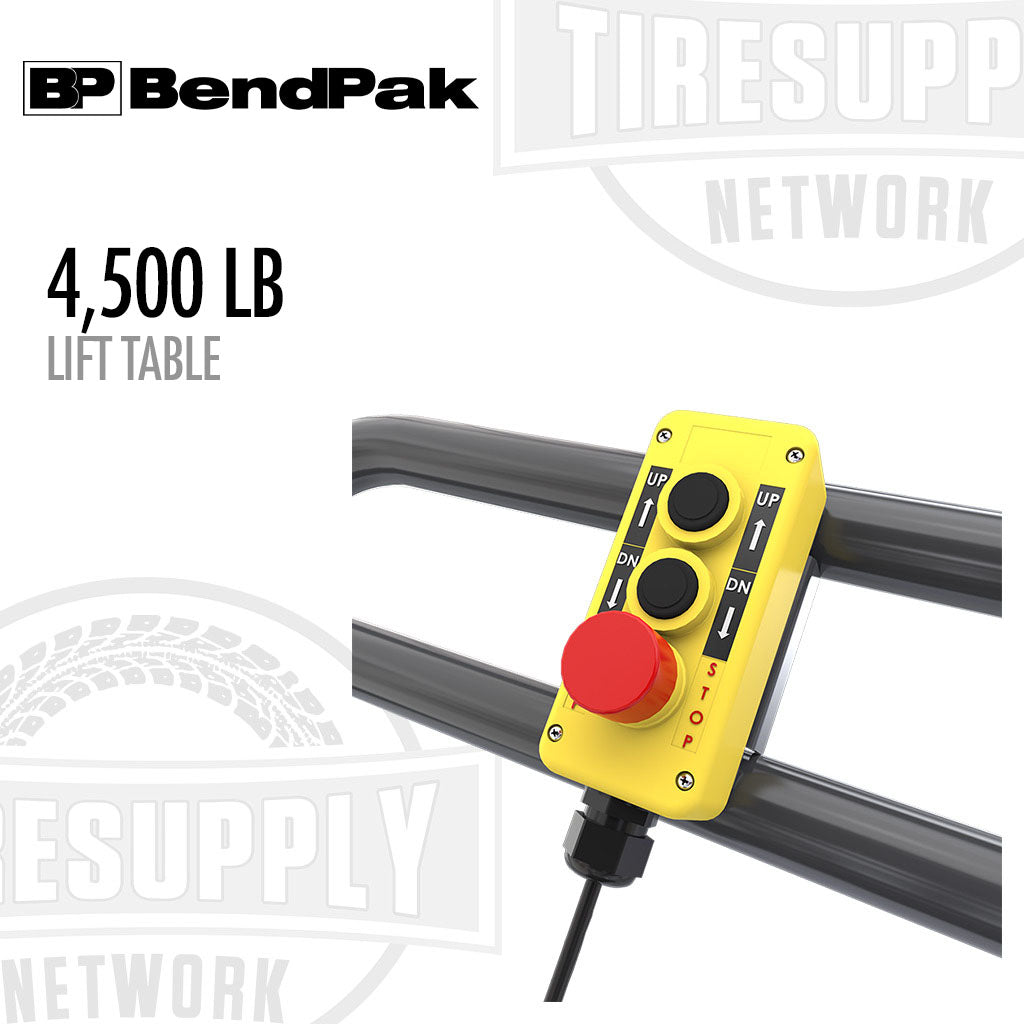

With a press of the button on the pendant control, the lift platform elevates to more than 6 feet in less than 20 seconds. Mobi-EVS lift tables feature state-of-the-art engineering and technology within an elegant design that sets a new industry benchmark for performance and versatility.

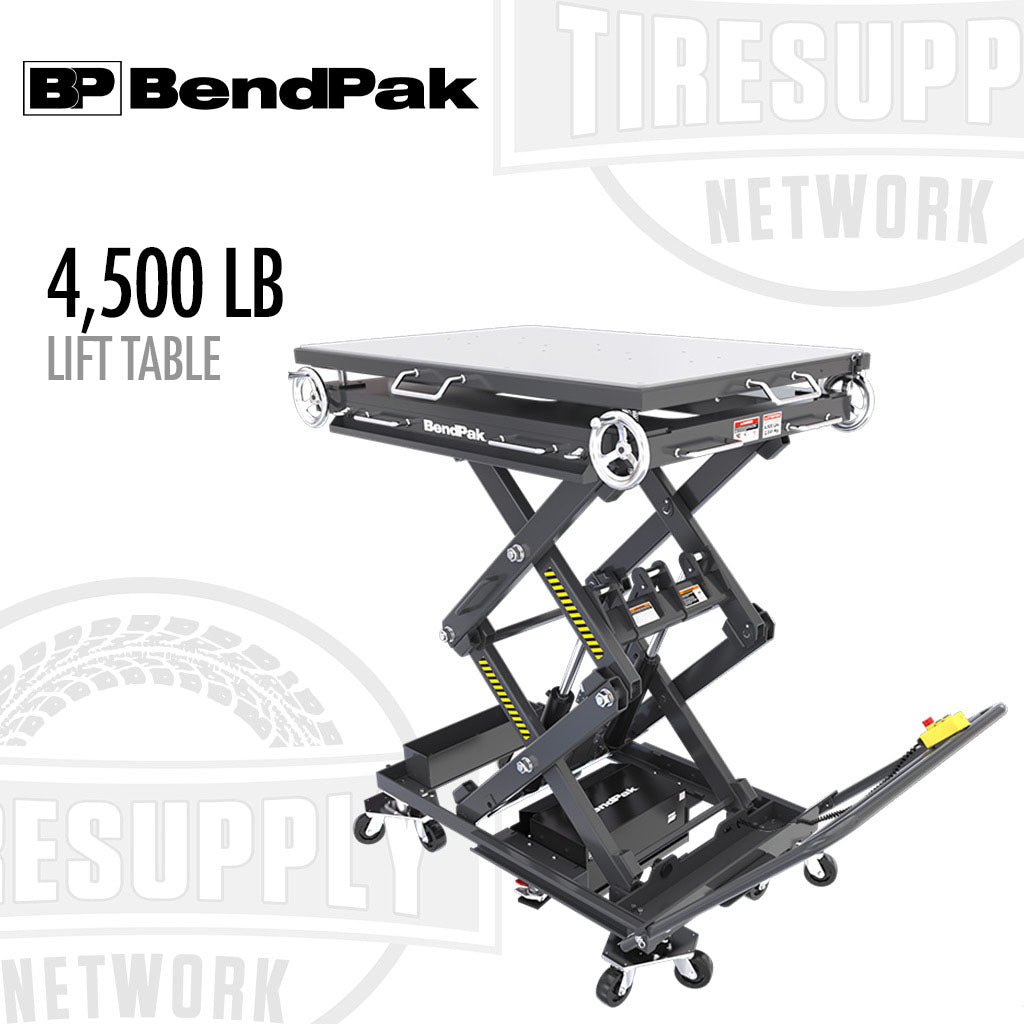

The 63” x 42.5” lift platform is the perfect size for safe handling of heavy battery packs and powertrain systems. The platform surface features multiple recessed anchoring locations for accommodating a variety of modular fixtures, adapters, and accessories that can be repositioned or removed as applications dictate.

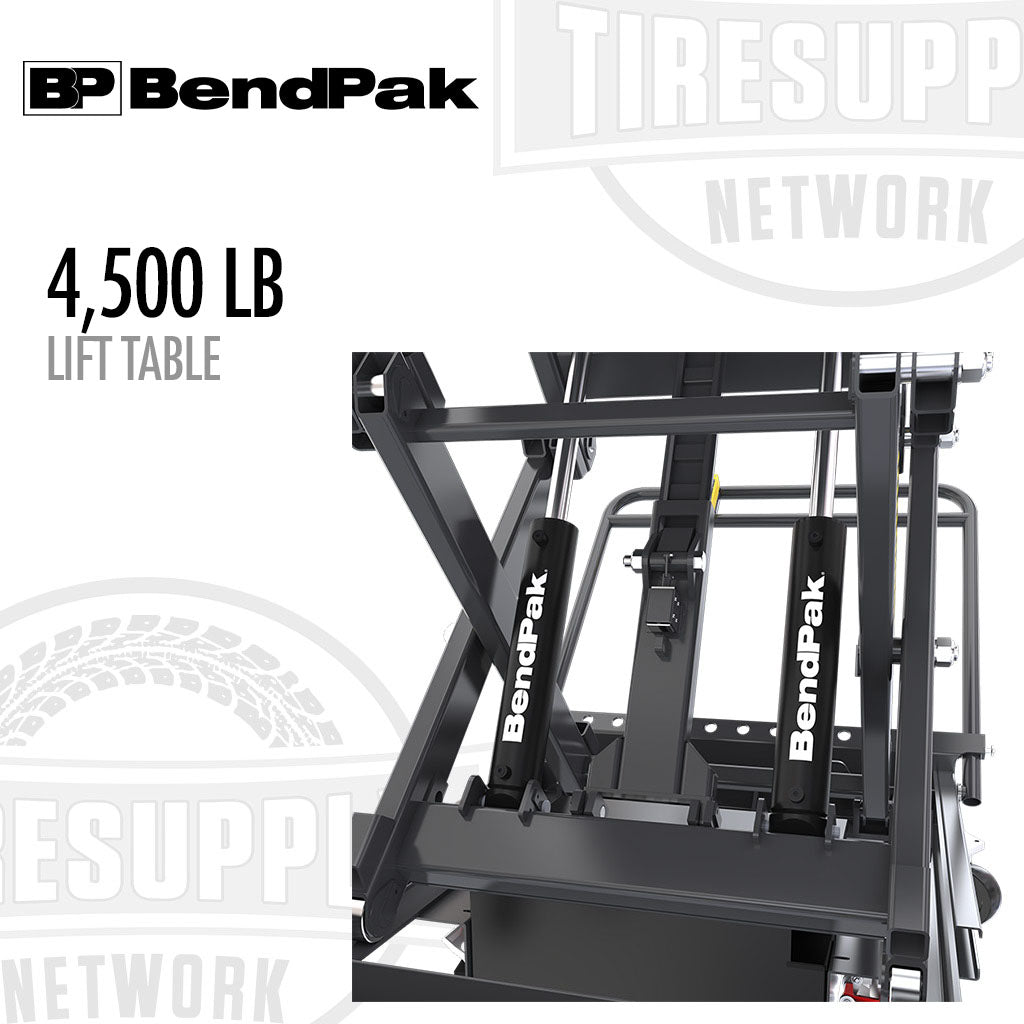

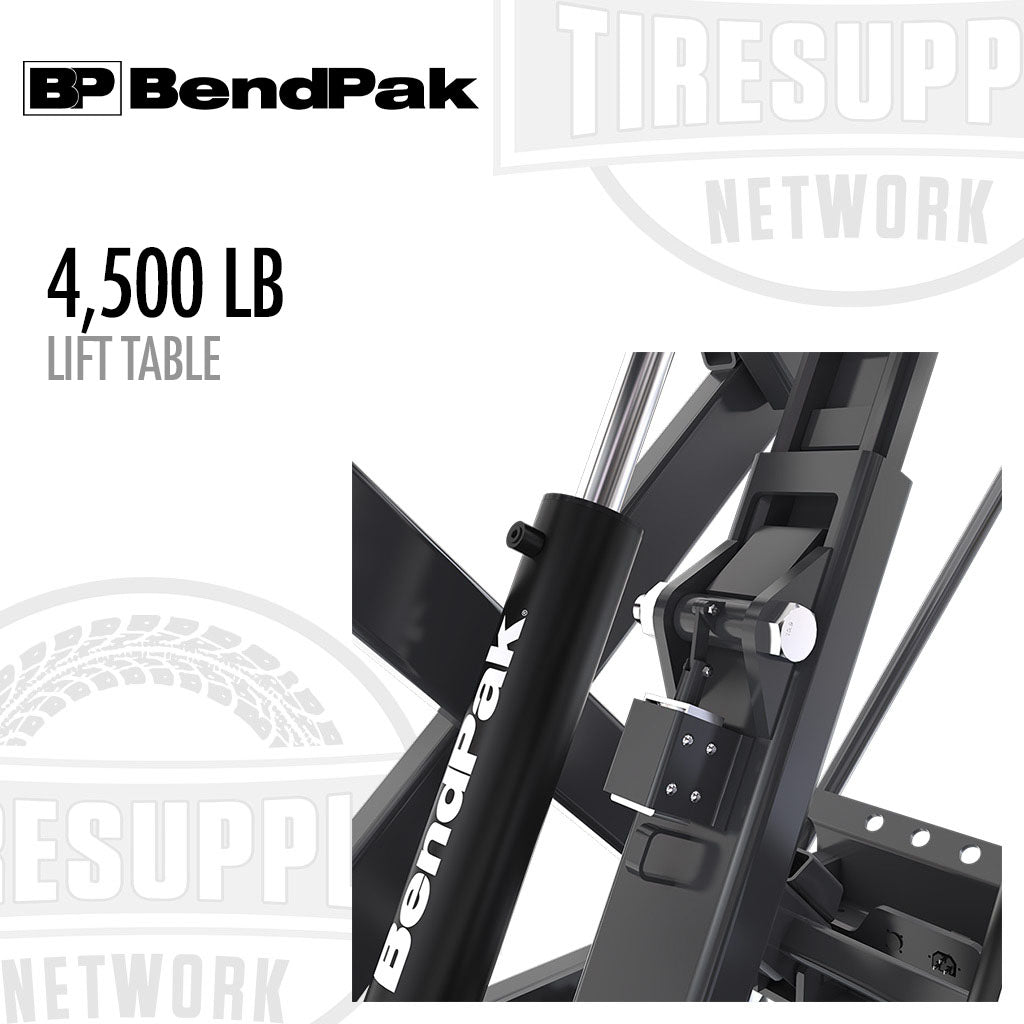

Twin hydraulic cylinders feature welded construction, chrome-plated rods, and high polished bores for extended seal life. Proprietary seal design reduces leakage and increased seal life for long-lasting, dependable operation.
Mobi-EVS systems feature a heavy-duty 12V DC power unit with deep cycle battery, an onboard battery charger, and battery charge indicator gauge that accurately displays the charge condition of the lift battery at all times.
Extremely durable and impact-resistant Ultra-High Molecular Weight (UHMW) Polyethylene protects the tabletop from wear and tear and provides a low-friction surface allowing technicians to shift heavy components back and forth on the tabletop with less effort. The UHMW also acts as an insulation barrier that prevents direct contact between electrical components and the conductive surface of the steel platform.
BendPak’s AP series pairs extremely well with the Mobi-EVS line of lift tables. As the shift from gas engines to EV’s grows, so does the need to safely handle the increased weight and EV-specific jacking points. Our newest 10AP two-post lift offers a generous 10,000 lb. lifting capacity combined with newly patented Bi-Metric™ triple-telescoping arms that are perfectly suited for EV service and more.
The Mobi-EVS boasts an array of thoughtfully integrated ergonomic features that seamlessly merge user comfort and operational efficiency. These features collectively empower mechanics to work more efficiently, minimizing fatigue and maximizing their overall output within the dynamic automotive workshop environment.
Need replacement parts? Call or email us and we can special order them for you!
