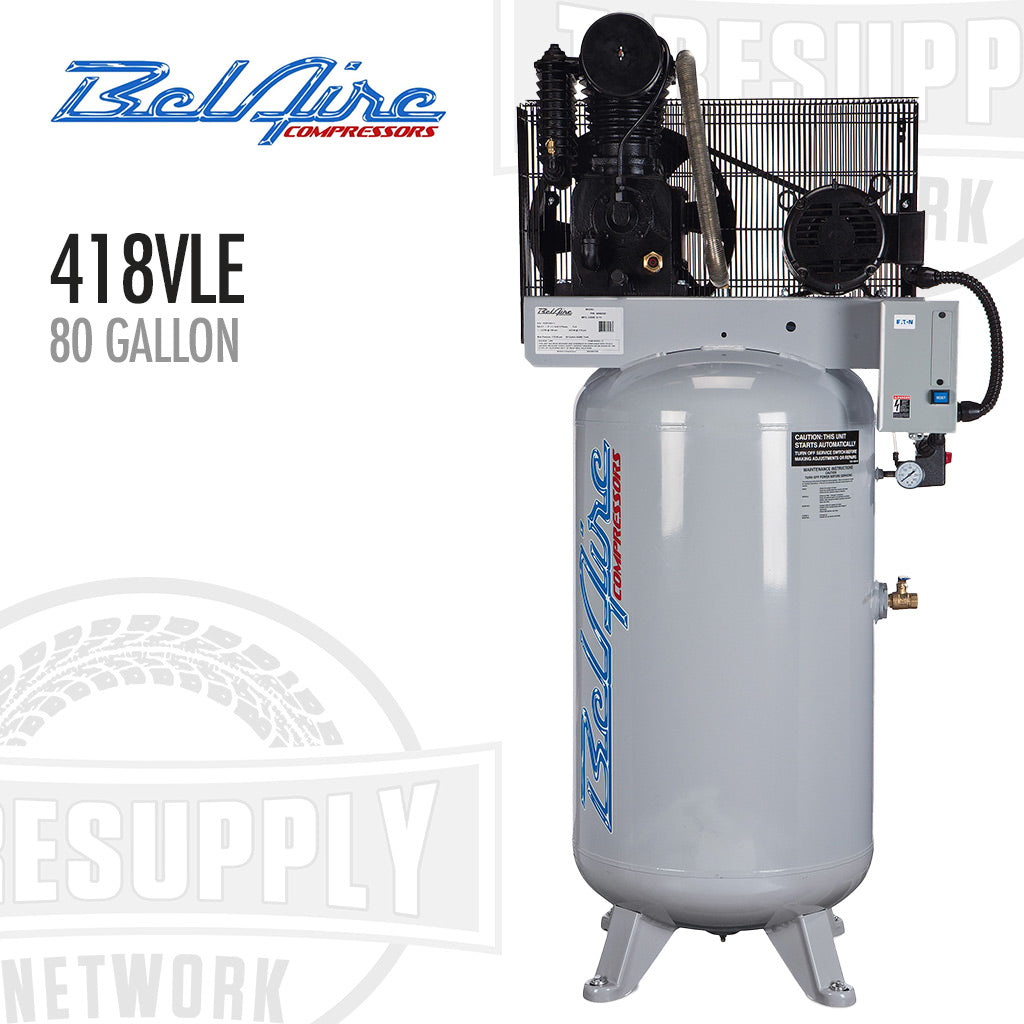

BelAire | 80 Gallon Electric Air Compressor - 1PH, 7.5HP - Vertical (418VLE)

BelAire | 80 Gallon Electric Air Compressor - 1PH, 7.5HP - Vertical (418VLE)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

The BelAire 418VLE Elite Iron Series is a heavy-duty air compressor designed for demanding industrial and commercial environments. It features a powerful 7.5-horsepower motor that operates on 208-230V single-phase power, delivering 23 CFM at 100 PSI and 21 CFM at 175 PSI, with a maximum pressure of 175 PSI. The 80-gallon vertical ASME-certified tank provides substantial air storage capacity to support continuous operation and multiple users.

This compressor is built around a solid cast iron two-stage pump that runs at a low 900 RPM, which helps reduce wear and noise while extending the unit’s lifespan. It includes a magnetic starter for reliable motor protection and smooth startups. Safety and efficiency are further enhanced by features such as an automatic tank drain, an aftercooler to reduce discharge air temperature, and a low oil level switch to protect the pump.

Maintenance is straightforward with these built-in features, and the oil type recommended is 30W non-detergent oil. The unit measures approximately 37 inches long, 24 inches wide, and stands 72 inches tall, weighing about 610 pounds. It requires a 60-amp breaker for proper electrical protection. Backed by a two-year bumper-to-bumper warranty, the BelAire 418VLE offers dependable performance and peace of mind for workshop professionals.

Features:

BelAire 7.5-HP Elite Iron Series Splash Lubricated Air Compressor
Great performance and value offer professional quality. Lubricants protect against high heat and extend equipment life. Fully packaged unit includes auto drain, aftercooler, magnetic starter, pressure switch and low oil switch.

Solid Cast Iron Pump Construction
Adds dependability and smooth operation. Finned coolers enable more efficient heat exchange. Automotive-style rod bearing & wrist pins allow less oil carryover. Space-saving concentric valves offer compact design and max delivery volume.

High-Performance Baldor Motor
Runs smoothly, quietly and efficient as possible. Improves your systems reliability and performance. Thermal overload switch automatically prevents overheating.

Start-Stop Pressure Switch Controls
Automatically controls on/off cycling of compressor. Stops when cut-off pressure has reached capacity.

Magnetic Starter
Safe method for starting an electric motor with a large load. Under-voltage & overload protection w/ automatic cutoff in the event of a power failure.

High-Flow Wire Beltguard Aftercooler
Cools compressed air & removes moisture from air stream. Improves air quality for longer lifespan of tools and equipment.

Elite Series Automatic Tank Drain (Not Electronic)
Pressurized auto draining makes tank maintenance effortless. Routine draining prevents air contamination & prolongs tool life.

Low Oil Level Switch
Automatically disables your compressor if the oil level is too low. Protects your compressor's pump from seizing when your oil level drops.

80-Gallon ASME Air Tank
Pressure gauge shows the regulated pressure of compressed air. Safety valves prevent pressure in tank from rising over limit.

2 Year Bumper to Bumper Warranty
No additional purchase necessary. 100% factory tested.

Specifications:

Motor

Engine

Pump

Tank

Accessories

Overview

Compliance and Restrictions:

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
