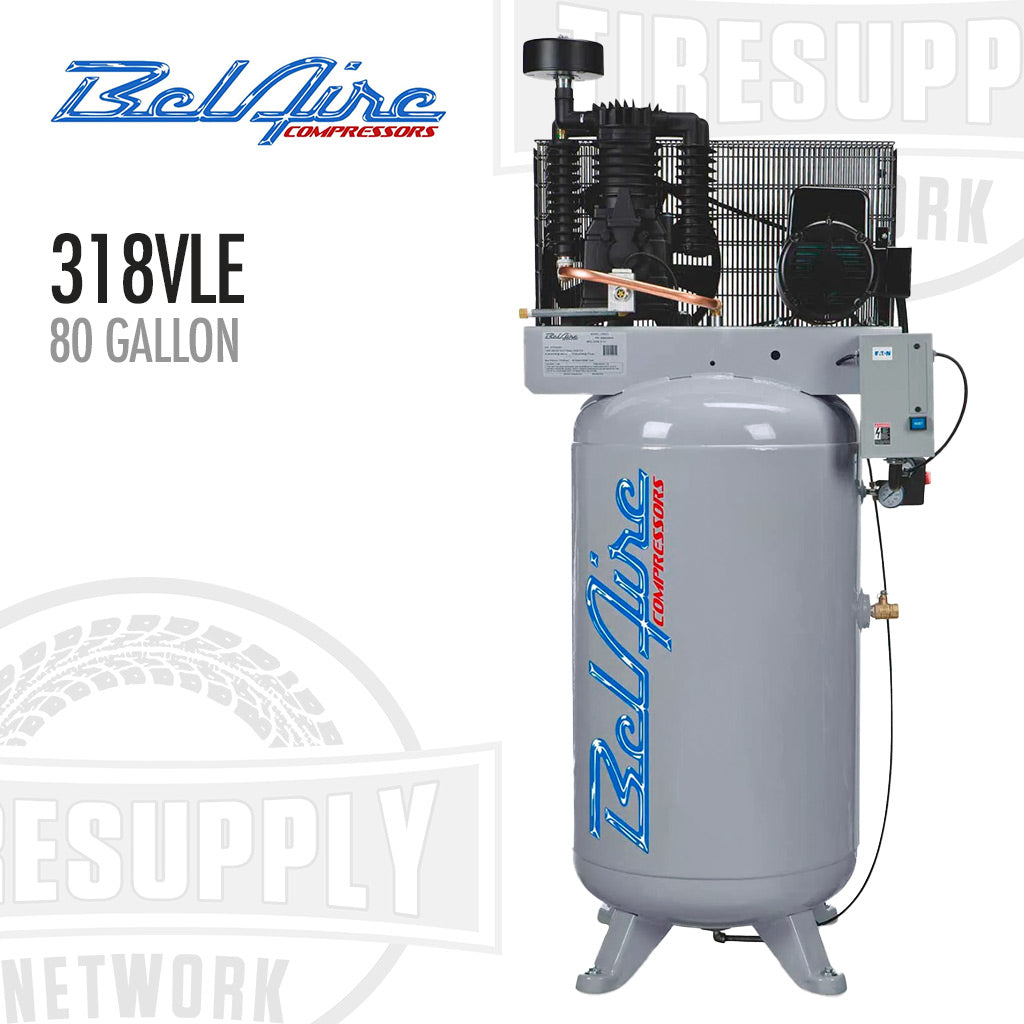

BelAire | 80 Gallon Elite Series Electric Air Compressor - 1PH, 7.5HP - Vertical (318VLE)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The BelAire 318VLE Elite Series is a high-performance two-stage air compressor designed for demanding commercial environments. Powered by a 7.5 horsepower motor operating on a 208-230V single-phase electrical system, it delivers 22.3 CFM at 100 PSI and reaches a maximum pressure of 175 PSI, making it suitable for powering pneumatic tools and equipment in automotive and industrial applications.
This model features an 80-gallon vertical ASME-certified air tank, providing ample air storage to reduce motor cycling frequency and enhance overall efficiency. The compressor is equipped with a triple-pass pump-mounted aftercooler, which helps maintain optimal operating temperatures, extending the life of the pump and improving performance.
Additional features include a magnetic starter for reliable motor protection, an automatic tank drain for easy maintenance, and a low oil level switch to prevent damage from insufficient lubrication. The fully enclosed high-flow belt guard ensures safety by protecting moving parts, while the oil level sight glass allows for easy monitoring of oil levels.
With its compact design, the 318VLE is ideal for workshops where space is limited. The unit is 39 inches in length, 24 inches in width, and 77 inches in height, and comes with a two-year bumper-to-bumper warranty, covering all components, including valves.
Features:
- Two-stage hybrid pump designed for superior quality & extends he life of the pump
- Compact design ideal for work environments where space is a premium.
- Single phase motor with magnetic starter save money with no need to purchase an additional starter
- 100% factory tested at full pressure
- High flow belt guard full enclosed design provides added safety
- Start/Stop pressure switch control & stainless steel valves saves time and energy and extends the life of the compressor.
- Auto tank drain & low oil switch protects your investment for hours of reliable operation
- Triple-Pass pump mounted aftercooler keeps your pump running cooler and longer
Specifications:
| Compressor CFM | 25.3 |
| Compressor CFM Range | 25 - 44.9 |
| Horsepower | 7.5 |
| Horsepower Range | 5 - 9.5 HP |
| Compressor PSI | 175 |
| Model | QP318VLE |
| Compressor Tank Size | 80 |
| Tank Size Range | 60 - 80 Gallon |
| Voltage | 230/1 |
| Weight | 549 lbs |
| Dimensions | 39 x 25 x 80 in |
Compliance and Restrictions:
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
