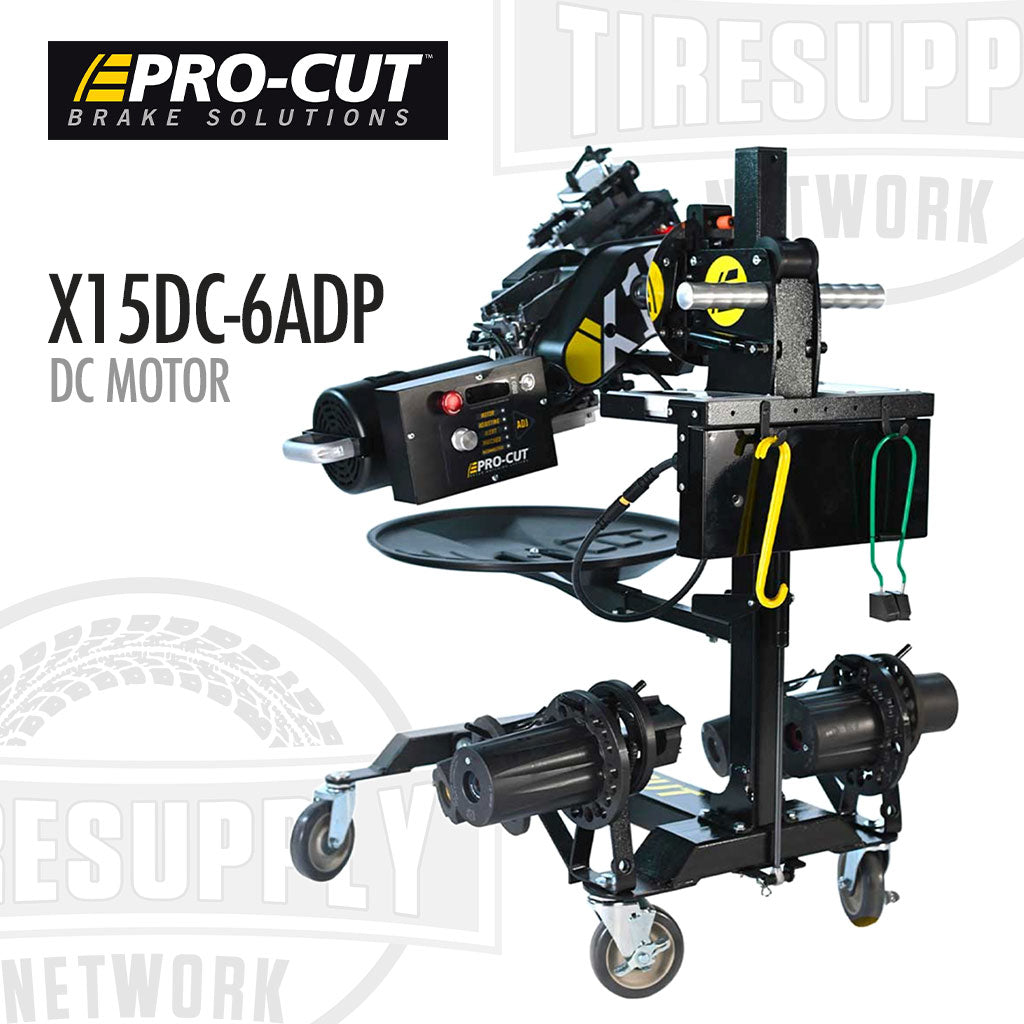

Pro-Cut X15DC-6ADP On-Car PFM X15 Brake Lathe with DC Motor, Trolley, 6 LED Worklights, & 6 Adapters
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The X15 is the height of on-vehicle rotor matching power and sophistication, and is the first and only rotor matching system in the world to be driven by a 48V DC motor. The all-new computer system provides disc tracking, maintenance alerts, and variable speed control. Expect smooth operation, tighter run-out tolerances, and superior surface finishes. The 48V DC difference is incredible! You need to see it to believe it.

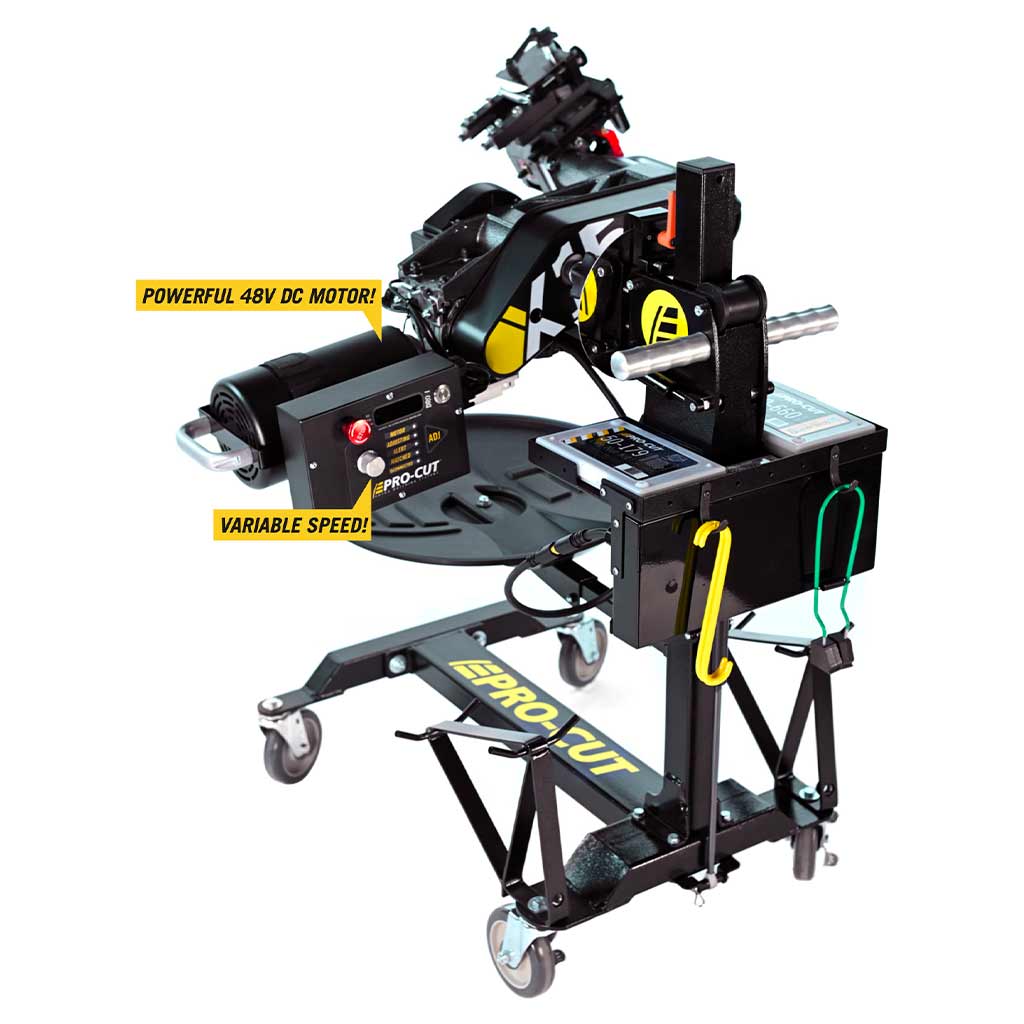

VARIABLE SPEED DC MOTOR. Variable rpm 48v DC power delivers smooth, clean, and consistent power for beautiful, better than OE finishes every time on the widest variety of modern vehicle platforms, including trucks with speed-sensitive locking rear axles.
LATEST ADVANCED ELECTRONICS PLATFORM. All X15 machines come with: 2.0 electronics with DRO usage tracking details, maintenance alerts, compatibility with our latest digital measuring cutting head, and full GYR Validated Brake Service optional upgrades.

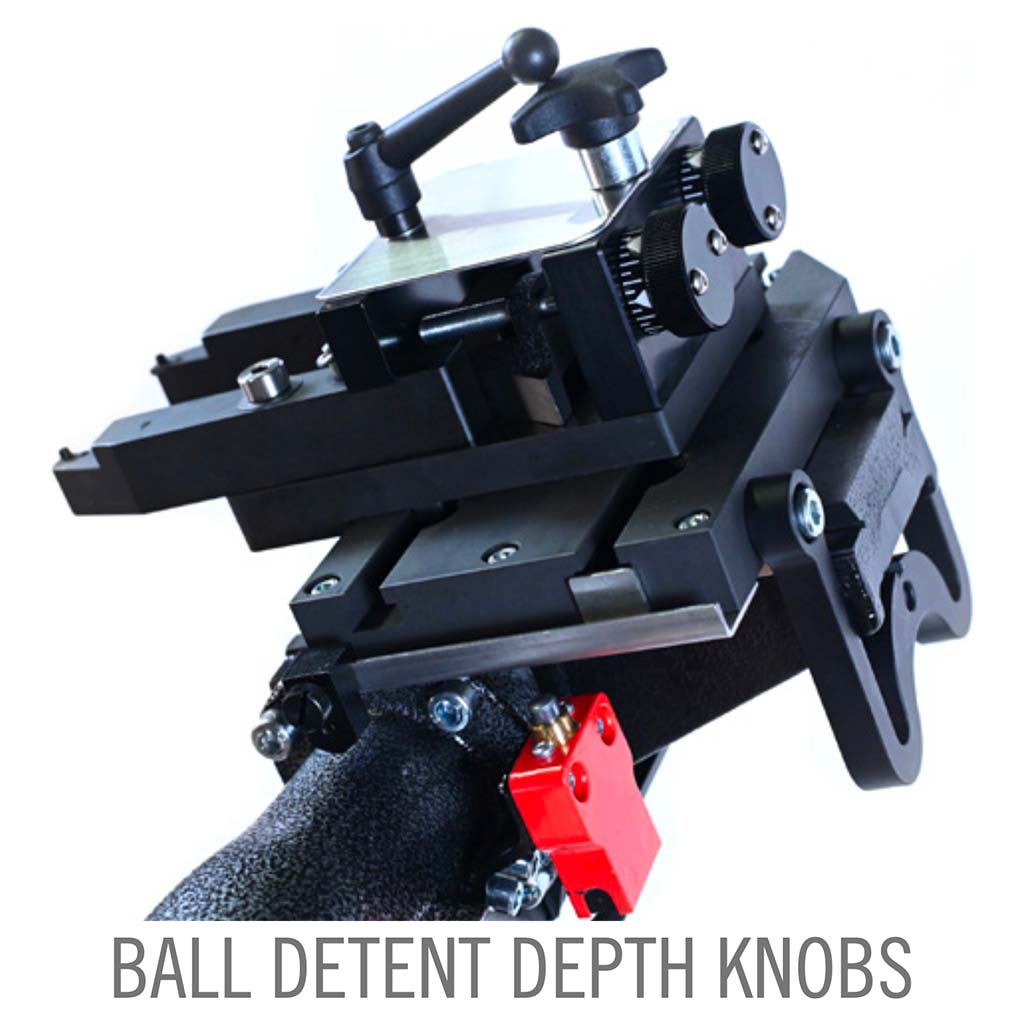

PERFORMANCE PLUS CUTTING HEAD. Has new super strong T-nut lateral locking system and beefier, longer tool arms to match- machine even the largest drilled performance discs.
- Plug in, variable speed 48V DC motor: Power to turn stiff axles and adjustable RPM to even turn locking axles.
- Performance Plus Cutting head: Cuts bigger rotors & provides our best chatter free surface finishes.
- New PFM 2.0 Electronics: Advanced stability & functionality with usage tracking and maintenance alerts.
- Patented one touch Lateral Run Out (LRO) compensation: Press one button and the latest PFM lathes compensate in seconds!
- Cross Platform Compatible Computer & wiring harness: Allows use of G2X Measuring Cutting Head & full GYR Validated Brake Service.

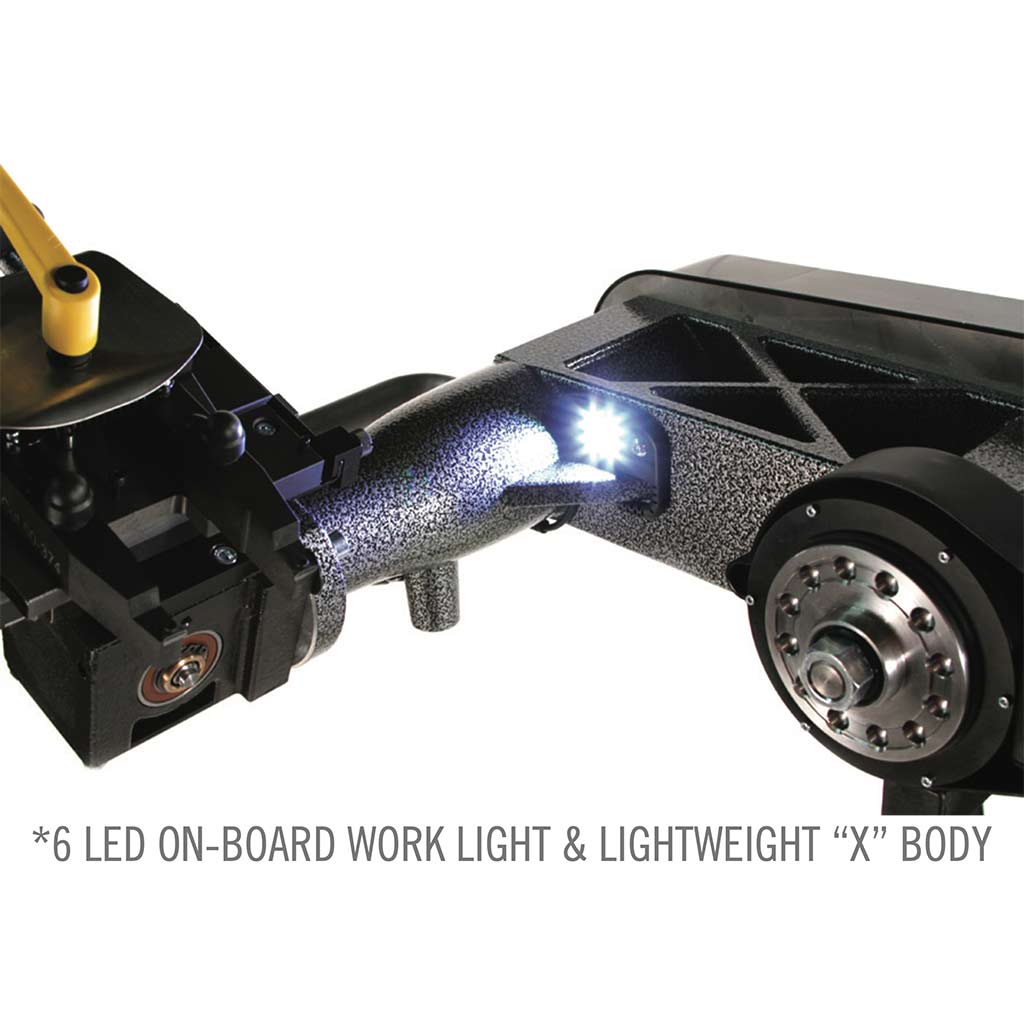

- 6 LED on-board work light: Improves technician safety and efficiency in dark wheel wells.
- 4 Wheel, 4 Axis, Adjustable Trolley: Working Range of 21″ to 43″ allows the use on any lift or no lift with optional short shock.
- 2 Year parts & labor warranty: Match Rotors day in and day out with peace of mind (maintenance & abuse not covered).

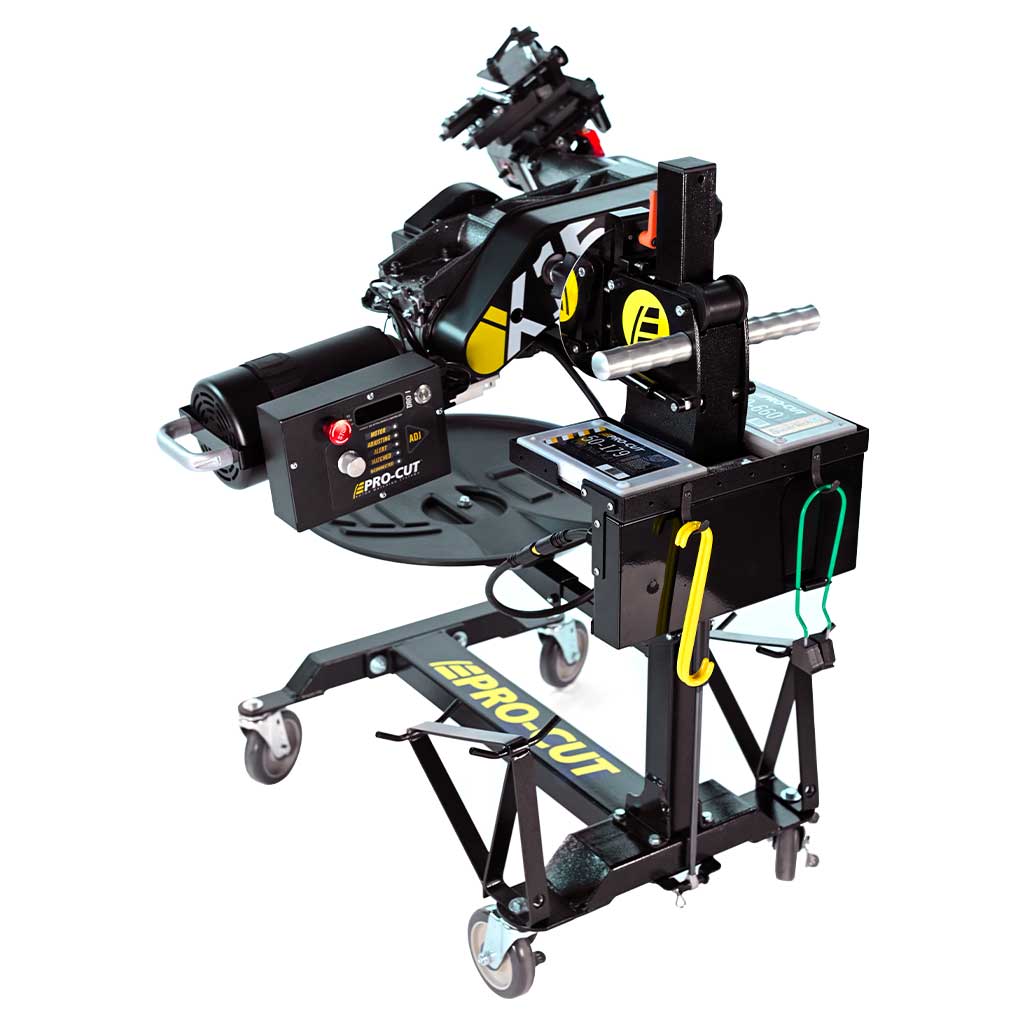

- Pro-Cut X15 48V DC Lathe

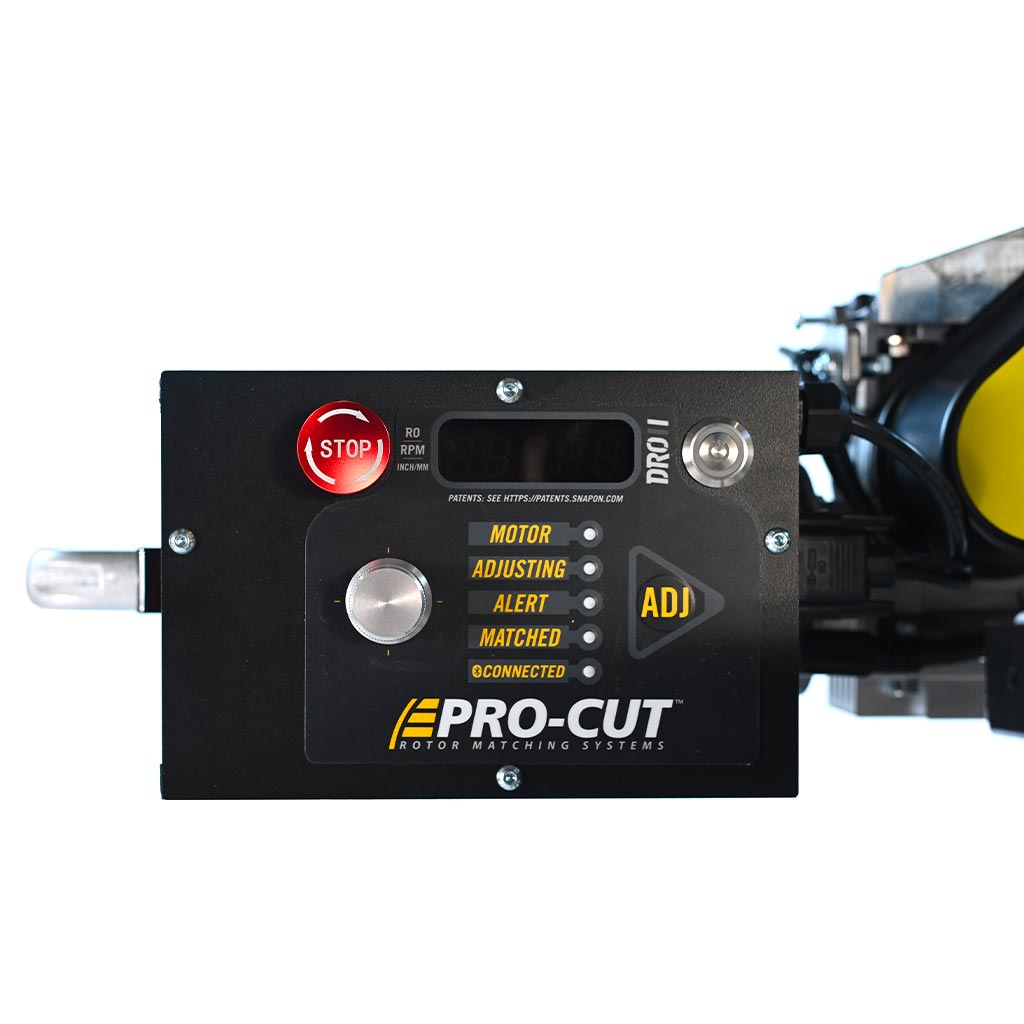

- DRO Computer Box (Accepts G2X & GYR Upgrades)

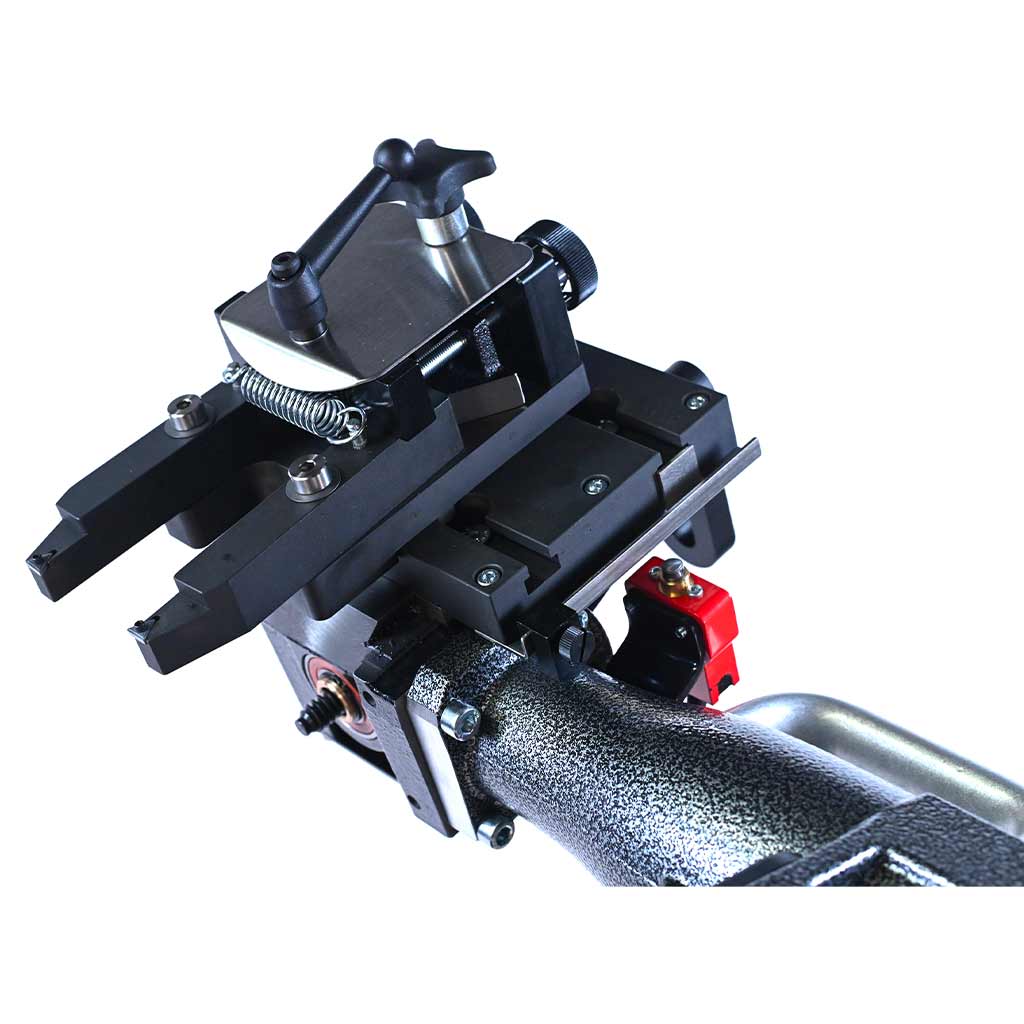

- Performance-Plus Cutting Head
- 4 Wheel, Adjustable Height Trolley
- 6 Adapter Package (Standard, Most Cars & Light Trucks)
- Standard Accessories Included
- On-Site Installation and Training Included

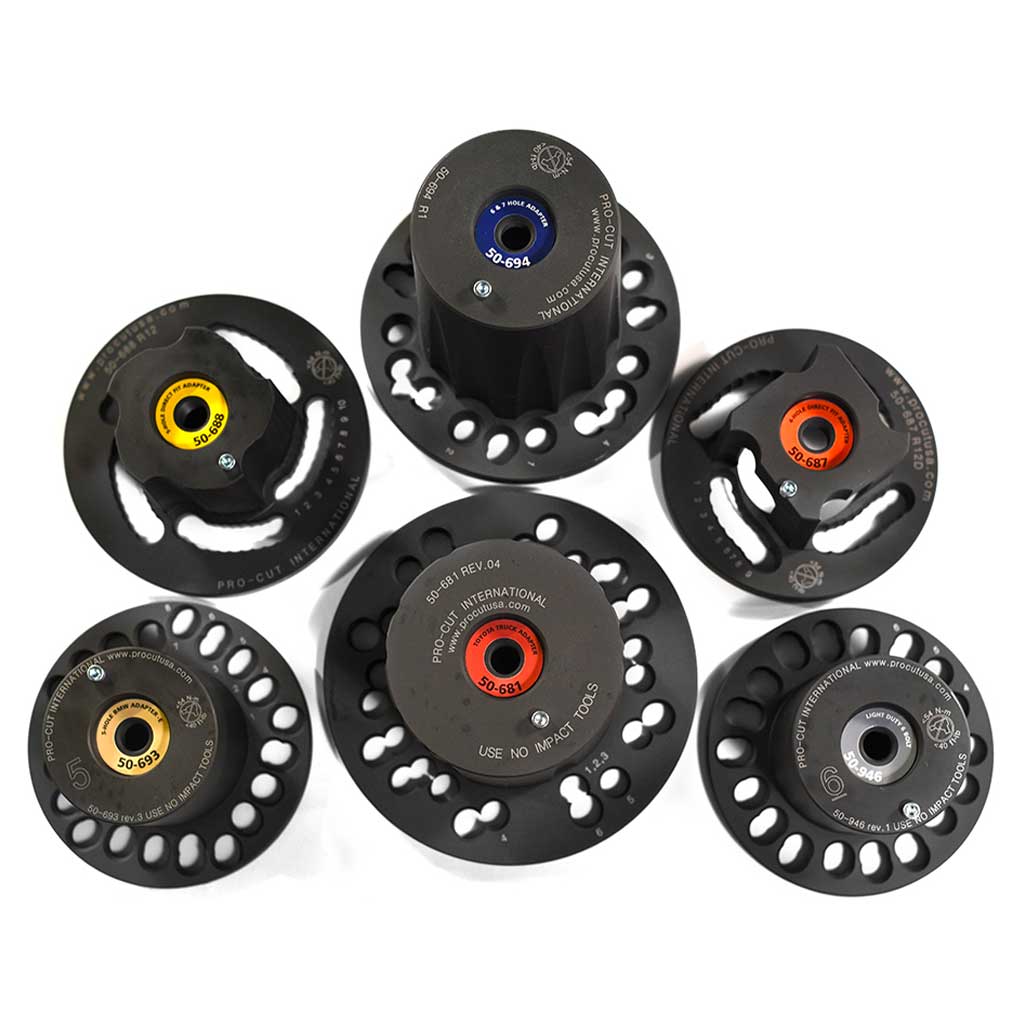

- Pro-Cut 50-687 4-Hole Adapter: Fits most 4-lug vehicles.
- Pro-Cut 50-688 5-Hole Adapter: Fits most smaller 5-lug vehicles.
- Pro-Cut 50-693 Large 5-Lug Adapter: Fits larger 5 lug cars and smaller SUVs and trucks such as Toyota Camry, most BMW models, and Chevy Equinox.
- Pro-Cut 50-946 Light Duty 6-Lug Adapter: 6 lug adapter fits newer Colorado/Canyon, some Cadillacs, and 6-lug single rear wheel Sprinters.
- Pro-Cut 50-681 Toyota Specialty & Alternate Truck Adapter: Fits most pickups and SUVs including the Toyota Land Cruiser and VW Touareg (does NOT have older common Ford pattern found on the 50-691 adaptor).
- Pro-Cut 50-694 Tall Hub Truck Adapter: Primarily used to fit the 2003+ Expedition and 2004+ F150, this adapter shares patterns with other common trucks that have tall hubs which may interfere with the 50-691 adapter.
Specifications (Performance Plus Cutting Head):
|Maximum Rotor Thickness||2.0″|
|Minimum Rotor Thickness||0.2"|
|Maximum Rotor Diameter||17.1″|
|Maximum Friction Face||3.82″|
|Maximum Depth of Cut||0.015″ / Side|
|Spindle Speed||60-130 rpm|
|Carriage Speed||0.005″ / rev.|
|Motor||1.0 HP Continuous, 1.28 HP Peak|
|Shipping Weight||200 lbs|
|Feed Distance||7.09″ (7.48″ Optional)|
