PCL Accura D13 | Wall-Mounted Automatic Tire Inflation System with 4 Hoses 25′ Each & Lock-On Chucks

PCL Accura D13 Wall-Mounted Automatic Tire Inflation System with 4 Hoses 25′ Each & Lock-On Air Chucks

The installation of tires is a skilled operation requiring specialist equipment. PCL's range of multi-function pre-programmable inflation systems offers guaranteed accuracy and meets the demands of busy tire fitting environments.

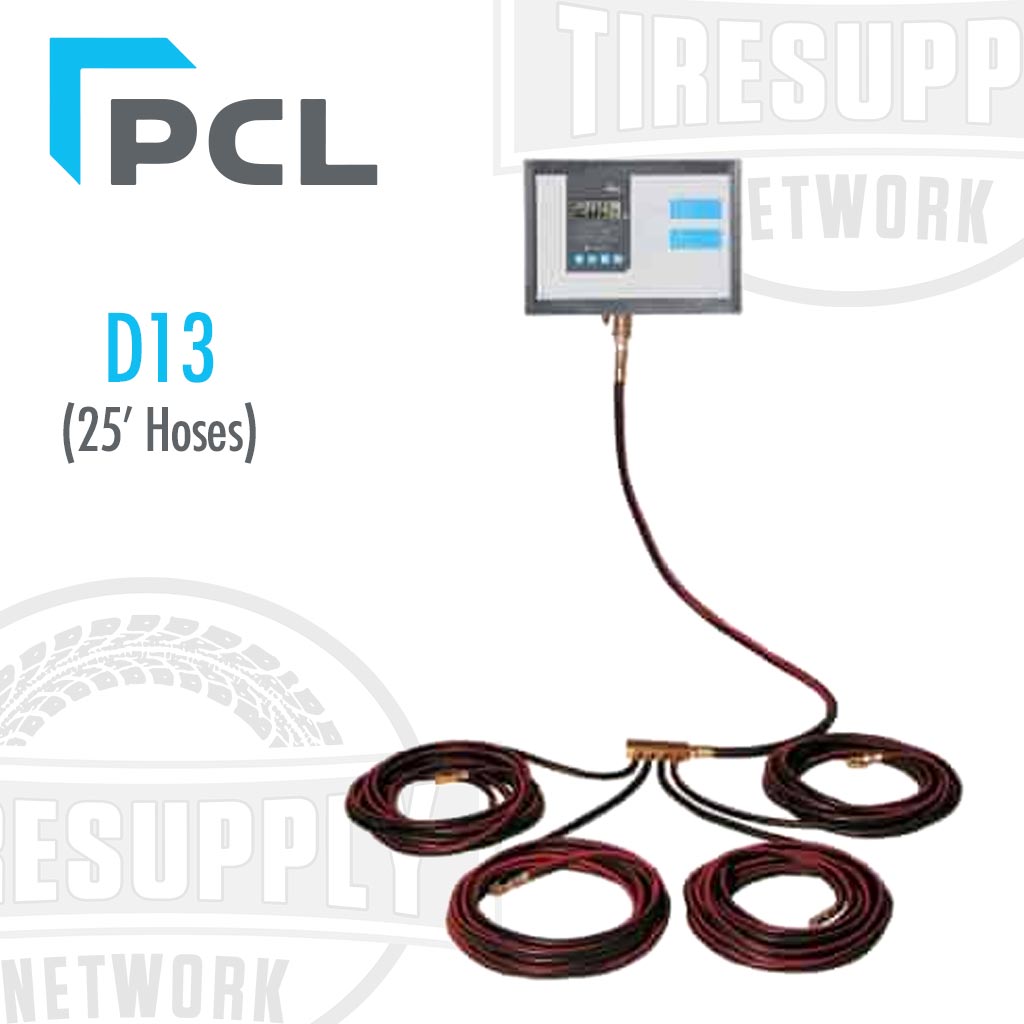

The ACCURA D13 is a multi-function tire inflation system capable of inflating up to 4 tires at once. Suitable for operations where speed due to volume of tires is paramount.

Benefits:

• Consistent cost effective provision of high levels of safe air inflation services
• Reduced tire inflation costs - more efficient use of tire installers and equipment
• Low life time costs - long product life with robust design and proven electronics
• Low and simple maintenance with excellent diagnostics
• Customization of parameters to meet individual needs and applications
• Guaranteed accuracy with individual testing

Features:

• Electronic pressure preset
• Auto start inflation

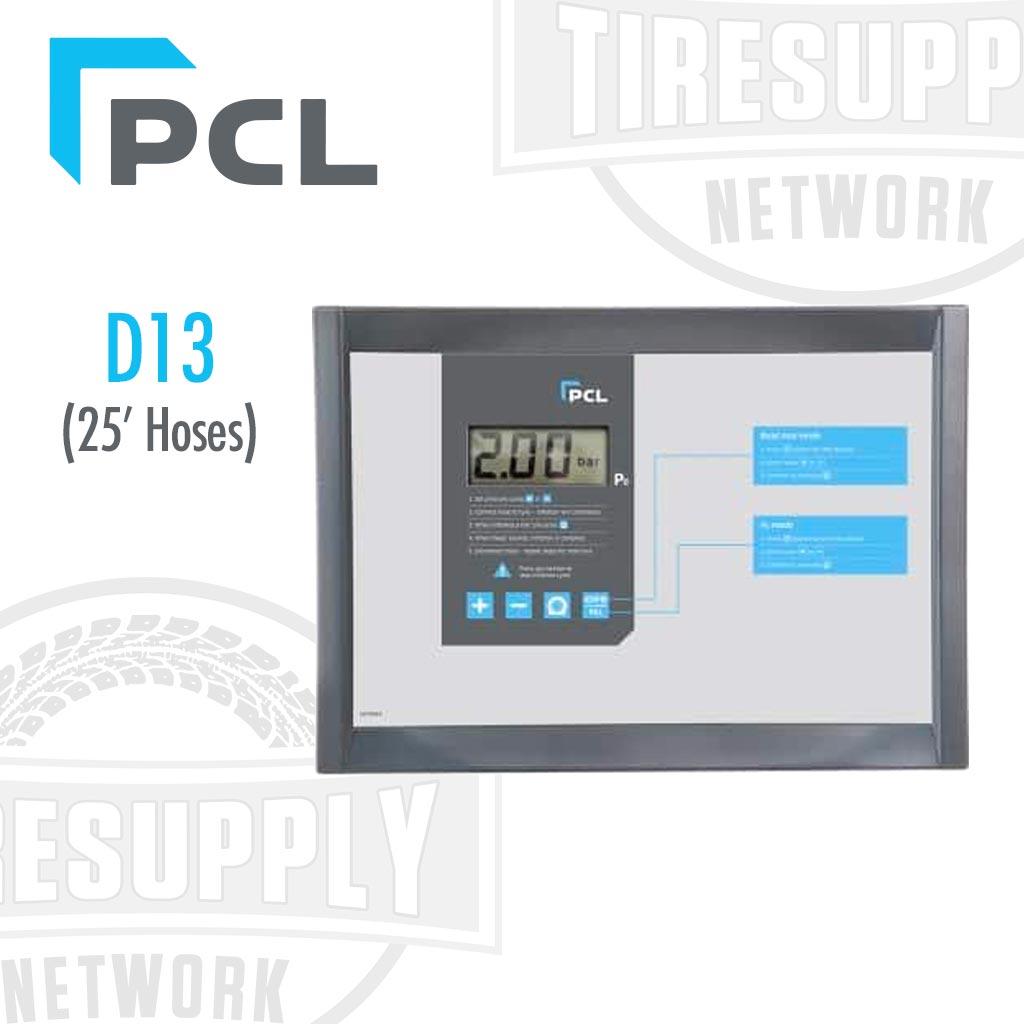

• Clear display for easy customer usage
• Robust, high reliability and modern design with die-cast aluminium housing
• Ceramic sensor - accuracy to +/-0.5% of full scale reading
• Attractive and durable membrane with customisable graphics
• Over Pressure Setting (OPS) - automated seating of bead
• Nitrogen (N2) purge
• 100/120v and 12v versions
• Can inflate accurately with hoses up to 160'
• Comprehensive diagnostics and error reporting

Specifications:

• Accuracy: Exceeds EC Directive 86/217 to +/- 0.5% of full scale reading
• Reading Accuracy: 1 psi
• Max Inlet Pressure: 232 psi
• Inflation Flow: 55 cfm @ 145 psi supply
• Hose Length: 4 x 25'
• Chuck Type: Single Lock-On
• Calibration: 0-145 psi

Approvals:

• Compliance with EC Directive 86/217 and BS EN 12645:1999
