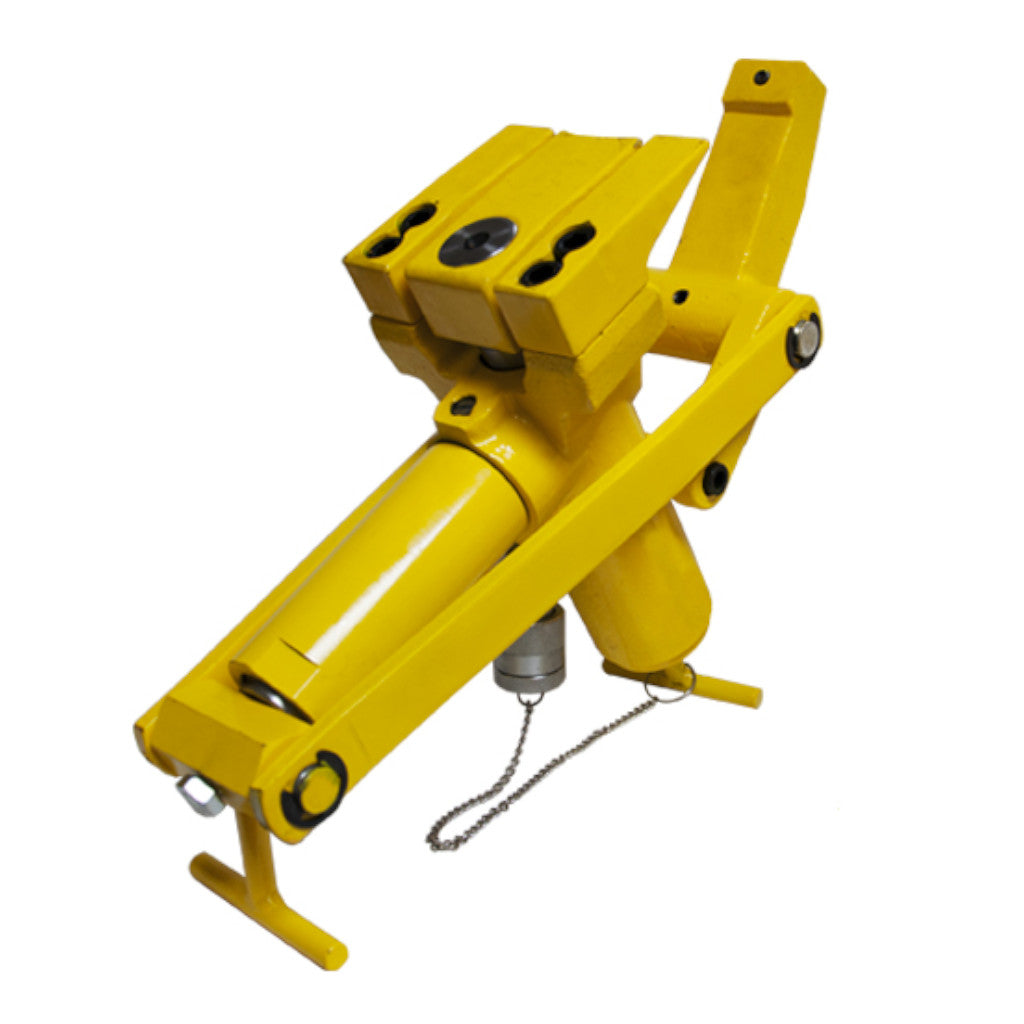

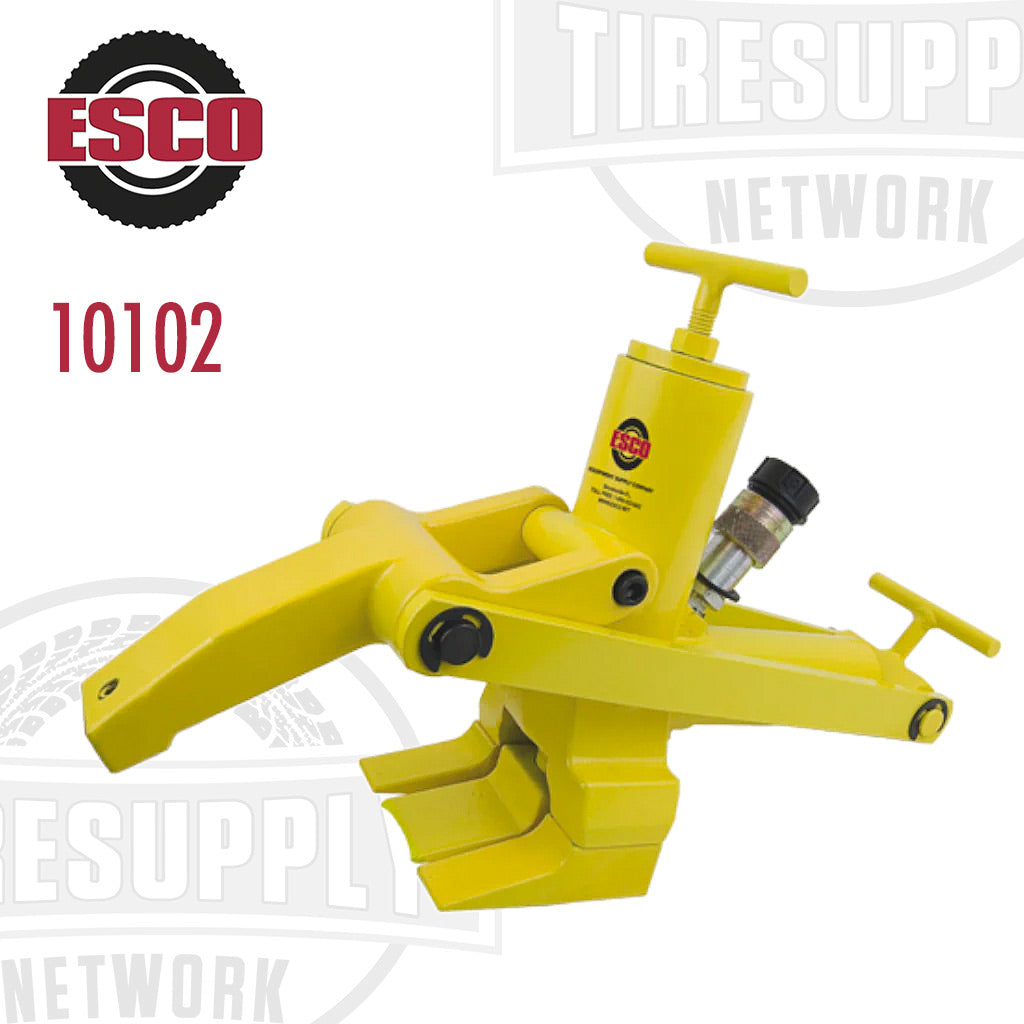

ESCO | Maxi Bead Breaker (10102)
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
Features:
- Works on ALL 3-piece wheels with extended flange that have replaced the older 5-piece wheels

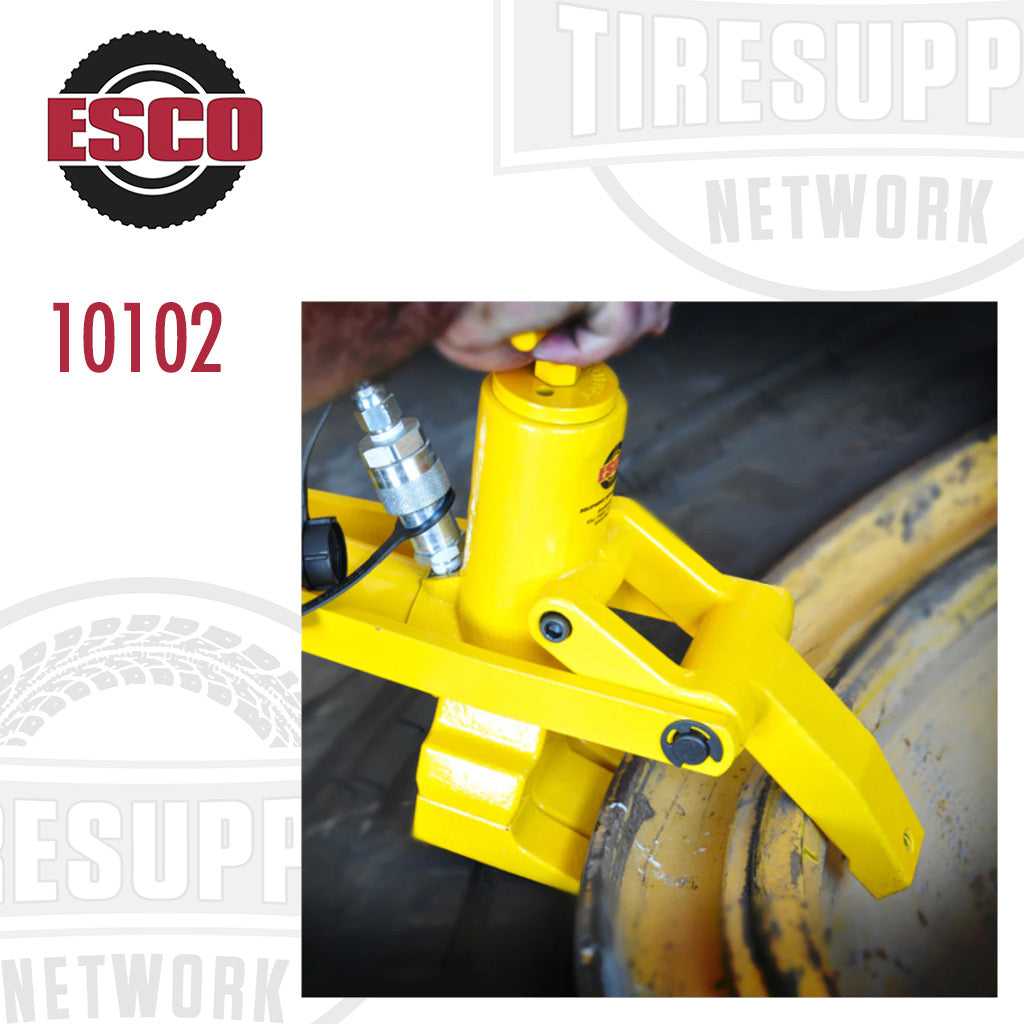

- Designed to work on front or back of the wheel with no attachments or accessories
- Clamps easily to the wheel
- Longer feet and claw than the “Combi” Bead Breaker Model #10101
- No setup time
- 13.8 tons of bead breaking force will break the toughest beads - 4” stroke (102 mm)
- Use with 10,000 PSI Hydraulic Pump
New Design Features:

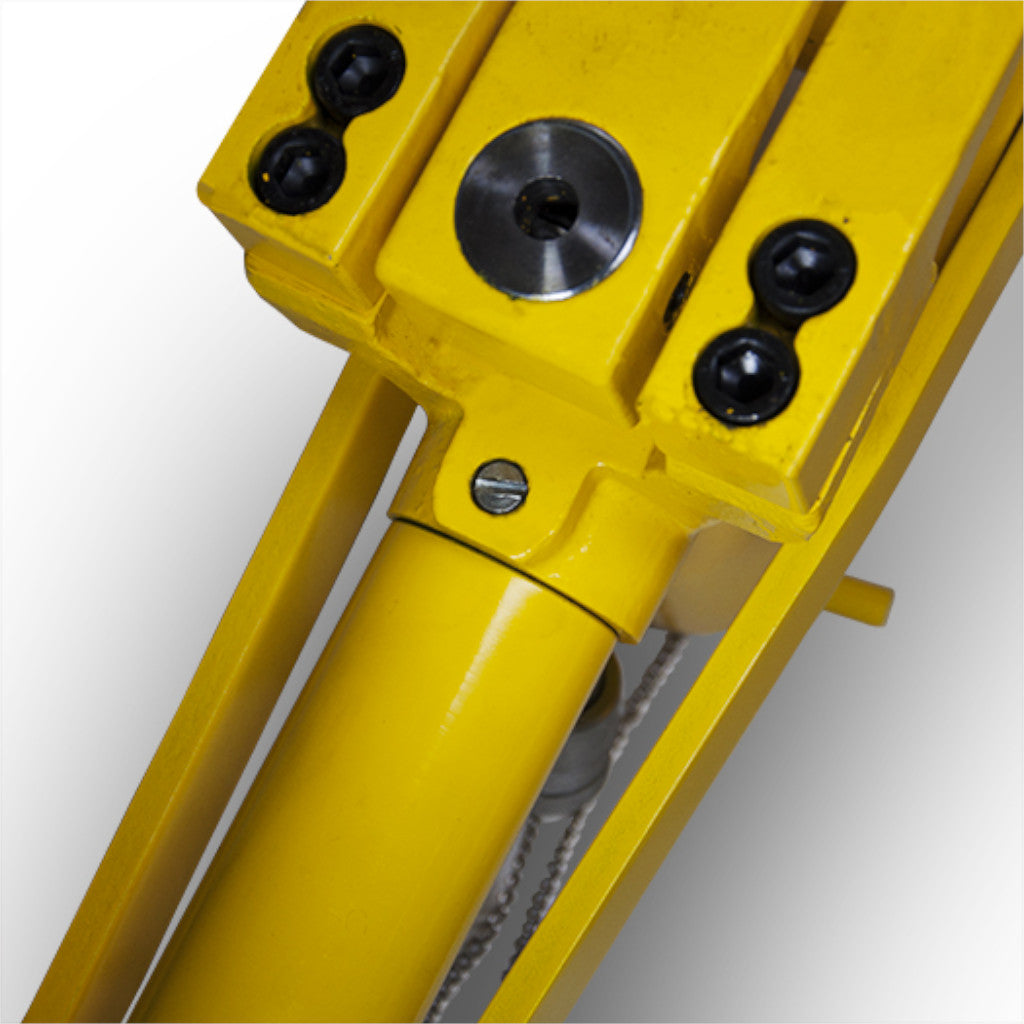

- Adjustable redesigned sequence valve screw

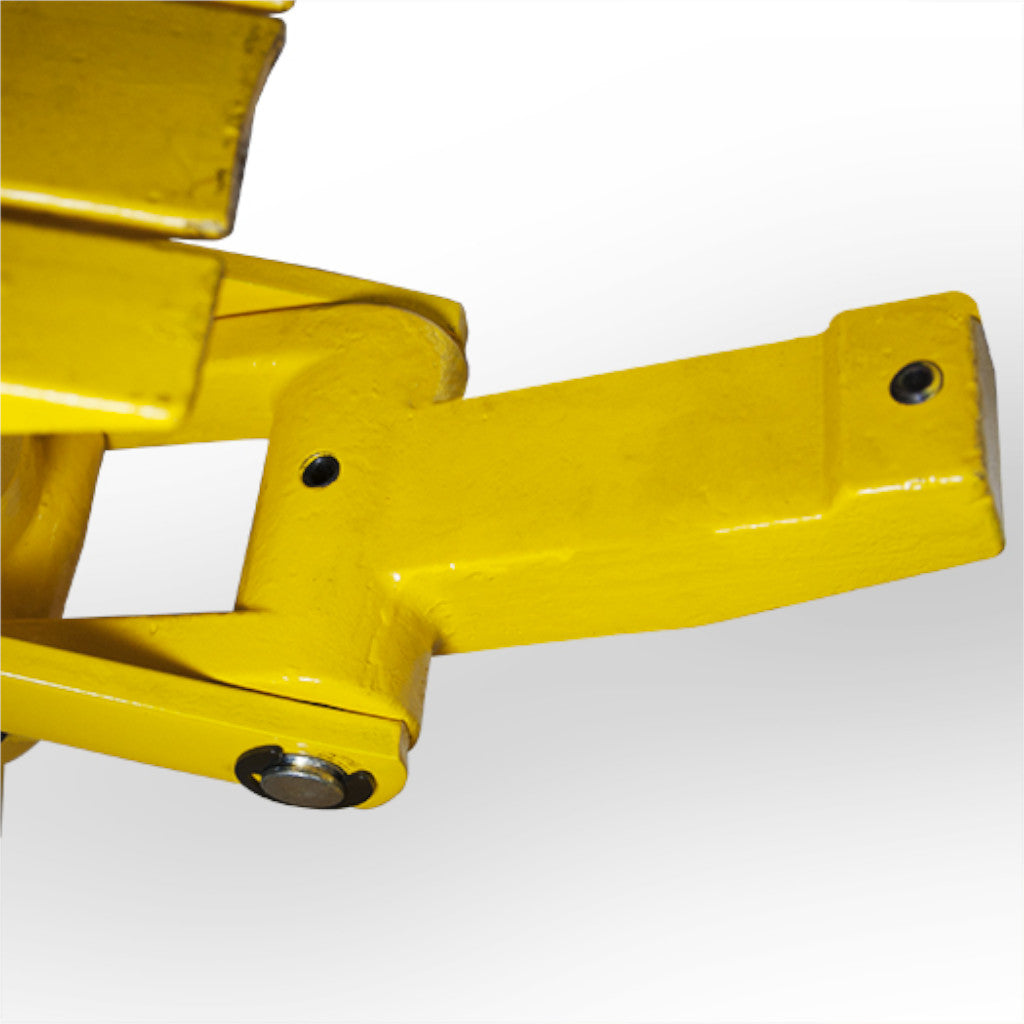

- Redesigned replaceable extended jaw for deep dished style wheels

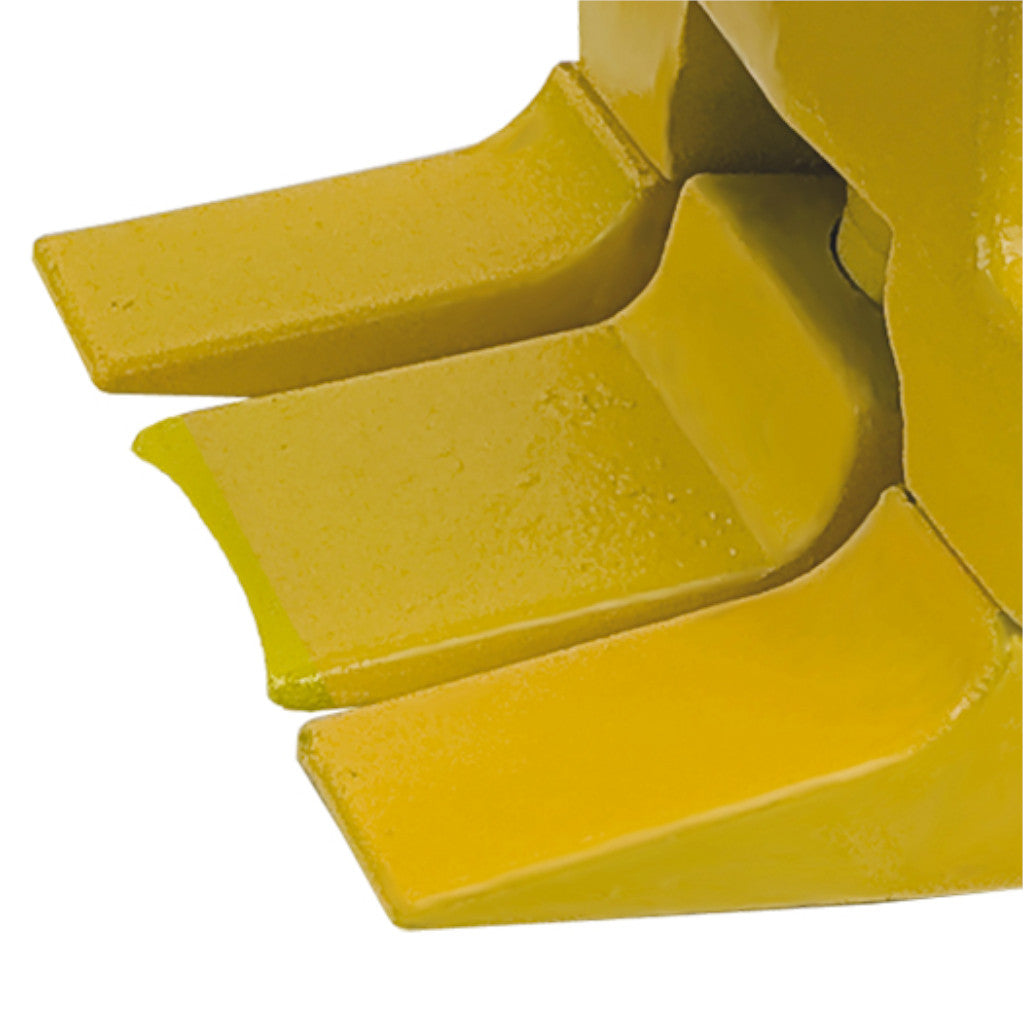

- Redesigned replaceable teeth 1.25” longer than ESCO Model #10101
Specifications:
- Ram Tonnage: 13.8 Tons
- Stroke: 4” (102 mm)
- Maximum Pressure: 10,000 PSI
- Length: 18” (457 mm)
- Height: 12” (305 mm)
- Weight: 38 lbs (17 kg)
Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
