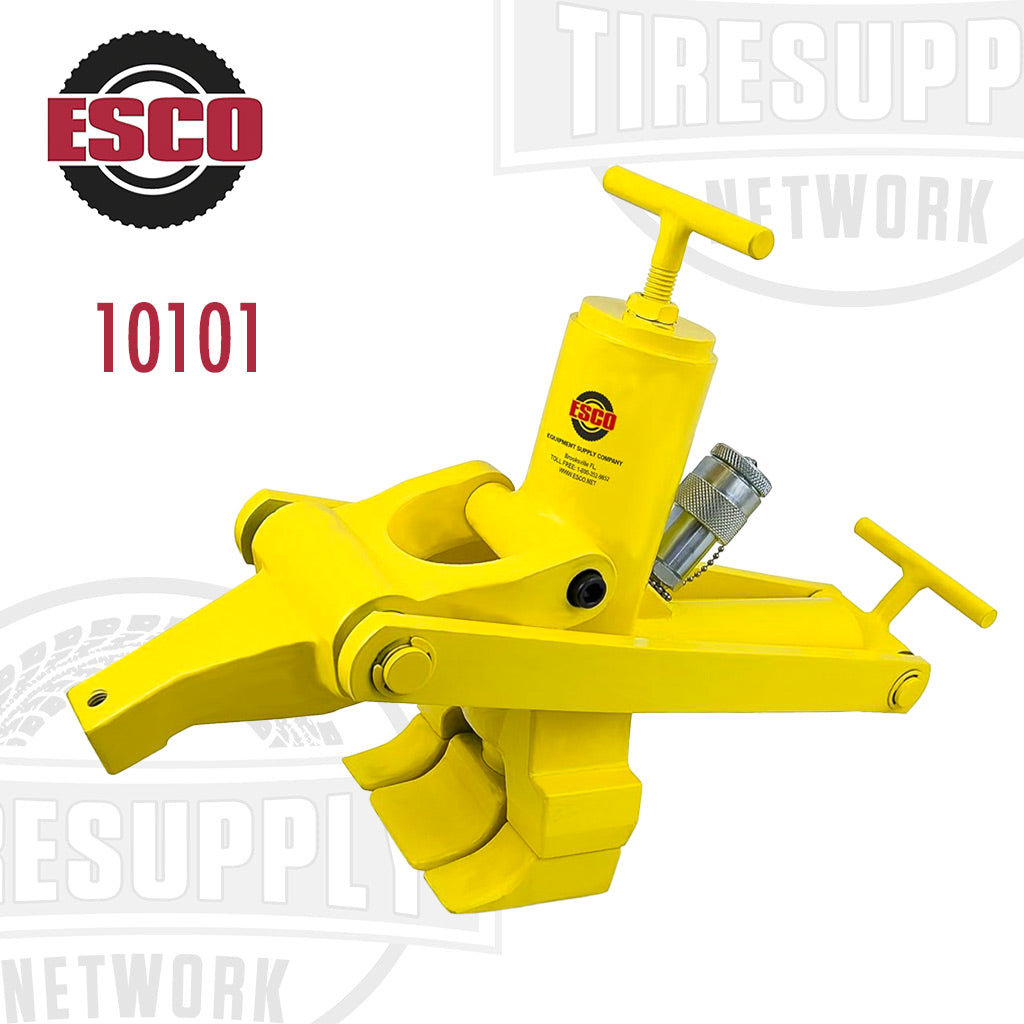

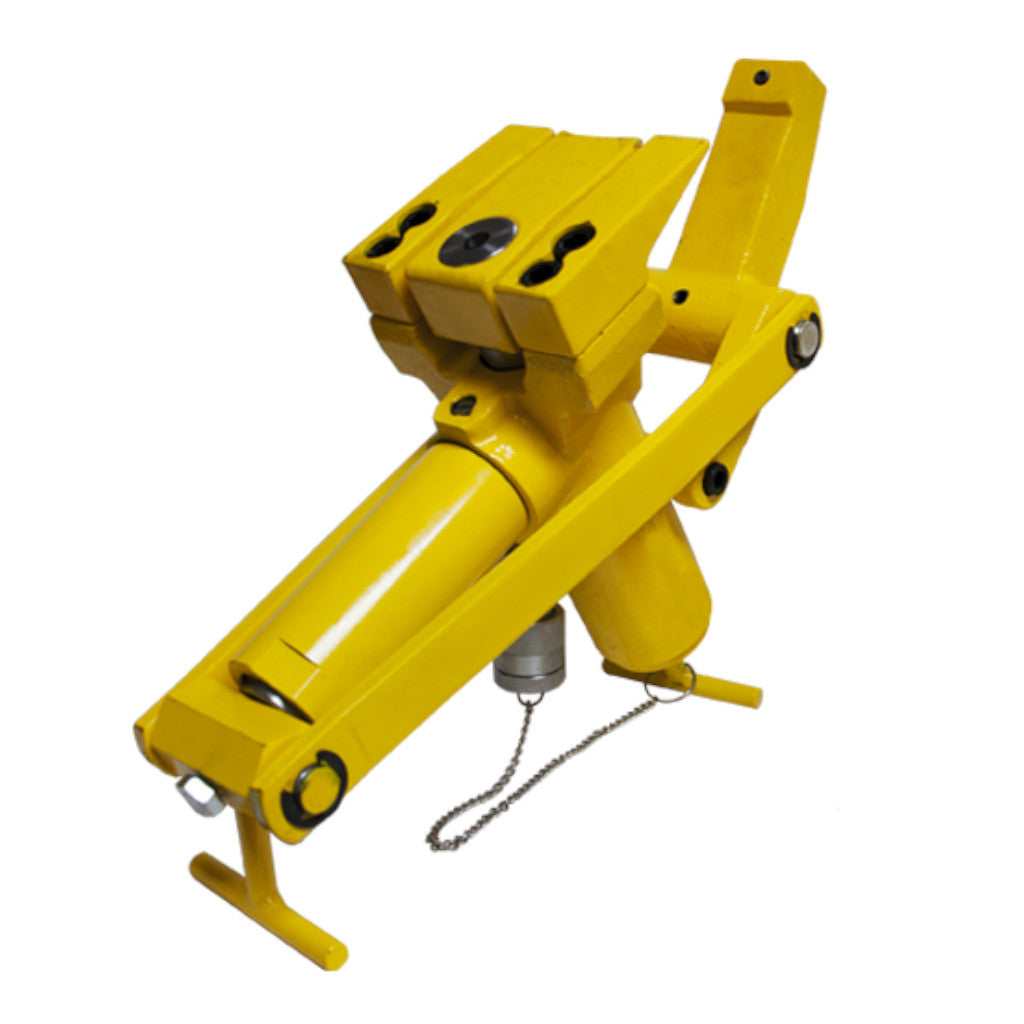

ESCO | Combi Hydraulic Tire Bead Breaker (10101)
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
PLEASE NOTE: ESCO 10101 “Combi” Bead Breaker will NOT work on five-piece Earthmover giant wheel/rim. For these applications, ESCO Model #10100 or ESCO Model #10105 is required.
Features:
- Works on 1-piece, 2-piece, and 3-piece truck tires/rims
- Breaks beads in seconds using 13.8 tons of force - 3.75” stroke (95 mm)
- Use with 10,000 PSI Hydraulic Pump
New Design Features:
- Adjustable redesigned sequence valve screw

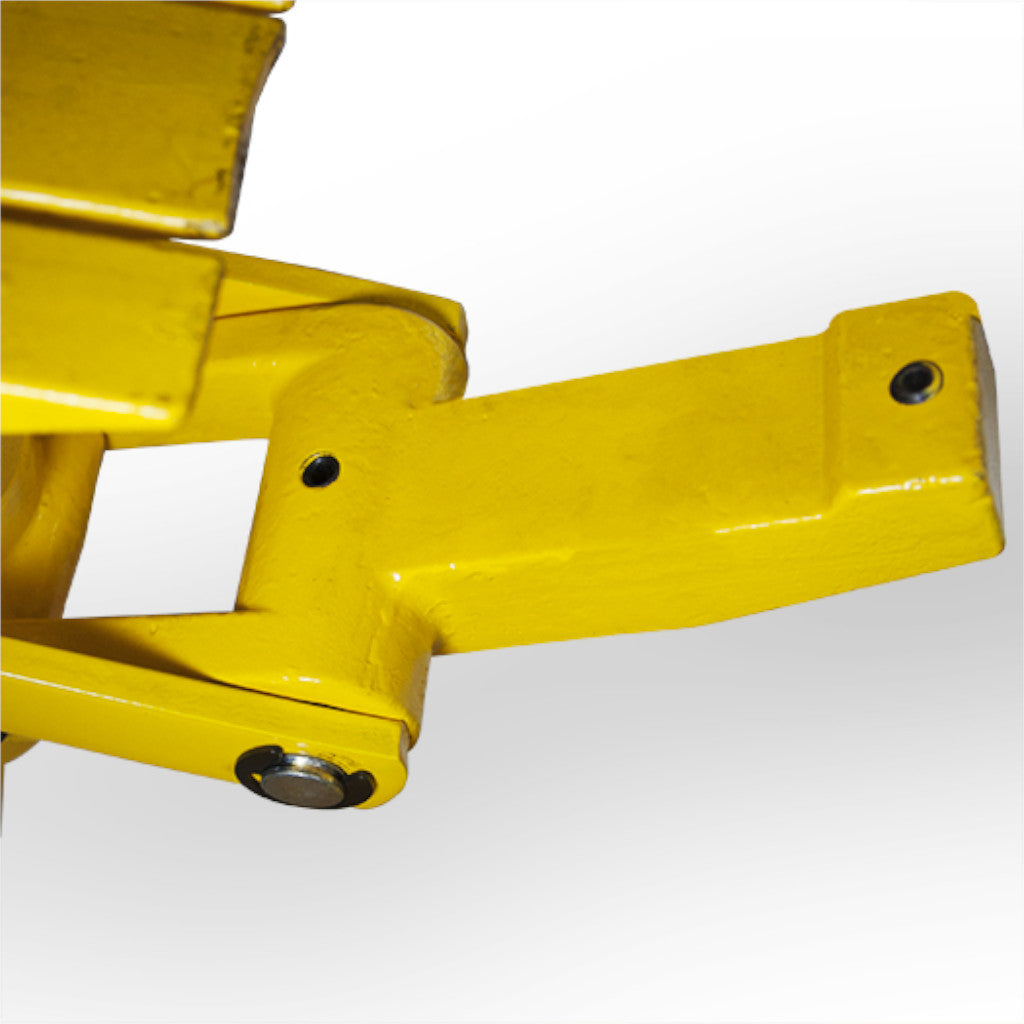

- Redesigned replaceable clamping jaw

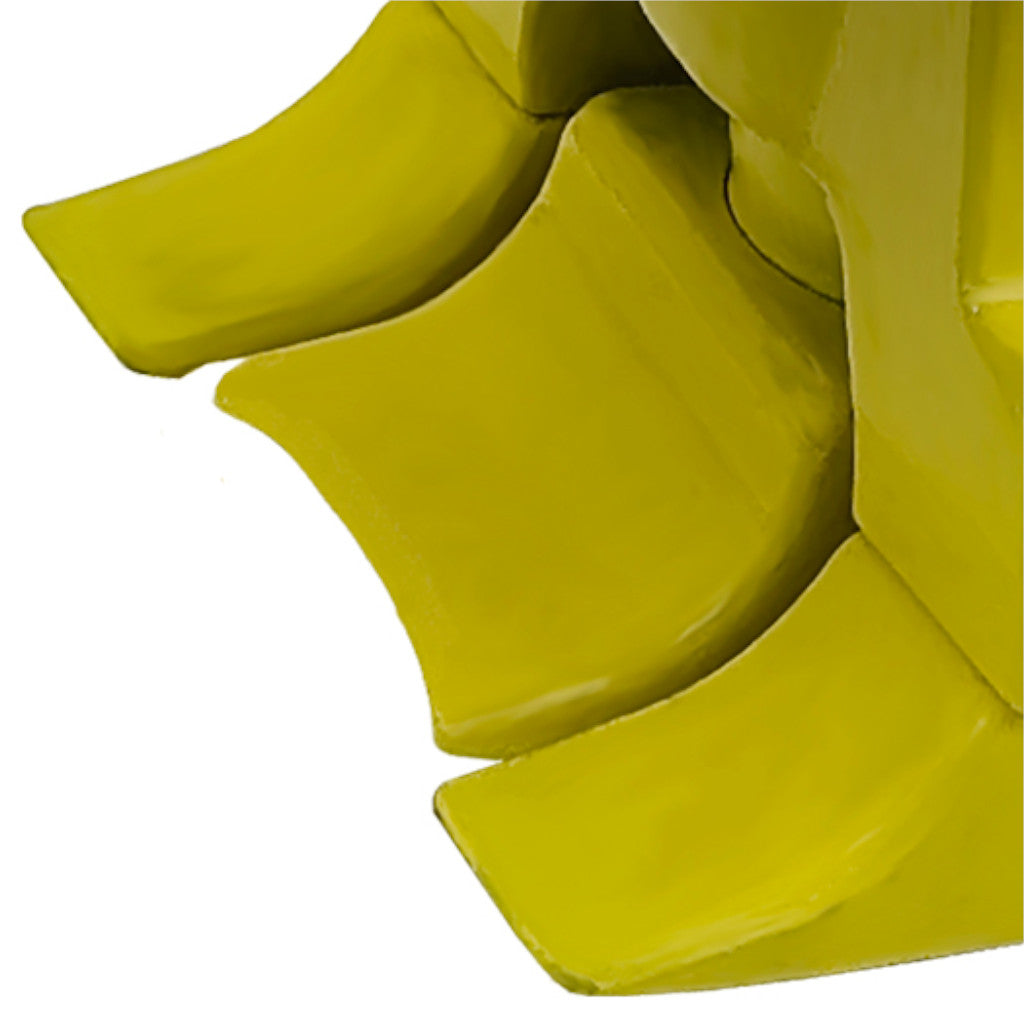

- Redesigned replaceable pushing foot
Specifications:
- Ram Tonnage: 13.8 Tons
- Stroke: 3.75” (95 mm)
- Maximum Pressure: 10,000 PSI
- Length: 18” (457 mm)
- Height: 12” (305 mm)
- Weight: 36 lbs (16 kg)
